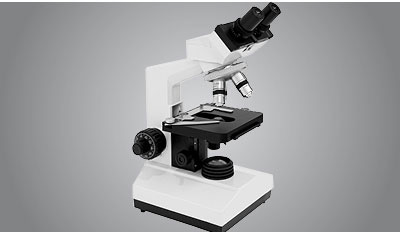

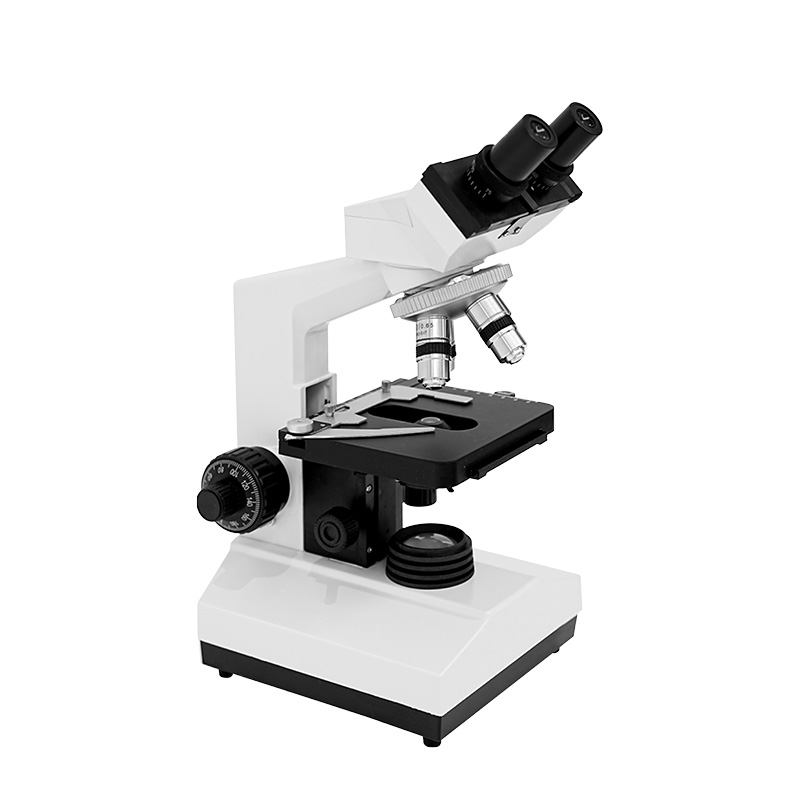

SK-SY03 Biological Microscope
Introduction:
Design: adopting ergonomic design, the overall appearance of the instrument is smooth, aesthetically pleasing, and lightweight in
structure. It is easy to observe and use, and does not cause fatigue during long-term observation. This precision optical instrument
is used for observing biological slices, biological cells, bacteria, as well as live tissue cultures and liquid precipitates. It can also be
used to observe other transparent or translucent objects, as well as fine powders and small particles.
Working principle: using the principles of optics and the magnifying imaging principle of convex lenses, tiny objects that cannot
be discerned by the human eye can be enlarged to a size that can be discerned by the human eye.
Material
Full metal body, corrosion-resistant, structurally sturdy, and has a long service life.

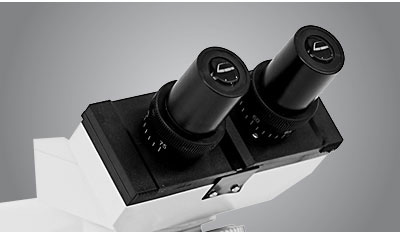

Binoculars
The binoculars with translational design allow for adjusting the distance and visibility of the pupils. They can be tilted at a 45-degree angle (for translational design) or a 30-degree angle (for hinge design) to make observations more convenient and comfortable.

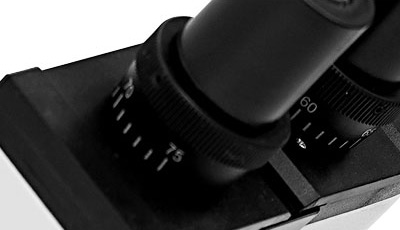

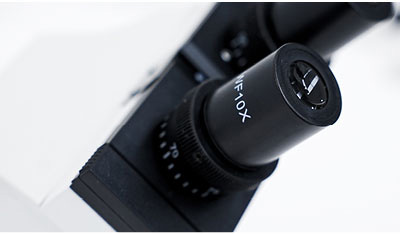

Eyepieces
Metal material equipped with WF10X and WF16 wide field of view eyepieces, for more comfortable observation and clearer imaging.

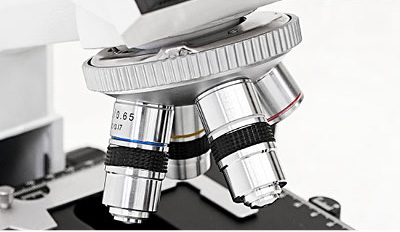

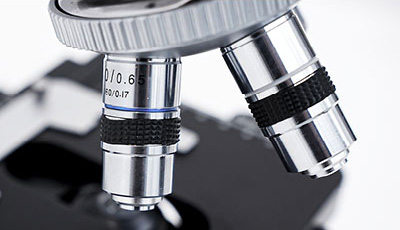

Objective lenses
Equipped with four objective lenses with magnifications of 4X, 10X, 40Xs, and 100Xs(oil), which have better imaging performance than ordinary objective lenses and are capable of correcting chromatic aberration.

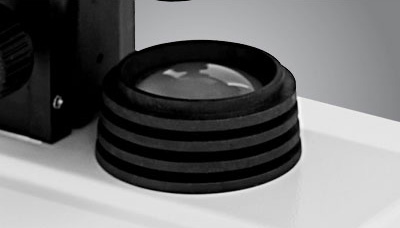

Collecting lens
By gathering the function of optical fibers, the center can be adjusted conveniently to adjust the center of the optical axis at any time.

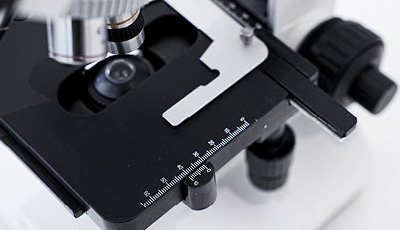

Objective table
Double-layered activity platform, more convenient operation, more precise positioning. Dimensions are 140x130mm, with a movement range of 75mmx45mm.
Converter
Four-hole converter ensures smooth switching between four objective lenses.
Focusing mechanism
Coaxial coarse and fine focusing mechanism with a focusing range of 30mm.

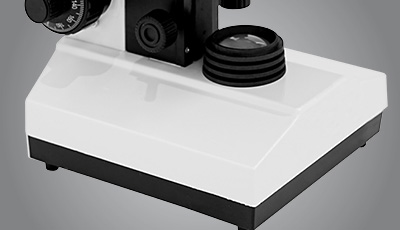

Base
Sturdy base to prevent movement, keep stable, and provide a comfortable, non-shaky viewing experience.
Built-in lighting system, electrical components, and switches.
| Individual size of product | 220×205×390mm |
| Product weight | 9kg |
| Binoculars | Translation binocular head, 45 degree tilt, 360 degree rotation |
| Eyepieces | Large field eyepiece WF10X WF16 |
| Objective lenses | Achromatic objective 4X 10X 40Xs 100Xs(oil) |
| Converter | Four-hole converter |
| Collecting lens | Abbe Condenser NA1.25 with variable light bar, color filter |
| Focusing mechanism | Coaxial coarse and fine focusing mechanism with a focusing range of 30mm. |
| Objective table | Double-layered activity platform, dimensions are 140x130mm, with a movement range of 75mmx45mm. |
| Illumination | 6V/20W Halogen lamp with adjustable brightness |
