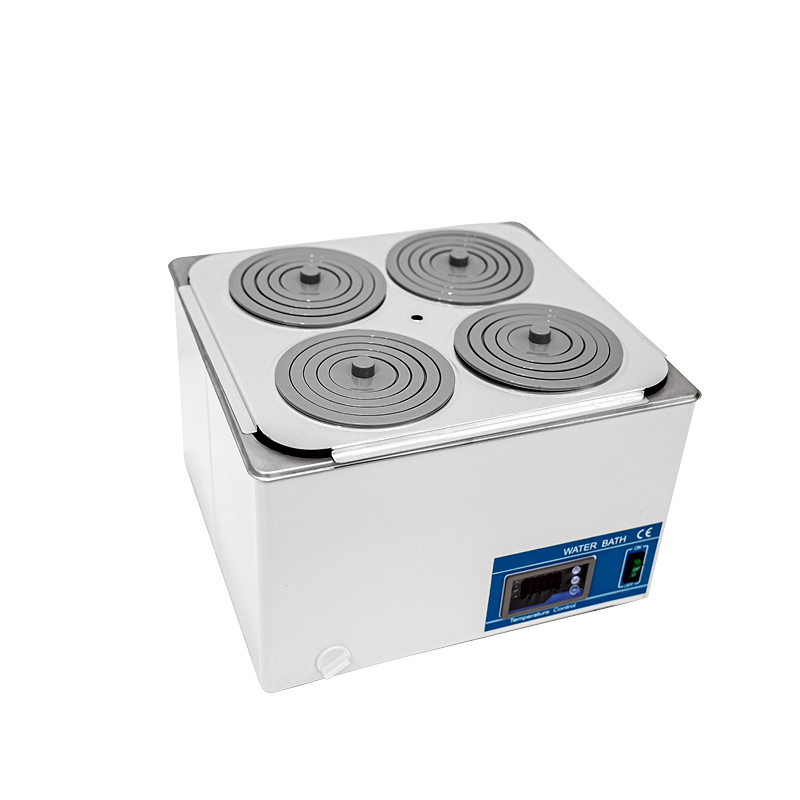

SK-SY18 Digital Display Constant Temperature Water Bath
Introduction:
Design:Suitable for use in vocational colleges, industrial and mining enterprises, and scientific research units for precision constant temperature control and auxiliary heating. Used for distillation, drying, concentration, and temperature-controlled chemical and biological products in laboratory experiments, as well as for constant temperature heating and other temperature tests.
Working principle:The Cu50 sensor converts the temperature of the water in the tank into a resistance value, which is then amplified and compared by the integrated amplifier. An output control signal is generated to effectively control the average heating power of the heating tube, thus maintaining a constant temperature of the water in the tank.
Material
The box body is made of thick coldrolled steel plate, which is firm and reliable. The surface is electroplated, polished, and painted using a process that does not peel and is corrosion-resistant.

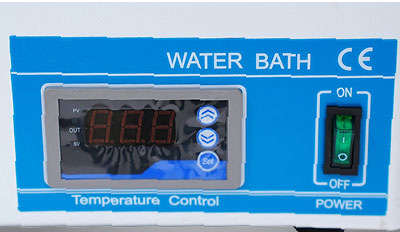

Control Panel
Intelligent digital temperature controller, accurate temperature control, digital display, and easy operation.

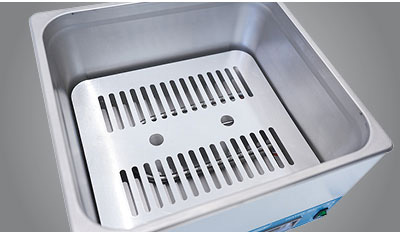

Liner
The stainless steel liner is formed in one piece with rounded corners, making it easy to clean. It is resistant to high temperatures and corrosion.

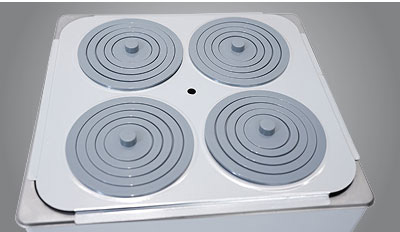

Pot cover
The adjustable pot cover is made of PP material and can be adjusted to fit containers of different sizes.

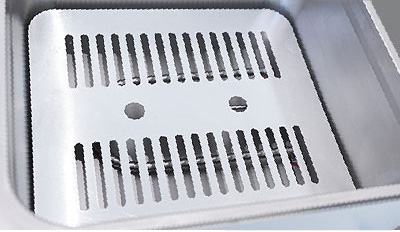

Waterproof carrier
Round arc design is not easy to handle, made of stainless steel material, strong load bearing capacity. Can carry up to 30kg.

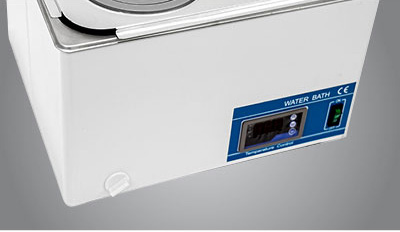

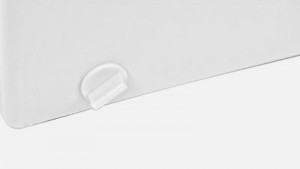

Drainage
The plug has good sealing performance, does not leak water, and is convenient to use.
| Volume | 12L |
| Power | 1000w |
| Temperature fluctuation | ±1℃ |
| Temperature control range | rt+5 -99℃ |
| Temperature control accuracy | ±1℃ |
| Power supply | 110v 60hz /220v 50hz |
| Studio size(mm) | 320x320x120 |
| Machine size(mm) | 360x330x240 |
| Gross/net weight | 6/5 kg |
We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate 126 registered technological patents and fulfill more than 20 quality certifications (ISO-9001/13485/14001/18001, European CE, FDA of the USA, Russian Federal Register, ANVISA of Brazil, etc.), in addition to the 93/42/EEC and IEC60601 safety standards. In all of this our R&D department is key, in which we invest 10% of our profits annually.
WARRANTY
* We provide a standard 1 year warranty, optional to be increased. 1% free parts of the total quantity will be provided together with goods. * The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company. * Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
FAQ
What quality requirements does your company meet? * We have over 20 certifications, as ISO-9001/13485/14001/18001, European CE, North American FDA, Russian Federal Registration and Brazilian Health Regulatory Agency. * We also meet the 93/42/EEC and IEC60601 safety standards. * In addition to having 126 patents registered, we are constantly developing and implementing new standards for product quality and service efficiency. What warranty do your products have? * We provide a standard 1 year warranty, optional to be increased. * 1% free parts of the total quantity will be provided together with goods. * The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company. * Beyond the maintenance period, we will charge the accessories, but the technical service is still free. What is your delivery time? * Our standard delivery time is 28 days. What payment options do you offer? * We are flexible in terms of payment. We can do LC, TT, DP, even credit, after auditing the customer. Do you offer OEM service? * Yes, we have a qualified R&D team to carry out customized projects. You just need to provide us with your own specifications. Do you have different motor options? * Yes, we have different brands of motors, as Linak, Timotion, Dewert or Jiechang. Is the color on headboard/footboard and ABS side rail optional? * Yes, we can provide the color according to customers’ requirements, based on wholesale purchases. Can I see your products personally? * You are welcome to our 2,000 m2 of showrooms in our factory in China (150 km from Shanghai). * In addition, we annually attend numerous international exhibitions where we present our products, such as Arab Health (United Arab Emirates), North Africa Health (Egypt), CMEF (Shanghai), German Medica (Germany), Medic West Africa (Nigeria), Medic East Africa (Kenya), Pharmedi (Vietnam), Hospitalar (Brazil), Medical Expo (Morocco), etc.
