Design: Instruments are widely used in industries such as medicine and health, clinical testing, biochemistry, and environmental protection. They are one of the commonly used analytical instruments in physical and chemical laboratories. They are used for liquid mixing, mainly for stirring or heating and stirring low-viscosity liquids or solid liquid mixtures.
Working principle: By using the principle of magnetic field’s like poles repel and opposite poles attract, a magnetic stirrer placed in a container is driven in a circular motion through the magnetic field to stir the liquid. Together with a temperature control system, the liquid can be heated to the desired experimental temperature.

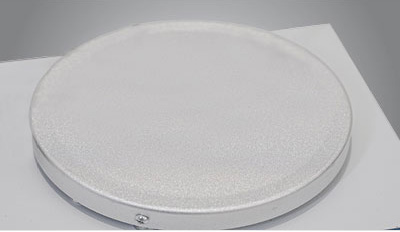

Sample tray
The stainless steel sample tray is sturdy, corrosion-resistant, and easy to clean.

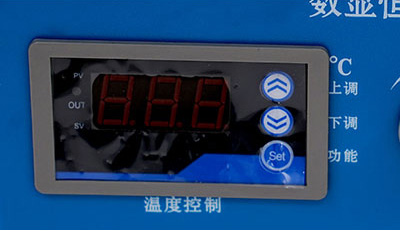

Display screen
The LCD liquid crystal display screen shows clear and beautiful content, and the reading is accurate and intuitive.

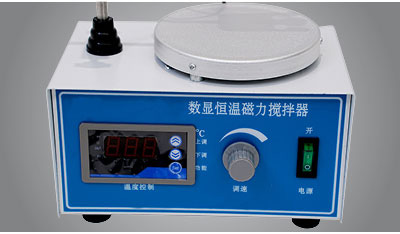

Shell material
The box body is made of thick coldrolled steel plate, which is firm and reliable. The electrostatic spraycoated shell does not peel off paint and is corrosion-resistant.

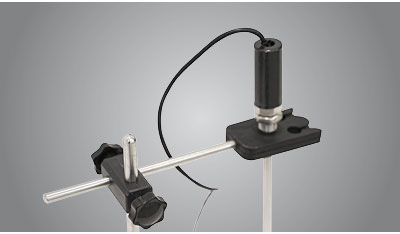

Pole
Stainless steel uprights are used, which are sturdy, durable, and corrosion-resistant.

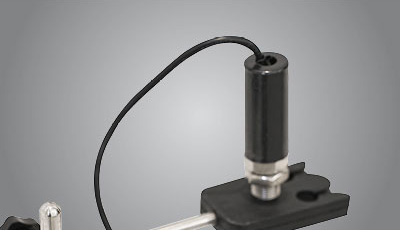

Temperature Sensor
An external temperature sensor is used to monitor and control the sample temperature in real-time.

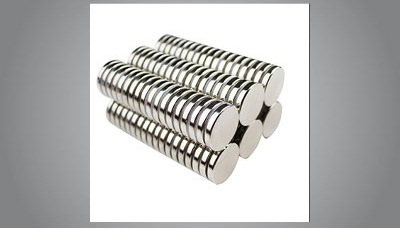

Strong magnet
Strong magnetic magnets are used, which have a significant stirring effect.
Speed range | start ~1600 rpm |
Stirring power | 25w |
Temperature range | rt+5 ~99℃ |
Heating power | 120w |
Table size(mm) | ¢120 |
Stirring capacity | 100~1000ml |
Power supply | 110v 60hz/220v 50hz |
Machine size(mm) | 225x160x130 |
Gross/net weightt | 2.5/2Kg |
We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate 126 registered technological patents and fulfill more than 20 quality certifications (ISO-9001/13485/14001/18001, European CE, FDA of the USA, Russian Federal Register, ANVISA of Brazil, etc.), in addition to the 93/42/EEC and IEC60601 safety standards. In all of this our R&D department is key, in which we invest 10% of our profits annually.
* We provide a standard 1 year warranty, optional to be increased. 1% free parts of the total quantity will be provided together with goods. * The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company. * Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
What quality requirements does your company meet? * We have over 20 certifications, as ISO-9001/13485/14001/18001, European CE, North American FDA, Russian Federal Registration and Brazilian Health Regulatory Agency. * We also meet the 93/42/EEC and IEC60601 safety standards. * In addition to having 126 patents registered, we are constantly developing and implementing new standards for product quality and service efficiency. What warranty do your products have? * We provide a standard 1 year warranty, optional to be increased. * 1% free parts of the total quantity will be provided together with goods. * The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company. * Beyond the maintenance period, we will charge the accessories, but the technical service is still free. What is your delivery time? * Our standard delivery time is 28 days. What payment options do you offer? * We are flexible in terms of payment. We can do LC, TT, DP, even credit, after auditing the customer. Do you offer OEM service? * Yes, we have a qualified R&D team to carry out customized projects. You just need to provide us with your own specifications. Do you have different motor options? * Yes, we have different brands of motors, as Linak, Timotion, Dewert or Jiechang. Is the color on headboard/footboard and ABS side rail optional? * Yes, we can provide the color according to customers’ requirements, based on wholesale purchases. Can I see your products personally? * You are welcome to our 2,000 m2 of showrooms in our factory in China (150 km from Shanghai). * In addition, we annually attend numerous international exhibitions where we present our products, such as Arab Health (United Arab Emirates), North Africa Health (Egypt), CMEF (Shanghai), German Medica (Germany), Medic West Africa (Nigeria), Medic East Africa (Kenya), Pharmedi (Vietnam), Hospitalar (Brazil), Medical Expo (Morocco), etc.
