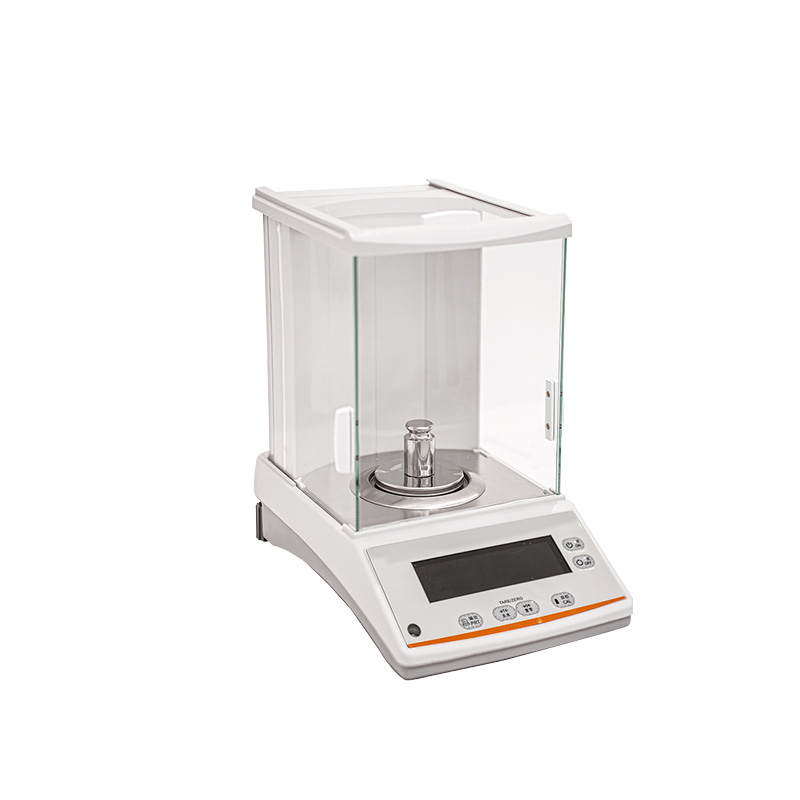

SK-SY11 Digital Analytical Balance Scale


  • Product Type: SK-SY11
  • Introduction:

    Design: Suitable for industries such as pharmacies, pharmaceutical factories, hospitals, health clinics, research institutes, and disease control centers. A 0.1mg (one ten-thousandth of a gram) electronic balance, used for weighing samples with high accuracy requirements.

    Working principle: When the substance is placed on the weighing pan, the position detector of the sensor detects a change in signal, and the amplifier feedback increases the current in the sensor coil. This current produces a feedback force in a constant magnetic field that balances the loaded weight. At the same time, the voltage value of this current on the measuring resistor Rm is sent to the microprocessor through a filter and an analog-to-digital converter for data processing. Finally, the weight value of the substance being weighed is automatically displayed on the screen.

    Security System:Fully automatic fault detection and overload protection are included.

    Highlights

    Features

    Quality Control

    Warranty

    Download

    SK-SY11_Alibaba5_02

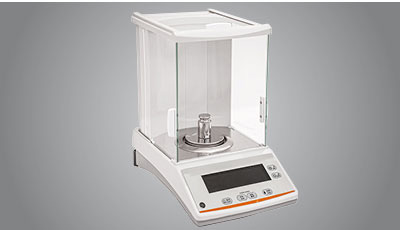

    Material

    Brand new ABS engineering plastic shell, resistant to interference and corrosion.

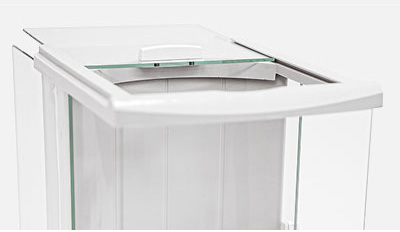

    Windshield

    Anti-static coated glass windshield on four sides can effectively shield the interference of external static charges, with clear vision and more stable measurement.



    SK-SY11_Alibaba5_03
    SK-SY11_Alibaba5_06

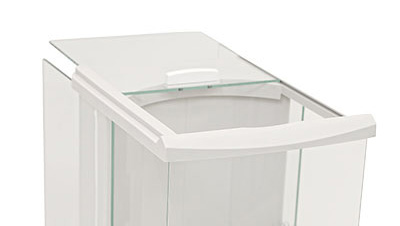

    Storm door

    Top ABS windproof sliding door design makes measurement more convenient.

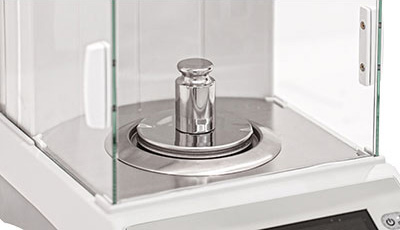

    Scale Pan

    304 stainless steel weighing pan is safe, corrosion-resistant, tough, has a long service life, and does not deform.





    SK-SY11_Alibaba5_07
    SK-SY11_Alibaba6_02

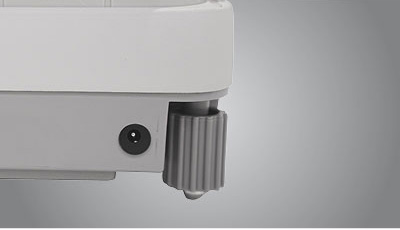

    Base Material

    Brand new ABS engineering plastic base with adjustable feet is stable, durable, and ensures precise measurement.

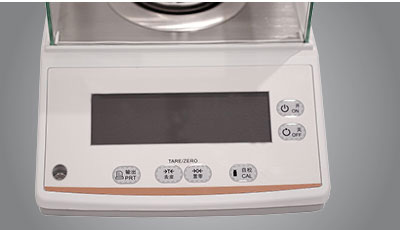

    Control Panel

    High-definition large LCD display screen is easy to read. The keys have powerful functions and tactile feedback. The addition of a horizontal bubble facilitates the adjustment of the level.



    SK-SY11_Alibaba6_03
    SK-SY11_Alibaba6_06

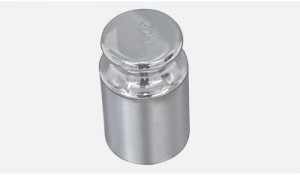

    Refrigeration part

    Standard external weight calibration allows for one-button fully automatic calibration.

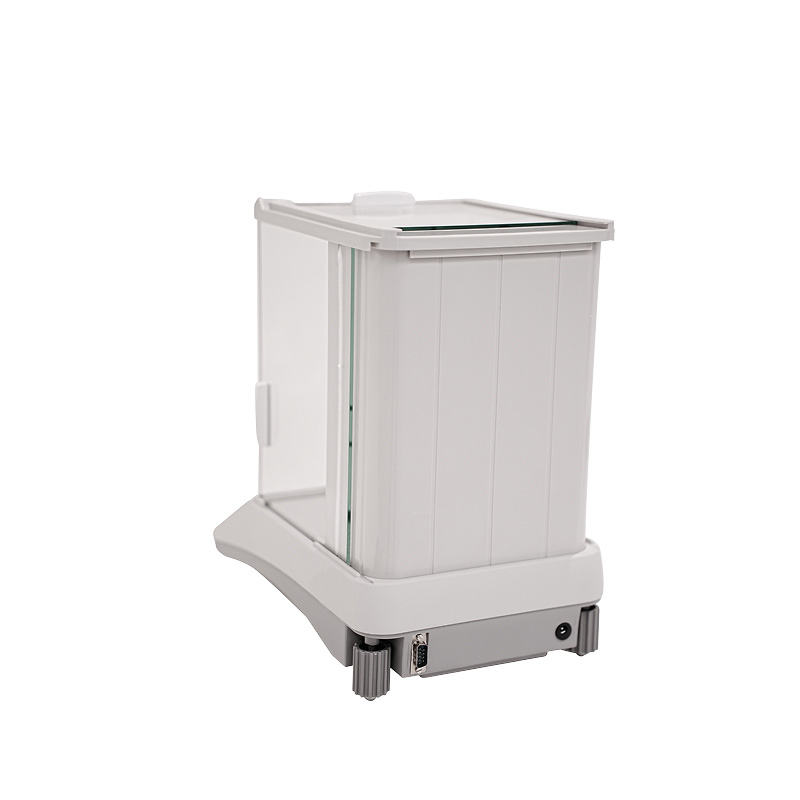

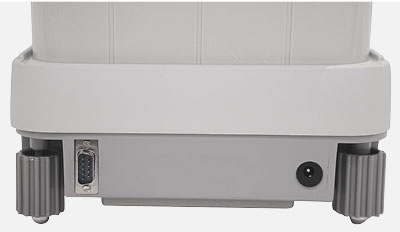

    RS-232 Interface

    Built-in RS-232 interface can be connected to a computer, printer, and other devices, making it convenient for data recording and processing.

    SK-SY11_Alibaba6_07

  • Previous:
  • Next:

  • Technical parameters
    Weighing Range 0-200g
    Resolution 0.1mg
    Repeatability ±0.2mg
    Liner ±0.2mg
    Pan Size Ф80mm
    Output Interface RS232C
    Dimension 34cm×21.5cm×35cm
    N.weight 5.5kg
    G.weight 7.5kg
    Power Supply  AC 110-240V
