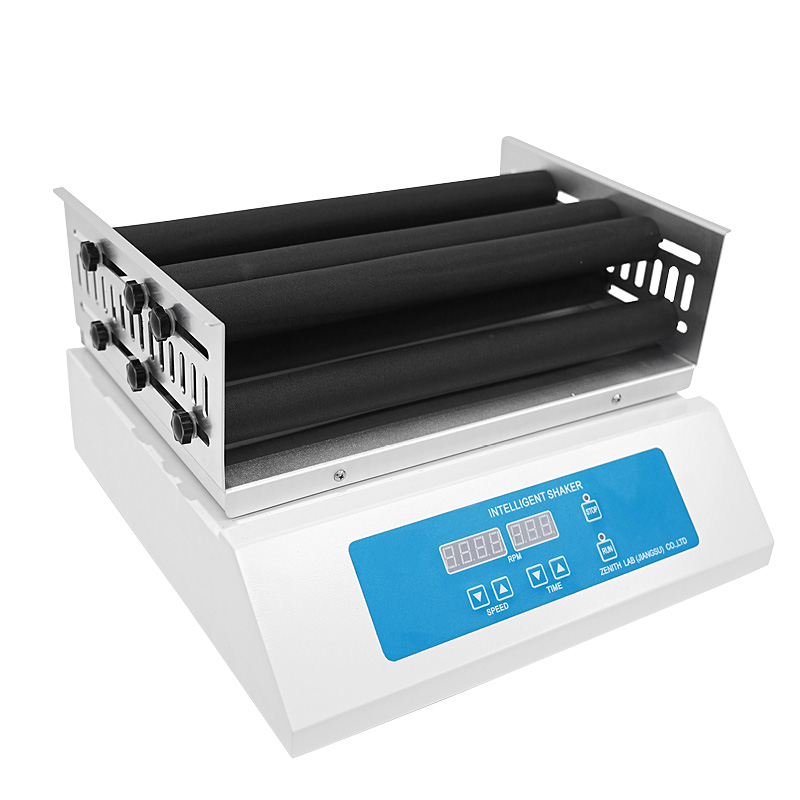

SK-SY05 Oscillator
Introduction:
Design: The product is suitable for laboratories in scientific research departments such as medical and health, pharmaceutical industry, biochemistry, industrial production, and agricultural science. It is an experimental instrument used for swirling and mixing various samples under the same environmental conditions, also known as a rotary oscillation mixer.
Working principle: A permanent magnet DC motor drives a rotating tray to oscillate and mix experimental samples.

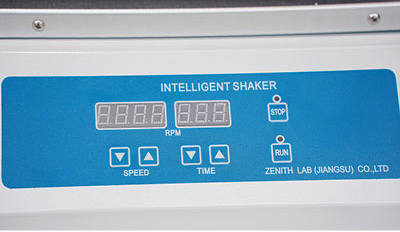

Operation panel
LCD display, button operation is simple.
Material
Cold-rolled steel material, electrostatic spray coating, no paint peeling, corrosion resistant.

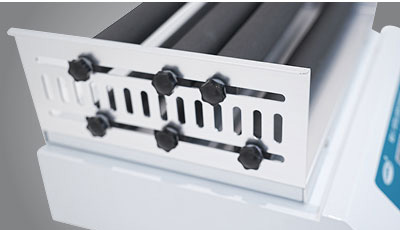

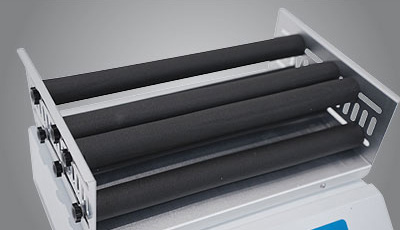

Clamp-style tray
Clamp-style tray, adjustable distance.

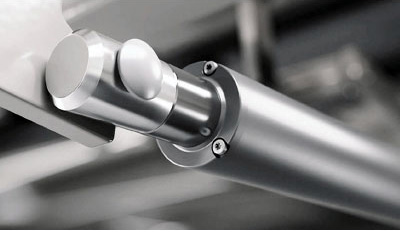

Motor
The permanent magnet DC motor is driven by a precision electronic speed control circuit, and it has the characteristics of smooth rotation, low noise, and adjustable speed.
|
Oscillation mode
|
rotatory-type
|
|
Work table size (mm)
|
420×290
|
|
Speed adjustable range
|
start-300 rpm
|
|
Timing
|
0~990 minutes
|
|
Amplitude
|
20mm
|
|
Power supply
|
110v 60hz/220v 50hz
|
|
Overall dimensions (mm)
|
420x410x260
|
|
Gross/net weight
|
30/18kg
|
We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate 126 registered technological patents and fulfill more than 20 quality certifications (ISO-9001/13485/14001/18001, European CE, FDA of the USA, Russian Federal Register, ANVISA of Brazil, etc.), in addition to the 93/42/EEC and IEC60601 safety standards. In all of this our R&D department is key, in which we invest 10% of our profits annually.
WARRANTY
* We provide a standard 1 year warranty, optional to be increased. 1% free parts of the total quantity will be provided together with goods. * The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company. * Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
FAQ
What quality requirements does your company meet? * We have over 20 certifications, as ISO-9001/13485/14001/18001, European CE, North American FDA, Russian Federal Registration and Brazilian Health Regulatory Agency. * We also meet the 93/42/EEC and IEC60601 safety standards. * In addition to having 126 patents registered, we are constantly developing and implementing new standards for product quality and service efficiency. What warranty do your products have? * We provide a standard 1 year warranty, optional to be increased. * 1% free parts of the total quantity will be provided together with goods. * The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company. * Beyond the maintenance period, we will charge the accessories, but the technical service is still free. What is your delivery time? * Our standard delivery time is 28 days. What payment options do you offer? * We are flexible in terms of payment. We can do LC, TT, DP, even credit, after auditing the customer. Do you offer OEM service? * Yes, we have a qualified R&D team to carry out customized projects. You just need to provide us with your own specifications. Do you have different motor options? * Yes, we have different brands of motors, as Linak, Timotion, Dewert or Jiechang. Is the color on headboard/footboard and ABS side rail optional? * Yes, we can provide the color according to customers’ requirements, based on wholesale purchases. Can I see your products personally? * You are welcome to our 2,000 m2 of showrooms in our factory in China (150 km from Shanghai). * In addition, we annually attend numerous international exhibitions where we present our products, such as Arab Health (United Arab Emirates), North Africa Health (Egypt), CMEF (Shanghai), German Medica (Germany), Medic West Africa (Nigeria), Medic East Africa (Kenya), Pharmedi (Vietnam), Hospitalar (Brazil), Medical Expo (Morocco), etc.
