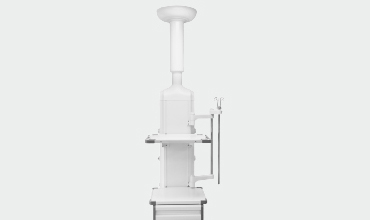

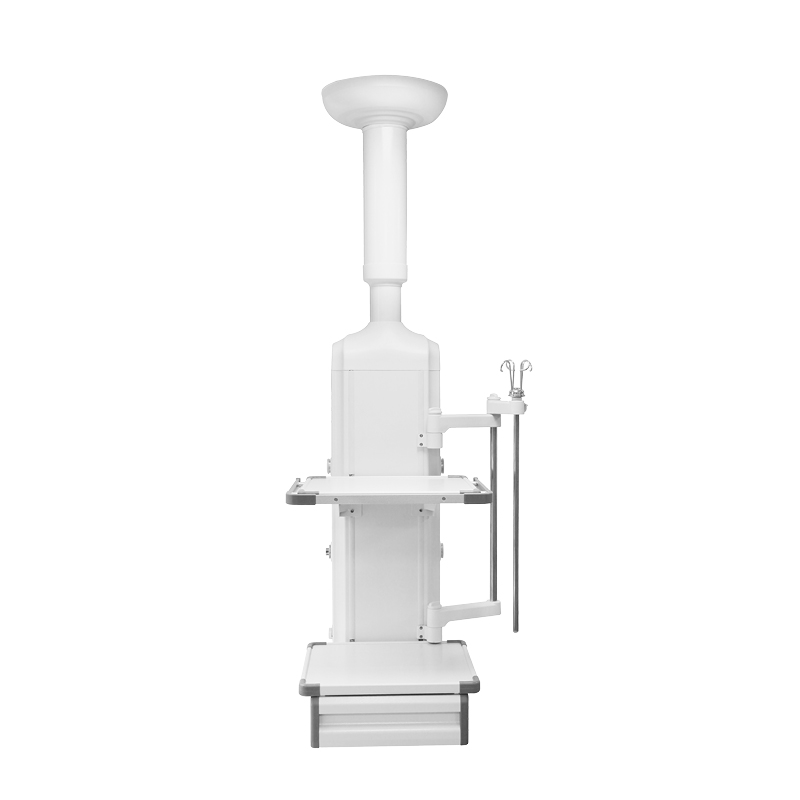

SK-PT007 Supply Column


  • Product Type: SK-PT007
  • Introduction:

    The function column is a medical rescue auxiliary equipment;

    Features:

    1.With compact structure and saving  ground space;

    2.The function column can be rotated angle 340°;

    3.With medical gas on both sides of the column

    4. Multilayer medical instrument platform, IV pole





    Highlights

    Features

    Quality Control

    Warranty

    Download

    SK-PT007 (1)

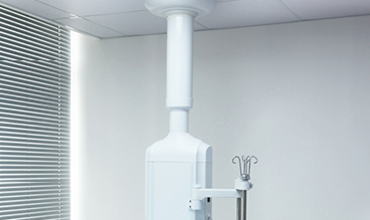

    Appearance design
    The design of ceiling type function column, saves ground space; the whole function column is fully sealed, no sharp angle to prevent the impact.

    Painting
    Imported plastic powder, electrostatic painting process, painting thickness 0.12mm, brightness 60°, paint can resist 50kg impact.

    SK-PT007 (2)
    SK-PT007 (3)

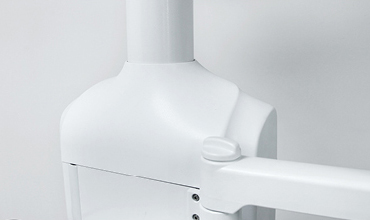

    Welding
    Panasonic Robot ensure 360° full smooth welding.

    Material
    The tensile strength of aluminum alloy frame is more than 295MPa, some connecting parts are made of cast iron ≥200MPa, and the net load is more than 300kg; one-off extrusion molding, and the surface undergoes the primary oxidation treatment.

    SK-PT007 (4)
    SK-PT007 (5)

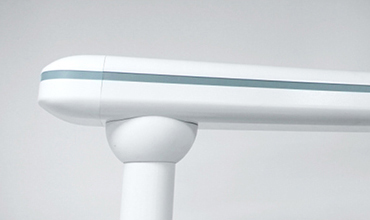

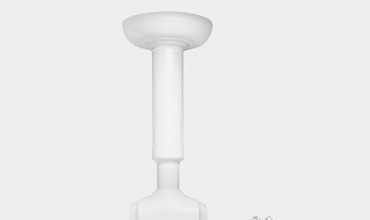

    Suspension system
    Medical pendant rotation angle 340°, built-in rotation limit device to prevent drift.

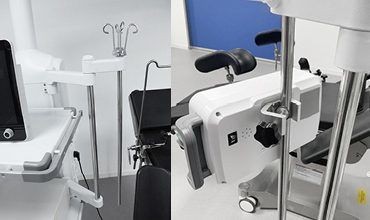

    IV Pole with Four Hooks
    The length of IV pole is 600mm, can be retractable, with four hooks, single hook can bear 4 kg.

    SK-PT007 (6)
    SK-PT007 (7)

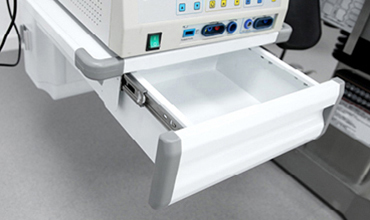

    Drawer
    Silent self-priming track, no damage after 10,000 times push-pull tests, and the handle position is integrally formed by pressing with mould.

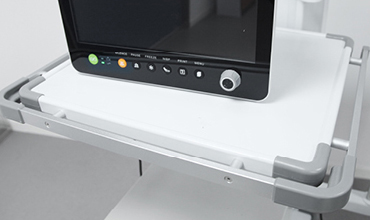

    Instrument Platform
    The size of the table top is 450*500mm, and the height of table surface can be adjusted. The table top is made of aluminum alloy panel with iron square tube inside, can bear≥50KG;with external aluminum alloy hanging frame.



    SK-PT007 (8)
    SK-PT007 (9)

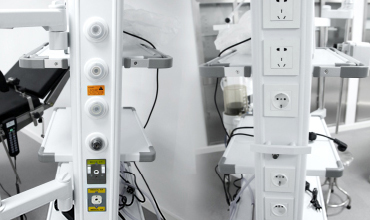

    Medical Gas
    It is equipped with medical gas on both sides of the cabinet and column. The following configurations can be customized,
    1. The number of medical gas 2. Interface standard and position
    Gas port adopts secondary seal, three states (on, off, pull), support maintenance operations while it is working.

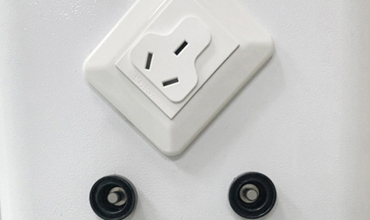

    Equipotential Socket
    Reduce the potential difference between indirect contact voltage and different metal parts.



    SK-PT007 (10)
    SK-PT007 (11)

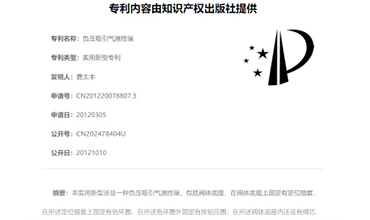

    Utility Model Patent
    Negative pressure terminal obtained the Utility Model Patent CN202478404U.


  • Previous:
  • Next:

  • Product introduction:

    Working table supports can be placed on both sides of the supply column, one-stop operation for medical staff,  suitable for supply rooms.

    Product Application:

    Suitable for supply room

    Optional accessories:

    1. Net basket – Stainless steel net basket
    2. We manufacturer and provide different standard of medical gas outlet: British Standard, American standard, German standard, French standard, Japanese Standard, etc.
    3. Different standard of medical gas outlets & adapters: British standard, French standard, German standard, Diss, Ohmeda, Chemetron, and etc.
    4. Inhalers – All kinds of oxygen inhalers (disposable, simple, external hanging, etc.)
    5. Negative pressure regulating valve
    6. Waste liquid collection device (external hanging type)
