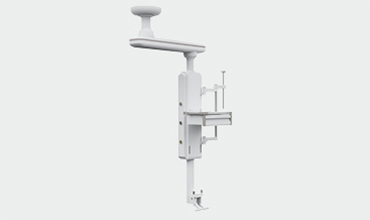

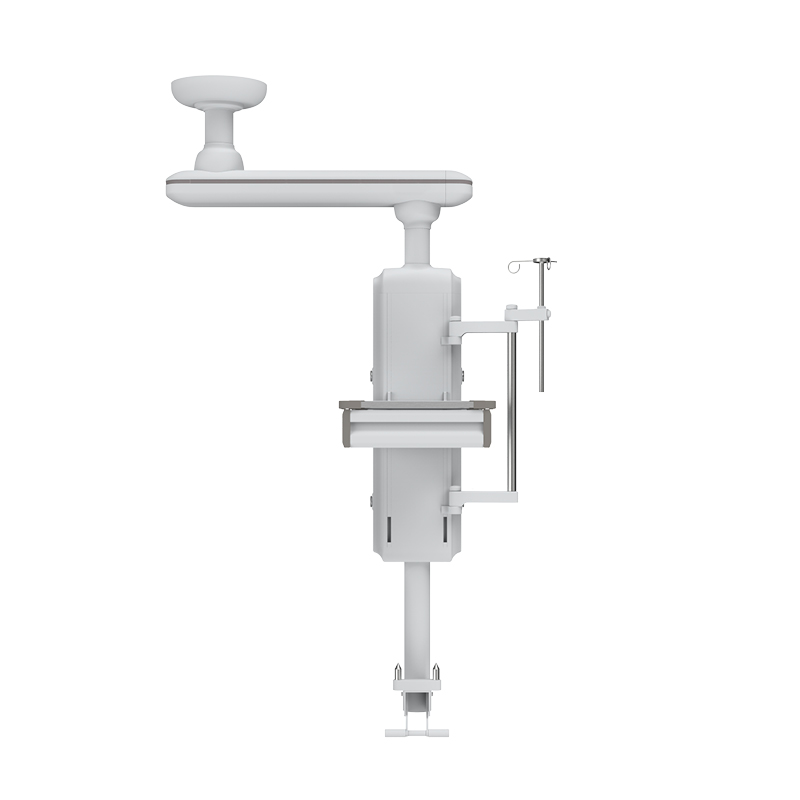

SK-PT005 Medical Bridge Ceiling Pendant


  • Product Type: SK-PT005
  • Introduction:

    The anesthesia medical bridge ceiling pendant is equipped with hanging holder for anesthesia machine, bearing 250 kg of anesthesia machine, with international AGSS jet exhaust gas, suitable for anesthesia surgery.







    Highlights

    Features

    Quality Control

    Warranty

    Download

    SK-PT005 (1)

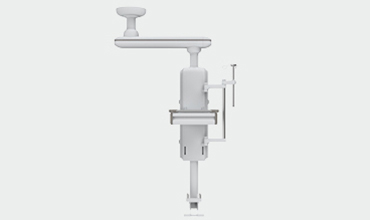

    Appearance design
    The design of ceiling type function column, saves ground space; the whole function column is fully sealed, no sharp angle to prevent the impact.

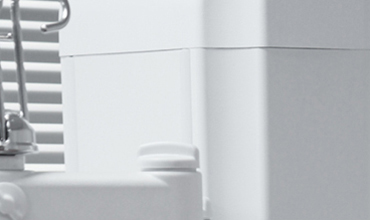

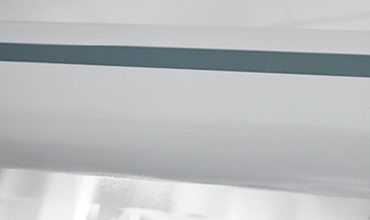

    Painting
    Imported plastic powder, electrostatic painting process, painting thickness 0.12mm, brightness 60°, paint can resist 50kg impact.

    SK-PT005 (2)
    SK-PT005 (3)

    Welding
    Panasonic Robot ensure 360° full smooth welding.

    Material
    The tensile strength of aluminum alloy frame is more than 295MPa, some connecting parts are made of cast iron ≥200MPa, and the net load is more than 300kg; one-off extrusion molding, and the surface undergoes the primary oxidation treatment.

    SK-PT005 (4)
    SK-PT005 (5)

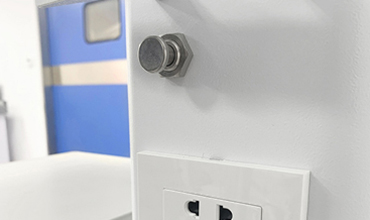

    Braking System
    The pneumatic brake system, using compressed air to brake hanging arms and medical pendants, one press to release the brake.

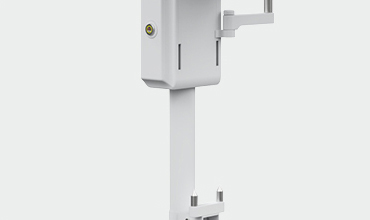

    Lifting System
    The function column built-in Jiecang motor of model JC35D1, with SAA/ TUV/PSE/CE/UL/KC certificates, ensure safety. Motor noise under 50dB, lifetime 20,000 times, electric lifting distance 300mm; accurate positioning without drift, meeting requirements of different nursing.

    SK-PT005 (6)
    SK-PT005 (7)

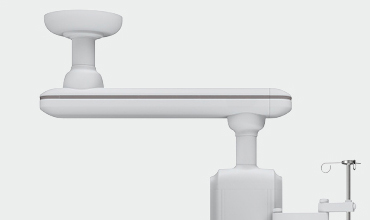

    Suspension System
    Medical pendant and hanging arm, rotation angle 340°, built-in rotation limit device to prevent drift.

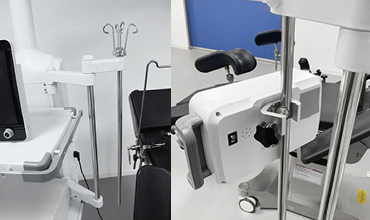

    IV Pole with Four Hooks
    The length of IV pole is 600mm, can be retractable, with four hooks, single hook can bear 4 kg.



    SK-PT005 (8)
    SK-PT005 (9)

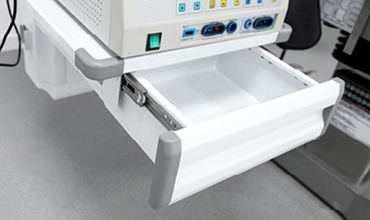

    Drawer
    Silent self-priming track, no damage after 10,000 times push-pull tests, and the handle position is integrally formed by pressing with mould.

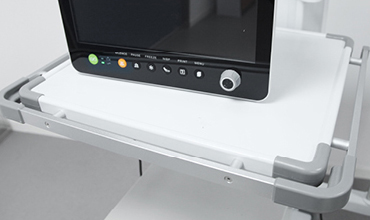

    Instrument Platform
    The size of the table top is 450*500mm, and the height of table surface can be adjusted. The table top is made of aluminum alloy panel with iron square tube inside, can bear≥50KG;with external aluminum alloy hanging frame.



    SK-PT005 (10)
    SK-PT005 (11)

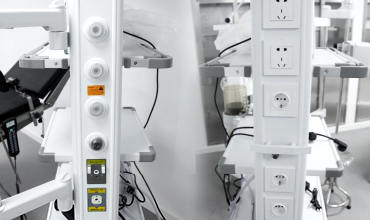

    Medical Gas
    It is equipped with medical gas on both sides of the cabinet and column. The following configurations can be customized,
    1. The number of medical gas 2. Interface standard and position
    Gas port adopts secondary seal, three states (on, off, pull), support maintenance operations while it is working.

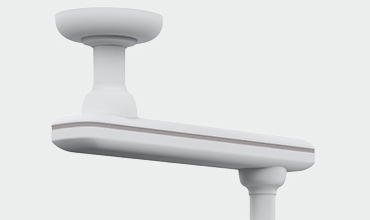

    Rotating Arm
    The single rotating arm can cover 1000mm treatiment radius, can be used flexibly during treatment, meeting the surgical needs of all departments.



    SK-PT005 (12)
    SK-PT005 (15)

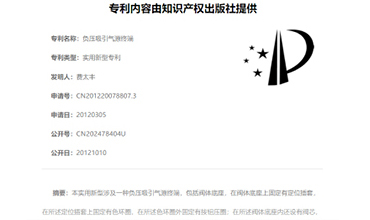

    Utility Model Patent
    Negative pressure terminal obtained the Utility Model Patent CN202478404U.

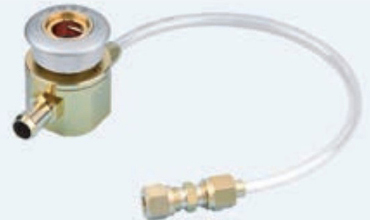

    Special Gas Terminal
    With carbon dioxide gas terminal for anesthesia surgery, laughing gas terminal and Jet-discard AGSS collection terminals.



    SK-PT005 (14)
    SK-PT005 (13)

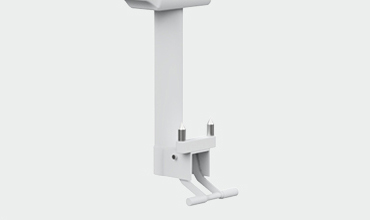

    Anesthesia Machine Holder
    Anesthesia machine holder, bearing 250 kg of anesthesia machine.


  • Previous:
  • Next:

  • Product introduction:

    The anesthesia medical bridge ceiling pendant is equipped with hanging holder for anesthesia machine, bearing 250 kg of anesthesia machine, with international AGSS jet exhaust gas, suitable for anesthesia surgery.

    Product Application:

    Suitable for OR room

    Optional accessories:

    1. Net basket – Stainless steel net basket
    2. We manufacturer and provide different standard of medical gas outlet: British Standard, American standard, German standard, French standard, Japanese Standard, etc.
    3. Different standard of medical gas outlets & adapters: British standard, French standard, German standard, Diss, Ohmeda, Chemetron, and etc.
    4. Inhalers – All kinds of oxygen inhalers (disposable, simple, external hanging, etc.)
    5. Negative pressure regulating valve
    6. Waste liquid collection device (external hanging type)
