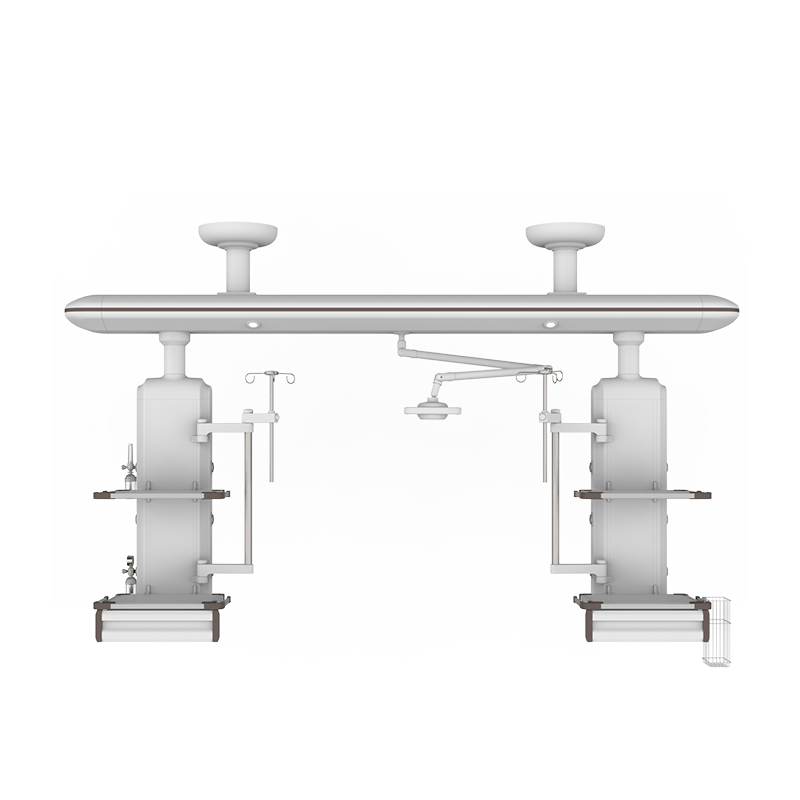

SK-PQ001 Medical Bridge Ceiling Pendant
Introduction:
The ICU medical bridge ceiling pendant(separate wet and dry areas) is a medical rescue auxiliary equipment;
Features:
1.There are multi-layer instrument platforms in wet（gas) and dry (electric) areas;
2.The height of drawers can be adjusted;
3.With retractable IV pole, with four hooks;
4.The function columns and cabinets bulit in rotation limit device to prevent the drift;

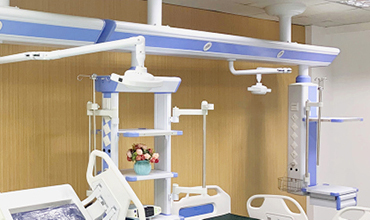

Appearance design
The design of bridge hanging style saves ground space; the whole bridge pendant is fully sealed, no sharp angle to prevent the impact.
Painting

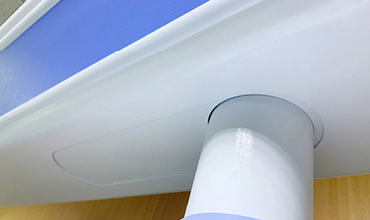

Imported plastic powder, electrostatic painting process, painting thickness 0.12mm, brightness 60°, paint can resist 50kg impact.
Welding
Panasonic Robot ensure 360° full smooth welding.
Material
The tensile strength of aluminum alloy frame is more than 295MPa, some connecting parts are made of cast iron ≥200MPa, and the net load is more than 300kg; one-off extrusion molding, and the surface undergoes the primary oxidation treatment.

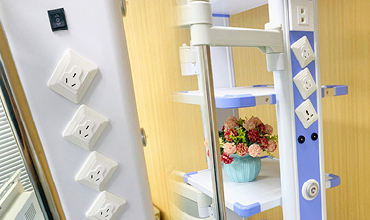

Wet（gas) and dry (electric)separation structure
The dry section is equipped with power supply and network ports. The wet section is equipped with infusion pump frame and gas port; gas and electric are separately arranged, prevent electric arc from contacting gas.
Electric translation system
The function column built-in Jiecang motor of model JC35D1, with SAA/TUV/PSE/CE/UL/KC certificates, ensure safety. Motor noise under 48dB, lifetime 20,000 times, electric translation distance 300mm; the horizontal translation in dry and wet areas, accurate positioning without drift, meeting requirements of different nursing.

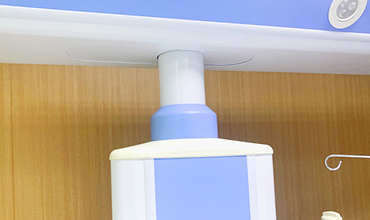

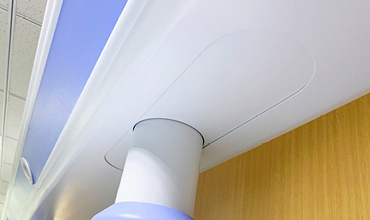

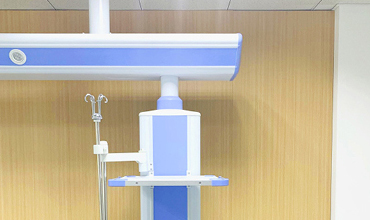

Suspension system
Medical pendant rotation angle 340°, built-in rotation limit device to prevent drift.

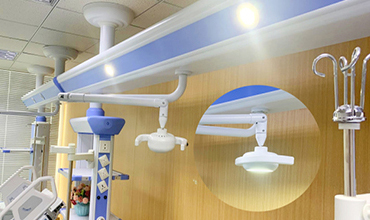

Bridge configuration
Two fixed LED lightings, 1 set of double cantilever folding working lighting; one power supply and one gas total valve.

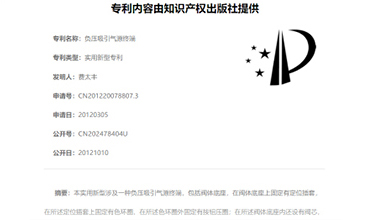

Utility Model Patent
Negative pressure terminal obtained the Utility Model Patent CN202478404U.

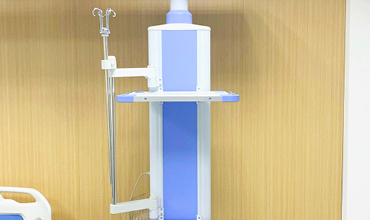

IV Pole with Four Hooks
The length of IV pole is 600mm, can be retractable, with four hooks, single hook can bear 4 kg.

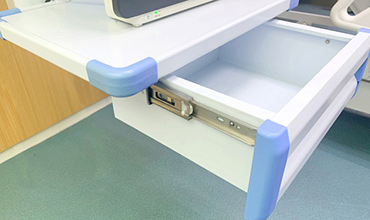

Drawer
Silent self-priming track, no damage after 10,000 times push-pull tests, and the handle position is integrally formed by pressing with mould.

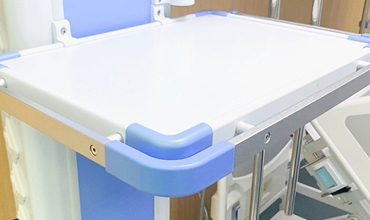

Instrument Platform
The size of the table top is 450*500mm, and the height of table surface can be adjusted. The table top is made of aluminum alloy panel with iron square tube inside, can bear≥50KG；with external aluminum alloy hanging frame.

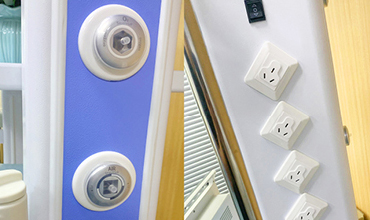

Medical gas
It is equipped with medical gas on both sides of the cabinet and column. The following configurations can be customized,
1. The number of medical gas 2. Interface standard and position
Gas port adopts secondary seal, three states (on, off, pull), support maintenance operations while it is working.

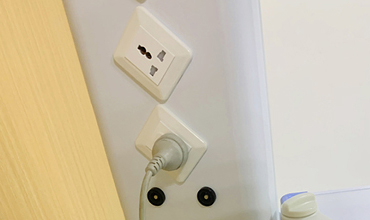

Equipotential socket
Reduce the potential difference between indirect contact voltage and different metal parts;
Product introduction:
The ICU medical bridge ceiling pendant(separate wet and dry areas) is a medical rescue auxiliary equipment;
Features:
1.There are multi-layer instrument platforms in wet（gas) and dry (electric) areas;
2.The height of drawers can be adjusted;
3.With retractable IV pole, with four hooks;
4.The function columns and cabinets bulit in rotation limit device to prevent the drift;
Product Application:
Suitable for ICU，NICU，PICU，EICU room
Optional accessories:
1. Net basket – Stainless steel net basket
2. We manufacturer and provide different standard of medical gas outlet: British Standard, American standard, German standard, French standard, Japanese Standard, etc.
3. Different standard of medical gas outlets & adapters: British standard, French standard, German standard, Diss, Ohmeda, Chemetron, and etc.
4. Inhalers – All kinds of oxygen inhalers (disposable, simple, external hanging, etc.)
5. Negative pressure regulating valve
6. Waste liquid collection device (external hanging type）
We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate 126 registered technological patents and fulfill more than 20 quality certifications (ISO-9001/13485/14001/18001, European CE, FDA of the USA, Russian Federal Register, ANVISA of Brazil, etc.), in addition to the 93/42/EEC and IEC60601 safety standards. In all of this our R&D department is key, in which we invest 10% of our profits annually.
WARRANTY
* We provide a standard 1 year warranty, optional to be increased. 1% free parts of the total quantity will be provided together with goods.
* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.
* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
FAQ
What quality requirements does your company meet?
* We have over 20 certifications, as ISO-9001/13485/14001/18001, European CE, North American FDA, Russian Federal Registration and Brazilian Health Regulatory Agency.
* We also meet the 93/42/EEC and IEC60601 safety standards.
* In addition to having 126 patents registered, we are constantly developing and implementing new standards for product quality and service efficiency.
What warranty do your products have?
* We provide a standard 1 year warranty, optional to be increased.
* 1% free parts of the total quantity will be provided together with goods.
* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.
* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
What is your delivery time?
* Our standard delivery time is 28 days.
What payment options do you offer?
* We are flexible in terms of payment. We can do LC, TT, DP, even credit, after auditing the customer.
Do you offer OEM service?
* Yes, we have a qualified R&D team to carry out customized projects. You just need to provide us with your own specifications.
Do you have different motor options?
* Yes, we have different brands of motors, as Linak, Timotion, Dewert or Jiechang.
Is the color on headboard/footboard and ABS side rail optional?
* Yes, we can provide the color according to customers’ requirements, based on wholesale purchases.
Can I see your products personally?
* You are welcome to our 2,000 m2 of showrooms in our factory in China (150 km from Shanghai).
* In addition, we annually attend numerous international exhibitions where we present our products, such as Arab Health (United Arab Emirates), North Africa Health (Egypt), CMEF (Shanghai), German Medica (Germany), Medic West Africa (Nigeria), Medic East Africa (Kenya), Pharmedi (Vietnam), Hospitalar (Brazil), Medical Expo (Morocco), etc.
