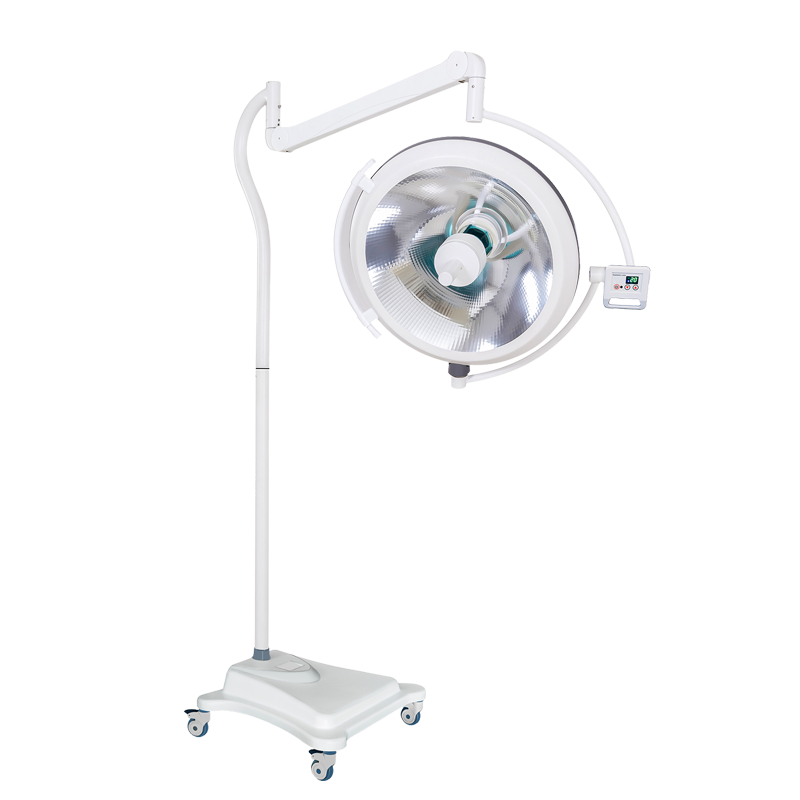

SK-LZY70A Integral reflection operation lamp


Introduction:







Highlights

Features

Quality Control

Warranty

Download

1

Material technology
The lampshade shell is made of high-quality aluminum alloy. The surface adopts the high-voltage electrostatic spraying process, and the imported environmentally friendly antibacterial plastic powder that used to ensures that the product meets the requirements of surgical hygiene. Also, this product has matte surface and no glint.

Bulb
It uses Osram imported lamp beads, the average service life is up to 1500 hours.
2
3
Color temperature&Illumination
The color temperature is 4500±250K, the illuminance can reach 180,000 Lux, which can realize 20 levels adjustable. While satisfying high illuminance, the well-designed color temperature correction system provides a color temperature close to 4500K in natural daylight, ensuring that the surgeon can clearly and accurately identify the color of blood vessels and nerve bundles in the operation area.
Color rendering index
The color rendering index is 85 to 98, which truly reflects the color of human tissues. It is suitable for various surgical scenes and greatly reduces the visual fatigue of medical staff due to long-term operations.
4
6

Temperature rise (surgical field)
Temperature rise (surgical field):≤1℃, this can avoid tissue drying due to high temperature and rapid blood clots at the wound, which will affect the operation.

Lens reflection system
The mirror surface applies special technology &oxidation &electrolysis new technology, which prolongs the life of more than 5 times than the coating reflection system, does not fade, and does not drop the oxide film.There are more than 5280 lenses, making the surgical field truly shadowless. The advanced color temperature compensation technology provides a color temperature that is closer to natural daylight and evenly covers the entire surgical area, ensuring that the surgeon can clearly and accurately identify the color of blood vessels and nerve bundles in the surgical area.
6
7

Lamp arm structure
The spring arm suspension system has six groups of universal directions and the 360° joint linkage is designed in an all-round way. It is completely positioned accurately and completely solves the drift.

Standby light source system
Assuming that the main lamp has a light source failure during the operation, the system will automatically switch the standby bulb mode within 0.2 seconds, the light intensity and the operation area will not be affected at all, ensuring the normal operation of the operation. The panel has a main light failure indicator to remind you to replace the bulb in time after the operation.
8
9

Back up battery
Optional back up battery can keep the operating lamp working for 3-4 hours in case of power failure to deal with various special situations.

Remote control
Infrared remote control makes the operation more convenient.
10

  • Previous:
  • Next:

  • Technical parameters

    Diameter of lighthead (mm) 700
    illumination at 1m (Lux) 180000
    Brightness control range 20 levels adjustable
    Color temperature (Kelvin) 4500±250
    Color rendering index (Cri) ≥85
    temperature rise (Surgeon head)(℃) ≤1
    temperature rise (surgical field)(℃) ≤1
    total irradiance ee (W/m2) ≤700
    radiant Power ee/ec (mW/m2lux) ≤4
    effective Focusing Depth (cm) 60-120
    Lighting Spot Size (cm) 16-28
    L1+L2 depth of illumination (cm) ≥120
    Bulb type Halogen
    Bulb Brand OSRAM
    Bulb Quantity 2+2
    Bulb Power (w) 150
    Average Bulb Life (hours) ≥1500



    Technical configuration

    rotating arm parts 1 set
    Balance arm 1 set
    Main light 1 set
    Auxiliary light 1 set
    handle   1 pc
    fuse 2 pcs
