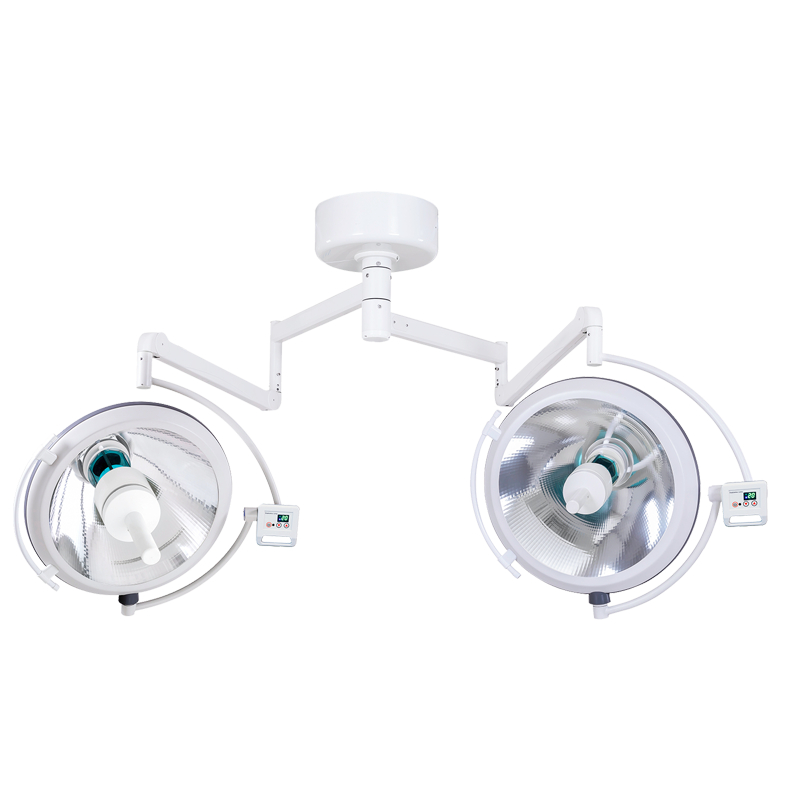

SK-LZD7070A Integral reflection operation lamp
Introduction:
Material technology
The lampshade shell is made of high-quality aluminum alloy. The surface adopts the high-voltage electrostatic spraying process, and the imported environmentally friendly antibacterial plastic powder that used to ensures that the product meets the requirements of surgical hygiene. Also, this product has matte surface and no glint.
Temperature rise (surgical field)
Temperature rise (surgical field):≤1℃, this can avoid tissue drying due to high temperature and rapid blood clots at the wound, which will affect the operation.
Lamp arm structure
The spring arm suspension system has six groups of universal directions and the 360° joint linkage is designed in an all-round way. It is completely positioned accurately and completely solves the drift.
Back up battery
Optional back up battery can keep the operating lamp working for 3-4 hours in case of power failure to deal with various special situations.
Technical parameters
| Diameter of lighthead (mm) | 700/700 |
| illumination at 1m (Lux) | 180000/180000 |
| Brightness control range | 20 levels adjustable |
| Color temperature (Kelvin) | 4500±250 |
| Color rendering index (Cri) | ≥85 |
| temperature rise (Surgeon head)(℃) | ≤1 |
| temperature rise (surgical field)(℃) | ≤1 |
| total irradiance ee (W/m2) | ≤1400 |
| radiant Power ee/ec (mW/m2lux) | ≤4 |
| effective Focusing Depth (cm) | 60-120 |
| Lighting Spot Size (cm) | 16-28 |
| L1+L2 depth of illumination (cm) | ≥120 |
| Bulb type | Halogen |
| Bulb Brand | OSRAM |
| Bulb Quantity | 2+2 |
| Bulb Power (w) | 150 |
| Average Bulb Life (hours) | ≥1500 |
Technical configuration
| rotating arm parts | 1 set |
| Balance arm | 2 set |
| Main light | 1 set |
| Auxiliary light | 1 set |
| handle | 2 pcs |
| fuse | 4 pcs |
