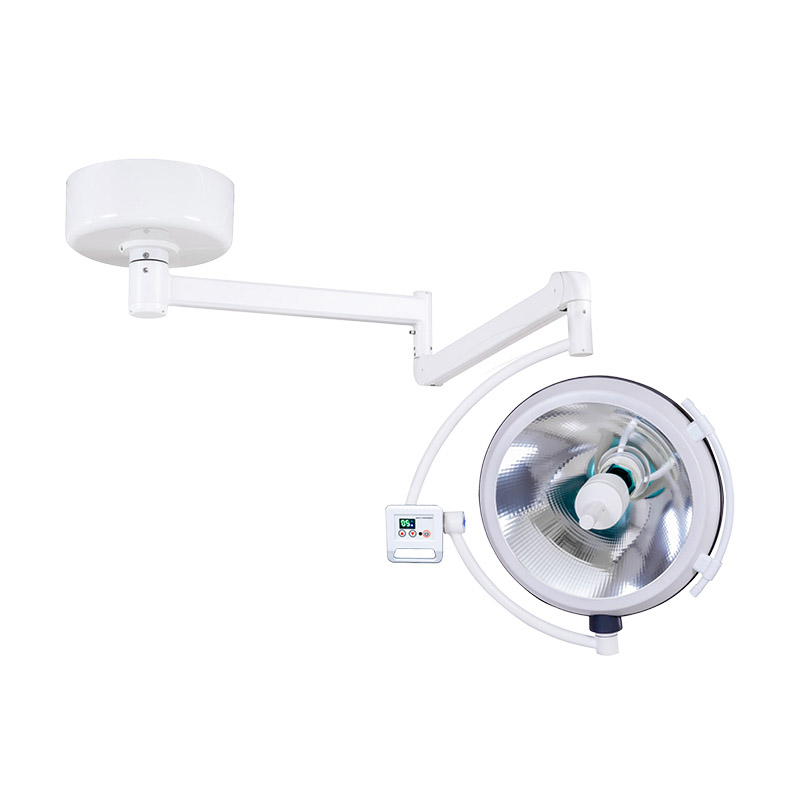

SK-LZD50A_integral reflection operating lamp


Introduction:







Highlights

Features

Quality Control

Warranty

Download

1

Material technology
The lampshade shell is made of high-quality aluminum alloy. The surface adopts the high-voltage electrostatic spraying process, and the imported environmentally friendly antibacterial plastic powder that used to ensures that the product meets the requirements of surgical hygiene. Also, this product has matte surface and no glint.

Bulb
It uses Osram imported lamp beads, the average service life is up to 1500 hours.
2
3
Color temperature&Illumination
The color temperature is 4500±250K, the illuminance can reach 180,000 Lux, which can realize 20 levels adjustable. While satisfying high illuminance, the well-designed color temperature correction system provides a color temperature close to 4500K in natural daylight, ensuring that the surgeon can clearly and accurately identify the color of blood vessels and nerve bundles in the operation area.
Color rendering index
The color rendering index is as high as 85, which truly reflects the color of human tissues. It is suitable for various surgical scenes and greatly reduces the visual fatigue of medical staff due to long-term operations
4
6

Temperature rise (surgical field)
Temperature rise (surgical field):≤1℃, this can avoid tissue drying due to high temperature and rapid blood clots at the wound, which will affect the operation.

Lens reflection system
The mirror surface applies special technology &oxidation &electrolysis new technology, which prolongs the life of more than 5 times than the coating reflection system, does not fade, and does not drop the oxide film.There are more than 5280 lenses, making the surgical field truly shadowless. The advanced color temperature compensation technology provides a color temperature that is closer to natural daylight and evenly covers the entire surgical area, ensuring that the surgeon can clearly and accurately identify the color of blood vessels and nerve bundles in the surgical area.
6
7

Lamp arm structure
The spring arm suspension system has six groups of universal directions and the 360° joint linkage is designed in an all-round way. It is completely positioned accurately and completely solves the drift.

Standby light source system
Assuming that the main lamp has a light source failure during the operation, the system will automatically switch the standby bulb mode within 0.2 seconds, the light intensity and the operation area will not be affected at all, ensuring the normal operation of the operation. The panel has a main light failure indicator to remind you to replace the bulb in time after the operation.
8
9

Back up battery
Optional back up battery can keep the operating lamp working for 3-4 hours in case of power failure to deal with various special situations.

Remote control
Infrared remote control makes the operation more convenient.
10

  • Previous:
  • Next:

  • Technical parameters

    Diameter of lighthead (mm) 700/700
    illumination at 1m (Lux) 180000/180000
    Brightness control range 0-100% stepless adjustment
    Color temperature (Kelvin) 3700-5000
    Color rendering index (Cri) ≥95
    temperature rise (Surgeon head)(℃) ≤1
    temperature rise (surgical field)(℃) ≤1
    total irradiance ee (W/m2) ≤600+600
    radiant Power ee/ec (mW/m2lux) ≤4
    effective Focusing Depth (cm) 60-130
    Lighting Spot Size (cm) 16-28
    L1+L2 depth of illumination (cm) ≥130
    Bulb type LED
    Bulb Brand OSRAM
    Bulb Quantity 80+80
    Bulb Power (w) 1
    Average Bulb Life (hours) ≥80000



    Technical configuration

    rotating arm parts 1 set
    Balance arm 2 set
    Main light 1 set
    Auxiliary light 1 set
    handle   2 pcs
    fuse 4 pcs

    FireShot-Capture-001---Hospital-bed_Jiangsu-Saikang-Medical-Equipment-Co.,Ltd.---saikangmedical_05

    We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate 126 registered technological patents and fulfill more than 20 quality certifications (ISO-9001/13485/14001/18001, European CE, FDA of the USA, Russian Federal Register, ANVISA of Brazil, etc.), in addition to the 93/42/EEC and IEC60601 safety standards. In all of this our R&D department is key, in which we invest 10% of our profits annually.

    FireShot-Capture-001---Hospital-bed_Jiangsu-Saikang-Medical-Equipment-Co.,Ltd.---saikangmedical_08

    feature-thumb-3



    WARRANTY

    * We provide a standard 1 year warranty, optional to be increased. 1% free parts of the total quantity will be provided together with goods.

    * The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.

    * Beyond the maintenance period, we will charge the accessories, but the technical service is still free.



    feature-thumb-2


    FAQ

    What quality requirements does your company meet?

    * We have over 20 certifications, as ISO-9001/13485/14001/18001, European CE, North American FDA, Russian Federal Registration and Brazilian Health Regulatory Agency.

    * We also meet the 93/42/EEC and IEC60601 safety standards.

    * In addition to having 126 patents registered, we are constantly developing and implementing new standards for product quality and service efficiency.

    What warranty do your products have?

    * We provide a standard 1 year warranty, optional to be increased.

    * 1% free parts of the total quantity will be provided together with goods.

    * The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.

    * Beyond the maintenance period, we will charge the accessories, but the technical service is still free.

    What is your delivery time?

    * Our standard delivery time is 28 days.

    What payment options do you offer?

    * We are flexible in terms of payment. We can do LC, TT, DP, even credit, after auditing the customer.

    Do you offer OEM service?

    * Yes, we have a qualified R&D team to carry out customized projects. You just need to provide us with your own specifications.

    Do you have different motor options?

    * Yes, we have different brands of motors, as Linak, Timotion, Dewert or Jiechang.

    Is the color on headboard/footboard and ABS side rail optional?

    * Yes, we can provide the color according to customers’ requirements, based on wholesale purchases.

    Can I see your products personally?

    * You are welcome to our 2,000 m2 of showrooms in our factory in China (150 km from Shanghai).

    * In addition, we annually attend numerous international exhibitions where we present our products, such as Arab Health (United Arab Emirates), North Africa Health (Egypt), CMEF (Shanghai), German Medica (Germany), Medic West Africa (Nigeria), Medic East Africa (Kenya), Pharmedi (Vietnam), Hospitalar (Brazil), Medical Expo (Morocco), etc.
