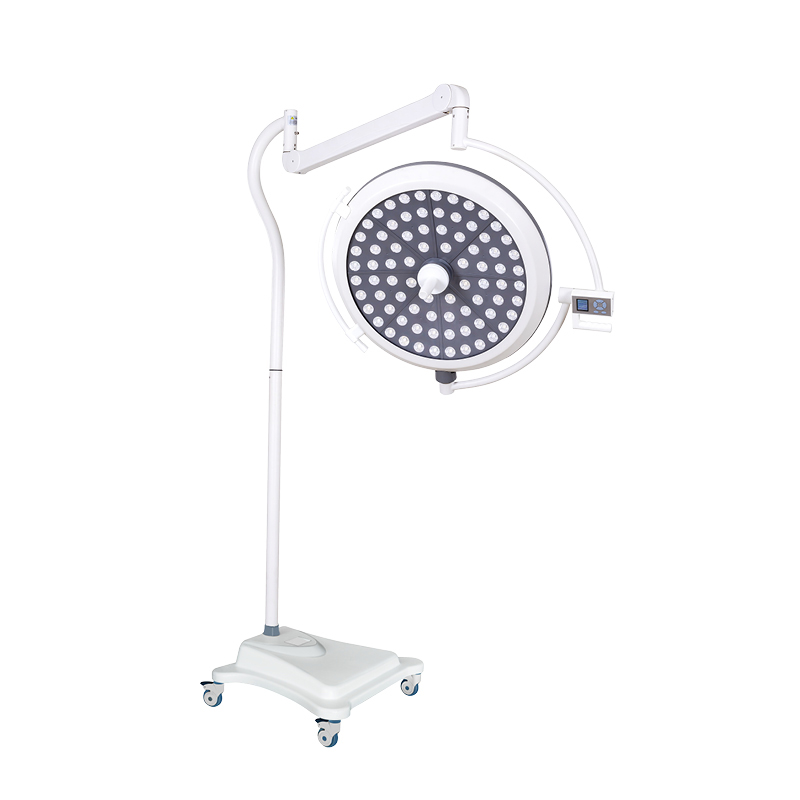

SK-LLY70A LED Operation Lamp
Introduction:
Material technology
The lampshade shell is made of high-quality aluminum alloy. The surface adopts the high-voltage electrostatic spraying process, and the imported environmentally friendly antibacterial plastic powder that used to ensures that the product meets the requirements of surgical hygiene. Also, this product has matte surface and no glint.
Temperature rise (surgical field)
Technical parameters
| Diameter of lighthead (mm) | 500 |
| Illumination at 1m (Lux) | 80000 |
| Brightness control range | 40-100% |
| Color Temperature (Kelvin) | 4000±500 |
| Color Rendering Index (CRI) | ≥85 |
| Temperature rise (Surgeon head)(℃) | ≤2 |
| Temperature rise (surgical field)(℃) | ≤2 |
| Total Irradiance Ee (W/m2) | ≤2000 |
| Radiant Power Ee/Ec (mW/m2lux) | ≤6 |
| Effective Focusing Depth (cm) | 40-45 |
| Lighting Spot Size (cm) | 20±1 |
| L1+L2 depth of illumination (cm) | ≥30 |
| Bulb Type | LED |
| Bulb Brand | OSRAM |
| Bulb Quantity | 20 |
| Bulb Power (w) | 1 |
| Average Bulb Life (hours) | ≥50000 |
Technical configuration
| Rotating arm parts | 1 set |
| Balance arm | 1 set |
| Main light | 1 set |
| Auxiliary light | 1 set |
| handle | 2 pcs |
| fuse | 2 pcs |
We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate 126 registered technological patents and fulfill more than 20 quality certifications (ISO-9001/13485/14001/18001, European CE, FDA of the USA, Russian Federal Register, ANVISA of Brazil, etc.), in addition to the 93/42/EEC and IEC60601 safety standards. In all of this our R&D department is key, in which we invest 10% of our profits annually.
WARRANTY
* We provide a standard 1 year warranty, optional to be increased. 1% free parts of the total quantity will be provided together with goods.
* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.
* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
FAQ
What quality requirements does your company meet?
* We have over 20 certifications, as ISO-9001/13485/14001/18001, European CE, North American FDA, Russian Federal Registration and Brazilian Health Regulatory Agency.
* We also meet the 93/42/EEC and IEC60601 safety standards.
* In addition to having 126 patents registered, we are constantly developing and implementing new standards for product quality and service efficiency.
What warranty do your products have?
* We provide a standard 1 year warranty, optional to be increased.
* 1% free parts of the total quantity will be provided together with goods.
* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.
* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
What is your delivery time?
* Our standard delivery time is 28 days.
What payment options do you offer?
* We are flexible in terms of payment. We can do LC, TT, DP, even credit, after auditing the customer.
Do you offer OEM service?
* Yes, we have a qualified R&D team to carry out customized projects. You just need to provide us with your own specifications.
Do you have different motor options?
* Yes, we have different brands of motors, as Linak, Timotion, Dewert or Jiechang.
Is the color on headboard/footboard and ABS side rail optional?
* Yes, we can provide the color according to customers’ requirements, based on wholesale purchases.
Can I see your products personally?
* You are welcome to our 2,000 m2 of showrooms in our factory in China (150 km from Shanghai).
* In addition, we annually attend numerous international exhibitions where we present our products, such as Arab Health (United Arab Emirates), North Africa Health (Egypt), CMEF (Shanghai), German Medica (Germany), Medic West Africa (Nigeria), Medic East Africa (Kenya), Pharmedi (Vietnam), Hospitalar (Brazil), Medical Expo (Morocco), etc.
