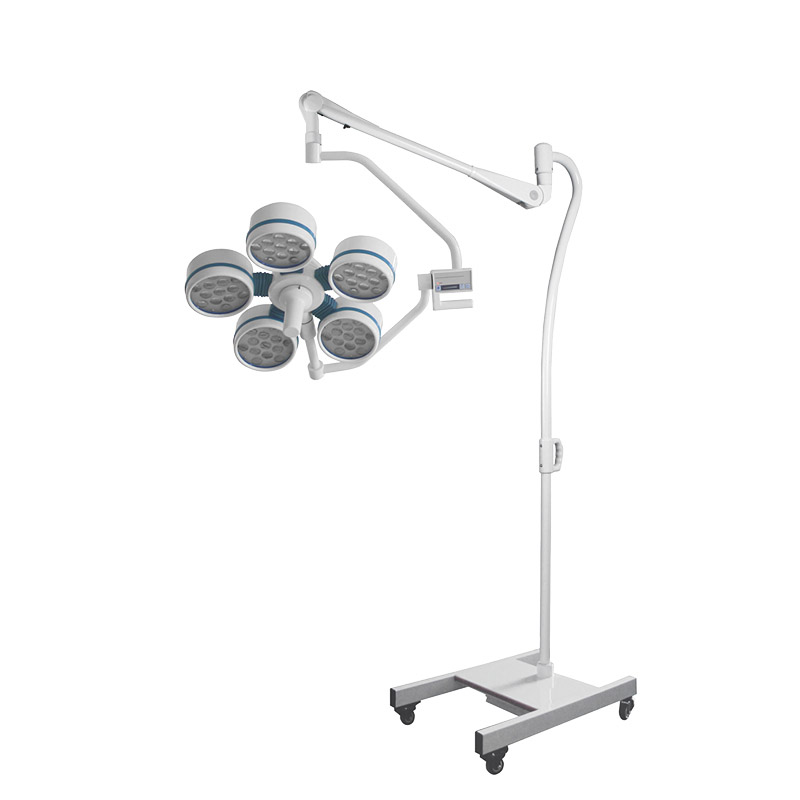

SK-LLY05F LED operation lamp

Highlights

Features

Quality Control

Warranty

Download

1

Material technology
The lampshade shell and derrick are all made of baosteel high quality steel.The surface adopts the high-voltage electrostatic spraying process,and the imported environmentally friendly antibacterial plastic powder that uesd to ensures that the product has matte surface and no glint.

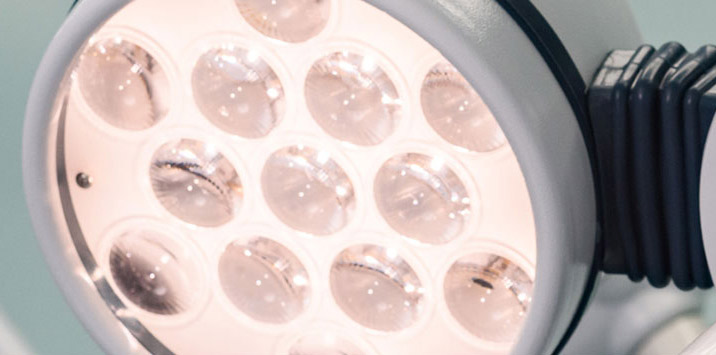

Bulb
It uses OSRAM high-quality LED light-emitting chips, the chip life is up to more than 50,000 hours, 40 times longer than the life of traditional halogen lamps.
2
3
Color temperature&Illumination
It uses LED cold light source, the color temperature is 4800±300K, the illuminance can reach 150,000 Lux, which can realize stepless dimming and non-multi-level adjustment. While meeting high illuminance, according to the needs of different surgeons,it can adjust the lighting parameters, so that the surgeon's perception of light is soft and not dazzling.
Color rendering index
The color rendering index reaches 95, which truly reflects the color of human tissues. It is suitable for various surgical scenes and greatly reduces the visual fatigue of medical staff due to long-term operations.
4
5

Temperature rise (surgical field)

Temperature rise (surgical field)(℃): ≤1, this can avoid tissue drying due to high temperature and rapid blood clots at the wound, which will affect the operation.

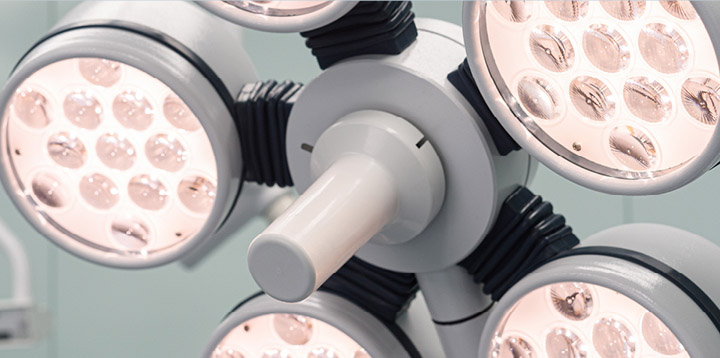

Lamp holder structure
The lamp holder is equipped with multiple light sources and reflectors to focus on the working plane, which can effectively eliminate the shadows on the surgical site formed by the surgeon's head, shoulders and arms.
6
7
Operating handle
The detachable disinfection handle is made of high-strength ABS, which can be disinfected and sterilized at a high temperature above 135°, ensuring the durability and reliability of the handle.

  • Previous:
  • Next:

  • Technical parameters

    Diameter of lighthead (mm) 550
    Illumination at 1m (Lux) 150000
    Brightness control range 10-100% stepless adjustment
    Color temperature (Kelvin) 4800±300
    Color rendering index (CRI) ≥96
    Temperature rise (Surgeon head)(℃) ≤2
    Temperature rise (Surgical field)(℃) ≤1
    Total irradiance Ee (W/m2) ≤555
    Radiant power Ee/Ec (mW/m2lux) ≤4
    Effective focusing depth (cm) 60
    Lighting spot size (cm) 10-24
    L1+L2 depth of illumination (cm) 600
    Bulb type LED
    Bulb brand OSRAM
    Bulb quantity 65
    Bulb power (w) 1
    Average bulb life (hours) ≥50000
    Battery lighting (optional) last 2 hours



    Technical configuration

    Balance arm 1 set
    C-arm 1 set
    Handle 1 pcs
    Battery(optional) 1 set

    FireShot-Capture-001---Hospital-bed_Jiangsu-Saikang-Medical-Equipment-Co.,Ltd.---saikangmedical_05

    We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate 126 registered technological patents and fulfill more than 20 quality certifications (ISO-9001/13485/14001/18001, European CE, FDA of the USA, Russian Federal Register, ANVISA of Brazil, etc.), in addition to the 93/42/EEC and IEC60601 safety standards. In all of this our R&D department is key, in which we invest 10% of our profits annually.

    FireShot-Capture-001---Hospital-bed_Jiangsu-Saikang-Medical-Equipment-Co.,Ltd.---saikangmedical_08

    feature-thumb-3



    WARRANTY

    * We provide a standard 1 year warranty, optional to be increased. 1% free parts of the total quantity will be provided together with goods.

    * The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.

    * Beyond the maintenance period, we will charge the accessories, but the technical service is still free.



    feature-thumb-2


    FAQ

    What quality requirements does your company meet?

    * We have over 20 certifications, as ISO-9001/13485/14001/18001, European CE, North American FDA, Russian Federal Registration and Brazilian Health Regulatory Agency.

    * We also meet the 93/42/EEC and IEC60601 safety standards.

    * In addition to having 126 patents registered, we are constantly developing and implementing new standards for product quality and service efficiency.

    What warranty do your products have?

    * We provide a standard 1 year warranty, optional to be increased.

    * 1% free parts of the total quantity will be provided together with goods.

    * The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.

    * Beyond the maintenance period, we will charge the accessories, but the technical service is still free.

    What is your delivery time?

    * Our standard delivery time is 28 days.

    What payment options do you offer?

    * We are flexible in terms of payment. We can do LC, TT, DP, even credit, after auditing the customer.

    Do you offer OEM service?

    * Yes, we have a qualified R&D team to carry out customized projects. You just need to provide us with your own specifications.

    Do you have different motor options?

    * Yes, we have different brands of motors, as Linak, Timotion, Dewert or Jiechang.

    Is the color on headboard/footboard and ABS side rail optional?

    * Yes, we can provide the color according to customers’ requirements, based on wholesale purchases.

    Can I see your products personally?

    * You are welcome to our 2,000 m2 of showrooms in our factory in China (150 km from Shanghai).

    * In addition, we annually attend numerous international exhibitions where we present our products, such as Arab Health (United Arab Emirates), North Africa Health (Egypt), CMEF (Shanghai), German Medica (Germany), Medic West Africa (Nigeria), Medic East Africa (Kenya), Pharmedi (Vietnam), Hospitalar (Brazil), Medical Expo (Morocco), etc.
