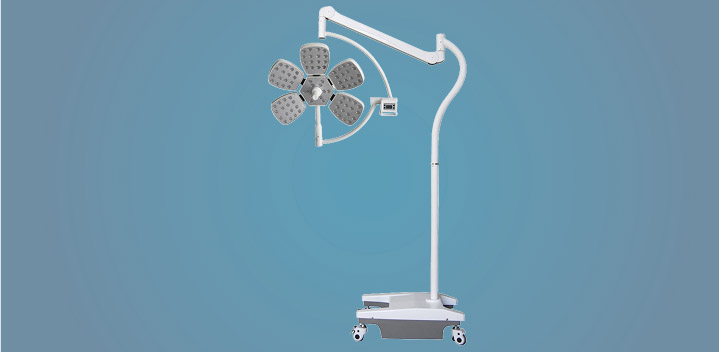

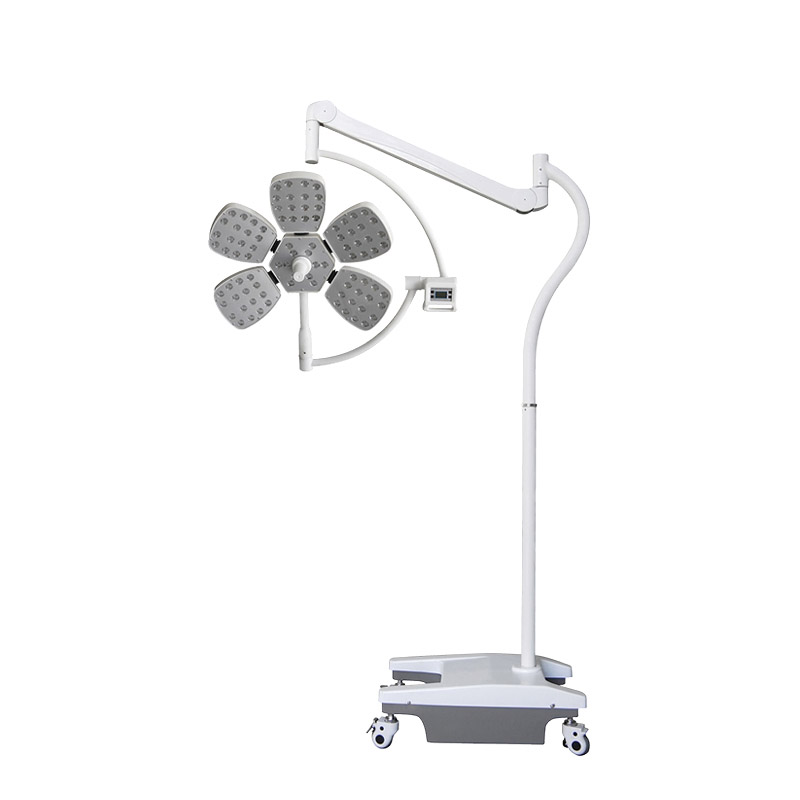

SK-LLY05A LED operation lamp

Highlights

Features

Quality Control

Warranty

Download

1

Material technology
The coating is sprayed with world-leading Akzo Nobel powder coating and anti-glare treatment, which meets the demanding requirements of surgical lighting. The design of the lamp holder focuses on reducing the turbulence. The streamlined lampshade of the whole lamp arm is carefully designed according to the principle of aerodynamics, which is fully in line with The standard of a modern new operating room.

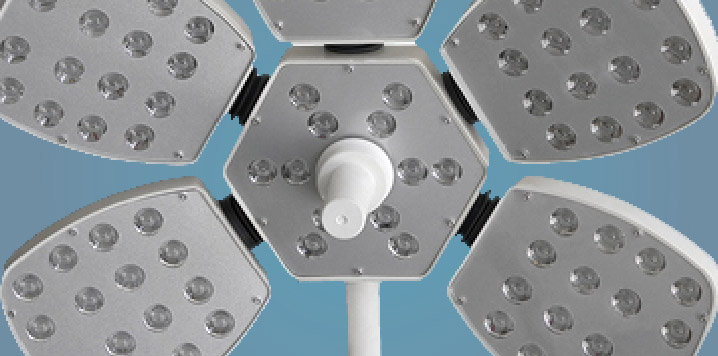

Bulb
The bulbs are imported from Germany OSRAM brand, using a special optical system, 360 ° uniformly illuminated on the observed object, no shadows, true reproduction of the organization color, and achieve constant color temperature under any light intensity conditions. The material is hard and no mercury pollution. Also, the emitted light does not contain infrared and ultraviolet radiation pollution.
2
3

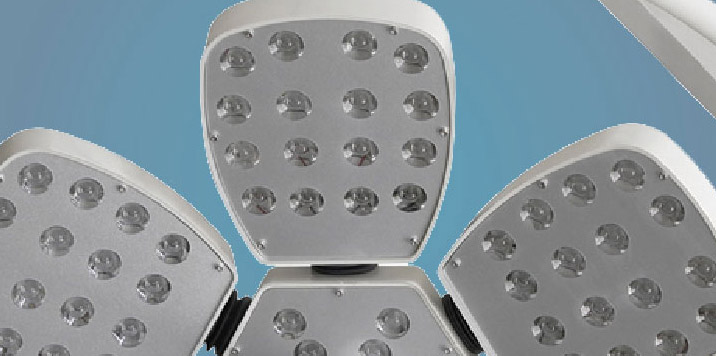

Color temperature&Illumination
Using a new type of LED cold light source, the illuminance can reach 160,000 Lux, which can realize stepless dimming and nonmulti-speed adjustment; the color temperature is in the range of 3000K-6700K, and the stepless dimming is non-multi-step adjustment. While meeting the high illuminance, adjust the lighting parameters according to the needs of different surgeons, so that the surgeon's perception of light is soft and no glint.
Color rendering index
The color rendering index is as high as 97, which truly reflects the color of human tissues. It is suitable for various surgical scenes and greatly reduces the visual fatigue of medical staff due to long-term operations.
4
5

Temperature rise (surgical field)

Temperature rise(surgical field): ≤2℃, this can avoid tissue drying due to high temperature and rapid blood clots at the wound, which will affect the operation.

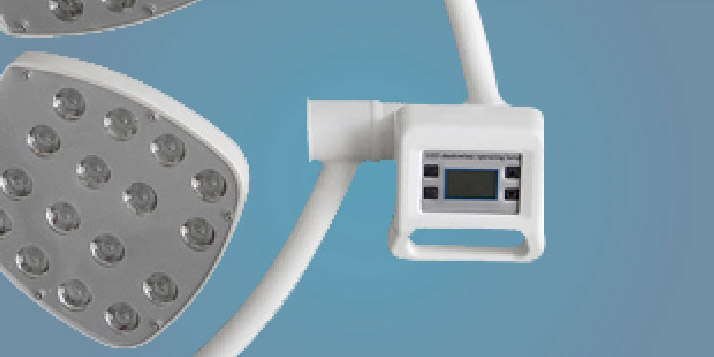

Control System
All the ABS controller system, using microcomputer digital integrated control system, equipped with lamp bead failure indicator alarm function.
6
7
Operating handle
The lighthead torch is made of aluminum, which can release heat when the shadowless lamp is working. The middle-mounted disinfection handle can be detached at will, the temperature resistance is more than 134℃, and the high pressure resistance is more than 205.8kPa, which is convenient for high temperature and high pressure steam sterilization.

  • Previous:
  • Next:

  • Technical parameters

    Diameter of lighthead (mm) 705
    Illumination at 1m (Lux) 160000
    Brightness control range 0-100% stepless adjustment
    Color temperature (Kelvin) 3000-6700
    Color rendering index (CRI) ≥97
    Temperature rise (Surgeon head)(℃) ≤1
    Temperature rise (Surgical field)(℃) ≤2
    Total irradiance Ee (W/m2) ≤683
    Radiant power Ee/Ec (mW/m2lux) ≤4
    Effective focusing depth (cm) 130
    Lighting spot size (cm) 10-30
    L1+L2 depth of illumination (cm) ≥100
    Bulb type LED
    Bulb brand OSRAM
    Bulb quantity 92
    Bulb power (w) 1
    Average bulb life (hours) ≥60000
    Battery lighting (optional) last 2 hours



    Technical configuration

    Balance arm 1 set
    C-arm 1 set
    Handle 1 pcs
    Battery(optional) 1 set
