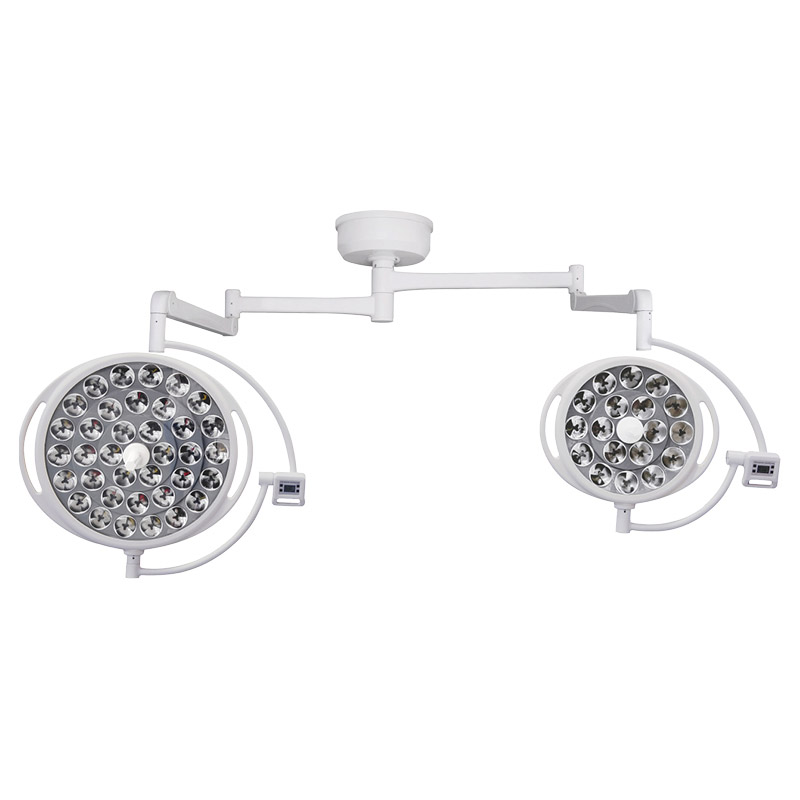

SK-LLD7252C LED Operation Lamp

Introduction:

Send email to us Download as PDF

Highlights

Features

Quality Control

Warranty

Download

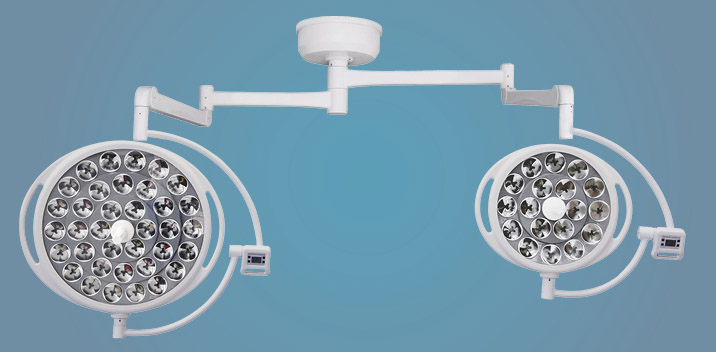

Material technology
The lampshade shell adopts a thin, light and streamlined design, and ABS is integrally formed to achieve the best laminar flow effect and meet the requirements of modern clean laminar flow operating rooms.The surface of the lamp arm adopts the high-voltage electrostatic spraying process, and the imported environmentally friendly antibacterial plastic powder that used to ensures that the product meets the requirements of surgical hygiene.

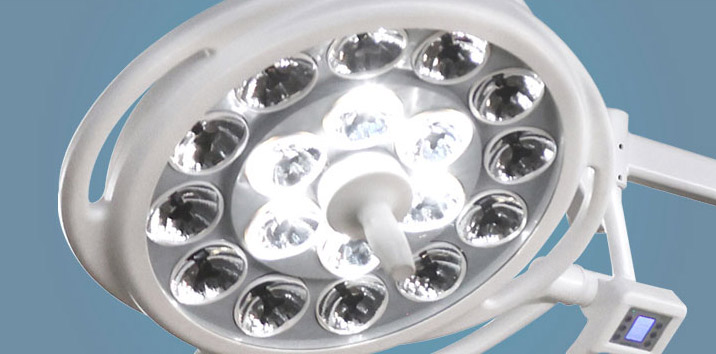

Bulb

Using the original imported LED lamp beads from Osram, Germany, the average service life is as high as 60,000 hours, which is 40 times longer life than halogen lamps. Under the same brightness, the energy consumption of LED is only 1/10 of that of ordinary incandescent lamps and 1/2 of that of halogen lamps.

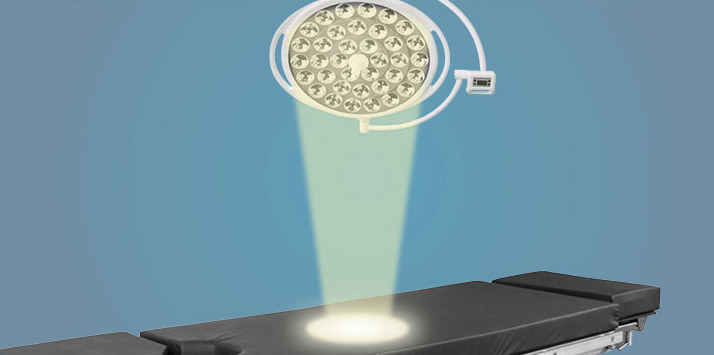

Color temperature&Illumination

Using a new type of LED cold light source, the illuminance can reach 160,000 Lux, which can realize stepless dimming and nonmulti-speed adjustment; the color temperature is in the range of 3000K-6700K, and the stepless dimming is non-multi-step adjustment. While meeting the high illuminance, adjust the lighting parameters according to the needs of different surgeons, so that the surgeon's perception of light is soft and no glint.

Color rendering index

The color rendering index reaches 96, which truly reflects the color of human tissues. It is suitable for various surgical scenes and greatly reduces the visual fatigue of medical staff due to long-term operations.

Temperature rise (surgical field)

LED cold light source has no infrared radiation, coupled with our nano-coated radiator, created our excellent heat dissipation effect. It solves the problem of the doctor's head temperature being too high during the operation, and creates a more comfortable operation environment for the doctor; it also effectively avoids the loss of water and infection of the surgical wound, which is conducive to the rapid recovery of the patient's wound after the operation.

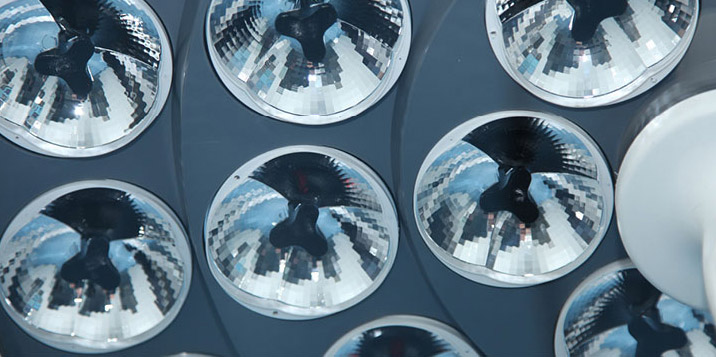

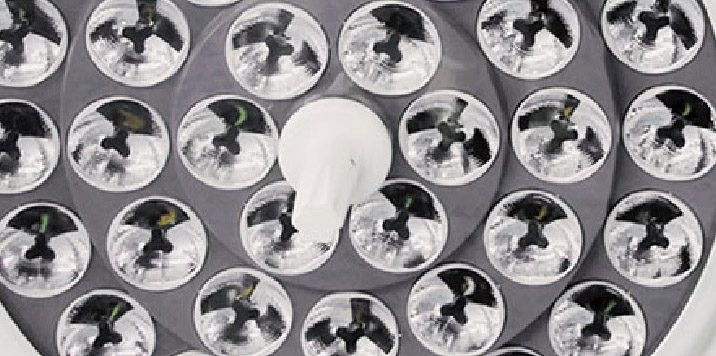

Lens

Each lens adopts a 40mm super large lens, and the lens arrangement is arranged according to the biology of insect compound eyes, and the mutual distance is less than 1mm, so that the shadowless effect is better.

Operating handle

The detachable disinfection handle is made of high-strength ABS, which can be disinfected and sterilized at a high temperature above 135°, ensuring the durability and reliability of the handle

Other functions

With one-key cavity mirror mode, can easily switch between standard mode and cavity mirror mode.

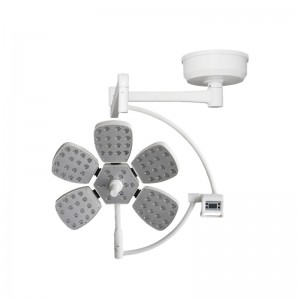

Previous: SK-LLD0503E LED Operation Lamp

Next: SK-LLD7272C LED Operation Lamp

Technical parameters

Diameter of lighthead (mm)	720/520
Illumination at 1m (Lux)	40000/160000
Brightness control range	0-100% stepless adjustment
Color temperature (Kelvin)	3000-6700
Color rendering index (CRI)	≥98
Temperature rise (Surgeon head)(℃)	≤0.5
Temperature rise (Surgical field)(℃)	≤1.5
Total irradiance Ee (W/m2)	≤700+500
Radiant power Ee/Ec (mW/m2lux)	≤4
Effective focusing depth (cm)	130
Lighting spot size (cm)	10-35
L1+L2 depth of illumination (cm)	≥100
Bulb type	LED
Bulb brand	OSRAM
Bulb quantity	108+54
Bulb power (w)	3
Average bulb life (hours)	≥60000

Technical configuration

Rotating arm	2 set
Balance arm	2 set
C-arm	2 set
Handle	2 pcs

We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate 126 registered technological patents and fulfill more than 20 quality certifications (ISO-9001/13485/14001/18001, European CE, FDA of the USA, Russian Federal Register, ANVISA of Brazil, etc.), in addition to the 93/42/EEC and IEC60601 safety standards. In all of this our R&D department is key, in which we invest 10% of our profits annually.

WARRANTY

* We provide a standard 1 year warranty, optional to be increased. 1% free parts of the total quantity will be provided together with goods.

* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.

* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
