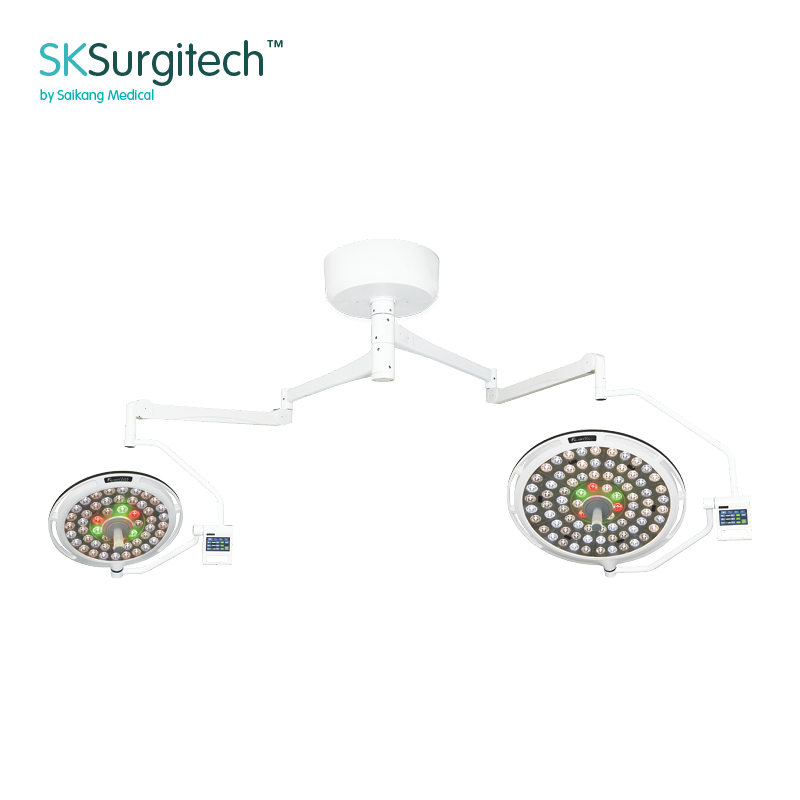

SK-LLD7050Z Shadowless Lamp
Introduction:
Technical parameters

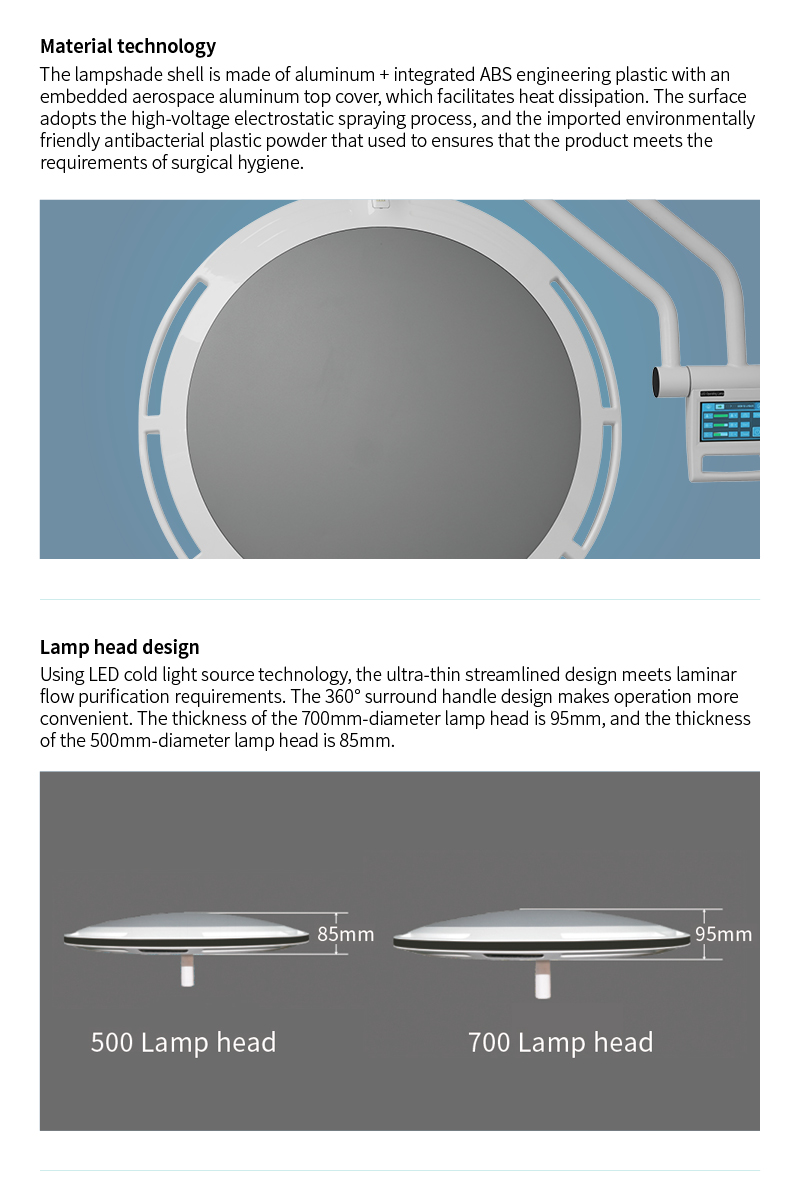

| Lamp head diameter(mm): | 700/530±10 |
| Illuminance at1 meter(Lux): | 40,000-160,000 |
| Brightness adjustment: | 9 levels |
| Color temperature(Kelvin): | 4000-5000 |
| Color rendering index(CRI): | ≥95 |
| Spot diameter at1 meter(mm): | 180-280 |
| Illumination depth(cm): | ≥120 |
| Surge in surgeon’s head temperature(℃): | ≤1 |
| Surge in surgical field temperature(℃): | ≤0.5 |
| Light source type: | LED |

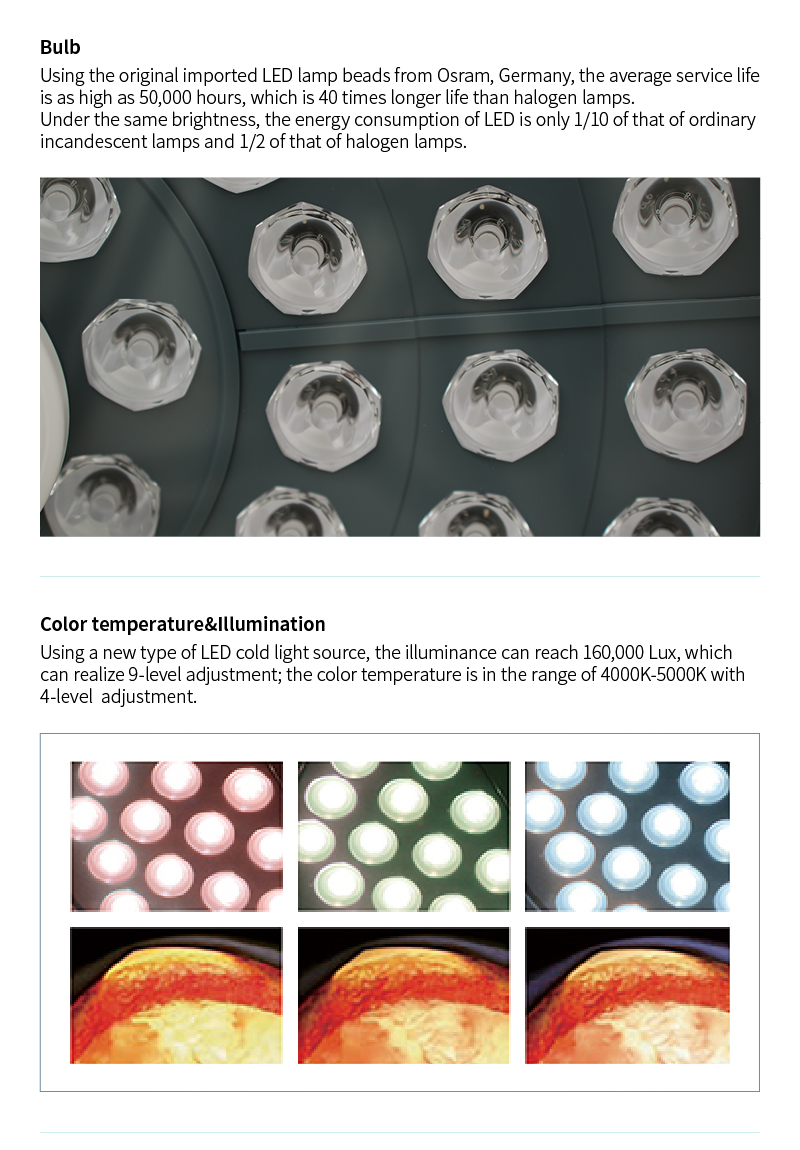

| LED brand: | OSRAM |
| Number of LEDs: | 81+51 |
| LED power(W): | Rated 3W,actual use 1W |
| LED lifespan(hours): | 50,000 |
| Brightness adjustment: | 4.3-inch controller 9 levels adjustment |
| Operating voltage: | AC100V-240V,50HZ/60HZ |
| Installation: | 2800-3200mm(optional 2.5m floor height customized edition) |
Standard configuration

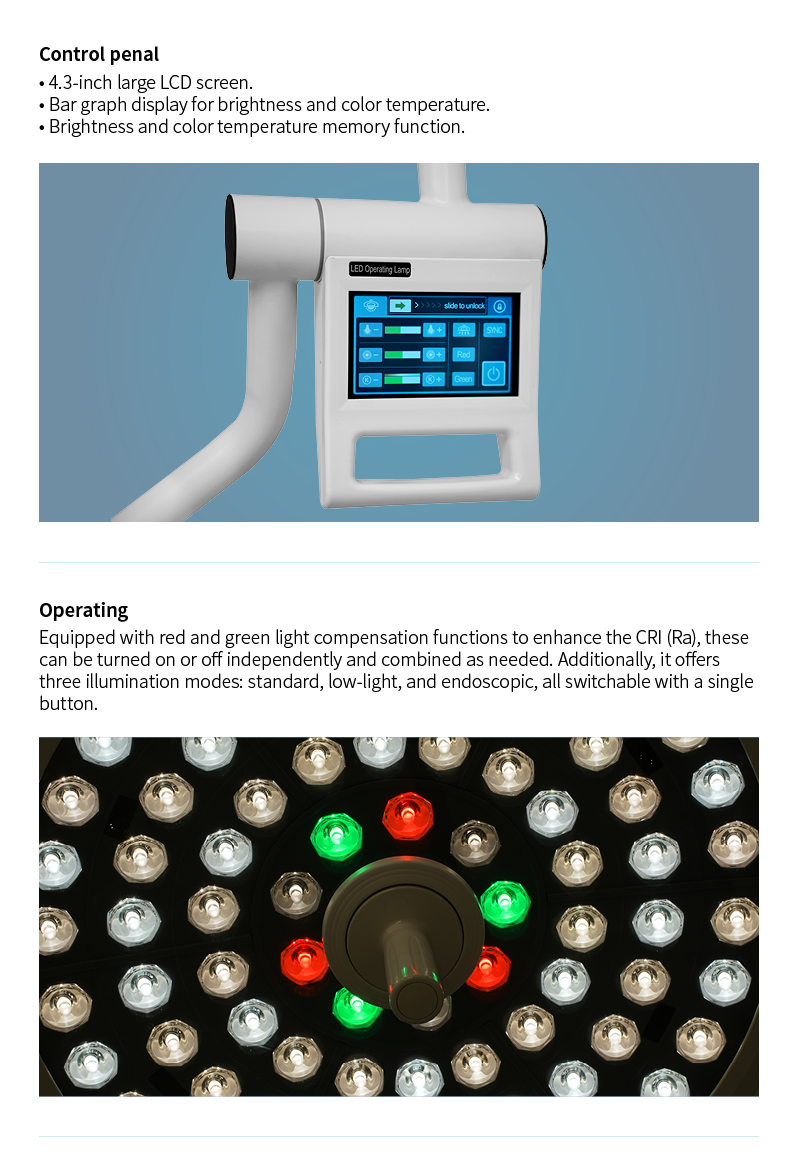

*4.3-inch full-screen touch controller
*Manual focusing module
*Red light compensation
*Green light compensation
*Standard,endoscopic,low-light illumination modes
Options
*Motorized focusing module
*Shadow compensation
*Mutually control system
*Gesture detection
*Backup battery
*Remote controller
*Wall control system
*Camera system
We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate 126 registered technological patents and fulfill more than 20 quality certifications (ISO-9001/13485/14001/18001, European CE, FDA of the USA, Russian Federal Register, ANVISA of Brazil, etc.), in addition to the 93/42/EEC and IEC60601 safety standards. In all of this our R&D department is key, in which we invest 10% of our profits annually.
WARRANTY
* We provide a standard 1 year warranty, optional to be increased. 1% free parts of the total quantity will be provided together with goods.
* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.
* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
FAQ
What quality requirements does your company meet?
* We have over 20 certifications, as ISO-9001/13485/14001/18001, European CE, North American FDA, Russian Federal Registration and Brazilian Health Regulatory Agency.
* We also meet the 93/42/EEC and IEC60601 safety standards.
* In addition to having 126 patents registered, we are constantly developing and implementing new standards for product quality and service efficiency.
What warranty do your products have?
* We provide a standard 1 year warranty, optional to be increased.
* 1% free parts of the total quantity will be provided together with goods.
* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.
* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
What is your delivery time?
* Our standard delivery time is 28 days.
What payment options do you offer?
* We are flexible in terms of payment. We can do LC, TT, DP, even credit, after auditing the customer.
Do you offer OEM service?
* Yes, we have a qualified R&D team to carry out customized projects. You just need to provide us with your own specifications.
Do you have different motor options?
* Yes, we have different brands of motors, as Linak, Timotion, Dewert or Jiechang.
Is the color on headboard/footboard and ABS side rail optional?
* Yes, we can provide the color according to customers’ requirements, based on wholesale purchases.
Can I see your products personally?
* You are welcome to our 2,000 m2 of showrooms in our factory in China (150 km from Shanghai).
* In addition, we annually attend numerous international exhibitions where we present our products, such as Arab Health (United Arab Emirates), North Africa Health (Egypt), CMEF (Shanghai), German Medica (Germany), Medic West Africa (Nigeria), Medic East Africa (Kenya), Pharmedi (Vietnam), Hospitalar (Brazil), Medical Expo (Morocco), etc.
