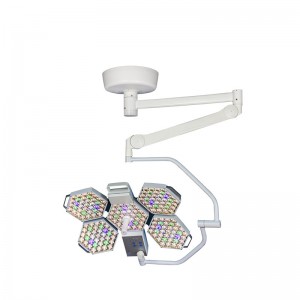

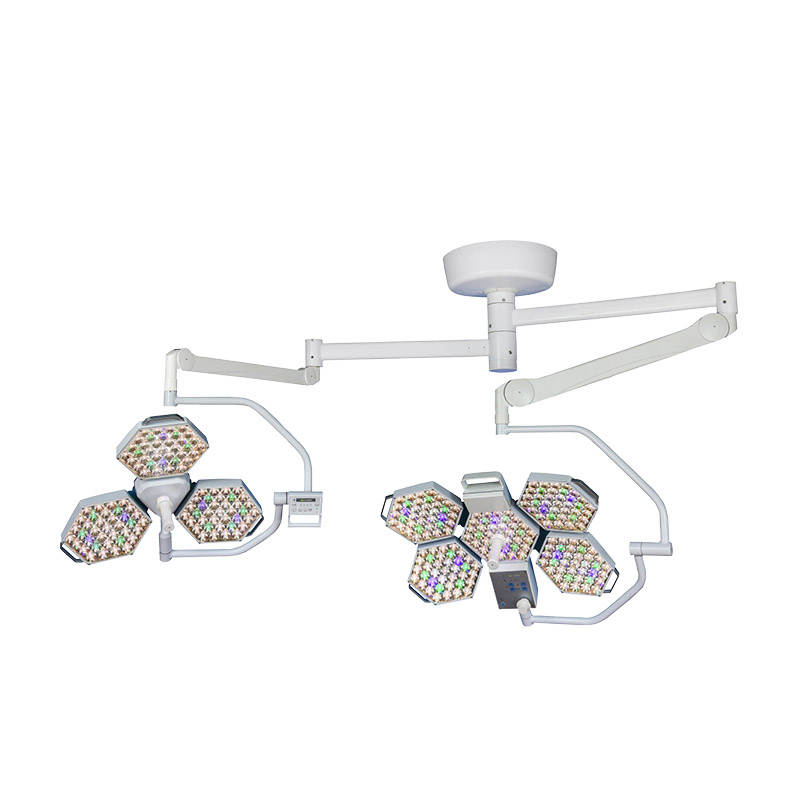

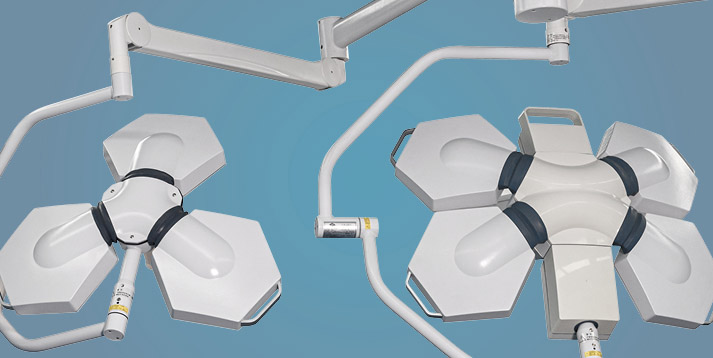

SK-LLD0503E LED Operation Lamp
Introduction:

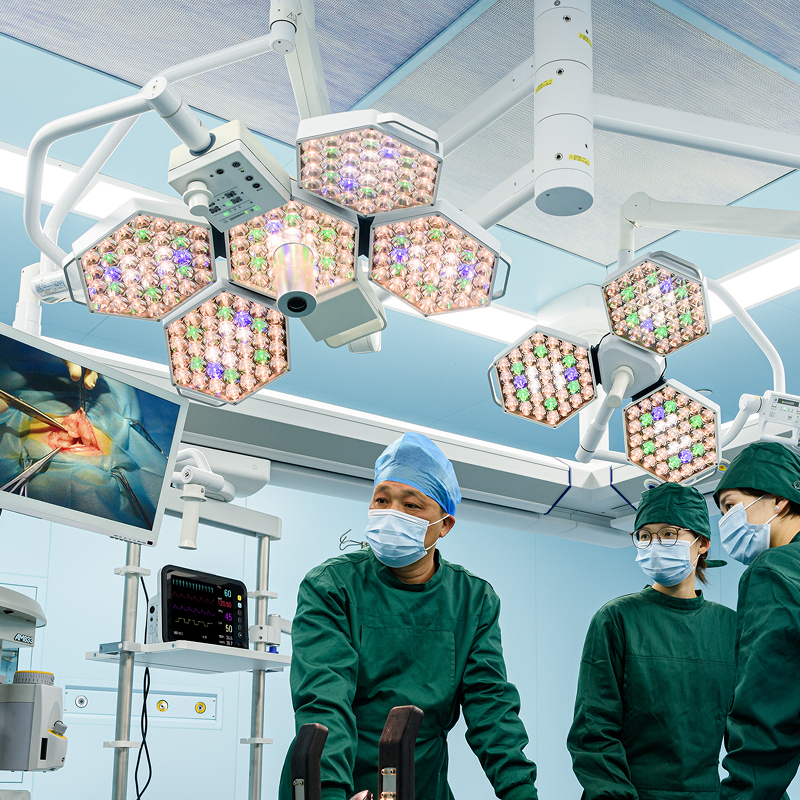

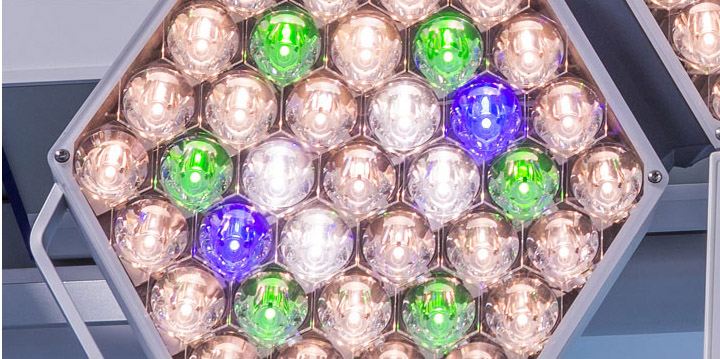

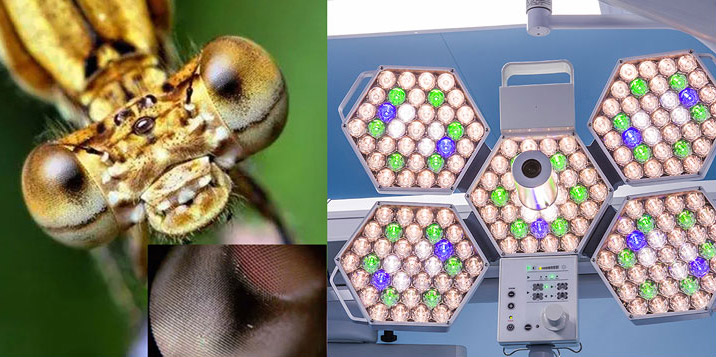

The LED surgical shadowless lamp is composed of multiple lamp bulbs. The bulb has a longer life than the traditional shadowless lamp. It is round or petal-shaped. It is fixed on the balance arm suspension system. It is stable in positioning and can be moved vertically or cyclically. It can meet different heights during surgery. The petal-shaped surgical shadowless lamp is also a kind of LED. It is introduced separately because the lamp cap is petal-shaped and has a special shape. The malfunction of a single LED bulb will not damage the function of the lamp head. Each individual LED bulb can be replaced separately, which is convenient to operate and reduce maintenance costs.
Material technology
The coating is sprayed with world-leading Akzo Nobel powder coating and anti-glare treatment, which meets the demanding requirements of surgical lighting. The design of the lamp holder focuses on reducing the turbulence. The streamlined lampshade of the whole lamp arm is carefully designed according to the principle of aerodynamics, which is fully in line with The standard of a modern new operating room.
Temperature rise (surgical field)
Technical parameters
| Diameter of lighthead (mm) | 860/700 |
| Illumination at 1m (Lux) | 140000/120000 |

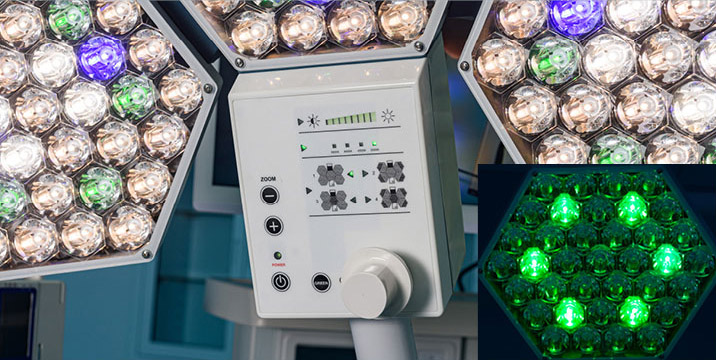

| Brightness control range | 10-100% stepless adjustment |
| Color temperature (Kelvin) | 3500-5000±300k |
| Color rendering index (CRI ) | ≥96 |
| Temperature rise (Surgeon head)(℃) | ≤2 |
| Temperature rise (Surgical field)(℃) | ≤1 |
| Total irradiance Ee (W/m2) | ≤257 |
| Radiant power Ee/Ec (mW/m2lux) | ≤4 |
| Effective focusing depth (cm) | 100 |
| Lighting spot size (cm) | 22-31 |
| L1+L2 depth of illumination (cm) | 100 |
| Bulb type | LED |
| Bulb brand | OSRAM |
| Balance Arm Brand | Odahl form Germany |
| Bulb quantity | 185+111 |
| Bulb power (w) | 1 |
| Average bulb life (hours) | ≥50000 |
| Lamp weight | 20+30kg |
Technical configuration
| Rotating arm | 2 set |
| Balance arm | 2 set |
| C-arm | 2 set |

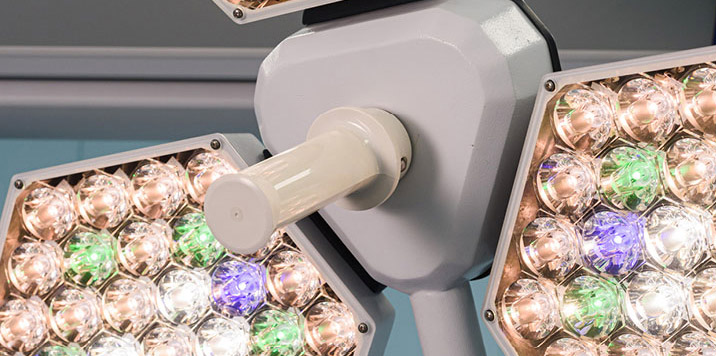

| Handle | 4 pcs |
Optional features
☐ Camera
☐ Monitor
☐ Back-up battery
☐ Remote controller
We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate 126 registered technological patents and fulfill more than 20 quality certifications (ISO-9001/13485/14001/18001, European CE, FDA of the USA, Russian Federal Register, ANVISA of Brazil, etc.), in addition to the 93/42/EEC and IEC60601 safety standards. In all of this our R&D department is key, in which we invest 10% of our profits annually.
WARRANTY
* We provide a standard 1 year warranty, optional to be increased. 1% free parts of the total quantity will be provided together with goods.
* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.
* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
