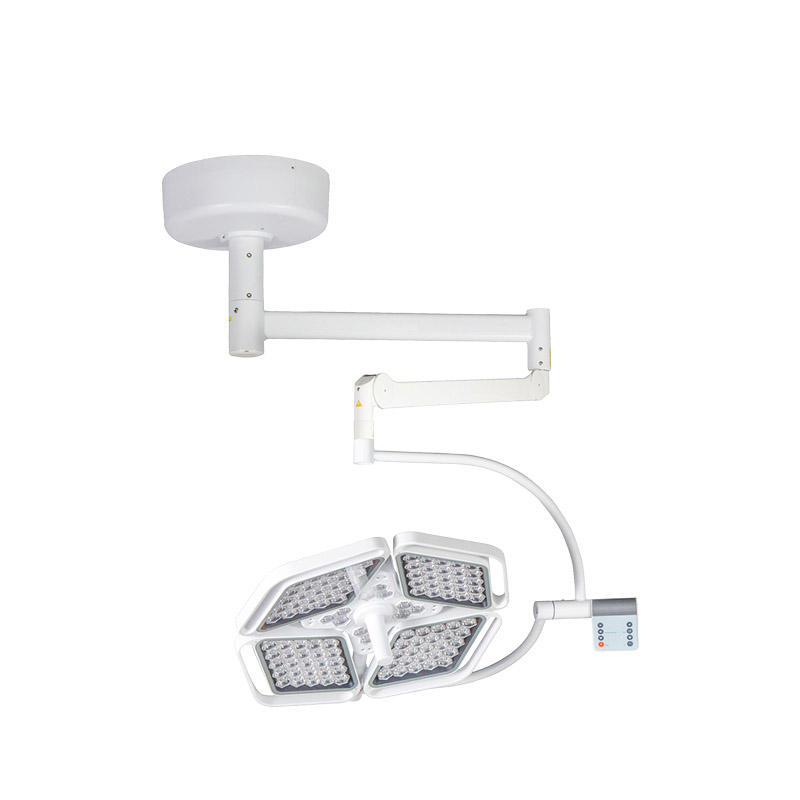

SK-LLD04D LED operation lamp


  • Product Type: SK-LLD04D
  • Introduction:

    The LED surgical shadowless lamp is composed of multiple lamp bulbs. The bulb has a longer life than the traditional shadowless lamp. It is round or petal-shaped. It is fixed on the balance arm suspension system. It is stable in positioning and can be moved vertically or cyclically. It can meet different heights during surgery. The petal-shaped surgical shadowless lamp is also a kind of LED. It is introduced separately because the lamp cap is petal-shaped and has a special shape. The malfunction of a single LED bulb will not damage the function of the lamp head. Each individual LED bulb can be replaced separately, which is convenient to operate and reduce maintenance costs.

    Highlights

    Features

    Quality Control

    Warranty

    Download

    1

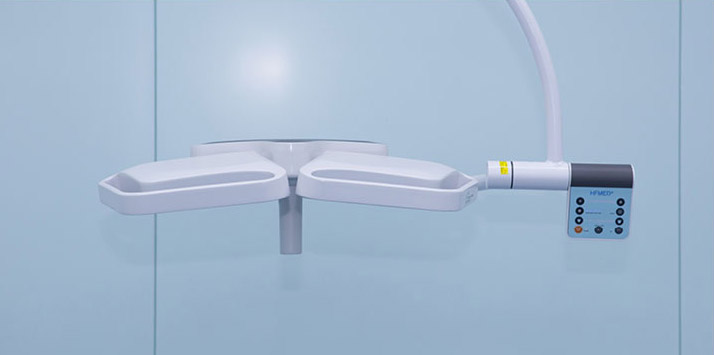

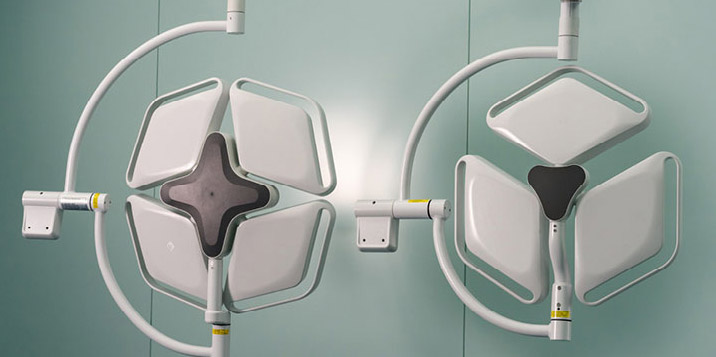

    Material technology
    The coating is sprayed with world-leading Akzo Nobel powder coating and anti-glare treatment, which meets the demanding requirements of surgical lighting. The design of the lamp holder focuses on reducing the turbulence. The streamlined lampshade of the whole lamp arm is carefully designed according to the principle of aerodynamics, which is fully in line with The standard of a modern new operating room.

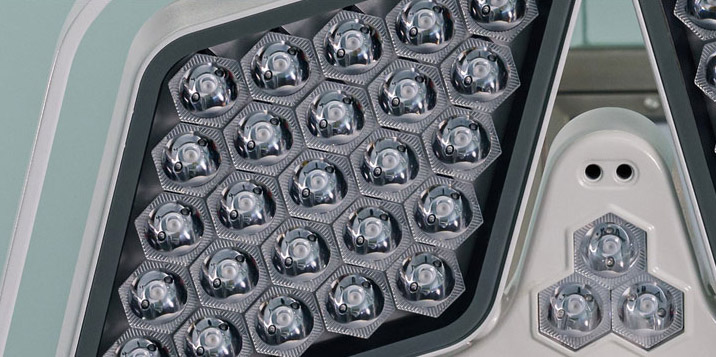

    Bulb
    The bulbs are imported from Germany OSRAM brand, using a special optical system, 360 ° uniformly illuminated on the observed object, no shadows, true reproduction of the organization color, and achieve constant color temperature under any light intensity conditions. The material is hard and no mercury pollution. Also, the emitted light does not contain infrared and ultraviolet radiation pollution.
    2
    3

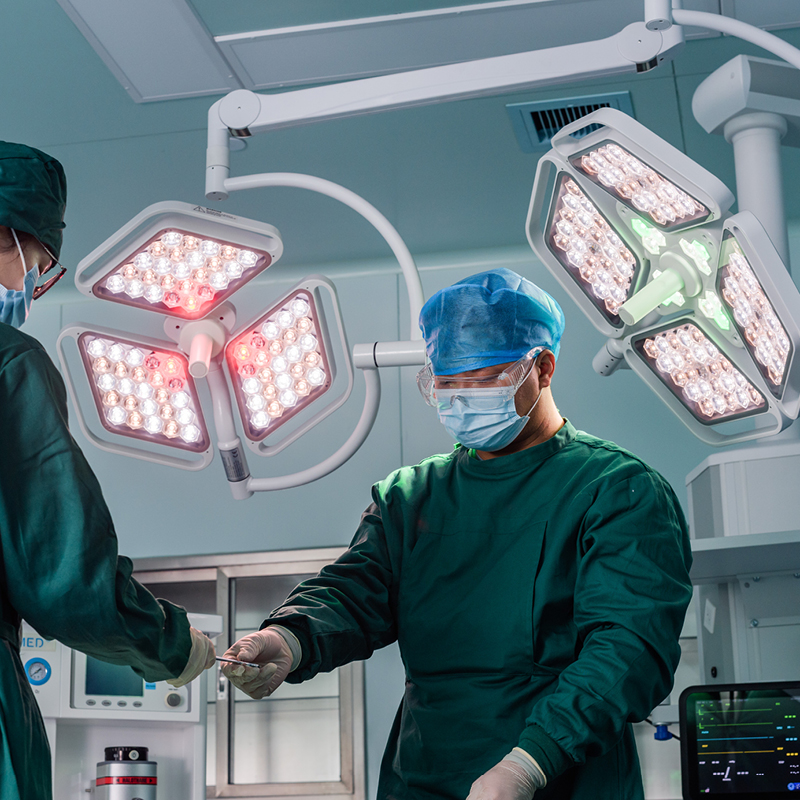

    Color temperature&Illumination
    Using a new type of LED cold light source, the illuminance can reach 160,000 Lux, which can realize stepless dimming and nonmulti-speed adjustment; the color temperature is in the range of 3000K-6700K, and the stepless dimming is non-multi-step adjustment. While meeting the high illuminance, adjust the lighting parameters according to the needs of different surgeons, so that the surgeon's perception of light is soft and no glint.
    Color rendering index
    The color rendering index reaches 96, which truly reflects the color of human tissues. It is suitable for various surgical scenes and greatly reduces the visual fatigue of medical staff due to long-term operations.
    4
    5

    Temperature rise (surgical field)

    LED cold light source has no infrared radiation, coupled with our nano-coated radiator, created our excellent heat dissipation effect. It solves the problem of the doctor's head temperature being too high during the operation, and creates a more comfortable operation environment for the doctor; it also effectively avoids the loss of water and infection of the surgical wound, which is conducive to the rapid recovery of the patient's wound after the operation.

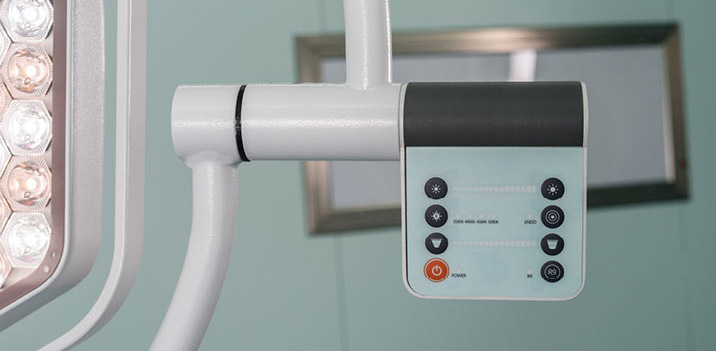

    Electric focus
    Compared with the traditional manual focusing function, this shadowless lamp is equipped with an electric focusing function, which is more convenient in operation.
    6
    7

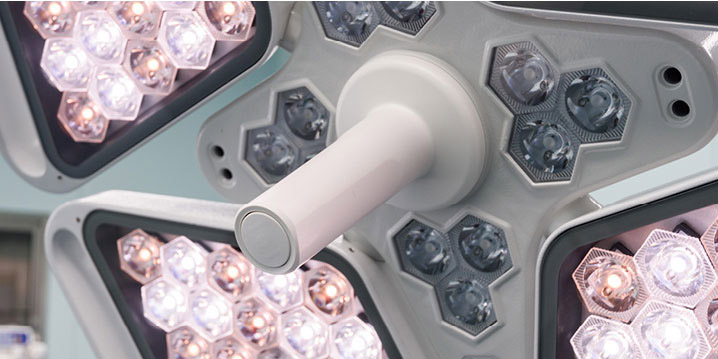

    Operating handle
    Special overhaul unit, photoelectric separation design, is for quick repair, which keeps the circuit board away from the heat source. What's more, it increases the service life, and improve the convenience at the same time. The control box can also be easily disassembled for maintenance. The modular lamp body is made of high-quality aluminum alloy precision casting, and the light source can be replaced independently.
    Operating handle
    The detachable disinfection handle is made of high-strength ABS, which can be disinfected and sterilized at a high temperature above 135°, ensuring the durability and reliability of the handle
    8

  • Previous:
  • Next:

  • Technical parameters

    Size(mm) φ700*175H
    Diameter of lighthead (mm) 700
    Illumination at 1m (Lux) 160000
    Brightness control range 10-100% stepless adjustment
    Color temperature (Kelvin) 3500-5000±300K
    Color rendering index (CRI ) ≥96
    Temperature rise (Surgeon head)(℃) ≤2
    Temperature rise (Surgical field)(℃) ≤1
    Total irradiance Ee (W/m2) ≤380
    Radiant power Ee/Ec (mW/m2lux) ≤4
    Effective focusing depth (cm) 100
    Lighting spot size (cm) 22-31
    L1+L2 depth of illumination (cm) 100
    Bulb type LED
    Bulb brand OSRAM
    Bulb quantity 112
    Bulb power (w) 1
    Average bulb life (hours) ≥50000
    Lamp weight 14kg

    Technical configuration

    Rotating arm 1 set
    Balance arm 1 set
    C-arm 1 set
    Handle 2 pcs

    Optional features
    ☐ Camera
    ☐ Monitor
    ☐ Back-up battery
    ☐ Remote controller
    ☐ Odahl balance arm
