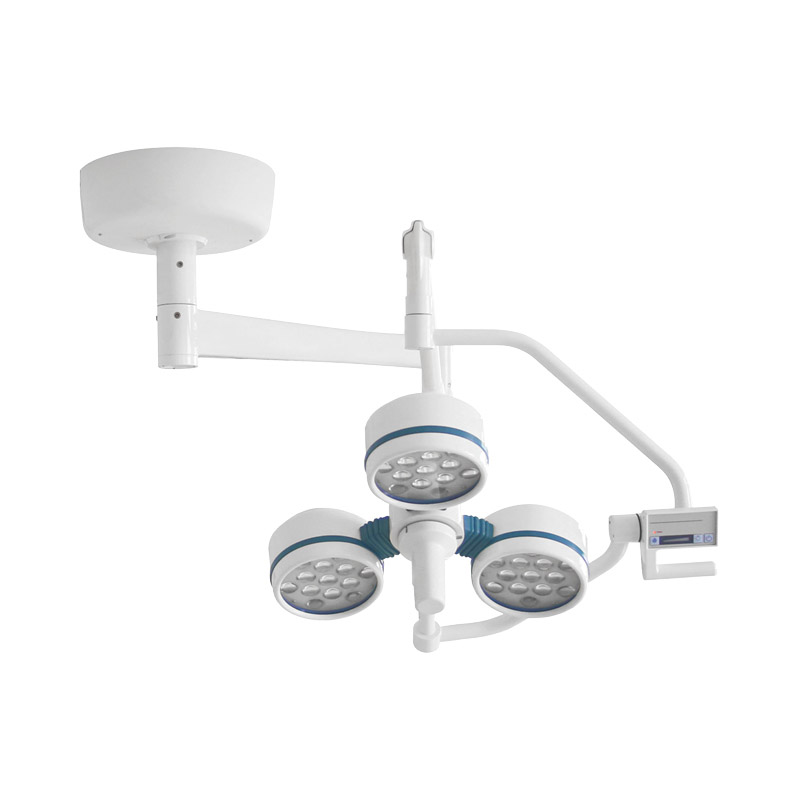

SK-LLD03F LED operation lamp

Highlights

Features

Quality Control

Warranty

Download

1

Material technology
The lampshade shell and derrick are all made of baosteel high quality steel.The surface adopts the high-voltage electrostatic spraying process,and the imported environmentally friendly antibacterial plastic powder that uesd to ensures that the product has matte surface and no glint.

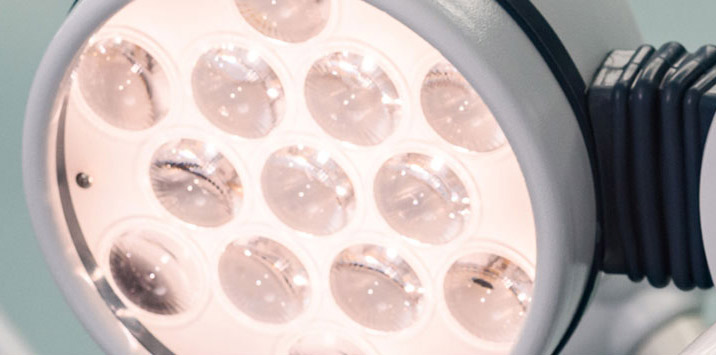

Bulb
It uses OSRAM high-quality LED light-emitting chips, the chip life is up to more than 50,000 hours, 40 times longer than the life of traditional halogen lamps.
2
3
Color temperature&Illumination
It uses LED cold light source, the color temperature is 4800±300K, the illuminance can reach 120,000 Lux, which can realize stepless dimming and non-multi-level adjustment. While meeting high illuminance, according to the needs of different surgeons,it can adjust the lighting parameters, so that the surgeon's perception of light is soft and not dazzling.
Color rendering index
The color rendering index is as high as 96, which truly reflects the color of human tissues. It is suitable for various surgical scenes and greatly reduces the visual fatigue of medical staff due to long-term operations.
4
5

Temperature rise (surgical field)

Temperature rise (surgical field)(℃): ≤1, this can avoid tissue drying due to high temperature and rapid blood clots at the wound, which will affect the operation.

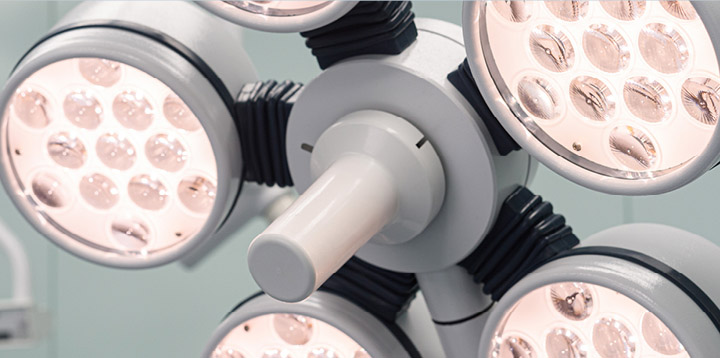

Lamp holder structure
The lamp holder is equipped with multiple light sources and reflectors to focus on the working plane, which can effectively eliminate the shadows on the surgical site formed by the surgeon's head, shoulders and arms.
6
7
Operating handle
The detachable disinfection handle is made of high-strength ABS, which can be disinfected and sterilized at a high temperature above 135°, ensuring the durability and reliability of the handle

  • Previous:
  • Next:

  • Technical parameters

    Diameter of lighthead (mm) 500
    Illumination at 1m (Lux) 120000
    Brightness control range 10-100% stepless adjustment
    Color temperature (Kelvin) 4800±300
    Color rendering index (CRI) ≥96
    Temperature rise (Surgeon head)(℃) ≤2
    Temperature rise (Surgical field)(℃) ≤1
    Total irradiance Ee (W/m2) ≤488
    Radiant power Ee/Ec (mW/m2lux) ≤4
    Effective focusing depth (cm) 60
    Lighting spot size (cm) 10-24
    L1+L2 depth of illumination (cm) 600
    Bulb type LED
    Bulb brand OSRAM
    Bulb quantity 39
    Bulb power (w) 1
    Average bulb life (hours) ≥50000



    Technical configuration

    Rotating arm 1 set
    Balance arm 1 set
    C-arm 1 set
    Handle 1 pcs
