SK-EM403 14-Inch Patient Monitor


  • Product Type: A501
  • Introduction:

    Highlights

    Features

    Quality Control

    Warranty

    Download

    SK-EM403_s1

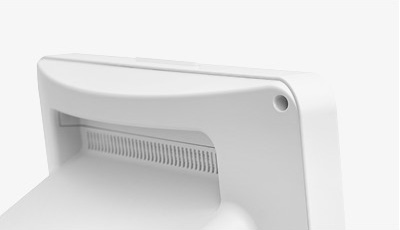

    Shell material
    Made from new ABS engineering plastic mold injection molding, which is more corrosion-resistant.

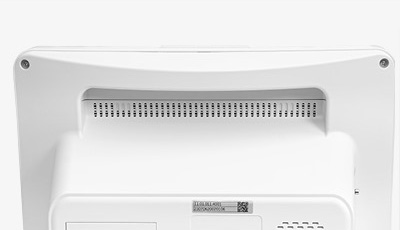

    Handle
    A concealed groove handle on the back, simple and stylish, comfortable to hold, stable, and easy to move.

    SK-EM403_s2
    SK-EM403_s3

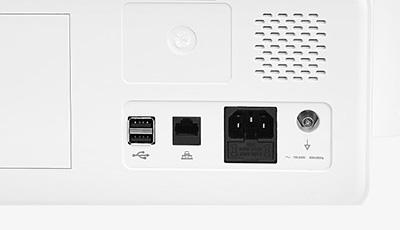

    Power supply
    Utilizes high-performance power supply, wide voltage range from AC100V-240V, built-in rechargeable lithium battery, compatible with both AC and DC power sources, providing continuous power for over 2 hours.

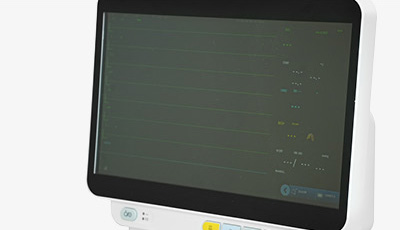

    Operating interface
    Simultaneously displays ECG waveforms for channels 1 to 7, with the ability to show all 8 waveforms on the same screen, enabling cascading ECG waveform display. The interface supports both Chinese and English, featuring large font size for easy reading, and offers one-touch shuttle operation.

    SK-EM403_s4
    SK-EM403_s5

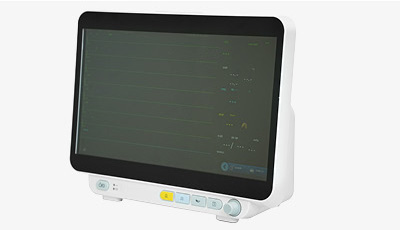

    Design
    Integrated design, streamlined functionality, stable performance, strong anti-interference capability, and long-lasting durability.

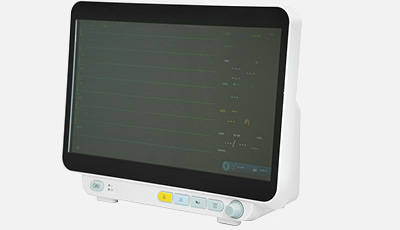

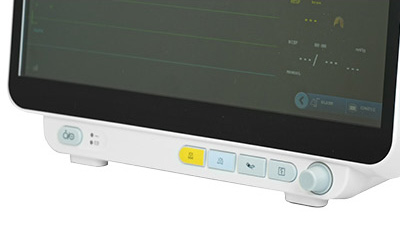

    Blood pressure button
    Conspicuous, independent blood pressure button for easy operation.

    SK-EM403_s6
    SK-EM403_s7

    Screen design
    14-inch full-color TFT LCD display, with a resolution of 1366*768, highdefinition display, a wide viewing angle of 170°, extremely user-friendly interface, and clear visible data.

    Alarm system
    Allows for the customization of different alarm levels with both audible and visual alerts.

    SK-EM402_s8
    SK-EM403_s9

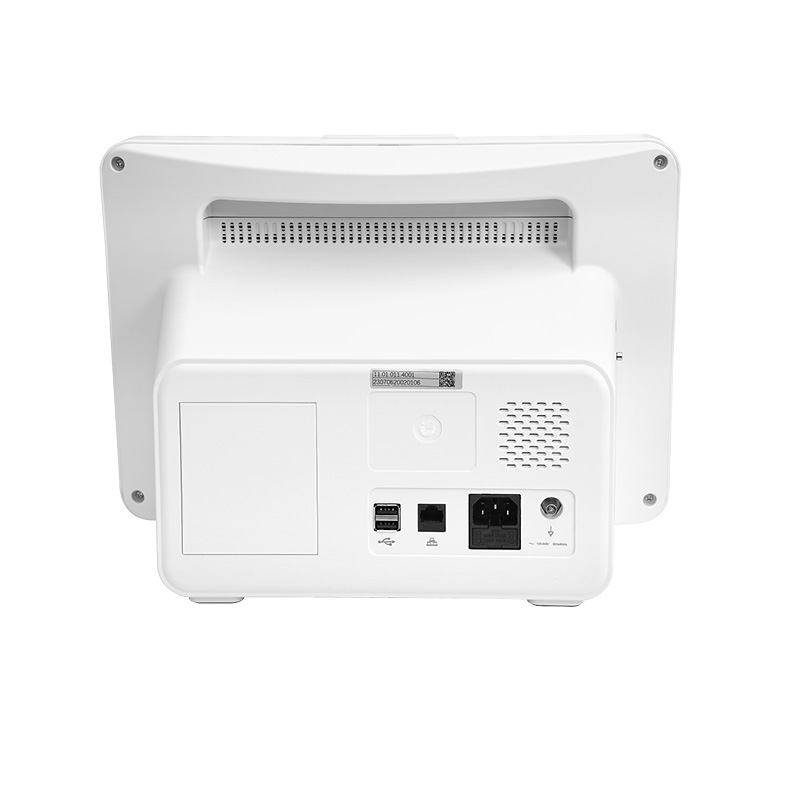

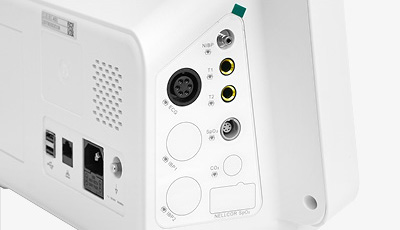

    Interface settings
    USB and network interfaces facilitate the integration into a central monitoring system and enable the free exchange of information.

    Patient information input function
    Supports both wired and wireless networking capabilities.

    SK-EM402_s10

  • Previous:
  • Next:

  • Technical parameters

    Product weight
    NW: 2.6kg
    Product size
    336*262*99 mm
    ECG(Lead configuration) 6-pin, 5-lead ECG lead wires
    ECG(Gain)
    ´0.25,´0.5,´1,´2,´4
    ECG(Heart rate range Adults) 1.0 bpm to 300 bpm
    ECG(Newborns/children) 15 bpm to 350 bpm
    ECG(Electrode polarization voltage range) ±300mV
    ECG(Baseline recovery time)
     < 3 seconds after defibrillation
    Respiration(Measurement method) RA-LL (R-F) Impedance Method
    Respiration(Respiration rate range: Adults)
    (0 -120) BrPM
    Respiration(Children and newborns) (0-150) BrPM
    Respiration(Apnea alarm) (10-40) seconds
    Measurement range of blood oxygen saturation
    0~100%, resolution: 1%, accuracy: 70%~100%: ±2, 0% ~69%
    Measurement range of pulse rate
    30 bpm to 300 bpm, with a resolution of 1 bpm and an accuracy of ±3
    bpm
    Non-invasive blood pressure(Operating modes) manual/automatic/continuous
    Non-invasive blood pressure(Pulse Rate Range)
    (30 – 300) bpm
    Non-invasive blood pressure(Measurement range) Systolic pressure (40-280) mmHg, diastolic pressure (10-220) mmHg, mean arterial pressure (20-235) mmHg
    Non-invasive blood pressure(Static pressure range) (0-300) mmHg, static pressure accuracy: ±3 mmHg.
     Dual-channel temperature measurement,measurement range  (0-50)°C, resolution: 0.1°C, accuracy
