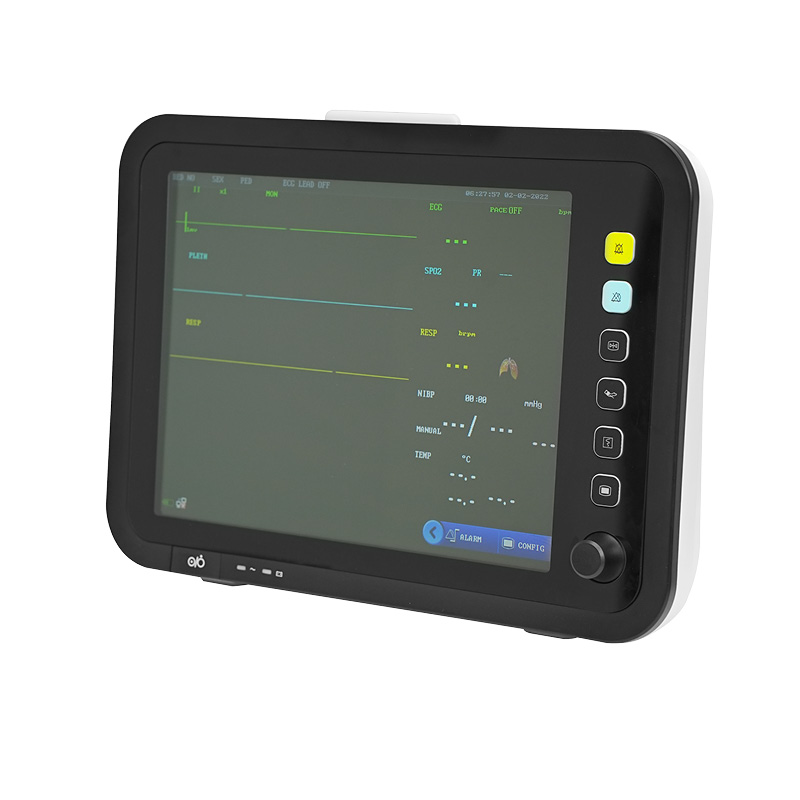

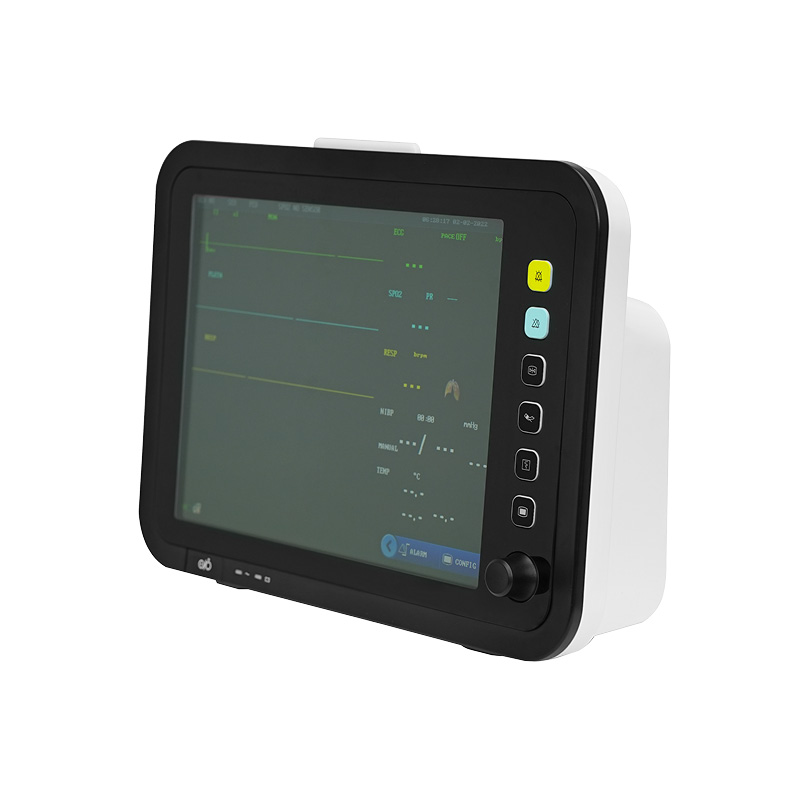

SK-EM402 12-Inch Patient Monitor
Introduction:
Shell material
Made from new ABS engineering plastic mold injection molding, which is more corrosion-resistant.

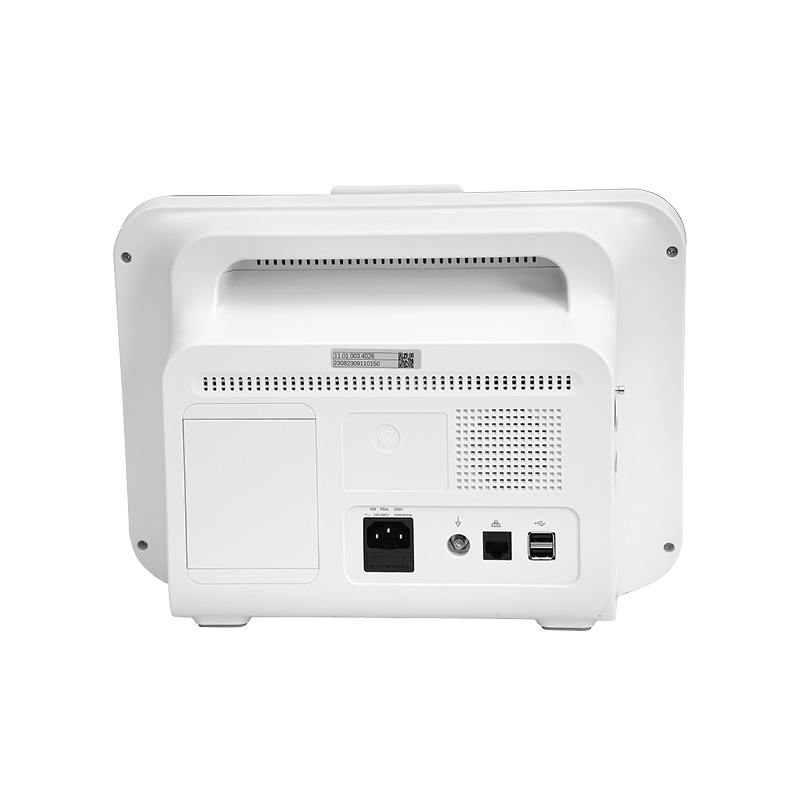

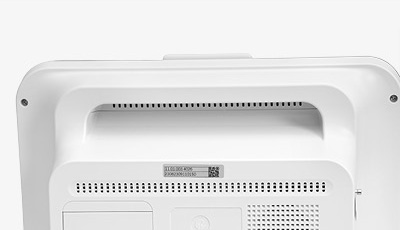

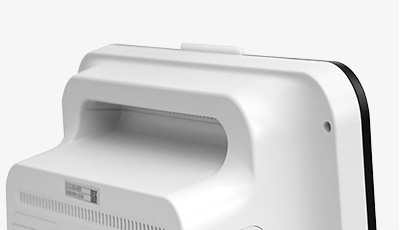

Handle
A concealed groove handle on the back, simple and stylish, comfortable to hold, stable, and easy to move.
Power supply
Utilizes high-performance power supply, wide voltage range from AC100V-240V, built-in rechargeable lithium battery, compatible with both AC and DC power sources, providing continuous power for over 2 hours.

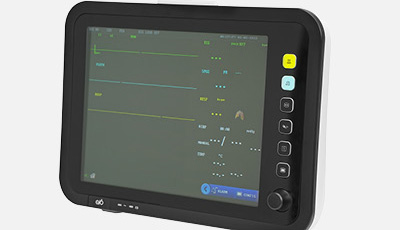

Operating interface
Simultaneously displays ECG waveforms for channels 1 to 7, with the ability to show all 8 waveforms on the same screen, enabling cascading ECG waveform display. The interface supports both Chinese and English, featuring large font size for easy reading, and offers one-touch shuttle operation.
Design
Integrated design, streamlined functionality, stable performance, strong anti-interference capability, and long-lasting durability.

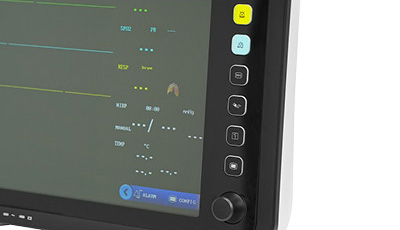

Blood pressure button
Conspicuous, independent blood pressure button for easy operation.

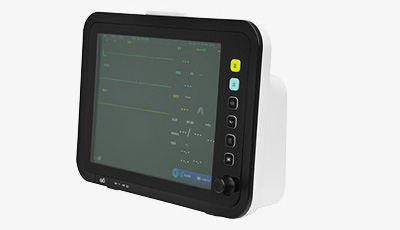

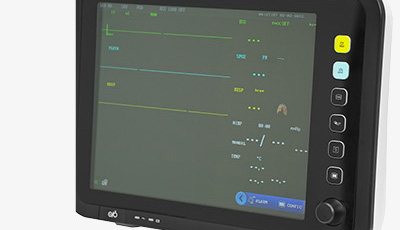

Screen design
12.1-inch TFT high-brightness LCDdisplay, black mirror display, and the data wave is clearly visible.
Alarm system
Allows for the customization of different alarm levels with both audible and visual alerts.

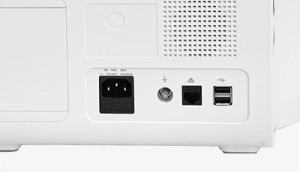

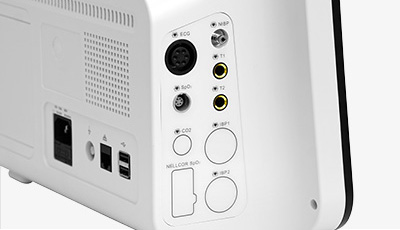

Interface settings
USB and network interfaces facilitate the integration into a central monitoring system and enable the free exchange of information.
Patient information input function
Supports both wired and wireless networking capabilities.
Technical parameters
| Product weight | NW: 2.79kg |
| Product size | 340*245*134 mm |
| ECG（Lead configuration） | 6-pin, 5-lead ECG lead wires |
| ECG（Gain） | ´1.25，´2.5，´5.0，´10 |
| ECG（Heart rate range Adults） | 1.0 bpm to 300 bpm |
| ECG（Newborns/children） | 15 bpm to 350 bpm |
| ECG（Electrode polarization voltage range） | ±300mV |
| Respiration（Measurement method） | RA-LL (R-F) Impedance Method |
| Respiration（Respiration rate range: Adults） |
(0 to 120) BrPM
|
| Respiration（Children and newborns） | (0-150) BrPM |
| Respiration（Apnea alarm） | (10-40) seconds |
| Measurement range of blood oxygen saturation | 0～100%, resolution: 1%, accuracy: 70%～100%: ±2, 40% to 69%土3% |
| Measurement range of pulse rate | 30 bpm to 300 bpm, with a resolution of 1 bpm and an accuracy of ±3 bpm |
| Non-invasive blood pressure（Operating modes） | manual/automatic/continuous |
| Non-invasive blood pressure（Pulse Rate Range） | (40 – 240) bpm |
| Non-invasive blood pressure（Measurement range） | Systolic pressure (40-280) mmHg, diastolic pressure (10-220) mmHg, mean arterial pressure (20-240) mmHg. |
| Non-invasive blood pressure（Static pressure range） | (0-300) mmHg, static pressure accuracy: ±3 mmHg. |
| Dual-channel temperature measurement,measurement range | (0-50)°C, resolution: 0.1°C, accuracy |
We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate 126 registered technological patents and fulfill more than 20 quality certifications (ISO-9001/13485/14001/18001, European CE, FDA of the USA, Russian Federal Register, ANVISA of Brazil, etc.), in addition to the 93/42/EEC and IEC60601 safety standards. In all of this our R&D department is key, in which we invest 10% of our profits annually.
WARRANTY
* We provide a standard 1 year warranty, optional to be increased. 1% free parts of the total quantity will be provided together with goods.
* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.
* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
