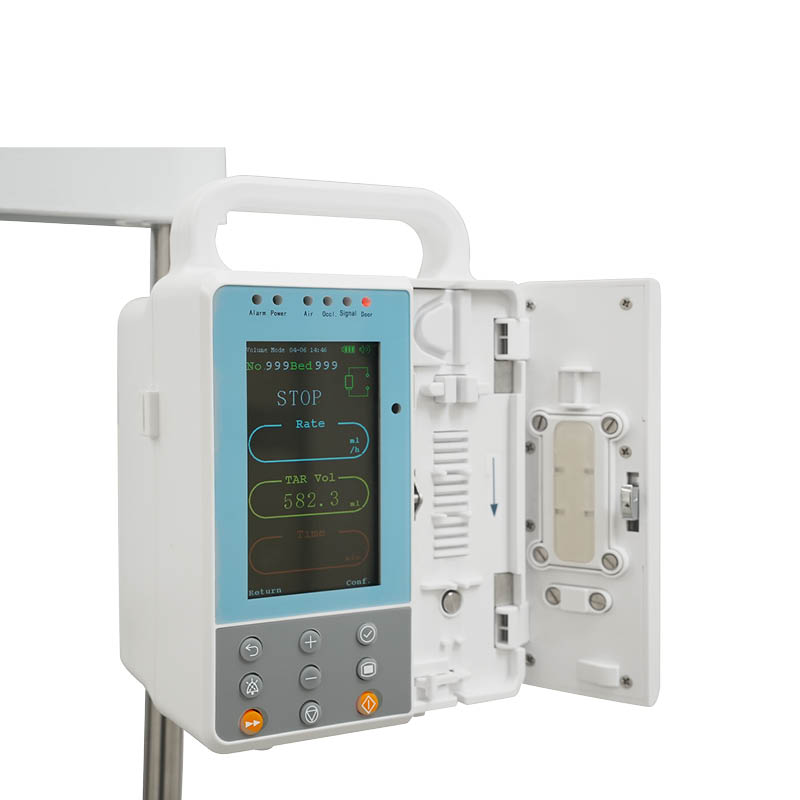

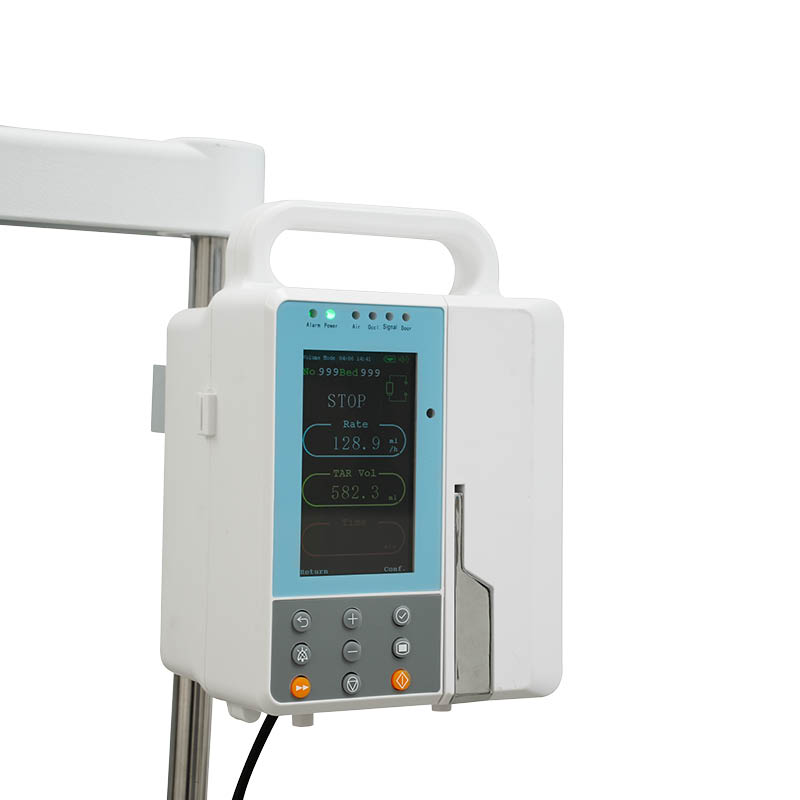

SK-EM211 Infusion Pump
Introduction:
Other Features
•Bolus infusion technology, it is close to the clinical needs and relieves the discomfort of patients.
• Ultrasonic bubble detection technology,intently monitor bubbles in the infusion tube.

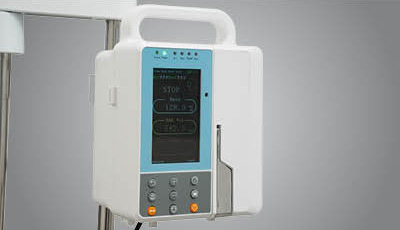

Design
Humanized integrated design, exquisite appearance. It has obvious advantage in rescuing critically patients and reducing the workload of nurses.
Shell Material
New ABS engineering plastic injection molding.
Screen Design
4.3 inches, resolution 272×480 TFT screen, support multi-language, equipped with backlight, suitable for various environments, clearly display all working status on the same screen.

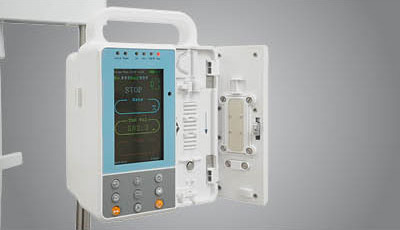

Internal structure
The aluminum-magnesium alloy bracket is stable and reliable, has good shock resistance and is easy to move.

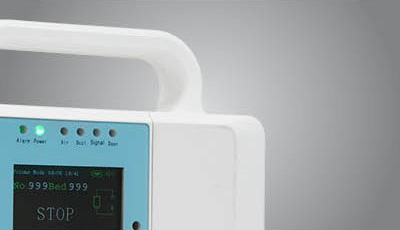

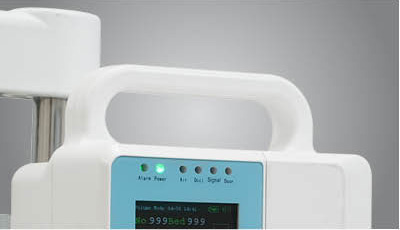

Handle
Fixed handle design, comfortable, stable and easy to move.

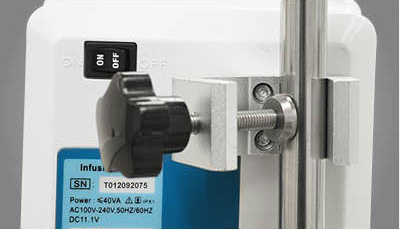

Hanger
The stable screw hanger can fix the infusion pump on the wall or pole.
Battery
Built-in with a large capacity lithiumion battery, ensuring a continuous operation of up to five hours in case of AC power interruption.

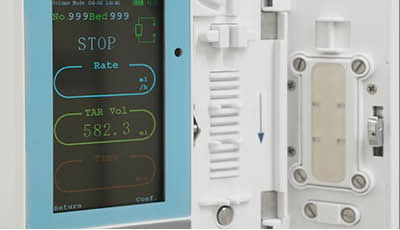

Infusion Line
Excellent KVO function (Keep vessels open) keeps the infusion pipeline unobstructed.

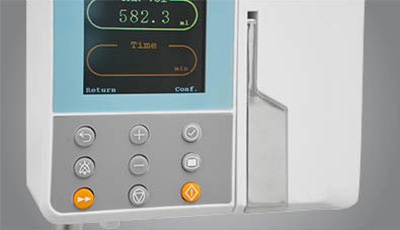

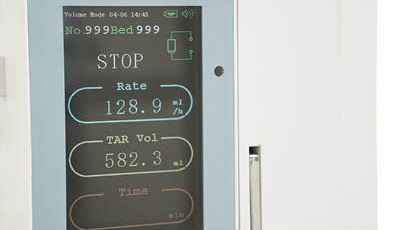

Operation Interface
Interface display content: time, battery capacity, infusion condition, mode, rate, infusion volume, cumulative amount, infusion time, volume level, department, and bed number.

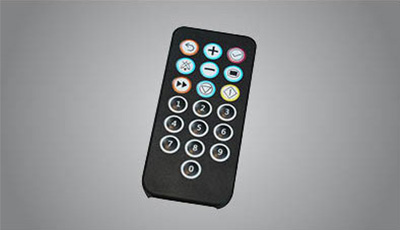

Remote Control Function
It can remotely control devices, directly input numbers to adjust parameters such as speed, infusion time, and medicine volume, which can save time and effort for medical staff.
Alarm Function
The triple alarm system of sound, light and screen has a prominent function.
Technical parameters
| Product weight | gross weight 3.2kg net weight 2.3kg |
| Mode selection | drop mode, volume mode, time mode |
| Medicine library function | comes with 210 kinds of medicine for users to choose |
| The history function can store up to a maximum of | 1500 records. |
| Adjustment range of infusion drops | one drop/min～400 drops(The increase per level is 1 drop per minute) |
| Adjustment range of flow rate | 1ml/h ～ 1200ml/h（1ml/h～99.9ml/h per hour，the increase per level is 0.1ml/h；more than 99.90.1ml/h per hour，the increase per level is 1ml/h） |
| Speed accuracy | within ±3% (choose a high-quality infusion set or a calibrated common infusion set) |
| Mechanical precision of the pump | within ±2%. |
| Fast forward rate | 800ml/h |
| KVO rate | 1ml/h (infusion rate: 1ml/h ~ 300ml/h); 3ml/h (infusion rate greater than 300ml/h) |
| Infusion volume range | 1ml ～ 9999.9ml(the increase per level is 1ml/h) |
| Maximum cumulative amount | 9999.9ml |
| Infusion time range | 1min ～ 9999.9min (the increase per level is 1min) |
| Blocking alarm threshold | High: 800mmHg ± 200mmHg（106kPa ± 26.7kPa） |
| Blocking alarm threshold | Middle: 500mmHg±100mmHg（66.7kPa±13.3kPa） |
| Blocking alarm threshold | Low: 300mmHg±100mmHg（40.7kPa±13.3kPa） |
| Working environment temperature | temperature: ﹢5℃~+40℃ |
| Relative humidity | 20%~ 90% |
| Atmospheric pressure | 8 60hPa～1060hPa |
We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate 126 registered technological patents and fulfill more than 20 quality certifications (ISO-9001/13485/14001/18001, European CE, FDA of the USA, Russian Federal Register, ANVISA of Brazil, etc.), in addition to the 93/42/EEC and IEC60601 safety standards. In all of this our R&D department is key, in which we invest 10% of our profits annually.
WARRANTY
* We provide a standard 1 year warranty, optional to be increased. 1% free parts of the total quantity will be provided together with goods. * The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company. * Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
FAQ
What quality requirements does your company meet? * We have over 20 certifications, as ISO-9001/13485/14001/18001, European CE, North American FDA, Russian Federal Registration and Brazilian Health Regulatory Agency. * We also meet the 93/42/EEC and IEC60601 safety standards. * In addition to having 126 patents registered, we are constantly developing and implementing new standards for product quality and service efficiency. What warranty do your products have? * We provide a standard 1 year warranty, optional to be increased. * 1% free parts of the total quantity will be provided together with goods. * The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company. * Beyond the maintenance period, we will charge the accessories, but the technical service is still free. What is your delivery time? * Our standard delivery time is 28 days. What payment options do you offer? * We are flexible in terms of payment. We can do LC, TT, DP, even credit, after auditing the customer. Do you offer OEM service? * Yes, we have a qualified R&D team to carry out customized projects. You just need to provide us with your own specifications. Do you have different motor options? * Yes, we have different brands of motors, as Linak, Timotion, Dewert or Jiechang. Is the color on headboard/footboard and ABS side rail optional? * Yes, we can provide the color according to customers’ requirements, based on wholesale purchases. Can I see your products personally? * You are welcome to our 2,000 m2 of showrooms in our factory in China (150 km from Shanghai). * In addition, we annually attend numerous international exhibitions where we present our products, such as Arab Health (United Arab Emirates), North Africa Health (Egypt), CMEF (Shanghai), German Medica (Germany), Medic West Africa (Nigeria), Medic East Africa (Kenya), Pharmedi (Vietnam), Hospitalar (Brazil), Medical Expo (Morocco), etc.
