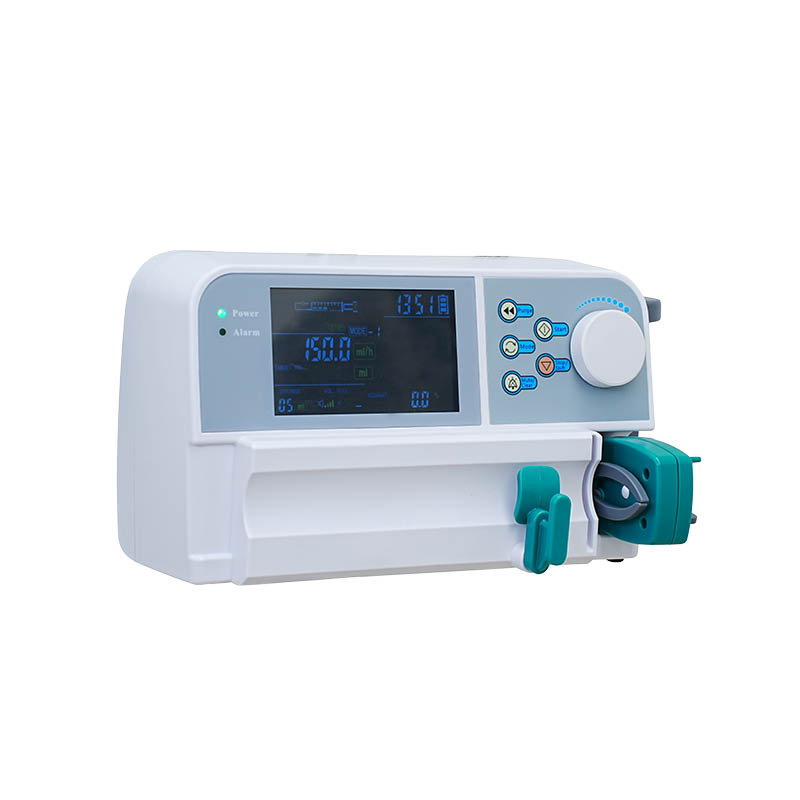

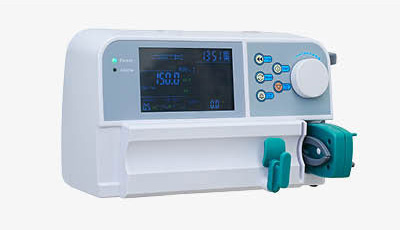

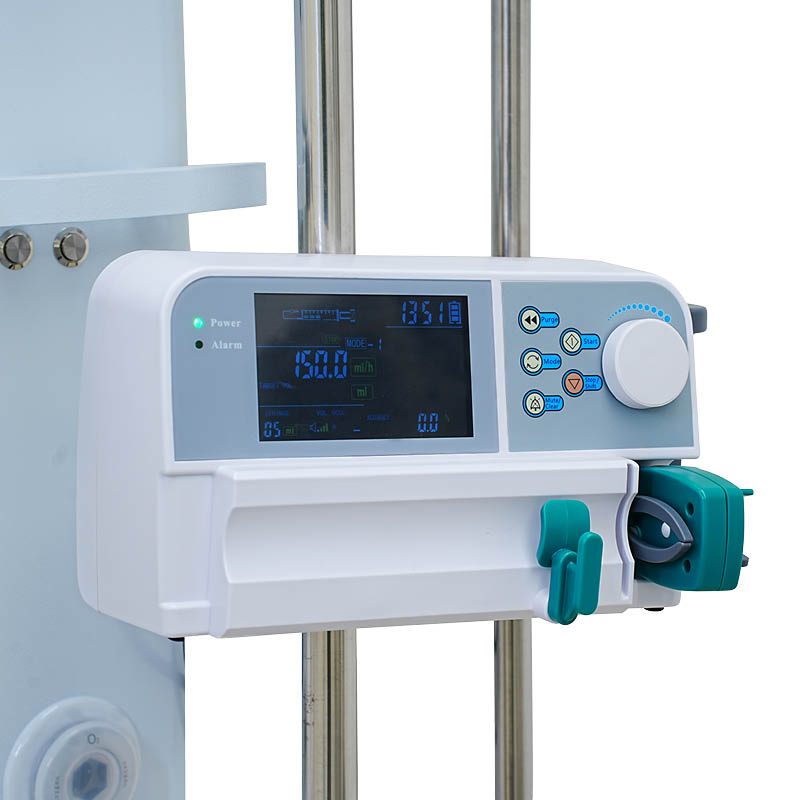

SK-EM201 Medical Syringe Pump
Introduction:
Accessories: host, remote control, power cord, user manual, warranty card, product certificate.
Application: The main application software is developed on the Linux platform, which is more secure and reliable. The function and technology are completely independently researched and developed, and can fully meet customers’ future upgrade needs.
Other Functions: Automatic syringe specification recognition function: can be used for 5ml, 10ml, 20ml, 30ml, 50 (60) ml syringes. The manually adjustable precision function is more convenient for adjusting and ensuring precision requirements
Design
Humanized integrated design, exquisite appearance,precise injection, and powerful functions.
Shell Material
New ABS engineering plastic injection molding.

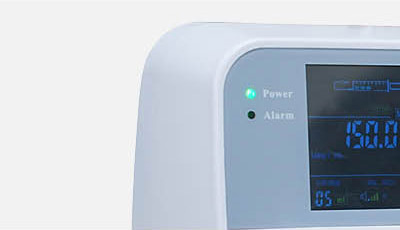

Screen Design
4.3-inch LCD screen, support Chinese and English language. Equipped with backlight, it can be used in various lighting conditions.The operating interface is presented at a 45-degree angle, which enhances the clarity of the visual effect.
Internal structure
The aluminum-magnesium alloy bracket is stable and reliable, has good shock resistance and is easy to move.

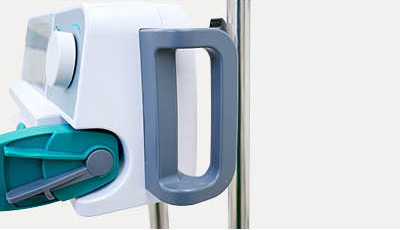

Handle
Fixed handle design, comfortable, stable and easy to move.

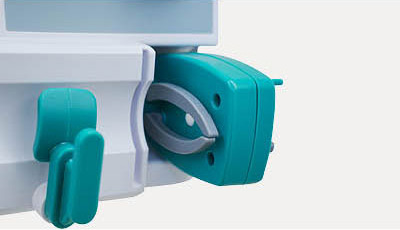

Syringe Fixture
Using an open-and-close design, it is easy to clamp the syringe, which can accommodate a 60mm syringe and is more in line with clinical operation.

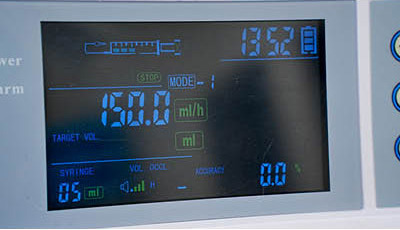

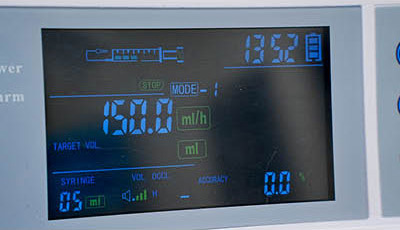

Operation Interface
Interface display conten: time, battery capacity, injection status, mode, injection speed, injection volume, cumulative volume, injection time, syringe specification, alarm volume, block pressure, precision, weight, medication amount, dose, and liquid volume.

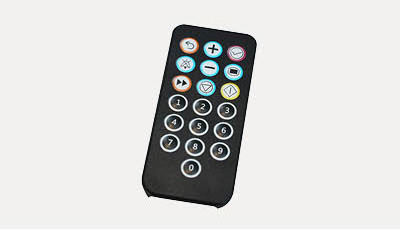

Remote Control Function
It can remotely control devices, directly input numbers to adjust parameters such as speed, infusion time, and medicine volume, which can save time and effort for medical staff.

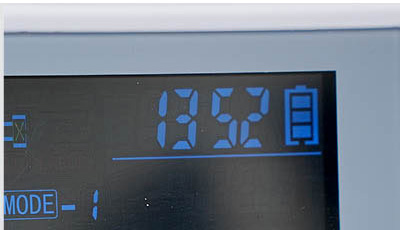

Clock Display Function
It is convenient to memorize and check time.
Alarm Function
The triple alarm system of sound, light and screen, three levels of adjustable volume.
Injection speed range：50ml syringe:
0.1～1800ml/h (0.1～999.9ml/h increment is 0.1ml/h
1000～1800ml/h increment is 1ml/h)
30ml syringe: 0.1～900ml/h
20ml syringe: 0.1～600ml/h
10ml syringe: 0.1～300ml/h
5ml syringe: 0.1～150ml/h
Fast forward speed:
50ml syringe: 1800ml/h (Bolus speed 1200ml/h)
30ml syringe: 900ml/h (Bolus speed 600ml/h)
20ml syringe: 600ml/h (Bolus speed 400ml/h)
10ml syringe: 300ml/h (Bolus speed 200ml/h)
5 ml syringe: 150ml/h (Bolus speed 100ml/h)
Alarm function:
alarm for injection completion, syringe empty, injection near, injection blockage, syringe falling off, syringe installation error, battery low (undervoltage alarm), AC power disconnection, stop timeout prompt.
Technical parameters
| Product weight | gross weight 3kg net weight 2.3kg |
| Injection modes | speed mode, time mode, weight mode (2 types). |
| Injection volume range | 0.1～1999.9ml (in increments of 0.1ml) |
| Cumulative volume range | 9999.9ml (in increments of 0.1ml) |
| Accuracy of injection speed | within ±2% (not including the error of the syringe itself) |
| Injection blockage | Three levels of blockage alarm pressure (high, medium, low) can be selected according to clinical needs |
| KVO speed (Keep vessels open) | 0.1～5ml/h (adjustable in increments of 0.1 ml/h) |
| Remote Control Function | Distance range 0m–5m |
| Working environment | Temperature: ﹢5℃~+40℃ |
| Relative humidity | 20%~ 90% |
| Storage environment | Temperature ﹣30℃~﹢55℃ |
| Atmospheric pressure | 860hPa～1060hPa |
| Safety level | Class I CF equipment, built-in power supply, continuous operation with intermittent loading |
We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate 126 registered technological patents and fulfill more than 20 quality certifications (ISO-9001/13485/14001/18001, European CE, FDA of the USA, Russian Federal Register, ANVISA of Brazil, etc.), in addition to the 93/42/EEC and IEC60601 safety standards. In all of this our R&D department is key, in which we invest 10% of our profits annually.
WARRANTY
* We provide a standard 1 year warranty, optional to be increased. 1% free parts of the total quantity will be provided together with goods. * The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company. * Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
