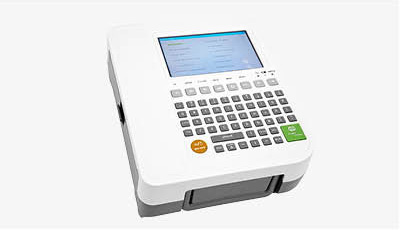

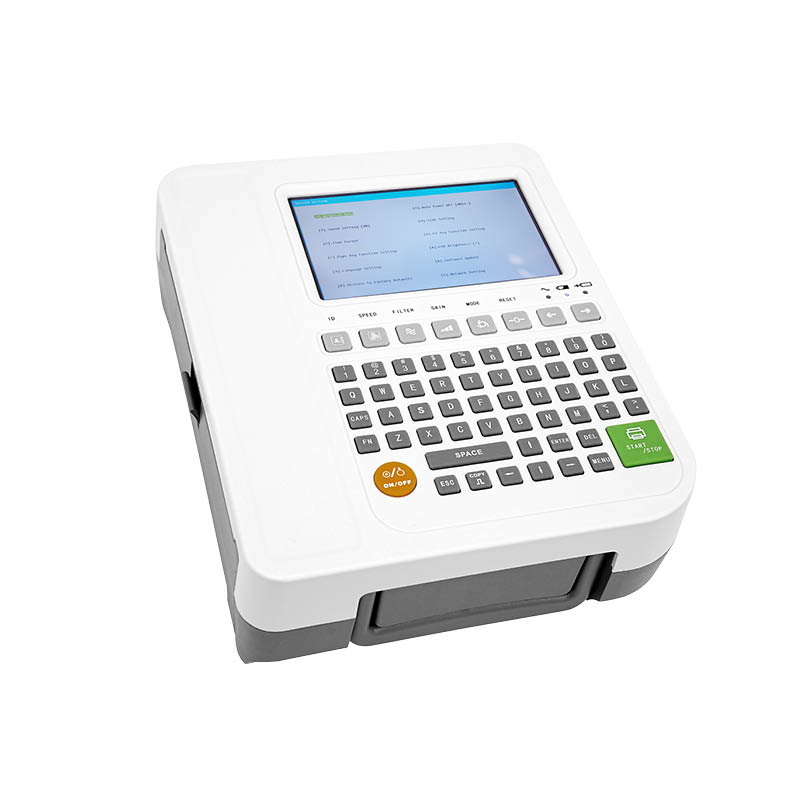

SK-EM103 12-channel ECG
Introduction:

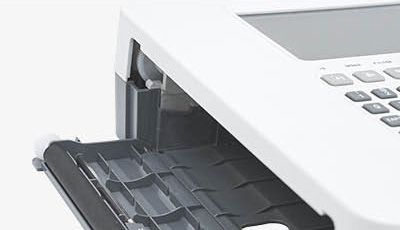

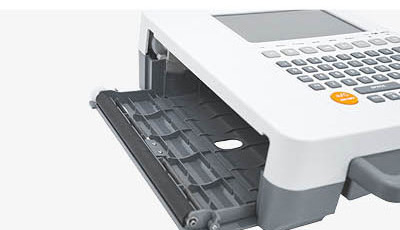

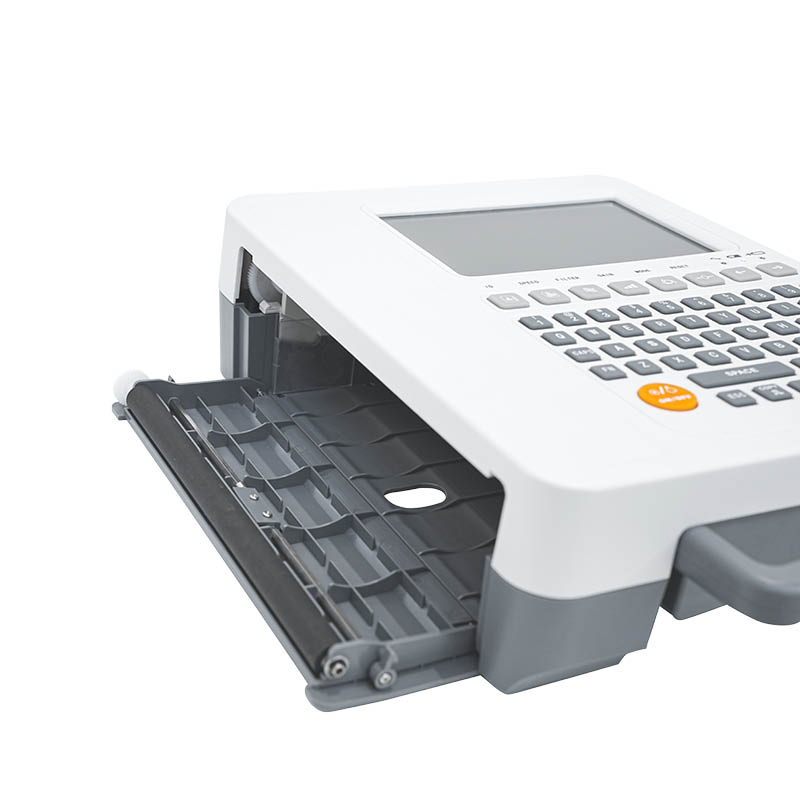

Printing system
High-resolution thermal array printing, with adjustable print density of 1-10 levels, producing realistic and delicate waveform and character effects. Suitable for capturing ECG waveforms of adults, children, and newborns.
Baseline stability detection ensures that neat and beautiful ECG waveforms are printed every time.
Prints on 215mm thermal paper, with clear and accurate records of uncompressed ECG waveforms of three, six, and twelve leads, lead labels, sensitivity, paper speed, filter settings, analysis reports, and other information, which can be used for clinical diagnosis and research.
Other Features
Automatic mode can automatically adjust the waveform sensitivity, and the recording time for each set of leads can be set between 3 to 12 seconds.
Baseline width
The baseline width can be adjusted from level 1 to 4, allowing for the creation of neat and beautiful ECG waveforms according to personal preference.
Shell material
Brand new ABS engineering plastic mold injection molding.

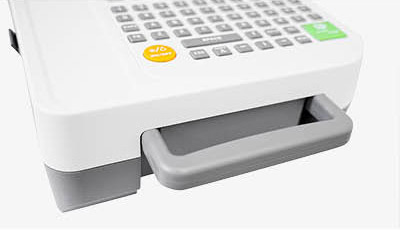

Handle
Retractable handle design, comfortable to hold and easy to store.
Power supply
Dual-use AC/DC power supply, built-in rechargeable lithium battery
Internal structure
Adopting aluminum-magnesium alloy bracket, stable and reliable, with good shock resistance and easy to move.
Design
The appearance design is simple and elegant, light and easy to carry, and has complete functions.

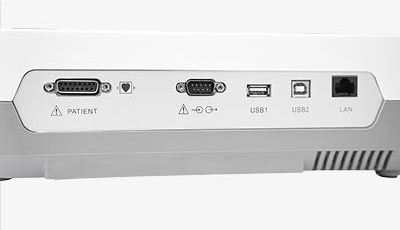

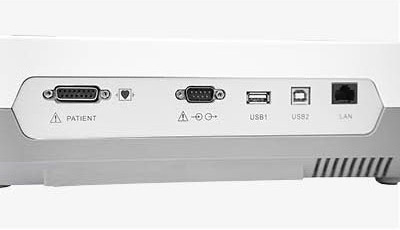

Data interface
Built-in USB interface, supports direct insertion of USB flash drive to copy data; can convert ECG data into images in batches and upload them to USB flash drive for viewing and printing directly by connecting to a computer and printer.

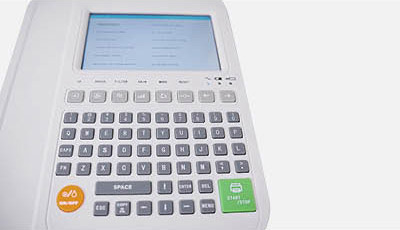

Screen design
The 7-inch color LCD liquid crystal display shows waveform, menu (paper speed, gain, filter status, etc.), patient information (ID number, name, gender, age), and working status. The brightness of the LCD display screen can be adjusted to 1-8 levels, suitable for use in various lighting conditions.

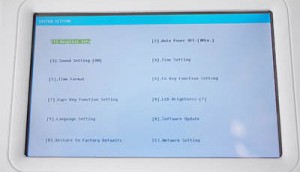

Operation interface
The operation interface is available in both Chinese and English. The display can be set to show 3/6/12 leads simultaneously, and the grid and waveform size can be adjusted on the screen for easy observation by medical staff. The device can record 1 lead, 1+ rhythm, 3 leads, 6 leads, and 12 leads in both manual and automatic modes.

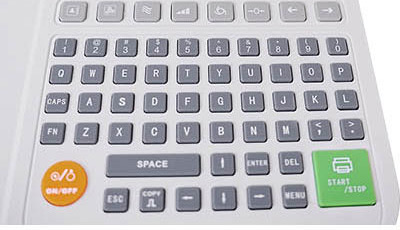

Keypad
High-quality silicone full keyboard keys with a long lifespan and good tactile feel. Supports full keyboard patient information and hospital name input in both Chinese and English, with quick switching between uppercase and lowercase.
| Product weight | GW: 6kg, NW: 3.5kg |
| Leads | standard 12 leads |
| Sampling rate | 14 bits/1000Hz (12-lead synchronous acquisition) |
| Printing paper specifications | 215mm*25mm |
| Paper speed | 6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s (±3%) |
| Sensitivity | 10mm/mV (AUT O), 2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV |
| Common Mode Rejection Ratio | ≥100dB (with AC filter) |
| Input loop current | ≤0.1μA |
| Translation: Patient leakage current | <10μA |
| Calibration voltage | 1mV ± 2% |
| Polarization resistance voltage | ≥±500mV |
| Time constant | ≥3.2s |
| Frequency response | 1Hz～150Hz |
| Noise level | <15μVp-p |
| Sensitive threshold | ≤20μV |
| Interference between channels | ≤0.5mm |
| Data storage | Comes with 20 default storage capacity; optional large capacity memory can store up to 10100 cases. |
We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate 126 registered technological patents and fulfill more than 20 quality certifications (ISO-9001/13485/14001/18001, European CE, FDA of the USA, Russian Federal Register, ANVISA of Brazil, etc.), in addition to the 93/42/EEC and IEC60601 safety standards. In all of this our R&D department is key, in which we invest 10% of our profits annually.
WARRANTY
* We provide a standard 1 year warranty, optional to be increased. 1% free parts of the total quantity will be provided together with goods. * The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company. * Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
