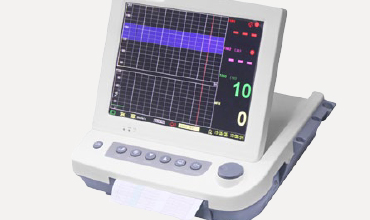

SK-EM006 Patient Monitor
Introduction:
DESIGN
Lightweight,space saving,easy operations,can be laid on or mounted
SCREEN
Multi-crystals,wide bean form, high sensitivity ultrasound transducer,low ultrasound power,Safer to thrfetal
PRINTER

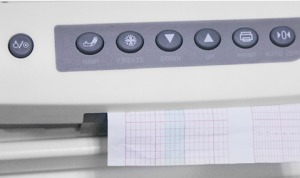

The internal line 152mm thermal printer can records FHR,TOCO,The life exceed over 20 years
Electric Current
AC or LI-battery operated.
The characteristics of
▪ Features:
▪ light and compact design, simple to use front panel controls

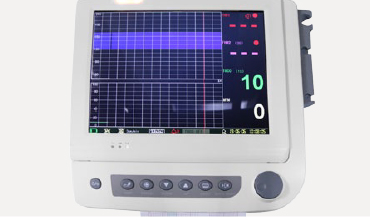

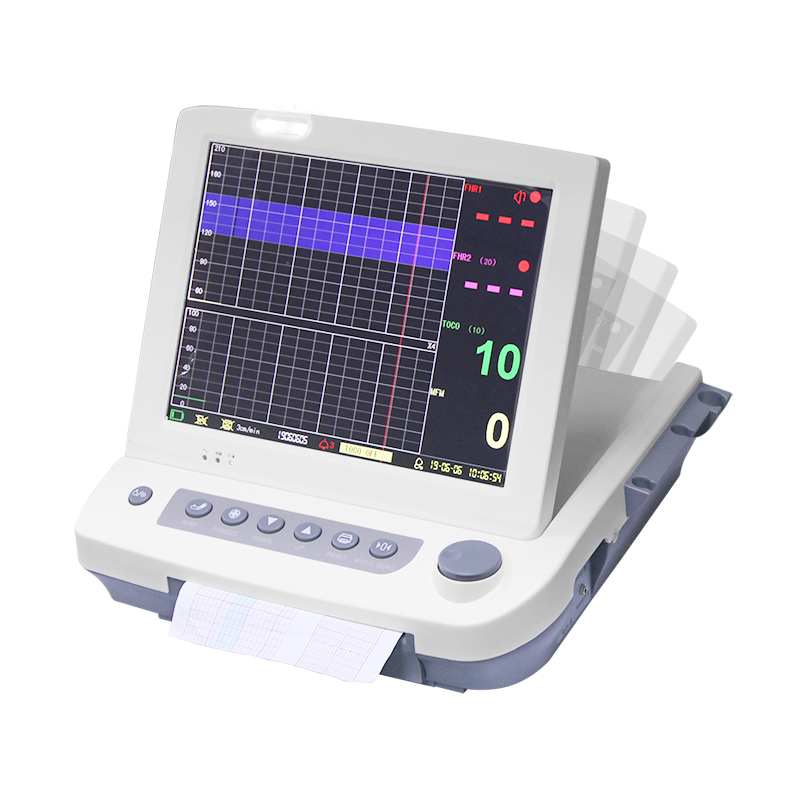

▪ 12.1″ TFT Colour screen , folding 90 degree
▪ The system setup can be done very easy and can be stored
automatically The internal line 152mm thermal printer can records
FHR ,TOCO ,The life exceed over 20 years
▪ A standard patient event marker and a clinical event marking button
to separately mark Clinical events
▪ Auto Fetal movement are available
▪ Multi-crystals ,wide beam form, high sensitivity ultrasound
transducer,low ultrasound power, Safer to the fetal
▪ AC or LI -battery operated
▪ More than 12 hours data storage, then can be played and reprinted
▪ Build-in interface to the central nurse station
Technical specifications
FHR
Transducer:
Strength Multi-crystals, wide wave beam, pulsed-wave working
method, high sensitivity <5mW/cm2
Working Frequency 1.0MHz
Signal Processing Special DSP system and modern recognition
Measurement Range 50~240bpm
Alarm Range:High Limit 160, 170, 180, 190 bpm
Low Limit 90, 100, 110, 120 bpm
Maximum Audio Output Power 1.5 Watt
According TO
TOCO
Measurement Range 0-100 units
Display

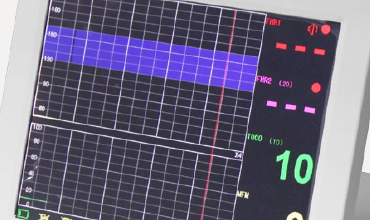

LCD shows the FHR trace, TOCO tracd, FM, Doctor Event Mark, Time,
Volume etc monitor state, and also it can store and playback.
Dimension 350Lx320Wx85H (mm)
Net Weight 3.5 kg
Environment:
Working Environment T emperature: +5℃ ~ +40
Atmospheric Pressure 86kPa ~106kPa
Transport and Storage Temperature Humidity: < 93%
Atmospheric Pressure 86kPa ~ 106kPa
GEL
Viscous aqueous non-sensitizing,hypo-allergenic and non-irritating to
skin Bacteriostat (not sterile)
Standard FHRT OCOFM
Optional T win Monitoring,FAS (fetal acoustic simulator)
Transducer Acoustic Output:
Under the requirements laid down in IEC 1157, 1992, the peak negative
acoustic pressure does not exceed 1Mpa.The output beam intensity
does not exceed 20mW/cm2 and the spatial-peak temporal average
intensity does not exceed 100 mW/cm2. The sound intensity of this
monitor will not exceed 5mW/cm2.
