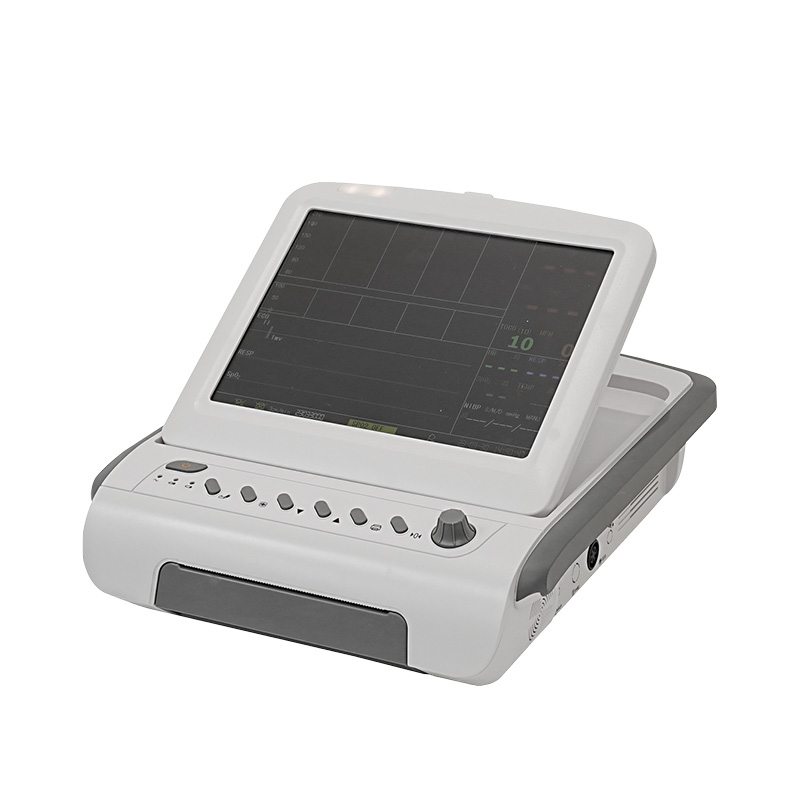

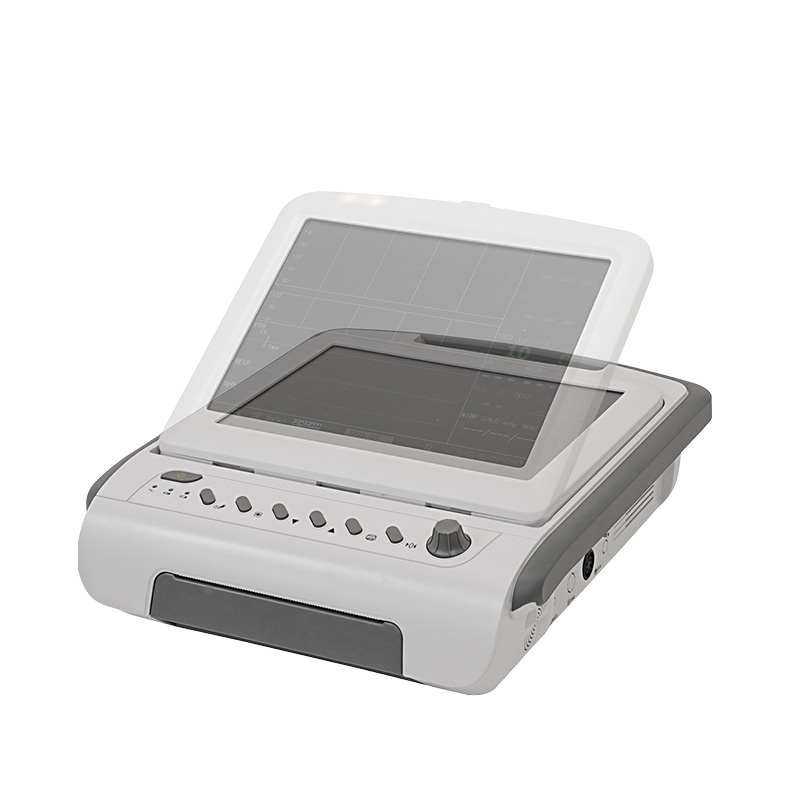

SK-EM005 Maternal And Child Health Monitoring Device
Introduction:
Measurement range of pulse rate
▪ 20bpm-300bpm resolution: 1bpm accuracy: ±3bpm
Temperature measurement range
▪ (5-50)°C, resolution: 0.1°C
Measurement range of blood oxygen saturation
▪ 0-100%
▪ Resolution: 1%
▪ Accuracy: 70%-100%: ±2
▪ 0%-69%: undefined

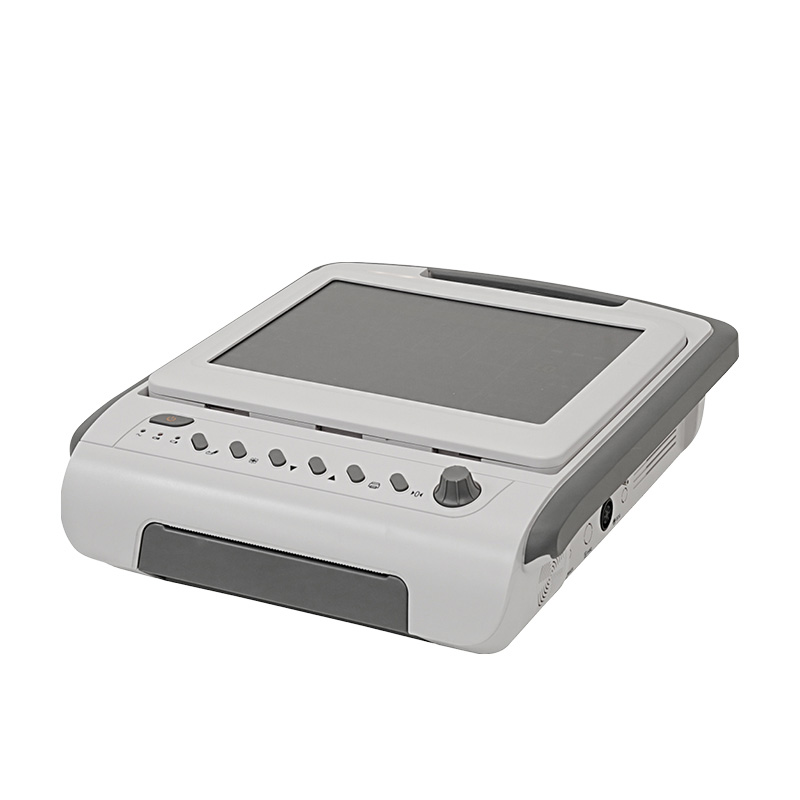

Design
The highly compact and lightweight body design allows for easy portability and flexible installation in all directions.
Material
Newly designed with ABS engineering plastic mold injection molding. Adopting aluminum-magnesium alloy bracket, stable and reliable, with good shock resistance and easy to move.

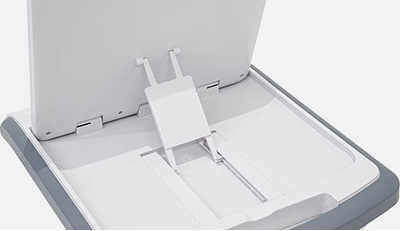

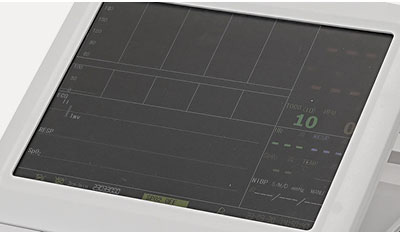

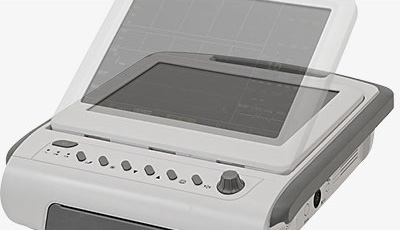

Screen design
The 12.1-inch color LCD screen can be adjusted within a 90-degree range to meet different viewing angle requirements.

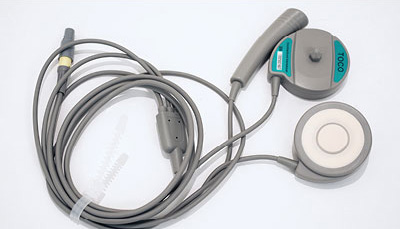

Ultrasound probe
The multi-chip waterproof probe is highly sensitive, resistant to interference, and has extremely low ultrasonic dosage, making fetal monitoring safer and more reliable.

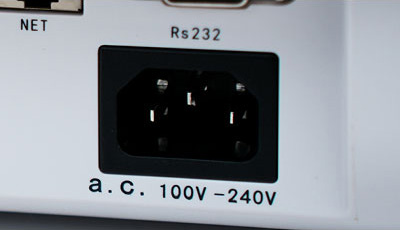

Power supply
The wide power supply design makes it suitable for use in a wide range of regions. The dual AC/DC power supply ensures high adaptability of the instrument to different environments. With low power consumption, it maintains stable and continuous monitoring of pregnant women and fetuses for extended periods of time.

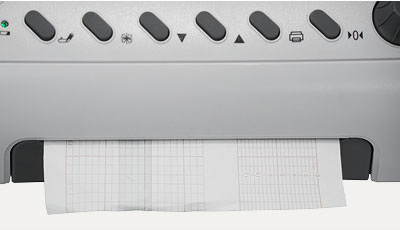

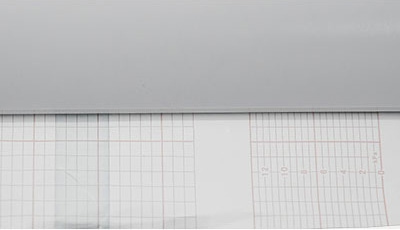

Built-in printer
The 152mm imported thermal array printer has an extended lifespan and can print and store real-time curves, parameter values, and monitoring status.

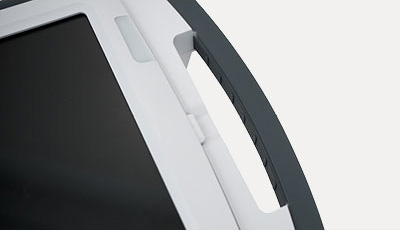

Handle
Fixed handle design, comfortable to hold, stable and easy to move.

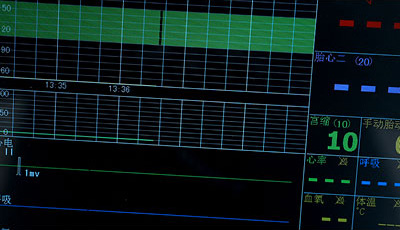

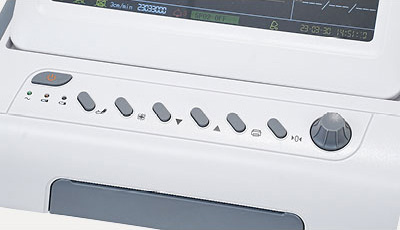

Operation display
The device has two specialized display interfaces for fetal and maternal monitoring, and is operated with shuttle rotary buttons for convenient and efficient operation.

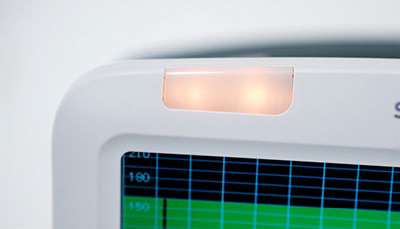

Alarm function
The device has multiple alarm functions, including alarms for fetal tachycardia, low battery, bradycardia, and printer paper shortage.
Counting function
The device can automatically and manually count fetal movements and display fetal activity curves and data in a clear and intuitive manner.

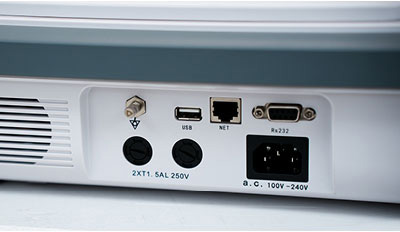

Interface settings
The device supports both wired and wireless network connections and has USB and network interfaces for integration into a central monitoring system, allowing for dynamic, timely, and comprehensive observation of monitoring conditions.
Analyzing Storage Functions
The device has automatic fetal scoring and analysis functions, which can perform ACOG, FISCHER, and KREBS scoring, providing professional reference data for clinical diagnosis. It can continuously store monitoring curves and data for up to 39 hours, and can be easily searched, replayed and printed at any time.
| Fetal heart rate measurement display curve range | 50-10bpm (≤±2bpm) |
| Output beam sound intensity | <5mW/cm2 |
| Ultrasonic working frequency | 1.0MHz |
| The uterine contraction pressure has an automatic reset function | with a measurement display curve range of 0-100 units and a non linear error of ≤±10% |
| The advanced digital signal processing technology (DSP) provides more accurate and reliable parameter display results |
| Operating modes | manual/automatic/continuous |
| Measurement interval time in automatic measurement mode | 1-480 minutes. |
| Measuring range systolic pressure | (60-240)mmHg |
| Diastolic pressure | (30-180)mmHg |
| Mean pressure | (40-200)mmHg |
| Static pressure range | (0-300) mmHg, static pressure accuracy: ±3 mmHg |
| Lead configuration | Standard three-lead or five-lead cable |
| Gain | ´0.25, ´0.5, ´1, ´2 |
| Heart rate range | Adults: 15bpm to 300bpm Newborns/children: 15bpm to 350bpm |
| Electrode polarization voltage range | ±300mV |
| Baseline recovery time | <3 seconds after defibrillation |
| Measurement method | RA-LL (R-F) impedance method |
| Respiration rate range | Adults: (0-120) BrPM Children and newborns: (0-150) BrPM |
| Apnea alarm | (10-40) seconds |
Optional feature
☐ Twins montiroing
☐ FAS (Fetal Acoustic Simulator)
☐ CMS
☐ Trolley
