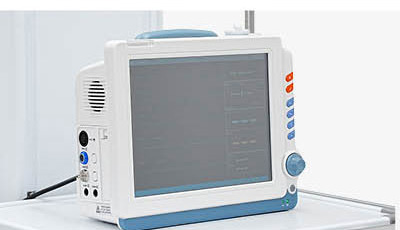

SK-EM001 12-Inch Patient Monitor
Introduction:
Monitoring functions: 6 major monitoring functions, comprehensive detection from multiple angles: electrocardiogram monitoring, body temperature, blood pressure, blood oxygen, respiration, and heart rate.

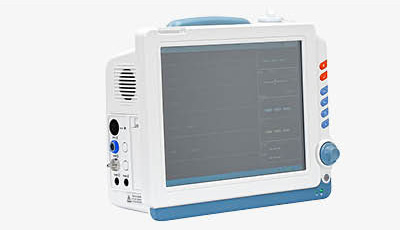

Design
The integrated structural design is streamlined in function, stable in performance, strong in antiinterference ability, and durable.

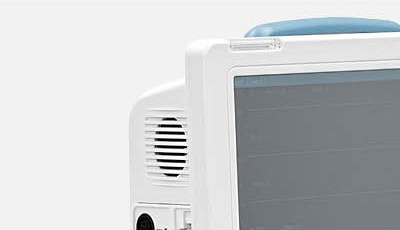

Shell material
Brand new ABS engineering plastic mold injection molding.

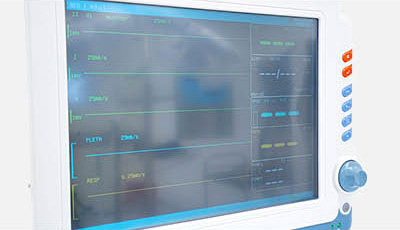

Screen design
12.1-inch true color TFT LCD display, with high resolution of 800×600. The operating interface is extremely simple and the data waveform is clear and visible.

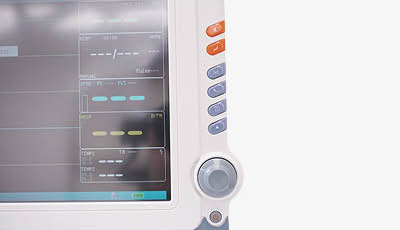

Blood pressure button
Eye-catching and independent blood pressure button. Anti-slip design for easy rotation.

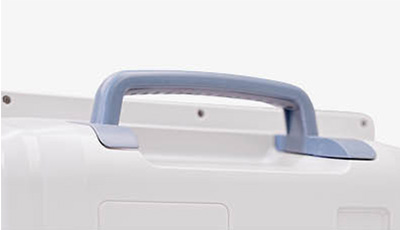

Handle
Fixed handle design, comfortable to hold, stable and easy to move.
Alarm system
Automatic sound and light screen triple alarm, intelligent alarm, and simple operation.
Power supply
Using high-performance power supply, even in harsh power grid environments, it can provide excellent monitoring and make monitoring information continuous and uninterrupted. It is compatible with both AC and DC power sources, and has an external plug-in lithium battery with a continuous power supply time of ≥ 3 hours.
Operating interface
1-7 channel ECG waveform synchronous display, with the ability to display 8 channels of waveforms on the same screen. The interface can be displayed in Chinese or English, with large fonts. The device can be operated using one-button shuttle or touch screen.
Patient information input function
Support wired/wireless networking function.

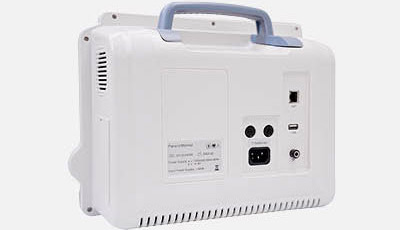

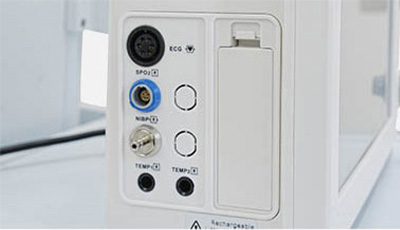

Interface settings
USB and network interfaces facilitate the formation of a central monitoring system and the free exchange of information.
Other Features
Large character interface, 336 hours of monitoring parameter trend graphs, trend table review, 1000 sets of NI BP data lists, 1800 alarm event reviews;
Respiratory oxygenation graph function, ST segment analysis, pacing analysis, drug concentration calculation function, alarm event review, and heart rate abnormality review;
Adopts AiahTM ECG technology, which can effectively improve the anti-interference ability of ECG and ensure the accuracy of heart rate abnormality analysis;
It has automatic, manual, and continuous blood pressure measurement methods, dual pressure overpressure protection function, and whether it is for patients with high blood pressure or low blood pressure, the measurement is very accurate.
Technical parameters
| Product weight | GW: 6kg, NW: 3.5kg |
| ECG（Lead configuration） | Standard three-lead or five-lead cable |
| ECG（Gain） | ´0.25, ´0.5, ´1, ´2 |
| ECG（Heart rate range Adults） | 15bpm to 300bpm |
| ECG（Newborns/children） | 15bpm to 350bpm |
| ECG（Electrode polarization voltage range） | ±300mV |
| ECG（Baseline recovery time） | <3 seconds after defibrillation |
| Respiration（Measurement method） | RA-LL (R-F) impedance method |
| Respiration（Respiration rate range: Adults） | (0-120) BrPM |
| Respiration（Children and newborns） | (0-150) BrPM |
| Respiration（Apnea alarm） | (10-40) seconds |
| Measurement range of blood oxygen saturation | 0～100%, resolution: 1%, accuracy: 70%～100%: ±2, 0%～69%: undefined |
| Measurement range of pulse rate | 20bpm～300bpm resolution: 1bpm accuracy: ±3bpm |
| Non-invasive blood pressure（Operating modes） | manual/automatic/continuous |
| Non-invasive blood pressure（Measurement range） | Systolic pressure (40-270) mmHg, diastolic pressure (10-215) mmHg, mean arterial pressure (20-235) mmHg. |
| Non-invasive blood pressure（Static pressure range） | (0-300) mmHg, static pressure accuracy: ±3 mmHg. |
| Dual-channel temperature measurement, measurement range | (5-50)°C, resolution: 0.1°C, accuracy |
Technical configuration
☑ ECG/heart rate, SPO2, NI BP, RESP, TEMP, PR
☑ Optional feature: Sidestream/mainstream EtCO2
☑ Sidestream/mainstream carbon dioxide
☑ GA S anesthesia gas module
☑ Depth of anesthesia
☑ IBP-1: Single-channel invasive blood pressure
☑ IBP-2: Dual-channel invasive blood pressure
☑ 2-TEMP dual temperature probe
☑ Thermal Recorder
☑ Wall mount

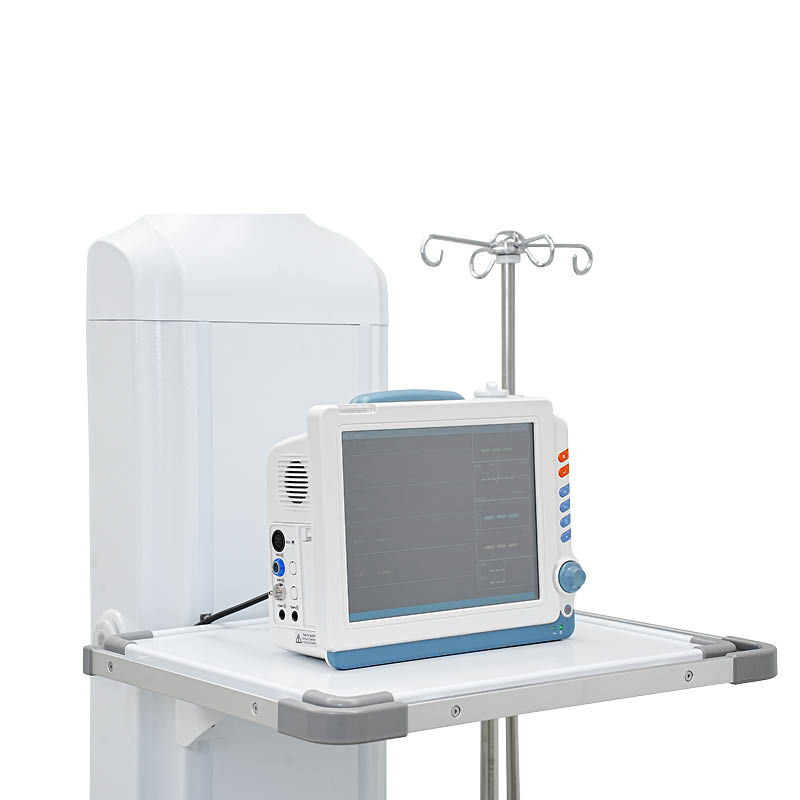

☑ Trolley
☑ CMS
☑ Wireless network
☑ Pediatric accessories
☑ Neonate accessories
☑ Veterinary version
☑ Touch Screen
We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate 126 registered technological patents and fulfill more than 20 quality certifications (ISO-9001/13485/14001/18001, European CE, FDA of the USA, Russian Federal Register, ANVISA of Brazil, etc.), in addition to the 93/42/EEC and IEC60601 safety standards. In all of this our R&D department is key, in which we invest 10% of our profits annually.
WARRANTY
* We provide a standard 1 year warranty, optional to be increased. 1% free parts of the total quantity will be provided together with goods. * The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company. * Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
