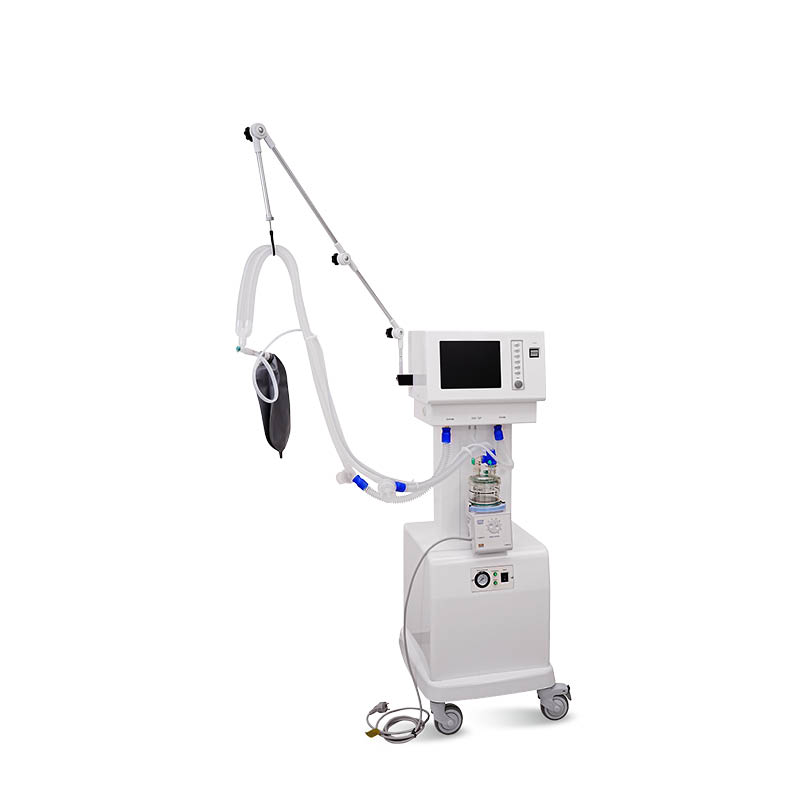

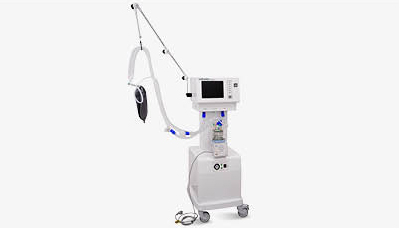

SK-EH303 Ventilator
Introduction:
Design
Professional design for respiratory management with advanced ventilation modes. Ergonomic design, better safety, stability and convenience.
Material
The new ABS engineering plastic material has a concise and beautiful appearance and is easy to clean.
Host

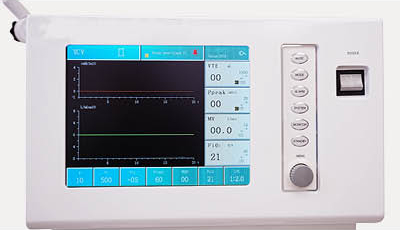

The host of the ventilator consists of gas circuit, electronic system, model structure, software, and display. Pneumatic electric control, microcomputer technology, and advanced electrical components are used to ensure stable and reliable operation of the equipment. LCD display, intuitive and clear information display, clear at a glance.
Air compressor
The built-in air compressor with "standby" function can be connected to an external air source. If the central air supply system fails to supply air, the air compressor will provide compressed air; when the central air supply system returns to normal and the pressure is greater than 320kPa, the air compressor will automatically stop supplying air. The oxygen concentration of the ventilator is adjustable from 21% to 98%.

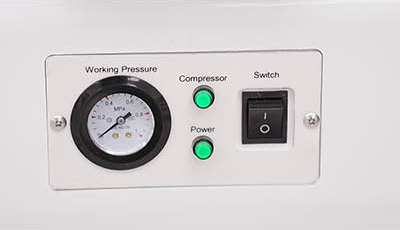

Pressure meter
Use high-quality pressure meter to monitor the output pressure of the air compressor.

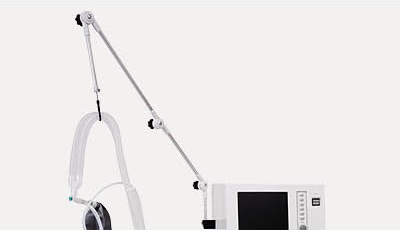

Mechanical arm
The mechanical arm is made of aluminum alloy.The safe working load of the mechanical arm does not exceed 1kg.

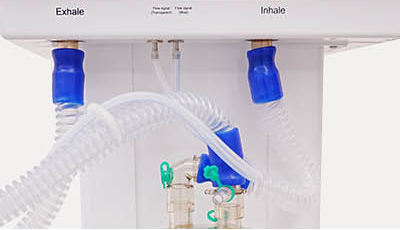

Filter
Used to reduce the amount of particulate matter that a patient inhales or exhales. Increase the moisture content and temperature of the delivered gas.

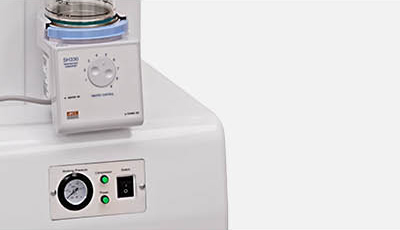

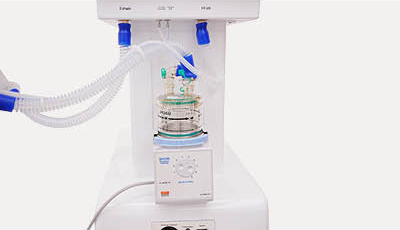

Humidifier
Nine-speed temperature control system with heating protection function.

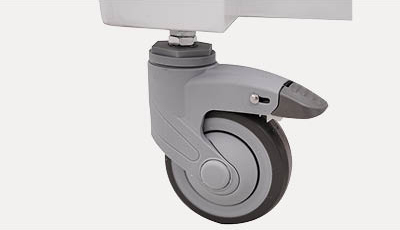

Caster
4*2.5 inch medical silent casters, 2 wheels with brakes.
The characteristics of
▪ Display mode 10.4-inch High-definition TFT color LCD screen display
▪ Ventilationmode VCV.PCVSIMVPSVPSV+SIMVCPAP
▪ Ventilation function PEEP、SIGH、standby、IP、IRV
▪ Ventilation parameters
Tidal volume 20~1800ml
Rate 2~120bpm
SIMV rate 2~20bpm
1:E 4:1~1:8
Inspiratory trigger pressure -10~10cmH2O
Flow trigger sensitivity 1~20L/min
PEEP 0~25cmH2O
Pressure control 3~50cmH2O
Pressure limitation 5~60cmH2O
Pressure slope 1~10gear
Flow rate setting 1~10gear
Expiratory trigger sensitivity 10%~90%
Time control 1~10s
SIGH 1.5 times the inspiratory time
(60~120adjustable)
Inspiratory platform 0~50%
Oxygen concentration 21%~99%
Technical parameters
▪ Parameters for ventilation monitoring
Expired tidal volume,Inhale tidal volumeMinuteVentilation
volumeIPPVrate SIMV rate, total respiratory rate autonomous
breathingrate/Epeak pressure of airway average pressure
PEEPInspiratory trigger pressure inspiratory plalform.oxygen
concentrationbattery capacitypressure-time waveform, flow ratetime waveformflow-volumelooppressure-volumeloop
▪ Security Alarm System
Oxygen concentration alarm upper limit setting range 21%~99%
low limit setting range 18%~80%
Airway pressure alarm upper limit setting range 5~60cmH2O
low limit setting range 0~50cmH2O
minuteventilation volume alarm upper limit setting range 1~20L/min
low limit setting range 0~19L/min
Tidal volume upper limit setting range 10~1800ml
low limit setting range 0~1700ml
Respiratory rate upper limit setting range 10~99bpm
low limit setting range 0~50bpm
Sustained high-pressure alarm it will give alarm when stress have
consistently
been higher than 30cmH20
Suffocation alarm Power alarm
Low pressure of Oxygen alarm Intubation off alarm
Low pressure of Air alarm battery voltage alarm
▪ Power AC220V 50Hz
UPS,Storage battery
▪ Mechanical Arms
