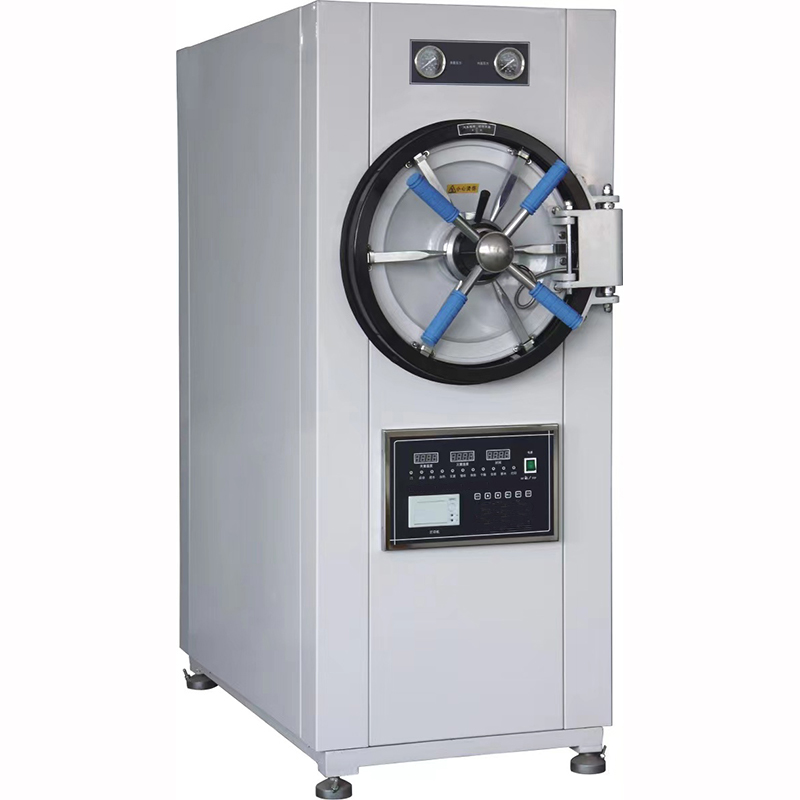

SDL-D0367 Horizontal Pressure Steam Sterilizer
Introduction:
Description
The horizontal pressure aerofouling device adopts gravity seeding method to drain the cold air in the inner chamber, so that the cold air content of the inner chamber is less, and the sterilization can be re-energy. At the same time, the control system of the equipment automatically adjusts the inlet and outlet steam according to the temperature of the inner chamber in the process of aerofouling. It is mainly used in hospital supply room, operating room, pharmaceutical factory and laboratory of scientific research institute, etc. It is used for drug elimination of cloth articles,surgical instruments and instruments used for medical and experimental purposes.
Technical parameters
| Working pressure | 0.22Mpa |
| Working temperature | 134℃ |
| Temperature adjust range | 40-134℃ |
| Time for sterilization | 0~99min |
| Time for drying | 0~99min |
| Heat average | ≤±2℃ |
| Power | AC380V.50Hz/9KW |
Characteristics
▪ Automatially controlled the sterilizing process easy to operate.
▪ With drying function,suitable for the medical dressing drying
▪ With over-temperature,over-pressure auto-protect the water tank

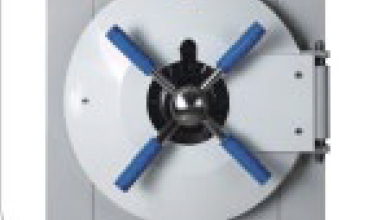

▪ The door can not be open until the pressure in the chamber is reduced to 0.027MPa
▪ And the unit can not be started on if the door doesn’t close well.
▪ The safety valve will be open automatically when the inner pressure
over 0.24MPa and the steam would be exhausted the water tank
▪ Aat the meanwhile. utomatically cut off the power if the water-lack happened，and alarm
▪ The chamber of the sterilizer is made of stainless steel
▪ With printer.
We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate 126 registered technological patents and fulfill more than 20 quality certifications (ISO-9001/13485/14001/18001, European CE, FDA of the USA, Russian Federal Register, ANVISA of Brazil, etc.), in addition to the 93/42/EEC and IEC60601 safety standards. In all of this our R&D department is key, in which we invest 10% of our profits annually.
WARRANTY
* We provide a standard 1 year warranty, optional to be increased. 1% free parts of the total quantity will be provided together with goods.
* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.
* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
FAQ
What quality requirements does your company meet?
* We have over 20 certifications, as ISO-9001/13485/14001/18001, European CE, North American FDA, Russian Federal Registration and Brazilian Health Regulatory Agency.
* We also meet the 93/42/EEC and IEC60601 safety standards.
* In addition to having 126 patents registered, we are constantly developing and implementing new standards for product quality and service efficiency.
What warranty do your products have?
* We provide a standard 1 year warranty, optional to be increased.
* 1% free parts of the total quantity will be provided together with goods.
* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.
* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
What is your delivery time?
* Our standard delivery time is 28 days.
What payment options do you offer?
* We are flexible in terms of payment. We can do LC, TT, DP, even credit, after auditing the customer.
Do you offer OEM service?
* Yes, we have a qualified R&D team to carry out customized projects. You just need to provide us with your own specifications.
Do you have different motor options?
* Yes, we have different brands of motors, as Linak, Timotion, Dewert or Jiechang.
Is the color on headboard/footboard and ABS side rail optional?
* Yes, we can provide the color according to customers’ requirements, based on wholesale purchases.
Can I see your products personally?
* You are welcome to our 2,000 m2 of showrooms in our factory in China (150 km from Shanghai).
* In addition, we annually attend numerous international exhibitions where we present our products, such as Arab Health (United Arab Emirates), North Africa Health (Egypt), CMEF (Shanghai), German Medica (Germany), Medic West Africa (Nigeria), Medic East Africa (Kenya), Pharmedi (Vietnam), Hospitalar (Brazil), Medical Expo (Morocco), etc.
