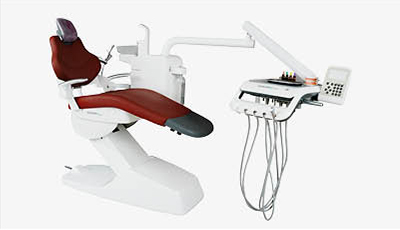

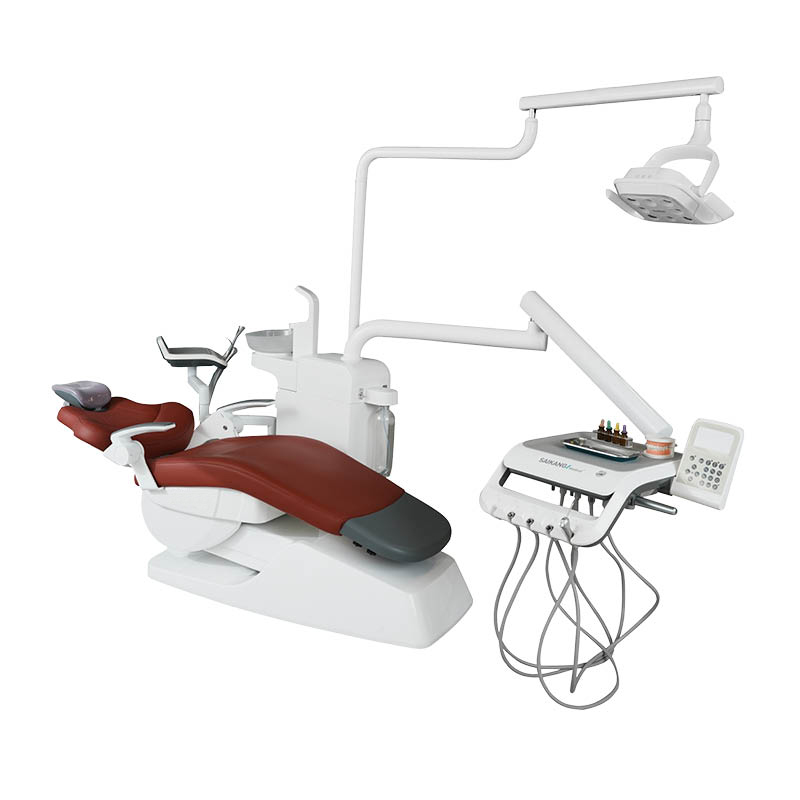

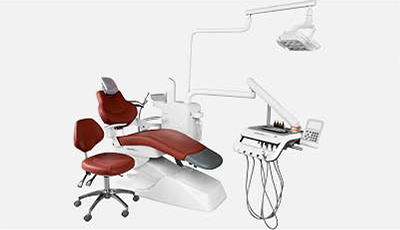

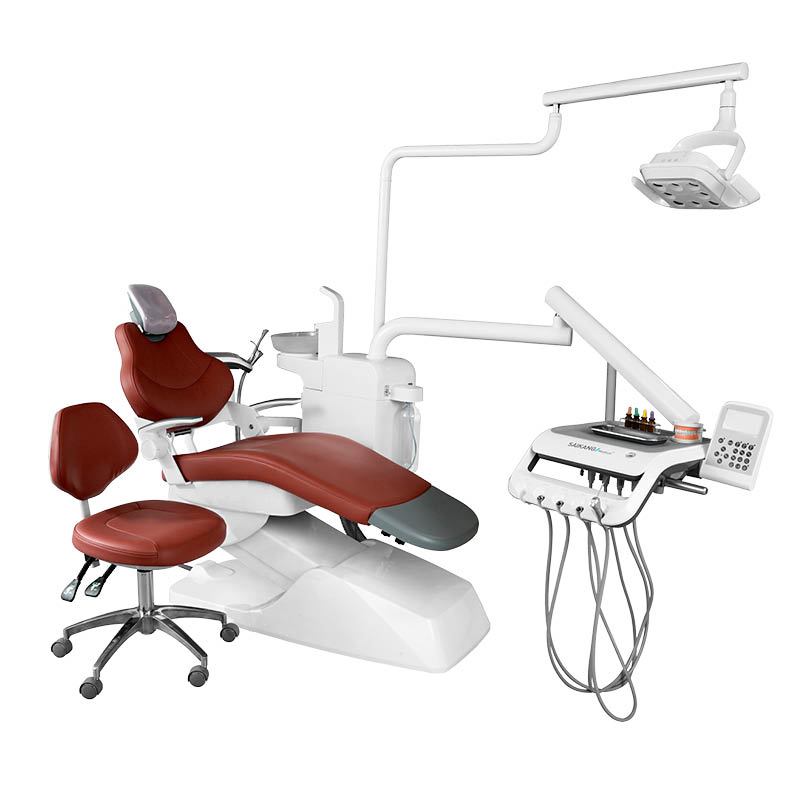

SDL-C0241 Dental Unit
Introduction:
Plastic Parts｜Accessories
Paint | color selection
The cushion is filled with highly elastic foam and are perfect for all body shapes, keeping patients comfortable and relaxed during the long term treatment. A variety of colors are available.
Seat frame
Ultralow chair height desin. The lowest chair height is only 400mm, makes it easy for children or the old to climb up and down.Back rest can adjust 10° ~ 75°.

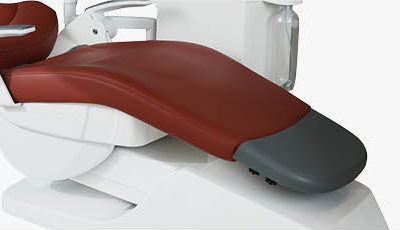

Seat
Comfortable seamless PU leather cushion:Made of extremely wearresistant microfiber leather with excellent softness and breathable properties. 8 cm thickened cushion with PU cover, filled with highly elastic foam and are perfect for all body shapes, keeping patients comfortable and relaxed during the long term treatment.
Back rest
High quality metal backrest, strong bearing capacity, extremely rigid.

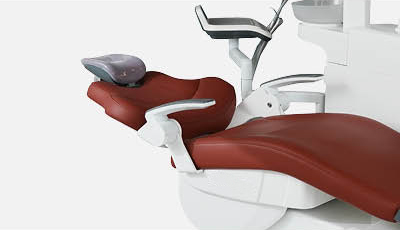

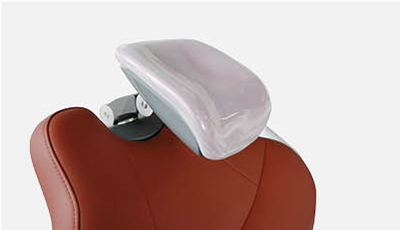

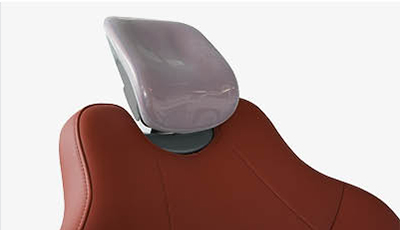

Headrest adjustment
The foldable double joint headrest adjusts freely for optimal patient positioning.

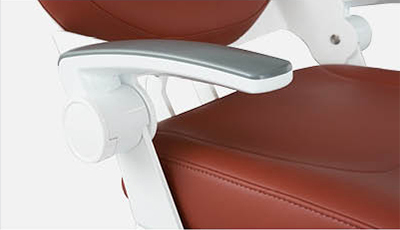

Armrest
Double side rotatable armrest: the right armrest is rotatable freely, just push it outward, easy to operate, provide patients with a sense of security, convenient for patients to climb up and down.

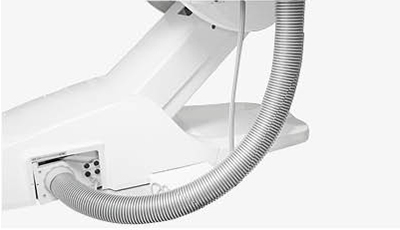

Internal junction box
Using professional medical water and gas pipeline, anti aging, anti corrosion, high pressure resistance, durable.
Balance arm
Using the gas lock fixed, easy to operate, press the gas lock switch can easily adjust the height of the working table.

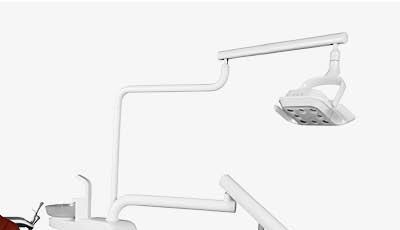

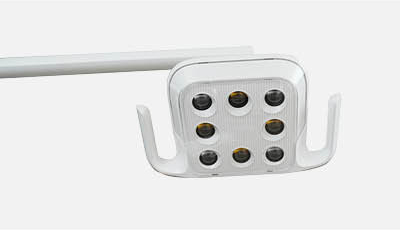

Dental Light
Two-color LED dental light brings a lot to your practice, induction control, can adjust the color temperature and lighting brightness, anti resin curing.

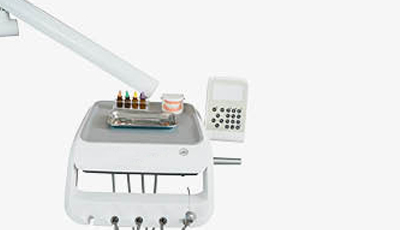

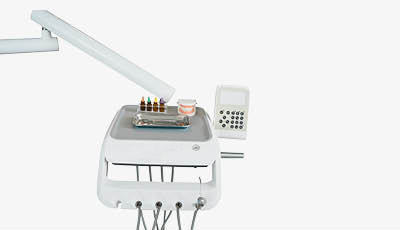

Master instrument table
Push-button main control panel, down-hanging instrumentation design. Five choices for delivery of your handpieces and accessories. Table top can hold surgical utensils, can bear up to 3kg after locking.
Film viewer
Built in LED low voltage film viewer, uniformity and bright of luminance.

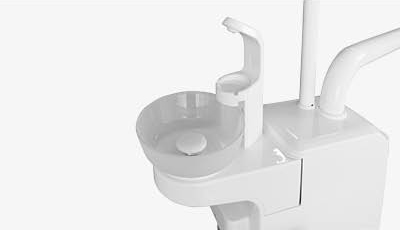

Spittoon
Frosted glass spittoon, attractive appearance and detachable, rotation angle ≧ 90°.Smooth inside and edge, easy to clean and disinfect, smooth water.

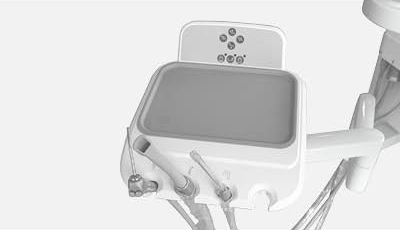

Assistant console
Rotatable assistant console with four instrument positions, can be placed strong and weak saliva suction; everything you need is easy to position and comfortably within reach.

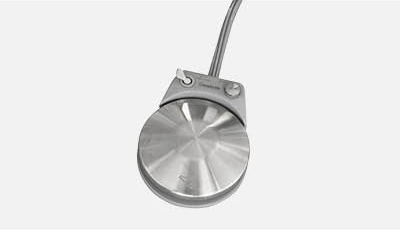

Foot switch
Circular pneumatic foot switch is convenient for doctor to use the normal functions of the device.The patient chair locks when the foot switch is pressed, ensuring a safe treatment process.

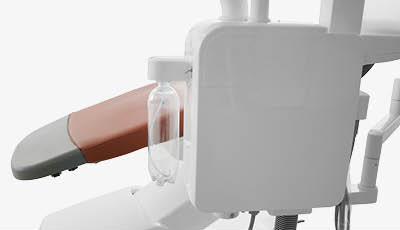

Water purification system
Independent water supply handpieces, automatic supercharging and constant pressure; can flexibly choose tap water or purified water, also meet the needs of pipeline disinfection.
Technical parameters
| Power supply | 220V 50Hz |
| Input power | 1100VA |
| Gas pressure | 0.55-0.8 Mpa / 5.5-8.0 bar |
| Water pressure | 0.2-0.4 MPa / 2.0-4.0 bar |
| Gas displacement | 55 L/min |
| External Size | L1880mm*W980mm*H750mm |
| Height adjustment | 400 mm～750 mm |
| Backrest adjustment | 105°-170° |
| Head rest expansion | 120mm |
| LED film viewer | The color temperature >6500K and the brightness >2000cd/m2 |
| LED dental Light | Two-color LED, induction switch, strong light ≥30000lx; Low light ≥8000 lx |
| Weight | 300KG |
| Net weight | 250KG |
We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate 126 registered technological patents and fulfill more than 20 quality certifications (ISO-9001/13485/14001/18001, European CE, FDA of the USA, Russian Federal Register, ANVISA of Brazil, etc.), in addition to the 93/42/EEC and IEC60601 safety standards. In all of this our R&D department is key, in which we invest 10% of our profits annually.
WARRANTY
* We provide a standard 1 year warranty, optional to be increased. 1% free parts of the total quantity will be provided together with goods. * The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company. * Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
