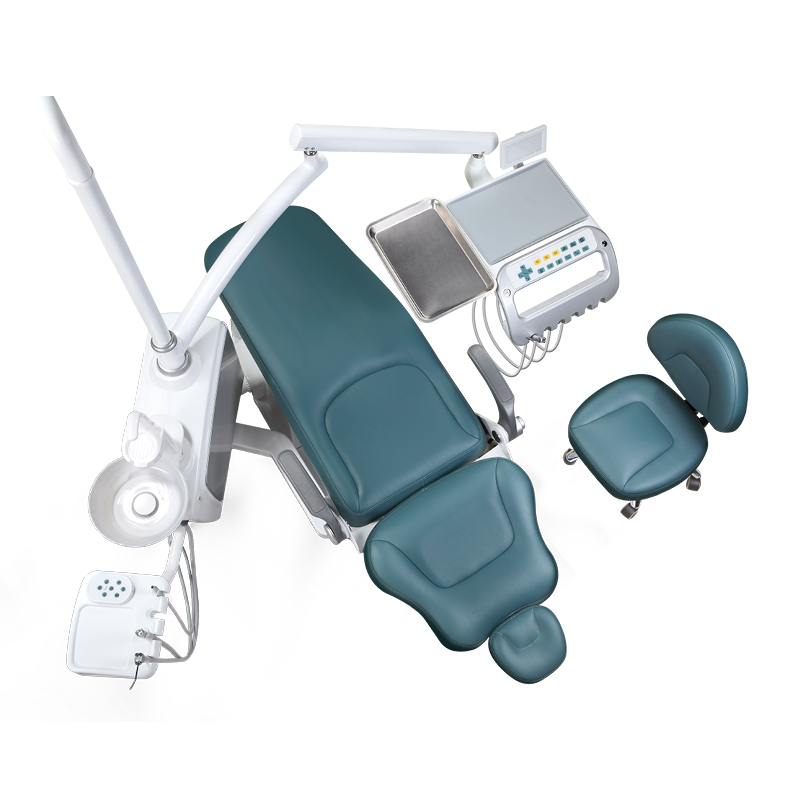

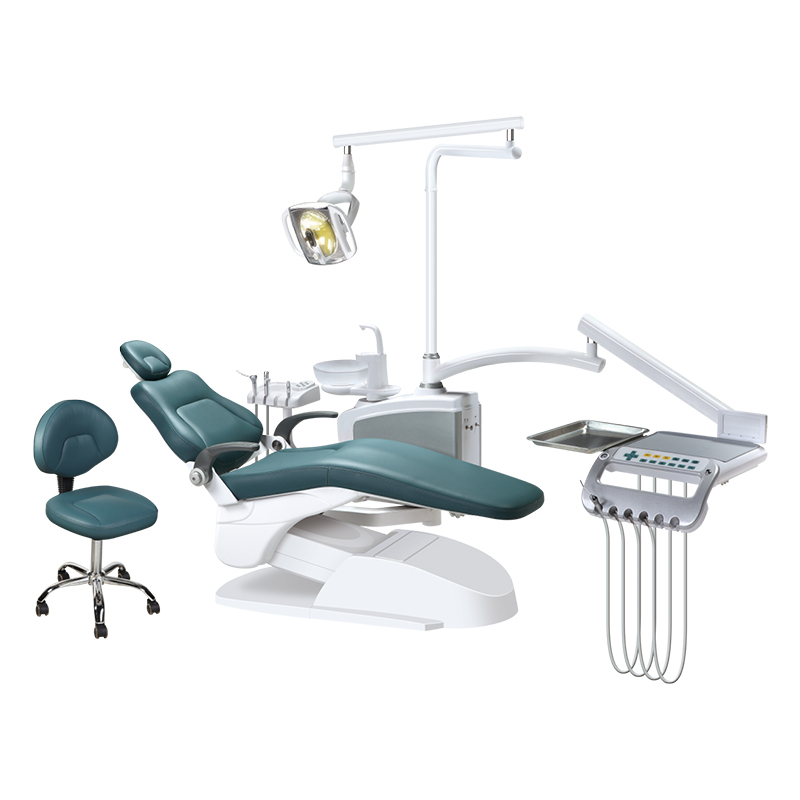

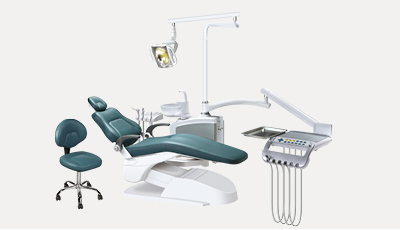

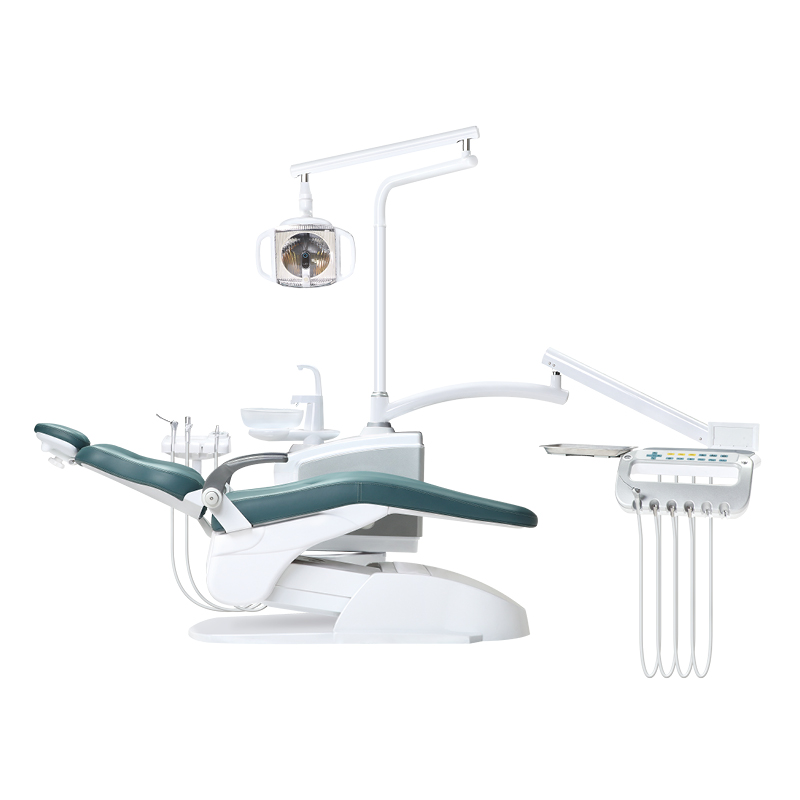

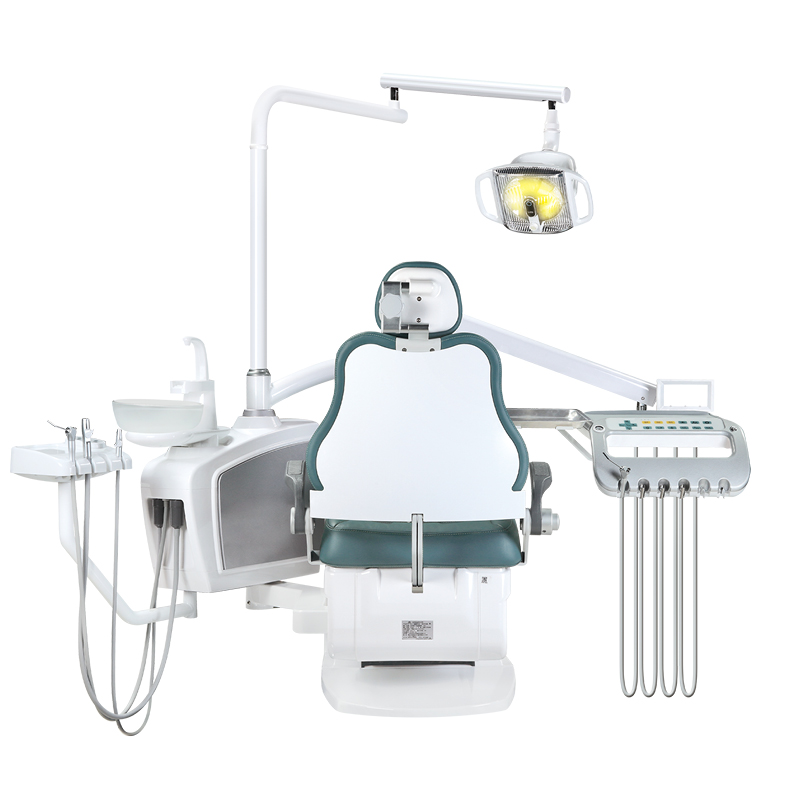

SDL-C0239_Dental Unit
Introduction:
Design
Designed for simple operation, integrated solutions, smooth workflow, within a unique ergonomic patient chair. Ultra-low chair design, suited for patients of any height.
Plastic Parts｜Accessories
The base is covered with new ABS engineering plastic, attractive and easy to clean. with swivel side Injection molding box, can be rotated 60°, freely and durable in use.
Paint | color selection
The cushion is filled with highly elastic foam and are perfect for all body shapes, keeping patients comfortable and relaxed during the long term treatment. A variety of colors are available.

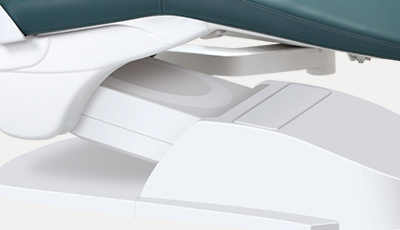

Seat frame
Encircling chair frame design, give patients a sense of security. Ultralow chair height desin. The lowest chair height is only 390mm, makes it easy for children or the old to climb up and down.Back rest can adjust -5° ~ 80°.

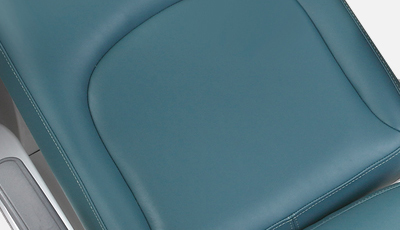

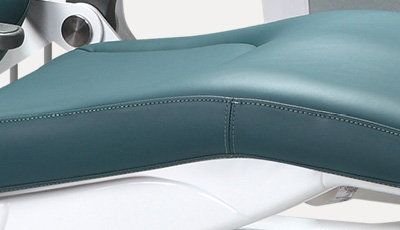

seat
8 cm thickened cushion with PU cover, filled with highly elastic foam and are perfect for all body shapes, keeping patients comfortable and relaxed during the long term treatment.

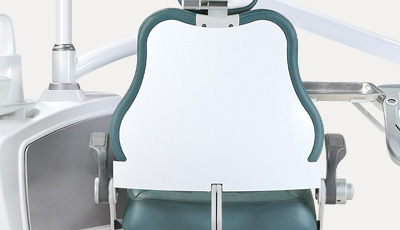

Back rest
ABS injection molding backrest, solid and reliable.

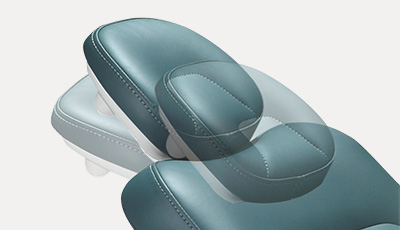

Headrest adjustment
Compared with traditional headrest, cambered headrest holds the head to prevent it from moving from side to side. The headrest adjusts freely for optimal patient positioning.

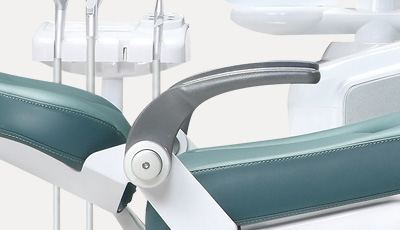

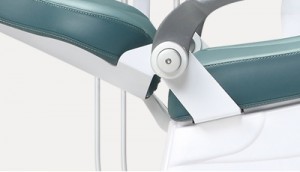

Armrest
Double side rotatable armrest: the right armrest is rotatable up to 180°, just push it outward, easy to operate, provide patients with a sense of security, convenient for patients to climb up and down.

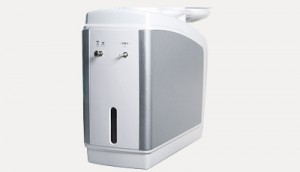

Side box
The main box can be flexibly rotated≤60° during treating.

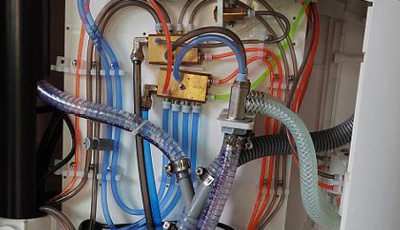

Internal junction box
Simple pipeline layout, convenient maintenance; Imported water pipes, gas pipes through the national biocompatibility test, burst pressure test, safe and reliable; The valve body is made of copper and stainless steel, rust resistant and durable.
Balance arm
Precision die-casting aluminum alloy, solid and reliable. Balance arm rotated by 320°. Moving range: 440 mm; the instrument arm rotated 90°; light arm rotated by 300°, Moving range: ≧560mm.

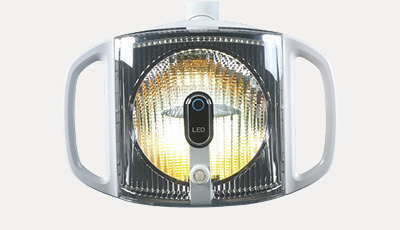

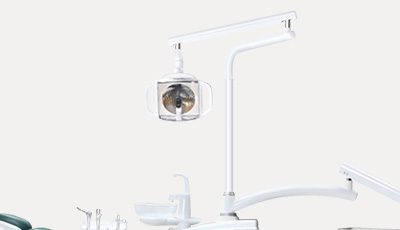

Dental Light
Two-color LED dental light brings a lot to your practice. A clearer view of tooth surfaces. Reduced eyestrain. Less fatigue.With manual and induction switch, meet any conditions of use, provides a light intensity up to 30000 lux, color temperature 5000K, rotate by 300°.

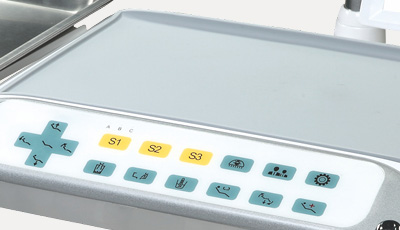

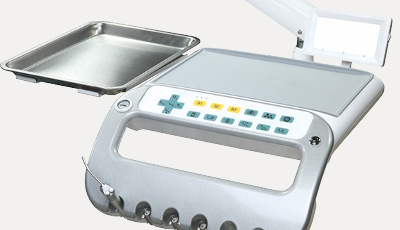

Master instrument table
The new Deluxe touchpad, rotatable instrument table, easily rotate around ≧ 160°. Five choices for delivery of your handpieces and accessories. Table top can hold surgical utensils, with removable and washable protective pads. Stainless steel instrument plate is added on the side for larger capacity and more convenient.

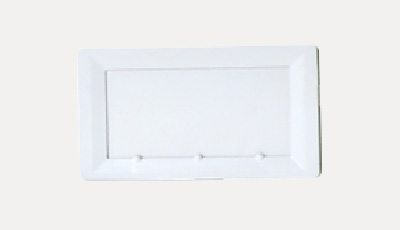

Film viewer
The high quality viewing light is stable, improves the treatment efficiency of doctors.The color temperature>6500K and the brightness>2000cd/m2.

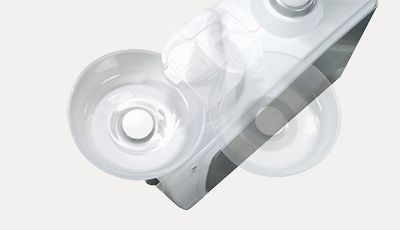

Spittoon
Glass spittoon, beautiful and generous, rotation angle ≧ 90°. Keeping patients comfortable during treatment.

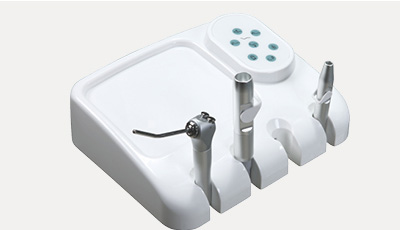

Assistant console
Rotatable assistant console with four instrument positions, can be placed strong and weak saliva suction; smart touch control panel technology, high-end atmosphere.. Everything you need is easy to position and comfortably within reach.

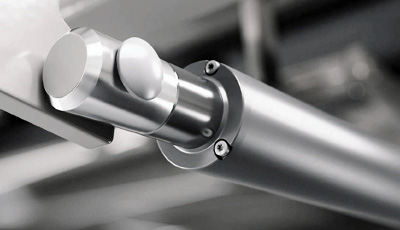

Motor system
Ultra-silence high quality motor, imported LINAK motor, low noise, no vibration.

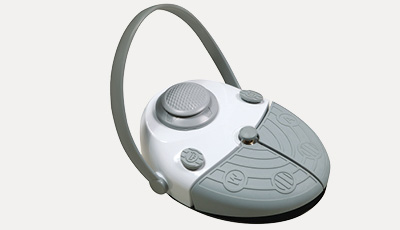

Foot switch
The foot switch with six function is convenient for doctor to use the normal functions of the device.
Computer control system
Microcomputer control system controls the motor start and stop process, ensure smooth and comfortable in use.Operating system with self - check function, machine chair interlock function, more humanized, easier for later maintain.Three control points: master control, auxiliary control, foot control. Master control adds 9 memory bit function, more convenient for doctors to adjust the operating position.
| Power supply | 220V 50Hz |
| Input power | 1100VA |
| Gas pressure | 0.55-0.8 Mpa / 5.5-8.0 bar |
| Water pressure | 0.2-0.4 MPa / 2.0-4.0 bar |
| Heater | 24V、80VA |
| External Size L x W x H | 1870 mm×850 mm×2170 mm |
| Height adjustment | 390 mm～710 mm |
| Backrest adjustment | -5°～80° |
| Balance arm rotating angle | 320° |
| Moving up/down range | 440 mm |
| Instrument arm angle | 90° |
| Light arm angle | 300° |
| Moving range up and down | ≧560 mm |
| Handpieces tube flow | When the water pressure is 0.22MPa, the tube flow≧30L/ min |
| Handpieces revolving speed | ≧320000r/min |
| Strong suction | When the air pressure is 400kPa, the vacuum degree ≧ 25kPa |
| Weak suction | When the water pressure is 200kPa, the vacuum >10kPa |
| LED film viewer | The color temperature >6500K and the brightness >2000cd/m2 |
|
LED dental Light
|
nduction switch, illumination: 10000-300001uX, color temperature 5000K
|
|
Package size
|
L1450mm*W1030mm*H1250mm
|
|
Weight
|
Gross weight: 225KG; Net weight: 190KG
|
We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate 126 registered technological patents and fulfill more than 20 quality certifications (ISO-9001/13485/14001/18001, European CE, FDA of the USA, Russian Federal Register, ANVISA of Brazil, etc.), in addition to the 93/42/EEC and IEC60601 safety standards. In all of this our R&D department is key, in which we invest 10% of our profits annually.
WARRANTY
* We provide a standard 1 year warranty, optional to be increased. 1% free parts of the total quantity will be provided together with goods. * The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company. * Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
