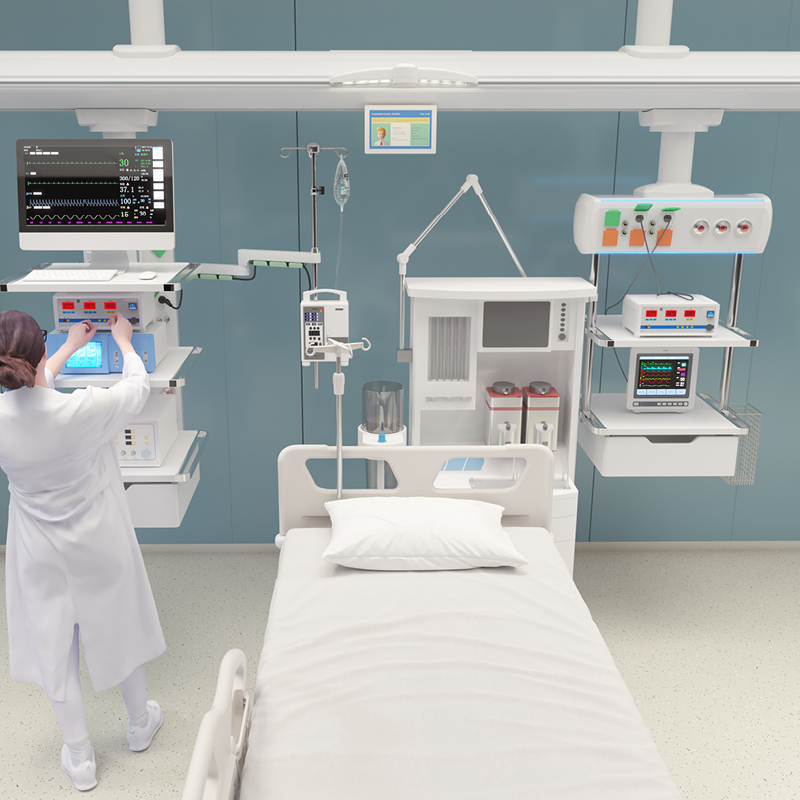

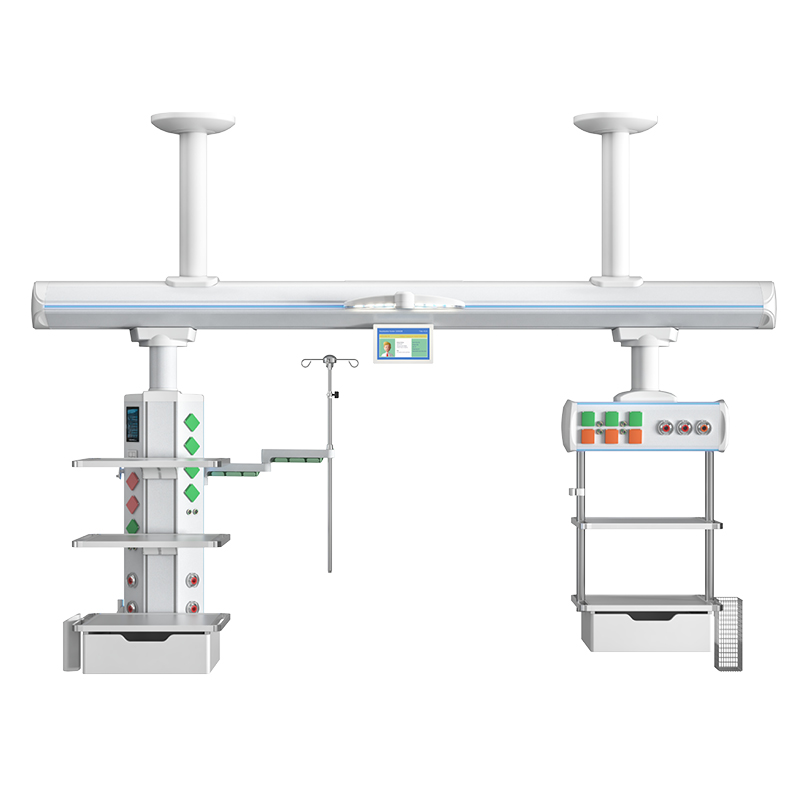

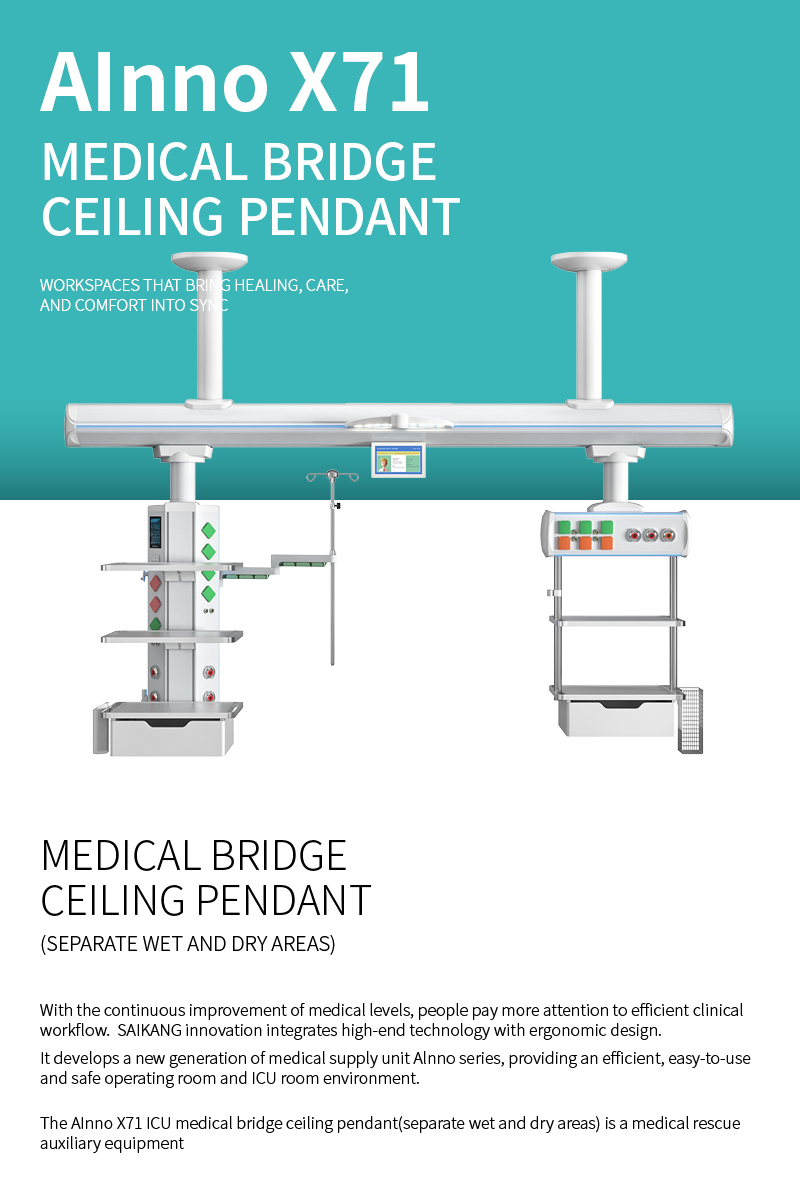

AInno X71 Medical Bridge Ceiling Pendant

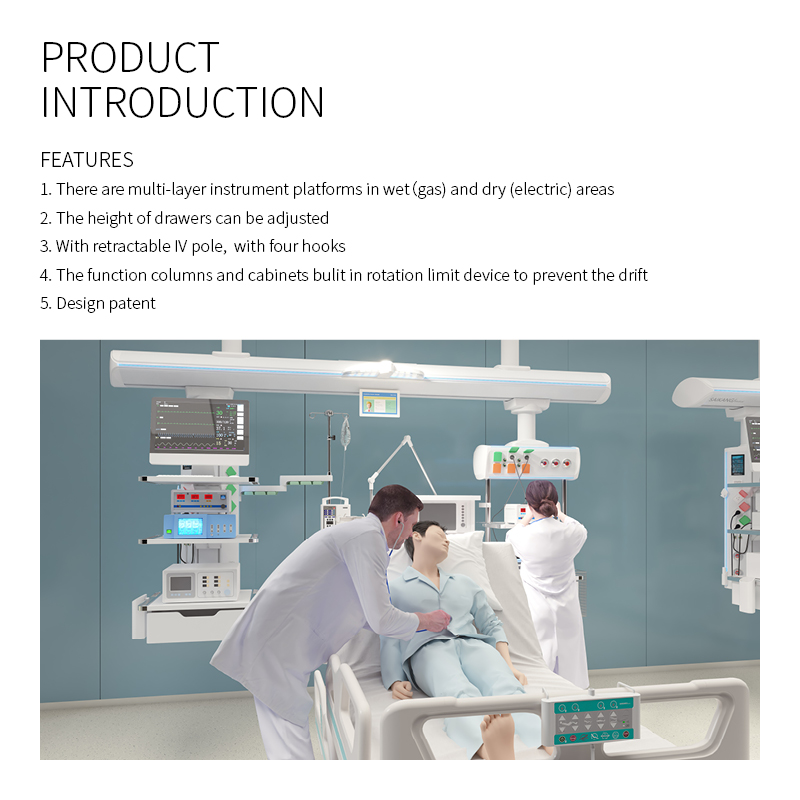

Introduction:
Technical parameters
| Operating power supply | AC220V,50Hz |
| Input power | 6KVA |
| Base length | 600mm |
| Bridge body length | 3000mm |
| Connection column length | 200mm |
| Vertical+Honizontal box length | 1000mm+600mm |

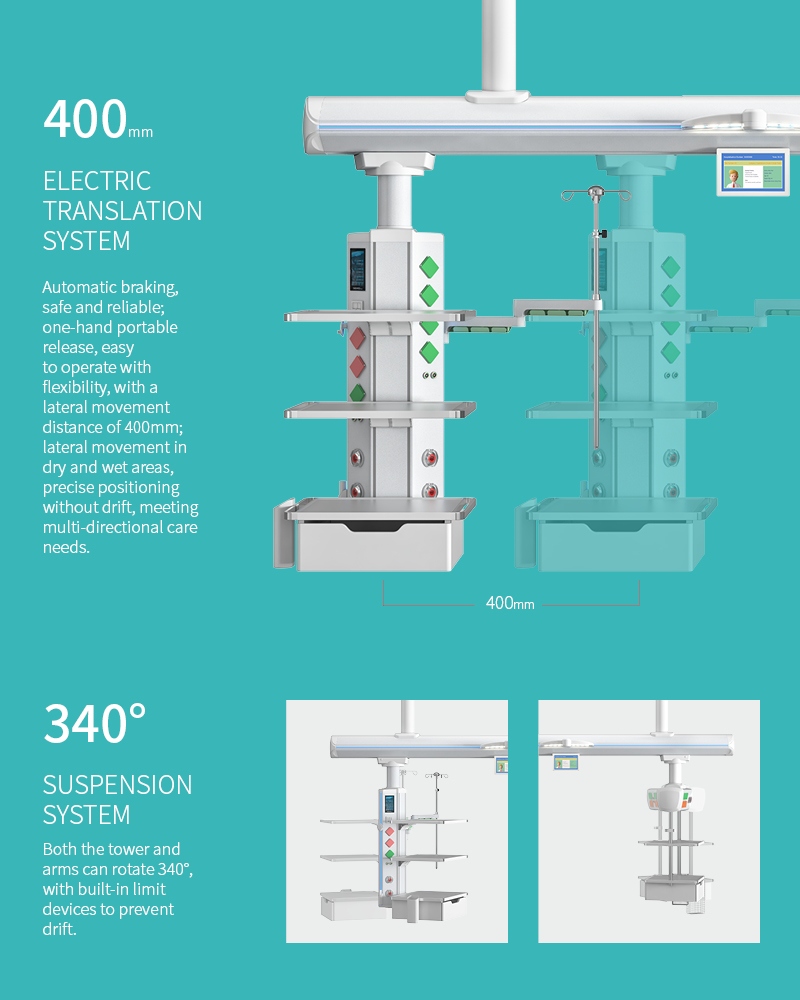

| Rotation angle | 340° |
| Hanging bridge load-bearing capacity | 300kg |
| Instrument platform load-bearing capacity | 50kg |
| Protection dass | IP20 |
| Fire protection dass | UL94-V0 |
Technical configuration
| Functional columns | 2pcs |
| Rotary hanging arm | 2pcs |
| Damping brake | 2sets |

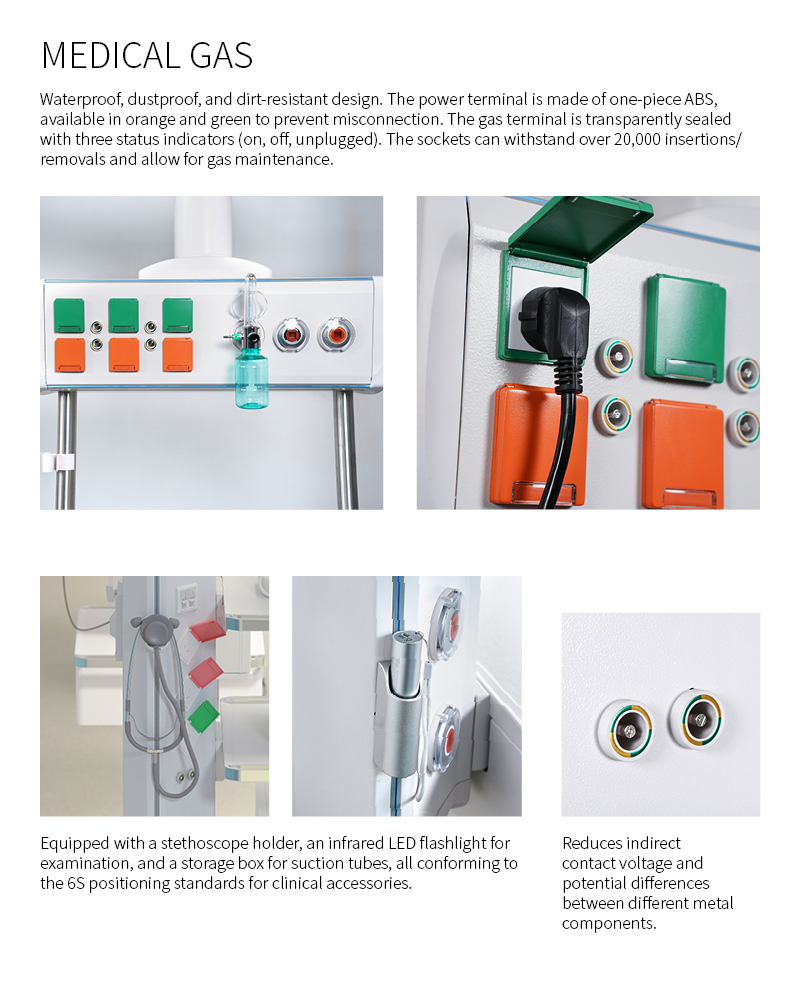

| Medical gas(O2) | 4pcs |
| Medical gas(AIR) | 2pcs |
| Medical gas(negative pressure VAC) | 4pcs |

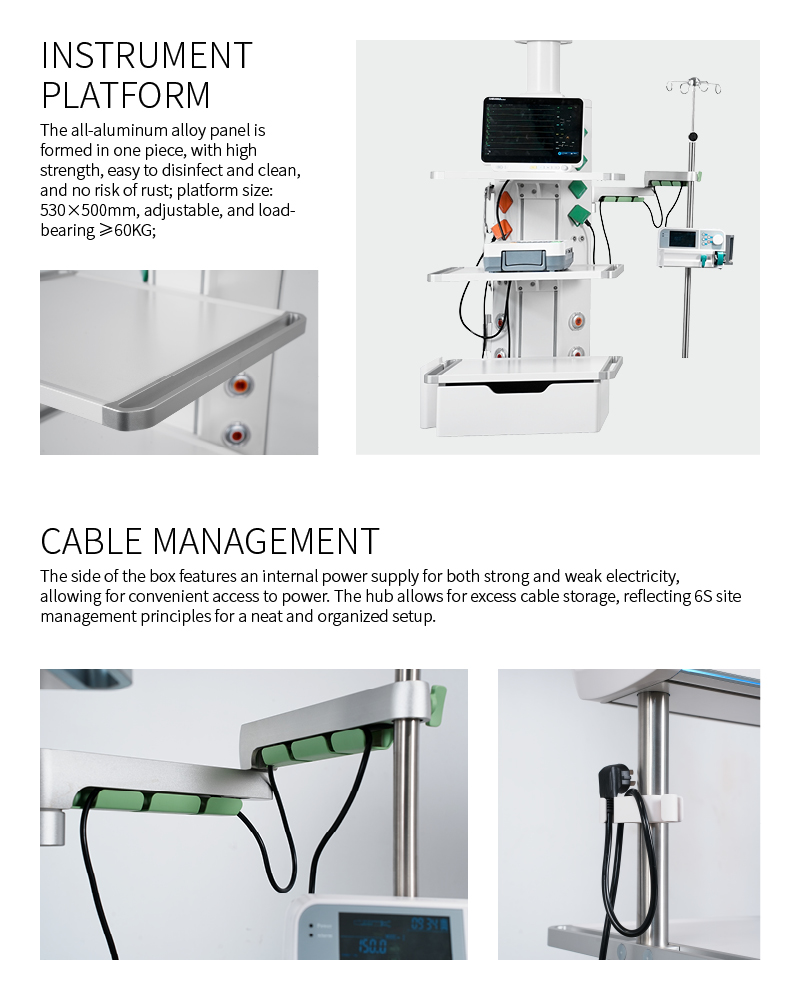

| Instrument platform | 3 layers+2 layers |
| Power outlets | 12 pcs(220V/10A) |
| Equipotential grounding terminals | 6pcs |

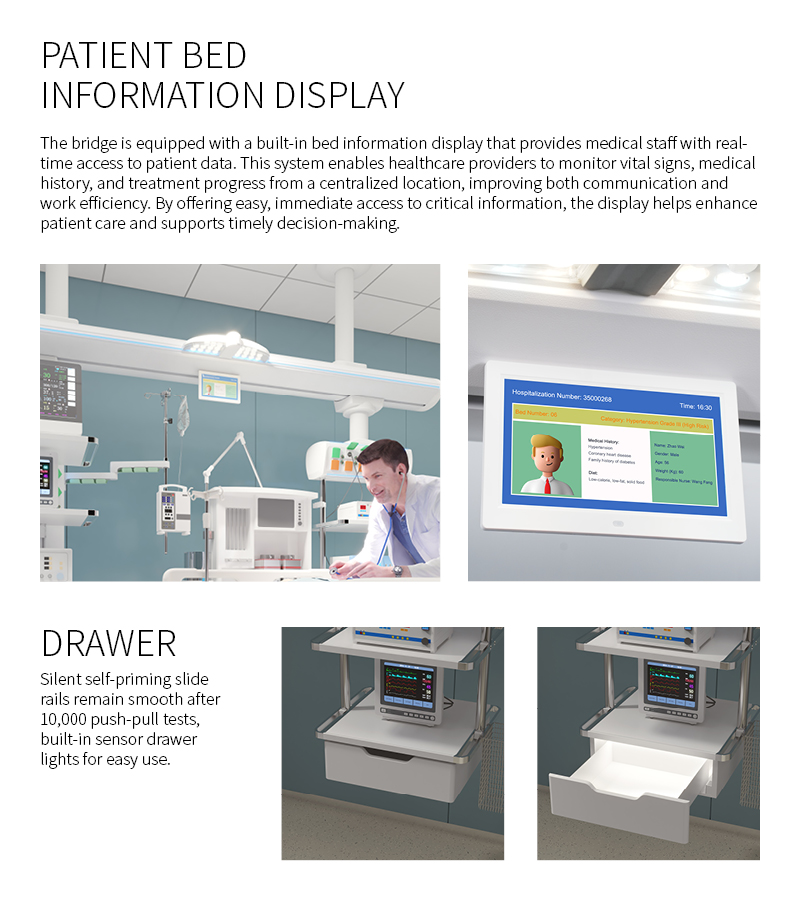

| Drawers | 2pcs |
| Network interface RJ45 | 2pcs |
| Telescopic IV stand | 2pcs |
Options
*Basket-stainless steel basket
*Medical gas outlets: British standard, American standard, German standard, French standard, Japanese standard,etc.
*Different standards for medical gas outlets and adapters: British standard, French standard, German standard, Diss, Ohmeda, Chemetron, etc.
*Inhaler-various oxygen inhalers(disposable,simple,external,etc.)
*Waste liquid collection device (external)
*Extension arm
*Cable concentrator
*Stethoscope:1pc
*Flash light:1pc
