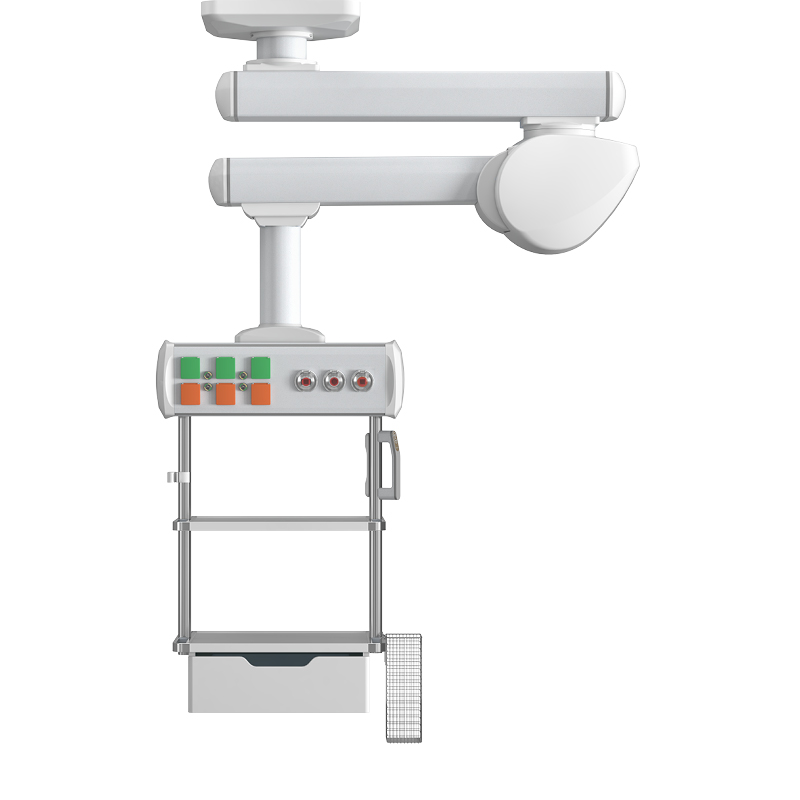

AInno L21 Electric Double Arm Pendant
Introduction:
Technical parameters
| Operating power supply | AC220V,50Hz |
| Input power | 6KVA |
| Base length | 400mm |
| Connection column length | 600mm |

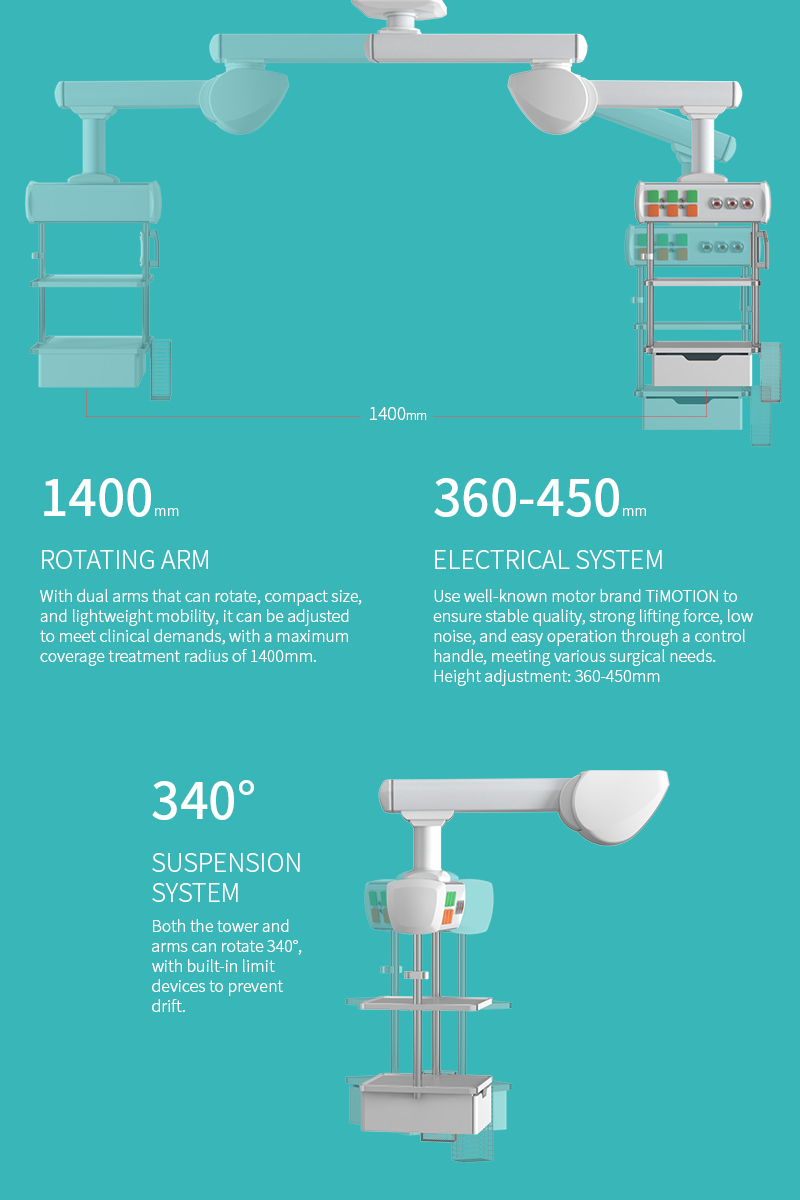

| Hanging arm length | (800mm-1000mm)+600mm |
| Height adjustment | 360-450mm |
| Horizontal box length | 600mm |
| Rotation angle | 340° |
| Hanging bridge load-bearing capacity | 150kg |
| Instrument platform load-bearing capacity | 50kg |
| Protection class | IP20 |
| Fire protection class | UL94-VO |
Technical configuration
| Functional columns | 1pc |
| Rotary hanging arm | 2pcs |
| Damping brake | 2sets |

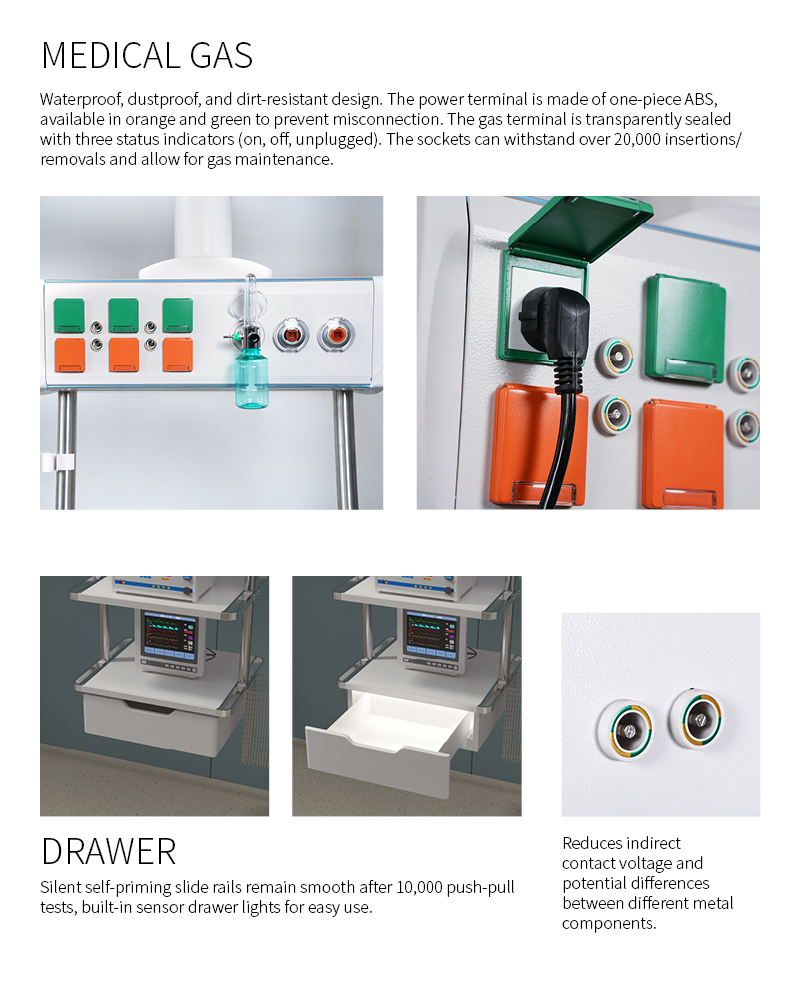

| Medical gas(0²) | 2pcs |
| Medical gas (Suction) | 2pcs |
| Medical gas(AIR) | 1pc |
| Instrument platform | 2layers |
| Power outlets | 8pcs(220V/10A) |
| Equipotential grounding terminals | 4pcs |
| Network interface RJ45 | 2pcs |
| Drawers | 1pc |
| Telescopic IV stand | 1set |
Options
-Basket-stainless steel basket
-Medical gas outlets: British standard, American standard, German standard, French standard, Japanese standard, etc.
-Different standards for medical gas outlets and adapters: British standard, French standard,German standard,Diss, Ohmeda, Chemetron,etc.
-Negative pressure regulating valve
-Network interface RJ45
-Telescopic IV stand
-Extension arm
-Waste liquid collection device(external)
