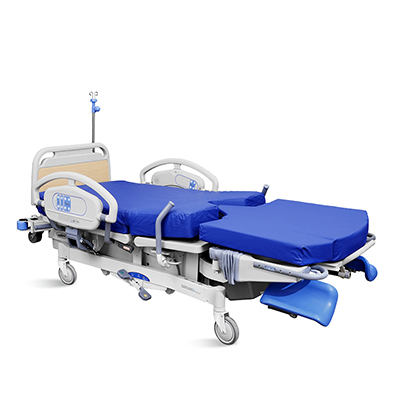

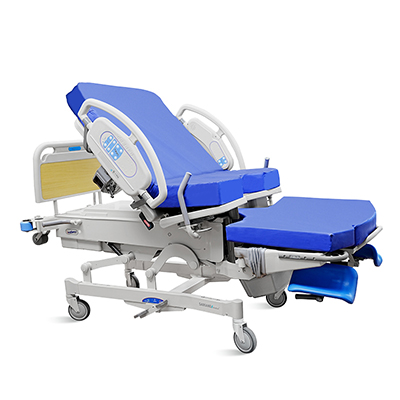

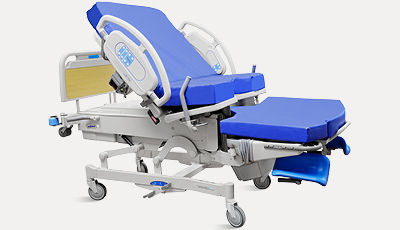

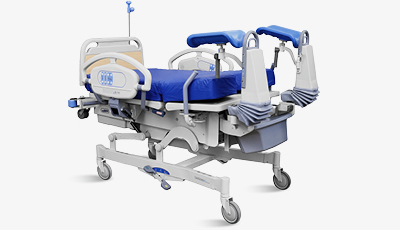

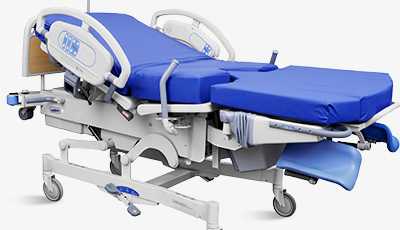

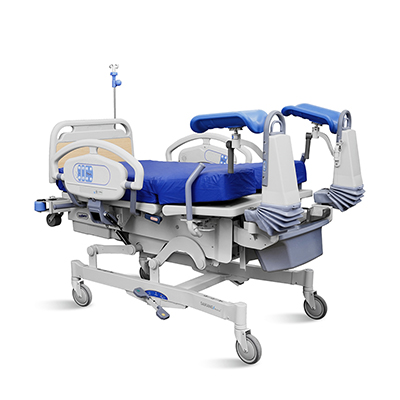

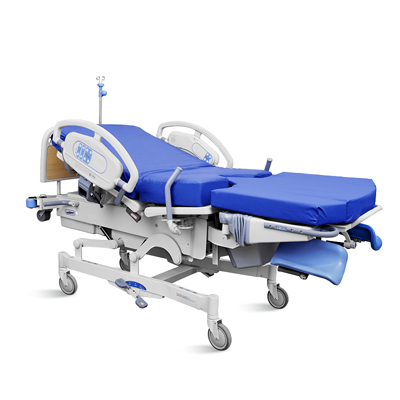

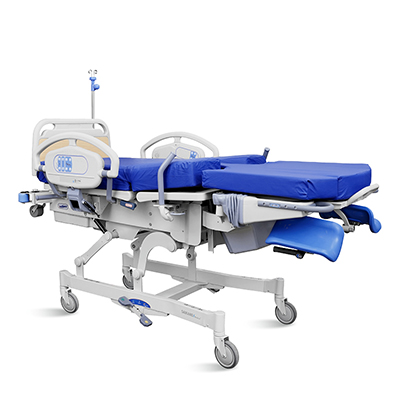

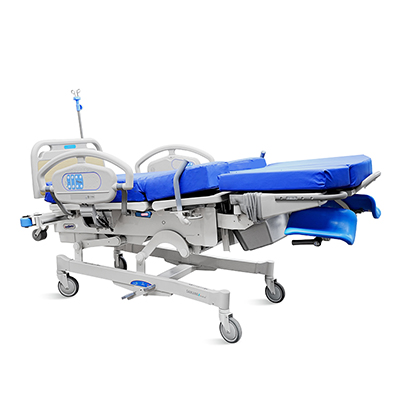

A98-9 Electric Delivery Bed
Introduction:
Design
Bed material
The bed frame is welded with highquality steel, with a thickness of 2mm and strong bearing capacity. It can bear up to 135kg.
Paintwork
The surface of the bed is treated with electrostatic spraying, using imported powder that is resistant to aging, not easily rusted, and environmentally friendly with antibacterial properties.
Welding｜Craftsmanship
By utilizing automated robotic welding, the product boasts a smooth and sleek appearance, while also being robust and stable.

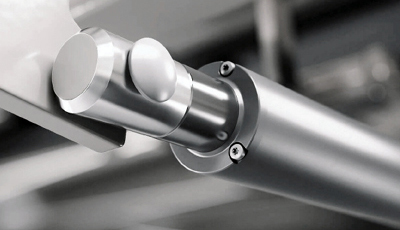

Motor
The Linak DC motorized lift system is imported and features a constant speed, silent operation, zero static electricity, and safe voltage of 24 volts.

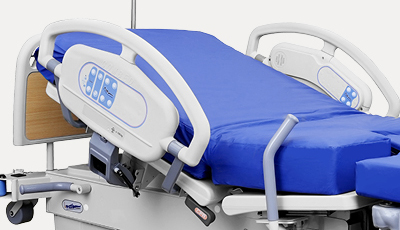

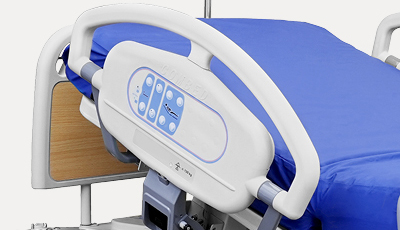

Guardrail
High-strength plastic molding in one step, with beautiful appearance and easy to disassemble. The split lifting design makes the parturient safer. The double-sided embedded nurse and parturient control buttons facilitate both parties to adjust the comfort and safety of the parturient.

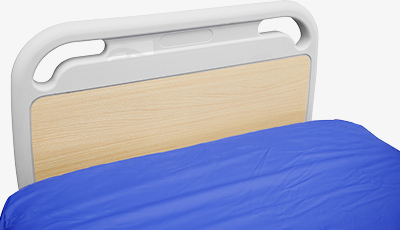

Head board
Detachable PE plastic headboard, which is conform to the homey and warm concept of a delivery room.

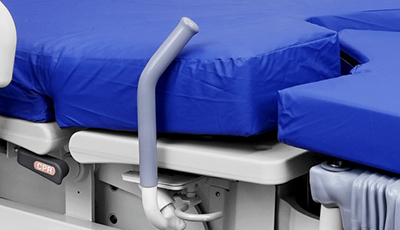

Assist handle
Hidden assisted handle, snap-locking mechanism, user-friendly design for increasing safety and convenience.

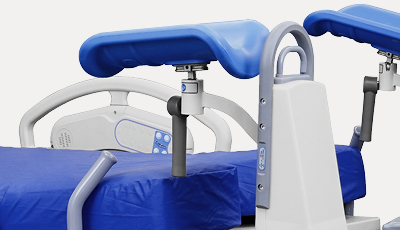

Leg support
Manual multi-angle adjustment, more convenient to use.
Back& leg rest
The backrest and leg rest can be independently raised and lowered.

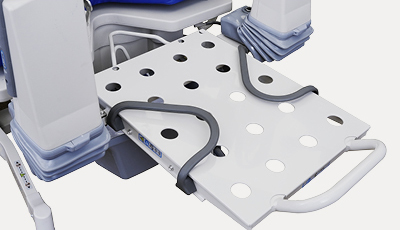

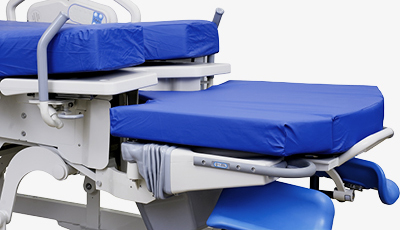

Auxiliary table
When the bed is in the "chair position", the "auxiliary table" needs to be removed from the slot and the "leg board" opened for medical procedures such as childbirth.When the bed is in the "lying position", the "auxiliary table" needs to be aligned with the slot for installation and can be used as a supplement to daily care of the bed.

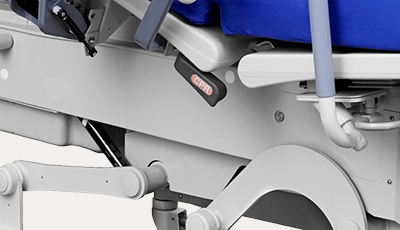

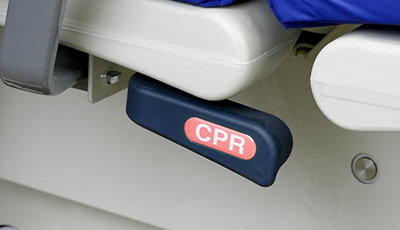

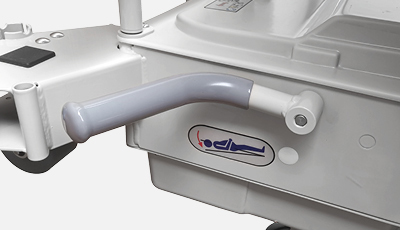

CPR
In emergency rescue, increase the rescue speed.

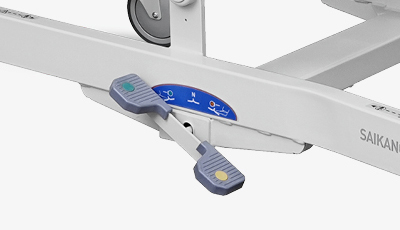

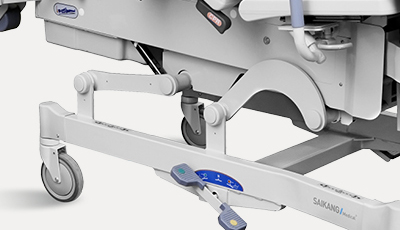

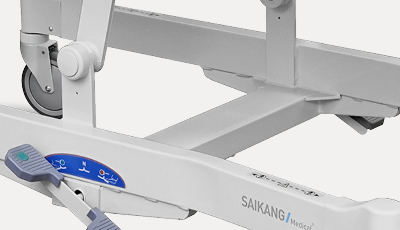

Centrol locking system
Side central brake system provides better stability for the delivery bed.

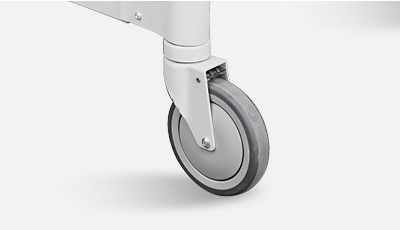

Caster
High-quality and high-precision medical casters with a diameter of 15cm, featuring stable and reliable brakes.

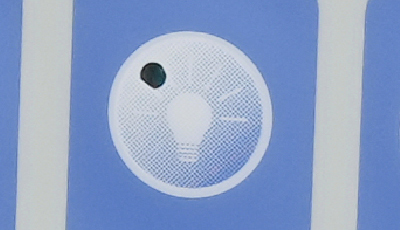

Night light
The induction night light provides automatic lighting for the area around the bed and the floor.

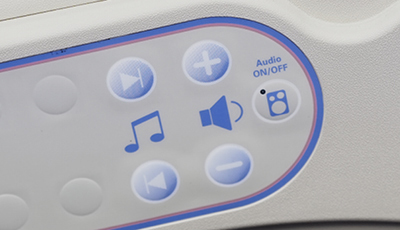

Audio system
Equipped with a sound playback system, gentle music provides a warm and comfortable feeling for the expectant mother.
Colors
Choosing a blue and white natural color scheme can reduce the tension of the expectant mother and create a warm and comfortable home atmosphere.

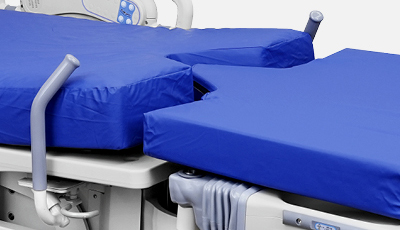

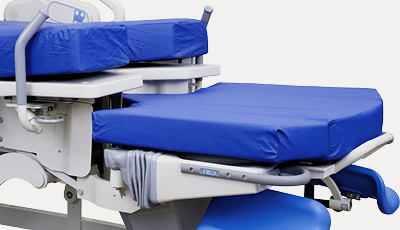

Mattress
The high-density sponge mattress is detachable and features heat-sealing technology with no gaps, making it resistant to dirt and bacteria. The V-shaped incision design at the hip position makes it easier for doctors to operate.

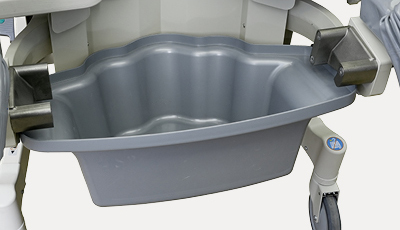

Dirt basin
The standard high-strength plastic basin is lightweight, durable, and easy to install and remove. The basin has a high capacity elevated structure and can be connected to the bed rail to increase the capacity of the waste pool and prevent blood overflow.

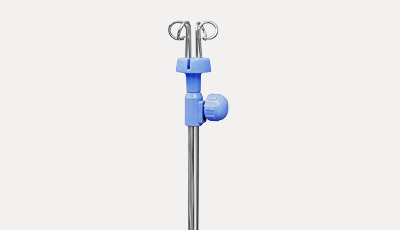

IV pole
The main material of the infusion stand is stainless steel, and the height of the infusion stand is adjustable to ensure the safety and reliability of the patient during infusion.

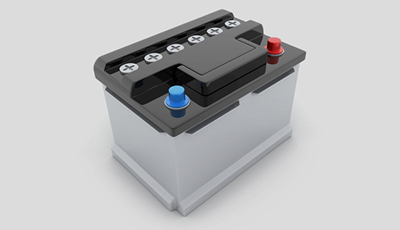

Battery
Equipped with a built-in rechargeable battery, the new battery is fully charged, and the battery charging time is ≥10 hours. The main lifting test is conducted continuously without load for 30 minutes, with a total of 27 tests.
Back adjustment
The backboard can be lifted up and down to assist pregnant women in sitting up and relieving the pressure during childbirth.
Leg adjustment
The adjustable leg board can assist pregnant women in giving birth naturally by allowing for flexible adjustments to different positions, such as sitting, kneeling, lying on the stomach, and squatting.
Trendelenburg
Manual operation.
Automatic seat tilt
Automatic seat tilt function assists pregnant women in quickly adjusting their sitting position for easy delivery.
Technical parameters
|
External size (L×W)
|
1950±20×860±15mm
|
|
Bed height
|
485-900±20mm(Mattress not included)
|
|
Back adjustment
|
≥63°
|
|
Seat up
|
≥15°
|
|
Trendelenburg
|
≥8°
|
|
Leg board lift stroke
|
190mm±20mm
|
|
Swing angle of foot board
|
≥90°
|
|
Leg board up
|
≥90°
|
|
Guardrail lifting
|
400±20mm
|
|
Power supply
|
AC220V
|
|
Input power
|
250VA
|
|
Net weight
|
230kg
|
Technical configuration
|
Bed frame
|
1pc
|
|
Mattress
|
1set
|
|
Assist handle
|
2pcs
|
|
Leg support
|
2pcs
|
|
Auxiliary table
|
1pc
|
|
Dirt basin
|
1pc |
|
IV pole
|
1pc |
