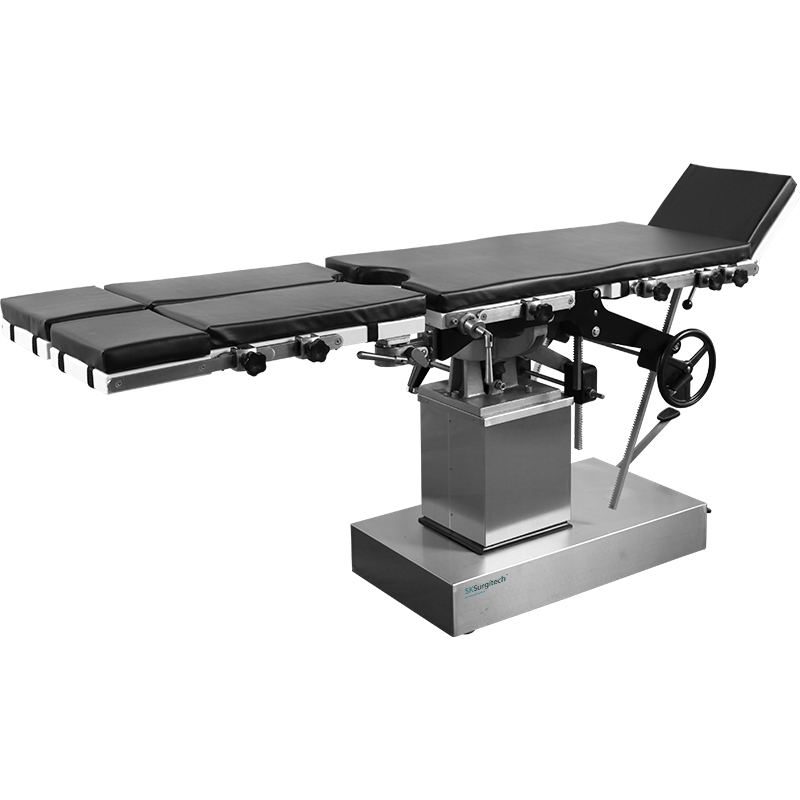

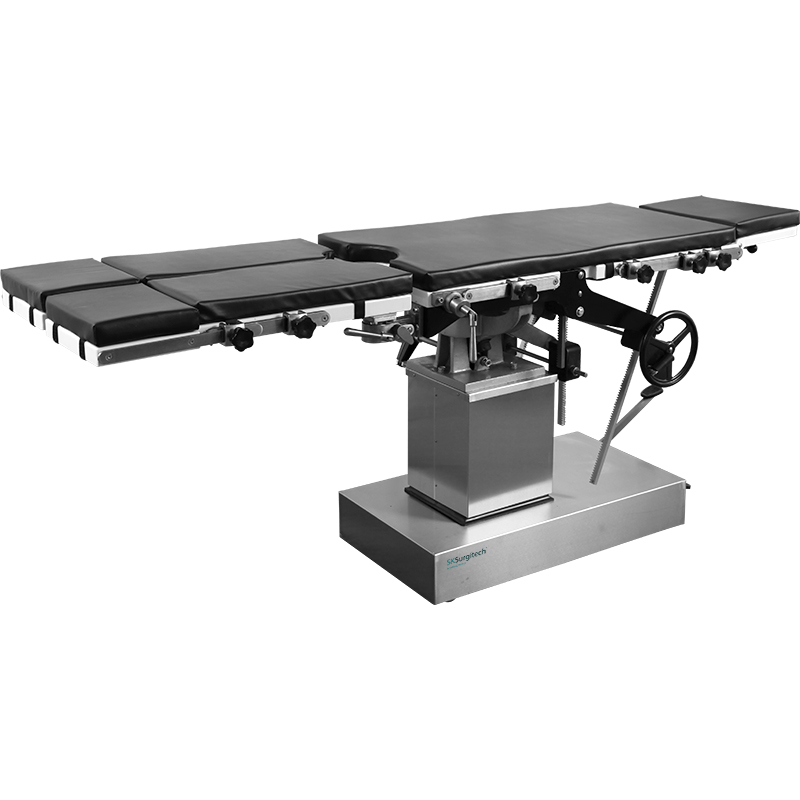

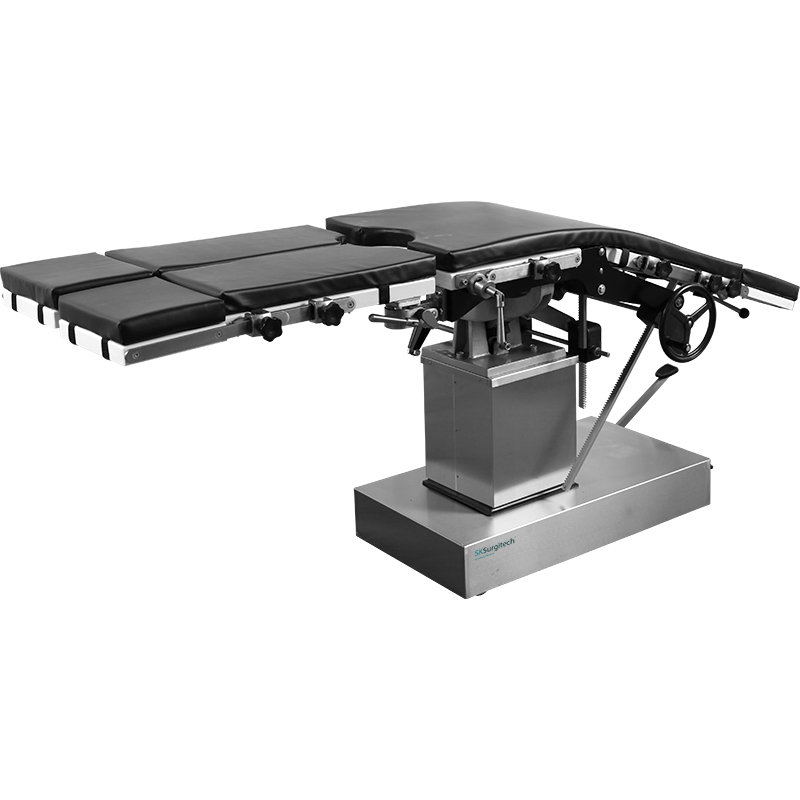

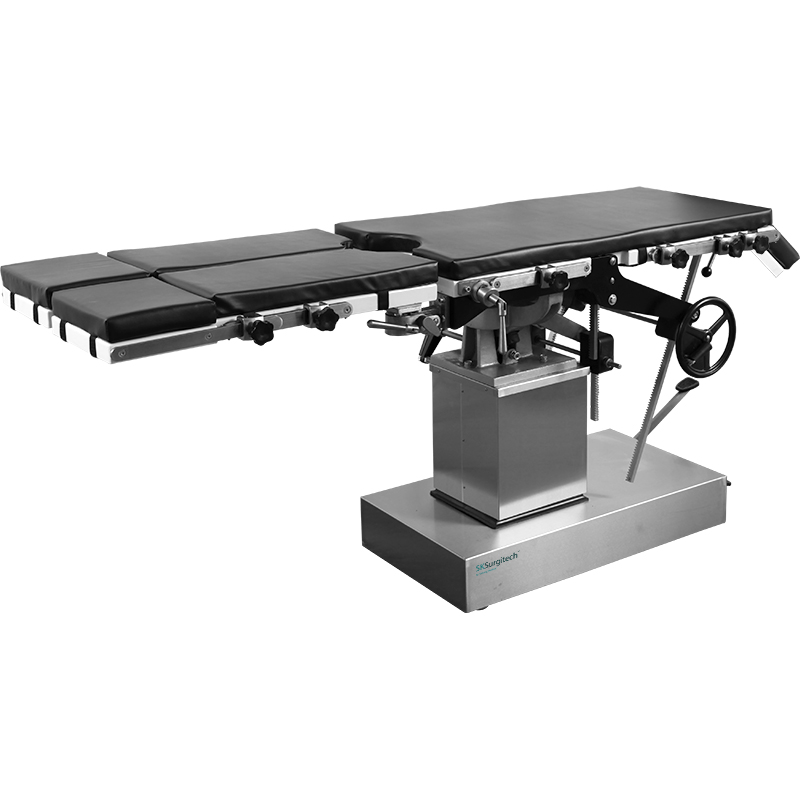

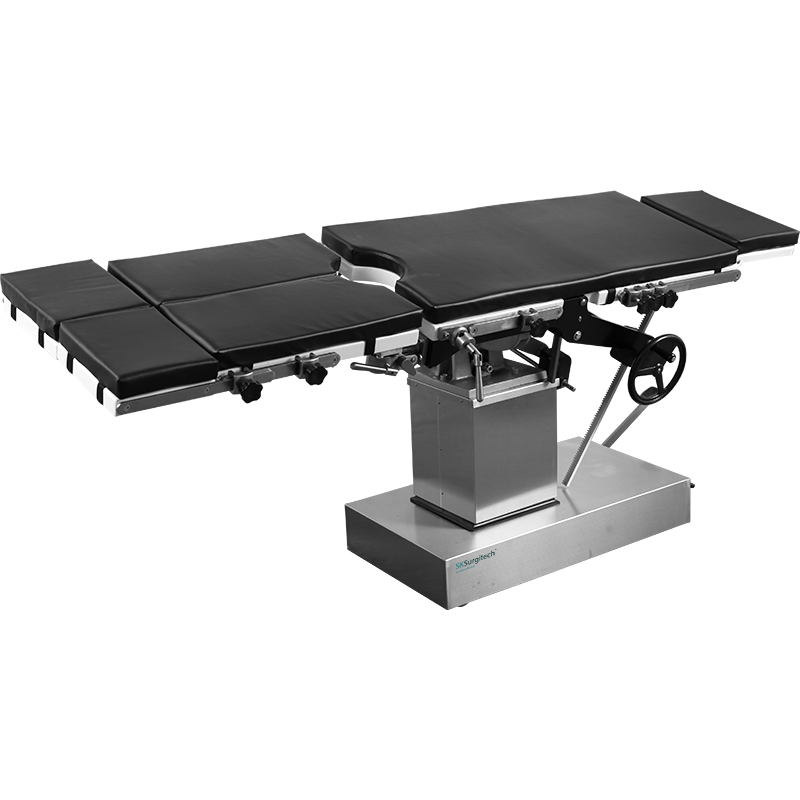

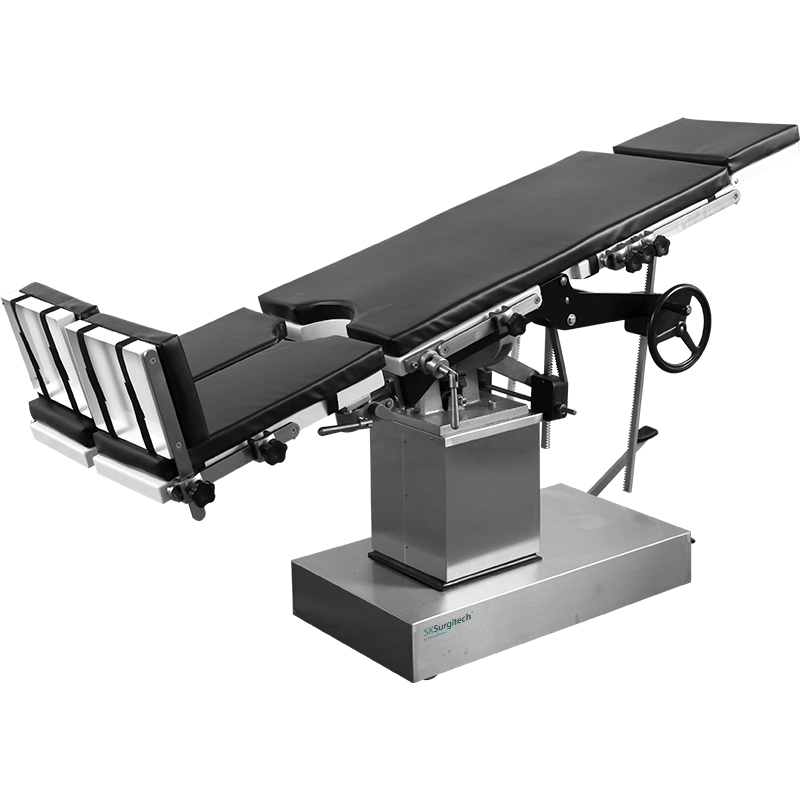

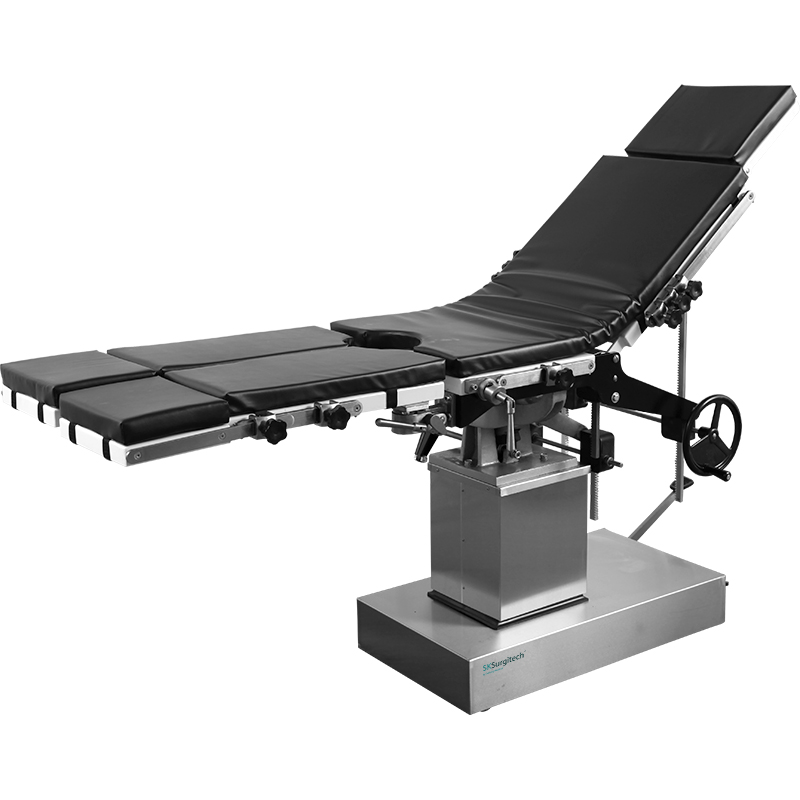

A3001A Manual Operating Table
Introduction:

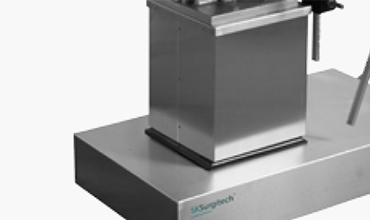

Material
The base seat and upright column covering are made of high quality 304 stainless steel, which is anti-corrosive and can be easily cleaned.

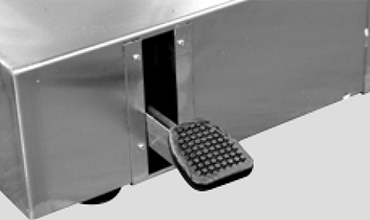

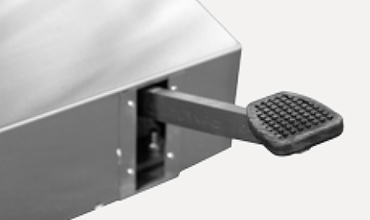

Braking System
Foot treadle brake device which is easily for moving operating table.

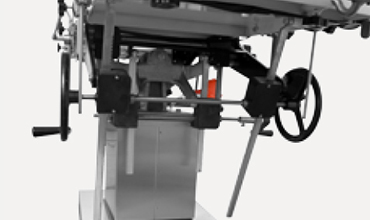

Control System
Various actions are controlled by hydraulic pneumatic system and mechanical driven system, all the adjustments of the table are performed on both sides of the table.
Height Adjustment
Foot step hydraulic elevating, Imported Y type sealing ring and is durable.

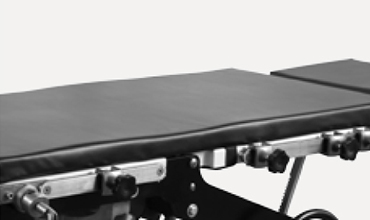

Mattress
The mattress is wrapped with imported artificial leather. High-density memory sponge is formed in one piece, with no seam.

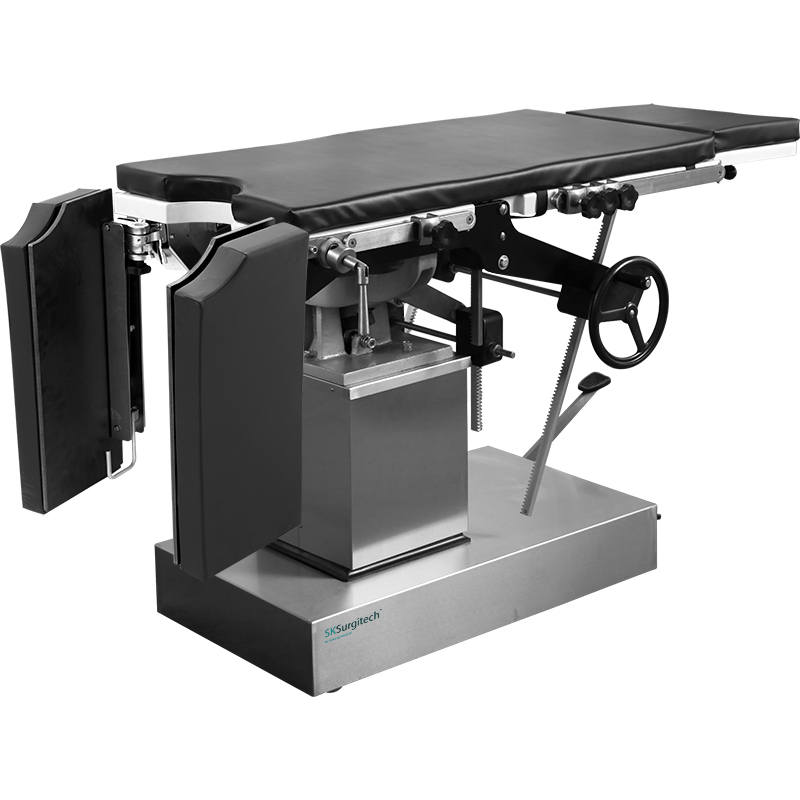

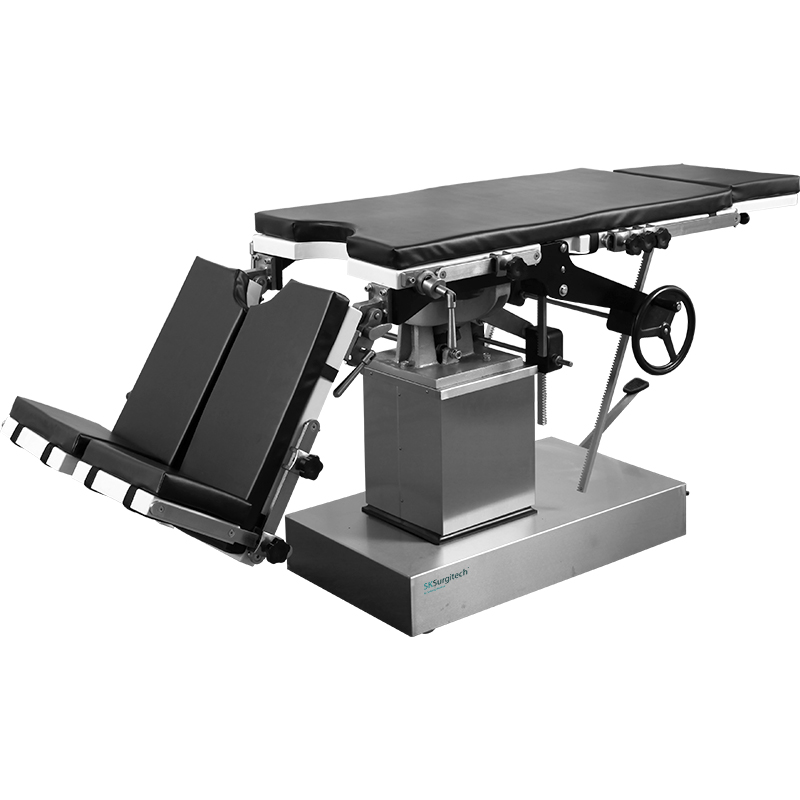

Special Leg Plate Operations
The legs folded plates are used servo-assisted gas spring, handle operation, light and flexible; leg plate could be outreach and fold down, convenient for urology and anorectal surgery.

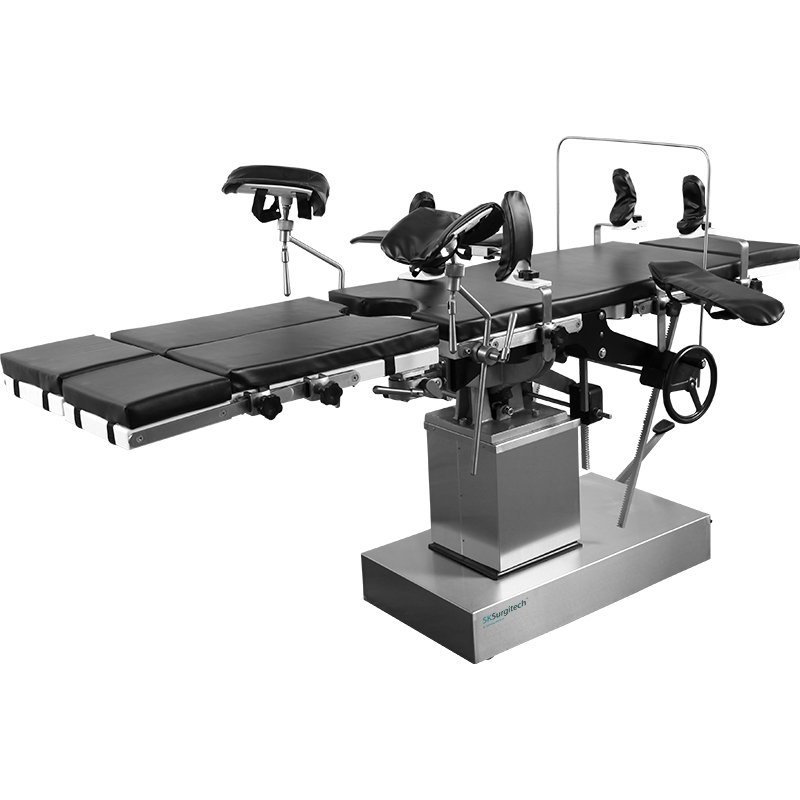

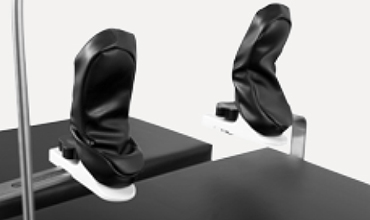

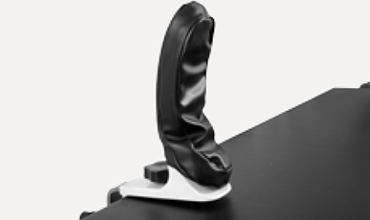

Shoulder Support with Cushion

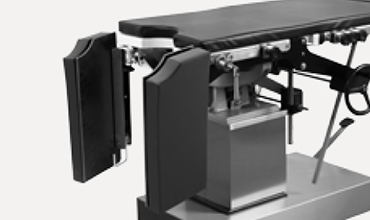

Body Support with Cushion

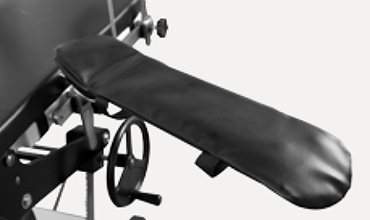

Arm Support with Cushion

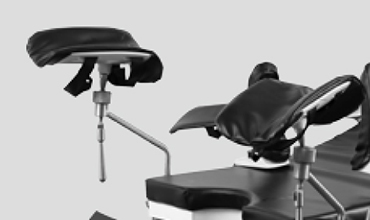

Leg Support with Cushion

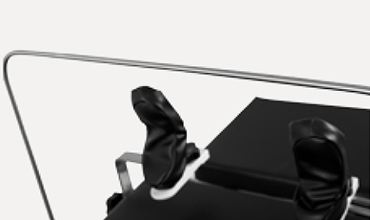

Anesthesia Screen Frame
Technical parameters
| External Size (LxWxH) | 2000x480x800-1050 mm |

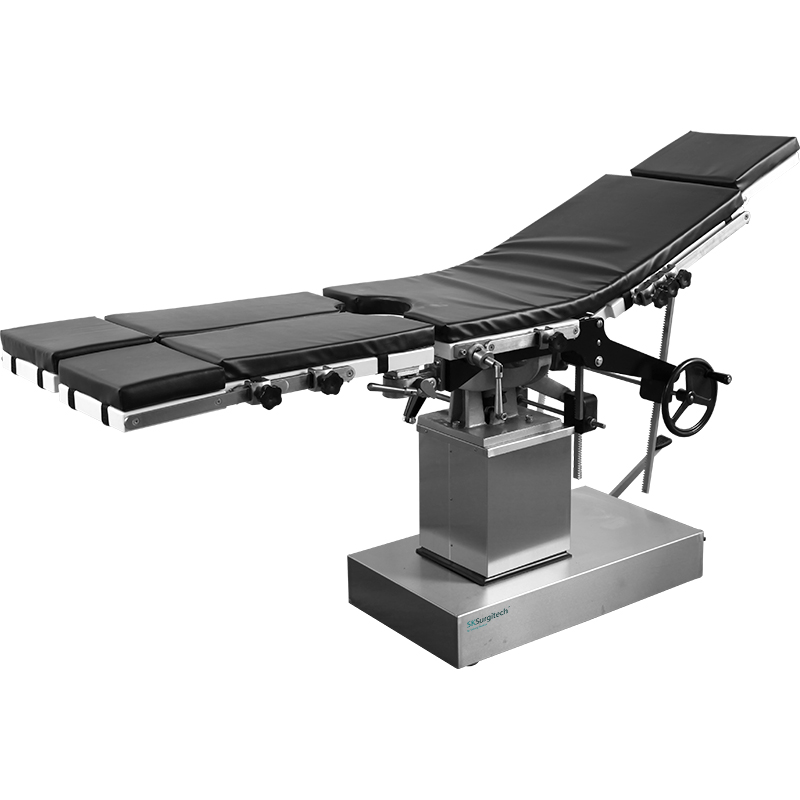

| Back Plate Up/Down | 80°/18° |
| Head Plate Up/Down | 45°/90° |
| Leg Plate Down | 90° |
| Leg board Outwards | 90° |

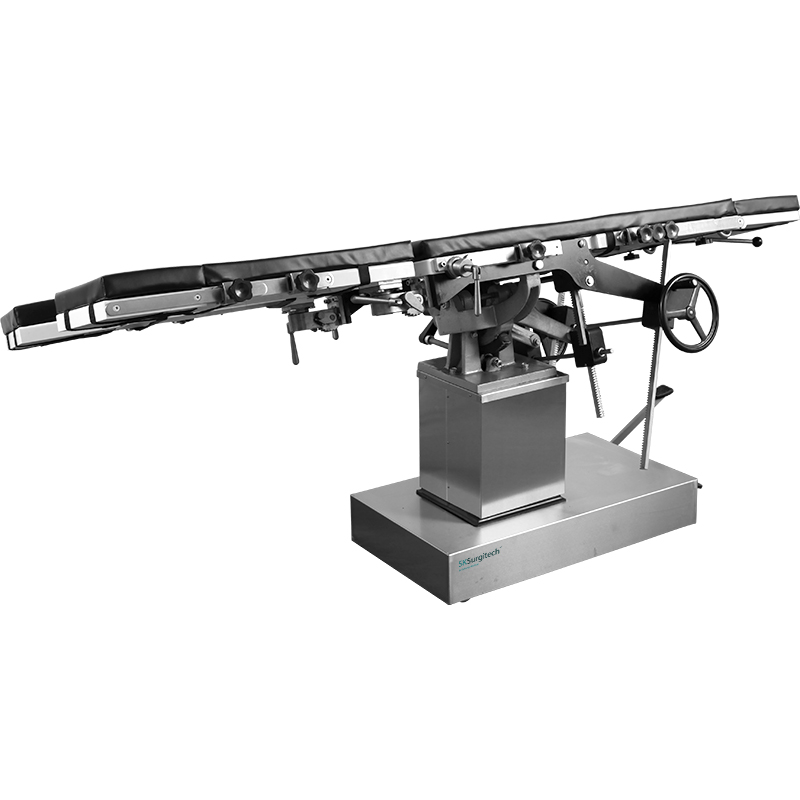

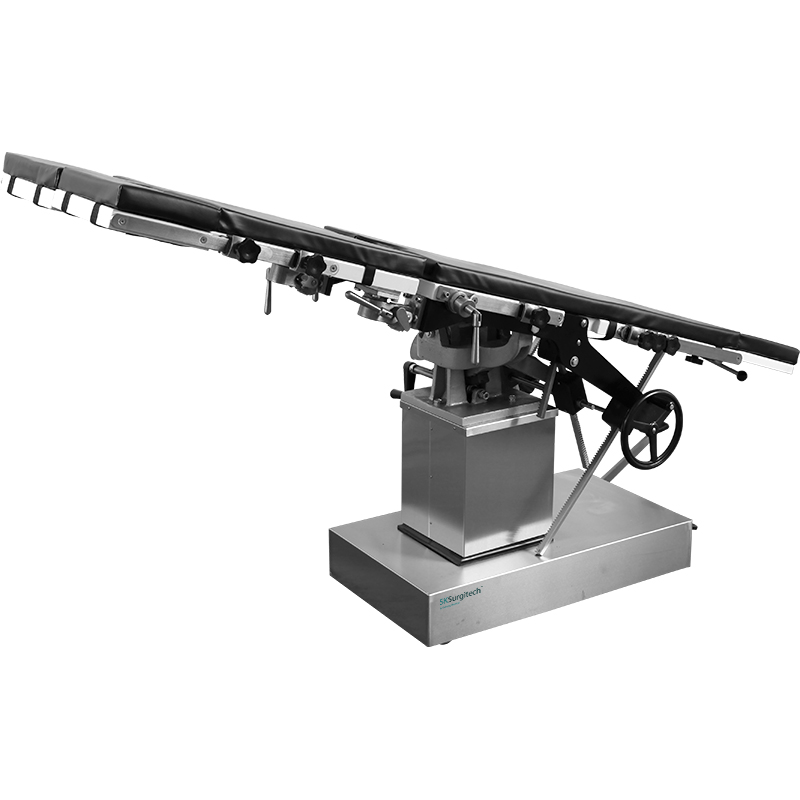

| Trendelenburg/Reverse Trendelenburg | 20°/30° |
| Lateral Tilt Left/Right | 18°/18° |
| Patient Weight Capacity | 185kg |
Technical configuration
| Bed Frame | 1pc |
| Anesthesia Screen Frame | 1pc |
| Mattress | 1set |
| Arm Support with Cushion | 2pcs |
| Leg Support with Cushion | 2pcs |
| Shoulder Support with Cushion | 2pcs |
| Body Support with Cushion | 2pcs |
| Foot Support with Cushion | 2pcs |
| Oil Pot（With Oil） | 1pc |
We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate 126 registered technological patents and fulfill more than 20 quality certifications (ISO-9001/13485/14001/18001, European CE, FDA of the USA, Russian Federal Register, ANVISA of Brazil, etc.), in addition to the 93/42/EEC and IEC60601 safety standards. In all of this our R&D department is key, in which we invest 10% of our profits annually.
WARRANTY
* We provide a standard 1 year warranty, optional to be increased. 1% free parts of the total quantity will be provided together with goods.
* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.
* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
FAQ
What quality requirements does your company meet?
* We have over 20 certifications, as ISO-9001/13485/14001/18001, European CE, North American FDA, Russian Federal Registration and Brazilian Health Regulatory Agency.
* We also meet the 93/42/EEC and IEC60601 safety standards.
* In addition to having 126 patents registered, we are constantly developing and implementing new standards for product quality and service efficiency.
What warranty do your products have?
* We provide a standard 1 year warranty, optional to be increased.
* 1% free parts of the total quantity will be provided together with goods.
* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.
* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
What is your delivery time?
* Our standard delivery time is 28 days.
What payment options do you offer?
* We are flexible in terms of payment. We can do LC, TT, DP, even credit, after auditing the customer.
Do you offer OEM service?
* Yes, we have a qualified R&D team to carry out customized projects. You just need to provide us with your own specifications.
Do you have different motor options?
* Yes, we have different brands of motors, as Linak, Timotion, Dewert or Jiechang.
Is the color on headboard/footboard and ABS side rail optional?
* Yes, we can provide the color according to customers’ requirements, based on wholesale purchases.
Can I see your products personally?
* You are welcome to our 2,000 m2 of showrooms in our factory in China (150 km from Shanghai).
* In addition, we annually attend numerous international exhibitions where we present our products, such as Arab Health (United Arab Emirates), North Africa Health (Egypt), CMEF (Shanghai), German Medica (Germany), Medic West Africa (Nigeria), Medic East Africa (Kenya), Pharmedi (Vietnam), Hospitalar (Brazil), Medical Expo (Morocco), etc.
