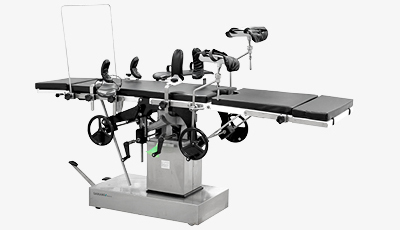

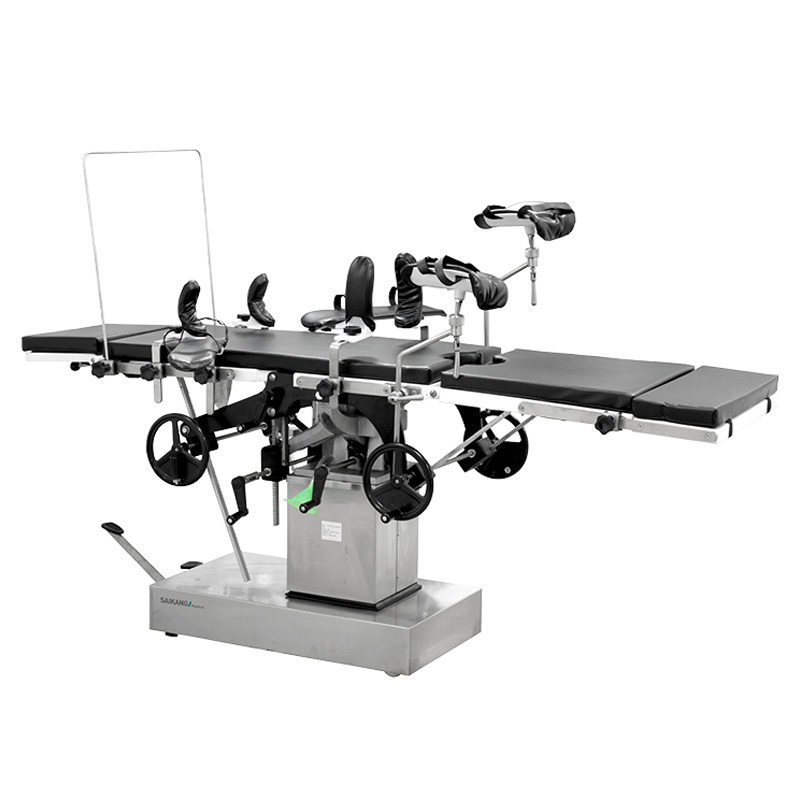

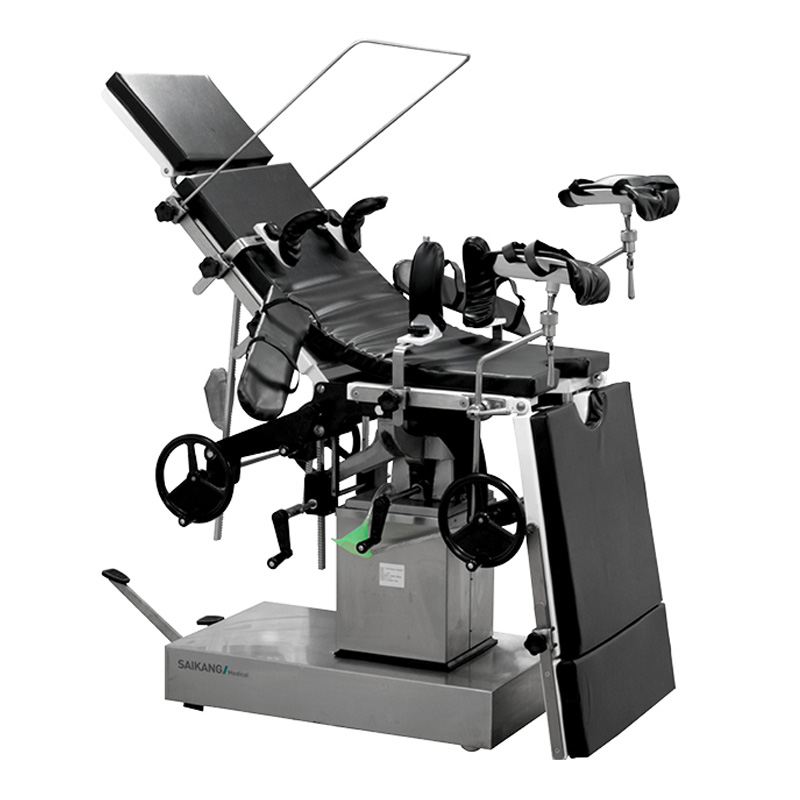

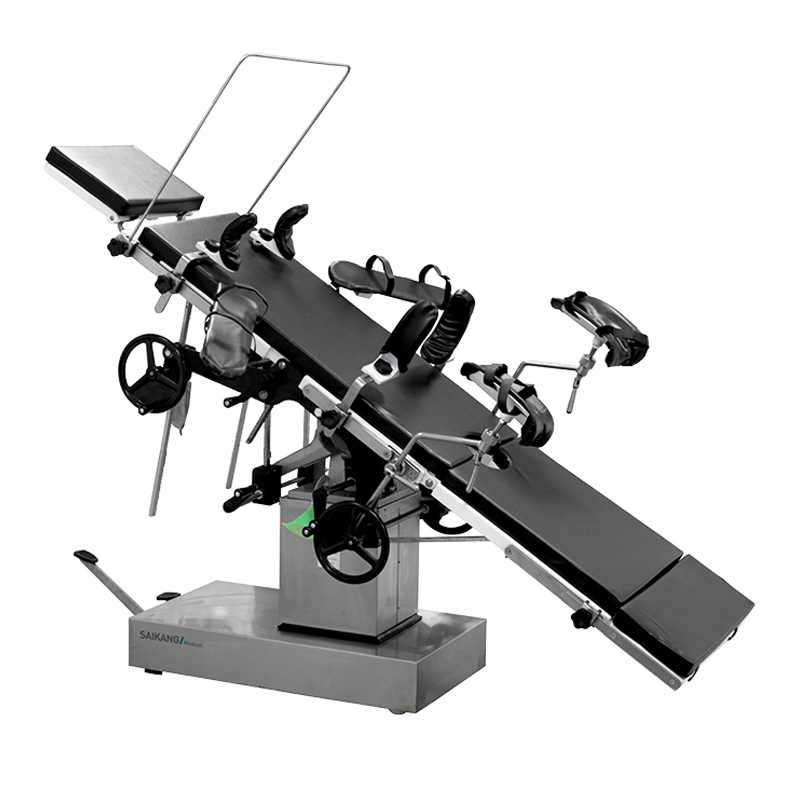

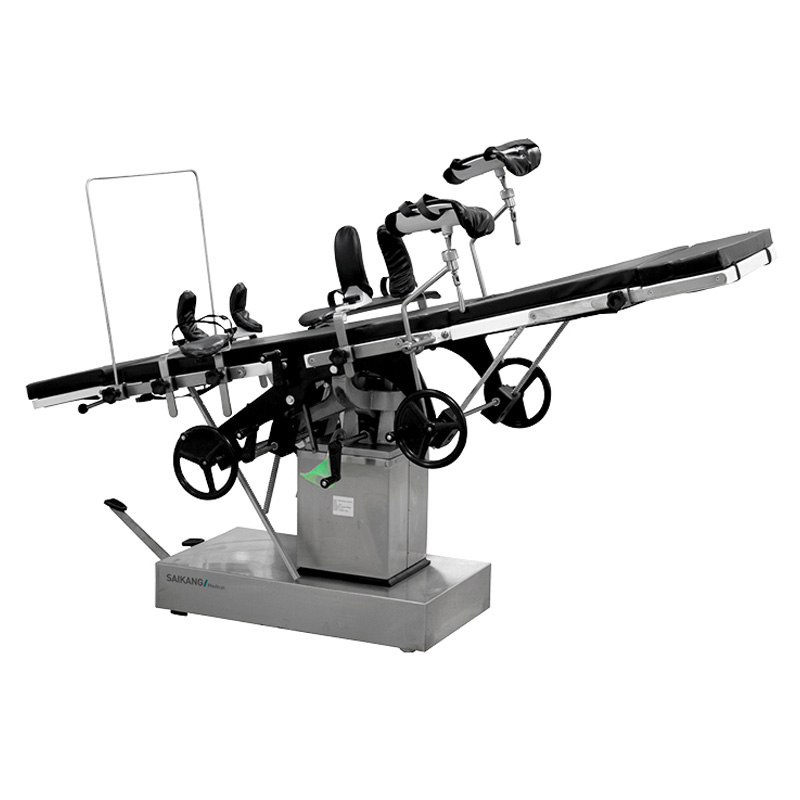

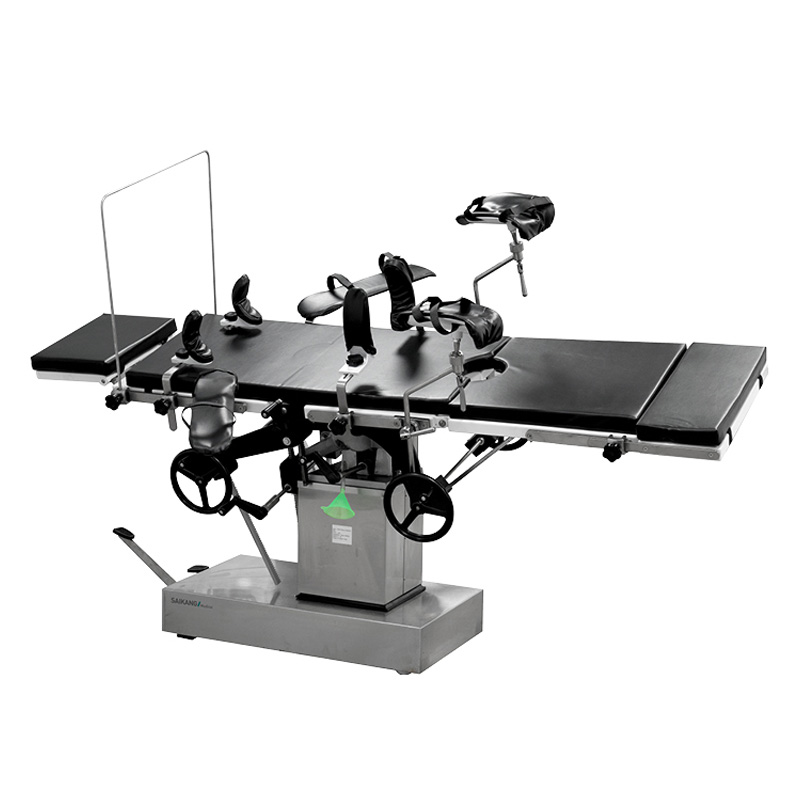

A3001 Operating Table
Introduction:
This operating table is a comprehensive multi-function type, suitable for medical units to perform various operations, all movements are controlled by the manual cranks.
Application
Various actions are controlled by hydraulic pneumatic system and mechanical driven system, all the adjustments of the table are performed on both sides of the table.
Material
The tabletop and outer cover can use carbon steel with plastic spraying or high quality stainless steel, based on your needs.
Control System

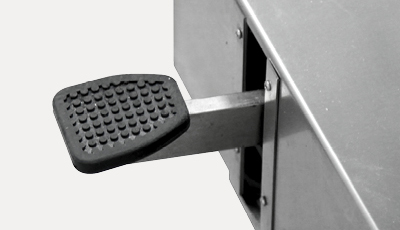

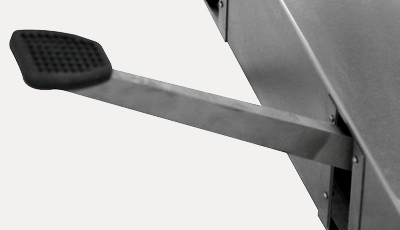

Foot treadle brake device which is easily for moving operating table.

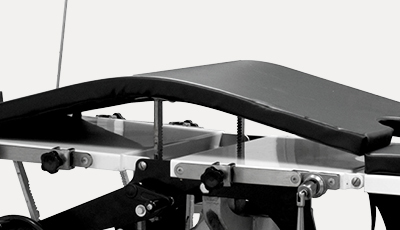

Built-In Kidney Bridge
Built-In kidney bridge, more convenient and nice appearance.

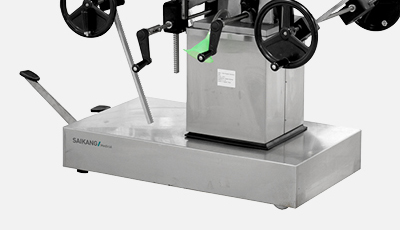

Hydraulic
Foot step hydraulic elevating, Imported Y type sealing ring and is durable.

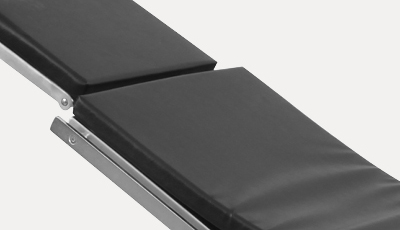

Mattress
The mattress is wrapped with imported artificial leather. Highdensity memory sponge is formed in one piece, with no seam.

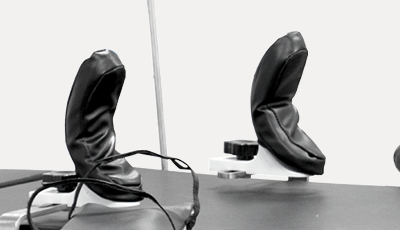

Shoulder Support with Cushion

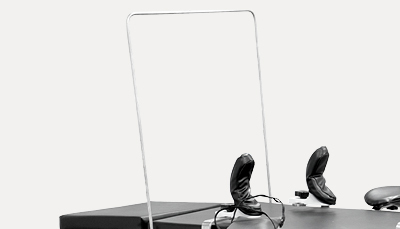

Anesthesia Screen Frame

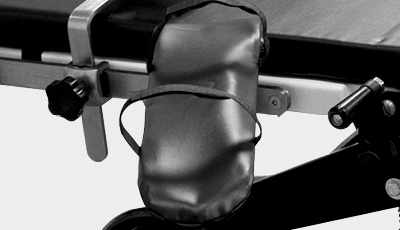

Arm Support with Cushion

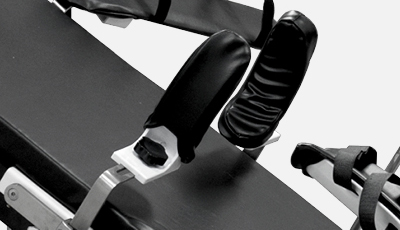

Body Support with Cushion

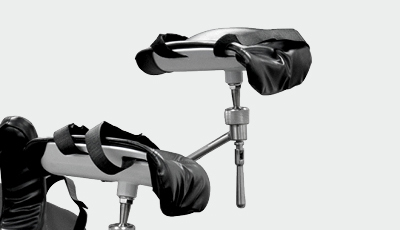

Leg Support with Cushion
Technical parameters
| External Size (LxWxH) | 2000x480x790-1040 mm |
| Built-in Kidney Bridge | 0-115 mm |
| Back Plate Up/Down | 80°/18° |
| Head Plate Up/Down | 45°/90° |
| Trendelenburg/Reverse Trendelenburg | 20°/30° |
| Lateral Tilt Left/Right | 15°/15° |
| Leg Plate Down | 90° |
| Patient Weight Capacity | 200 kg |
Technical configuration
| Anesthesia Screen Frame | 1pc |
| Mattress | 1set |
| Kidney Bridge Handle | 1pc |
| Arm Support with Cushion | 2pcs |
| Leg Support with Cushion | 2pcs |
| Shoulder Support with Cushion | 2pcs |
| Body Support with Cushion | 2pcs |
