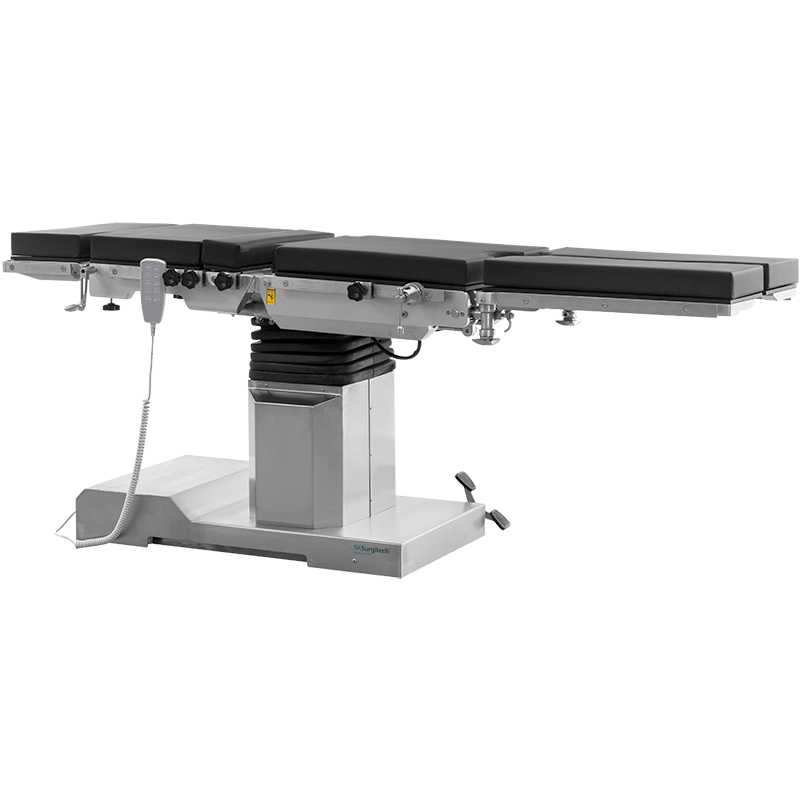

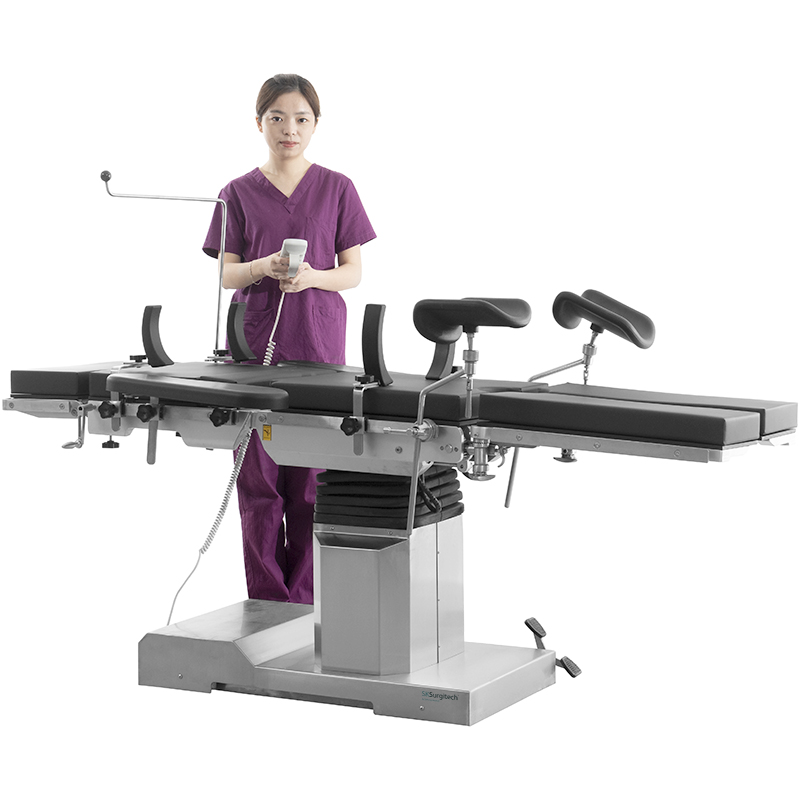

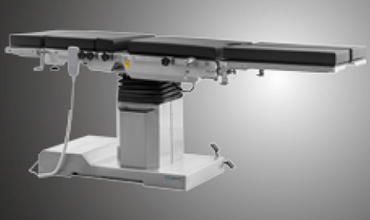

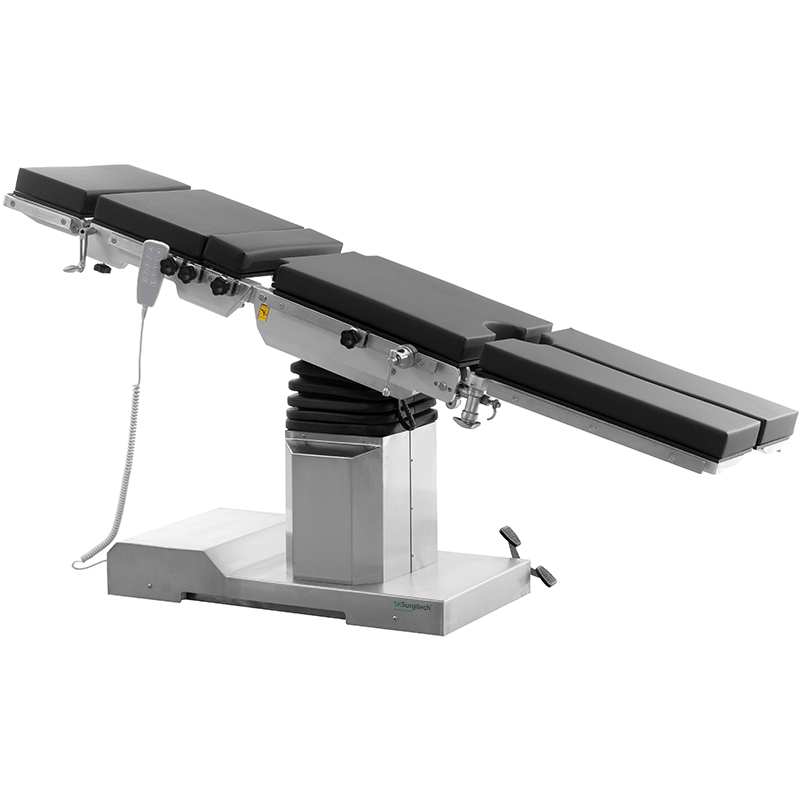

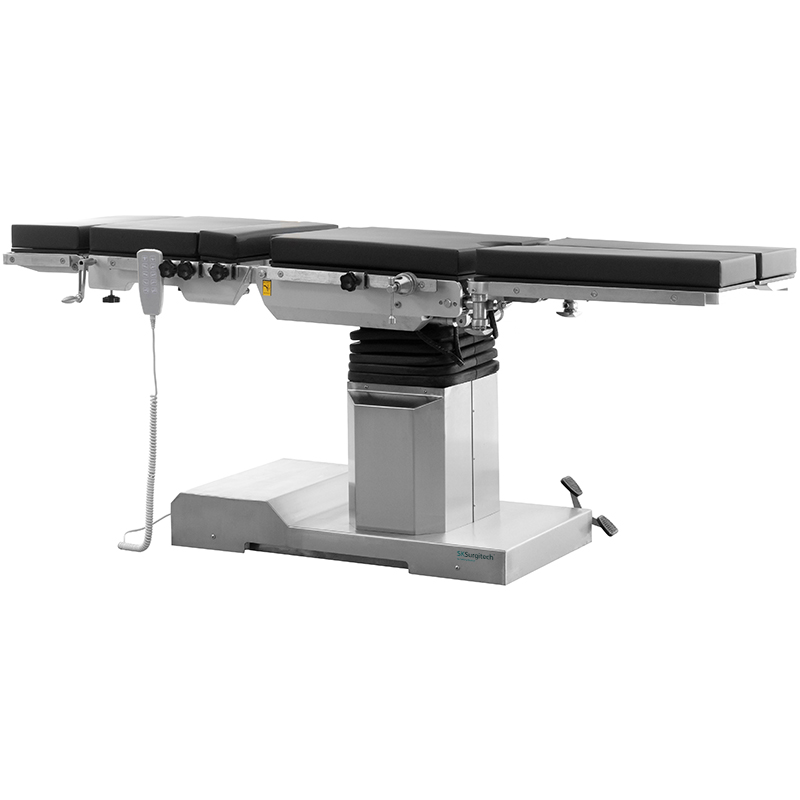

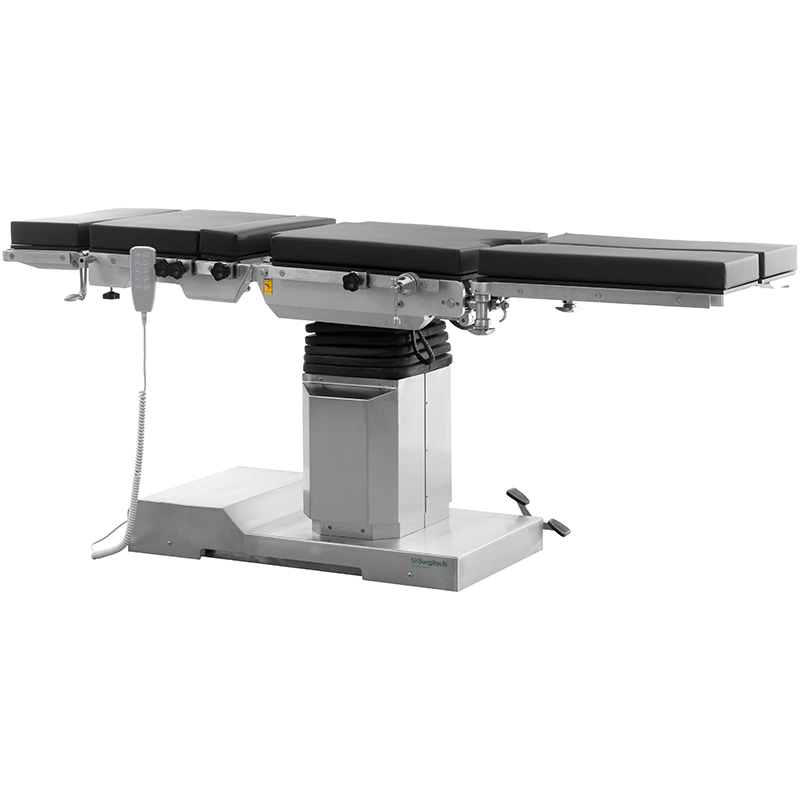

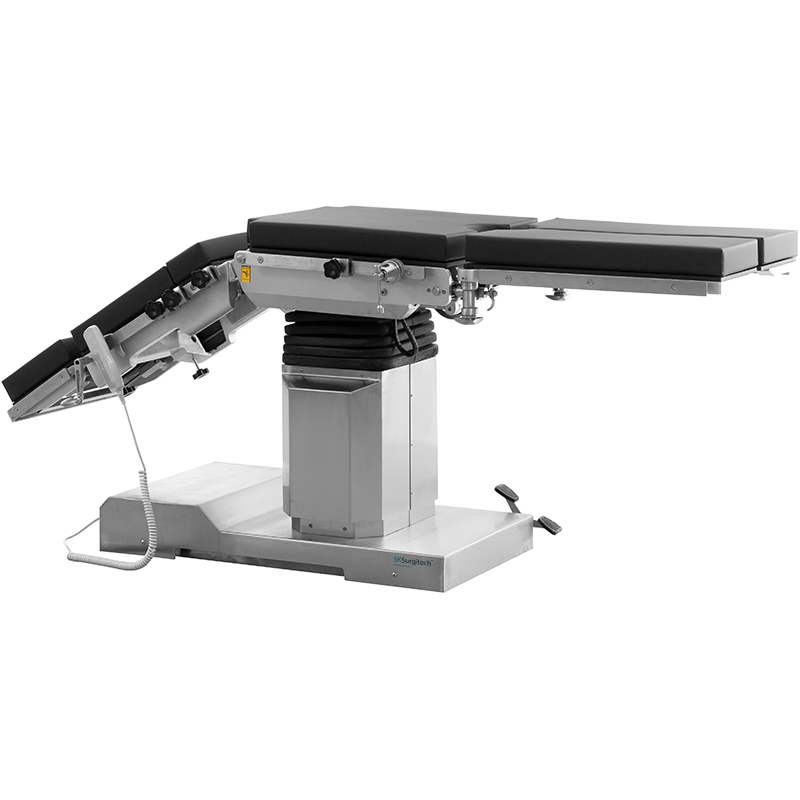

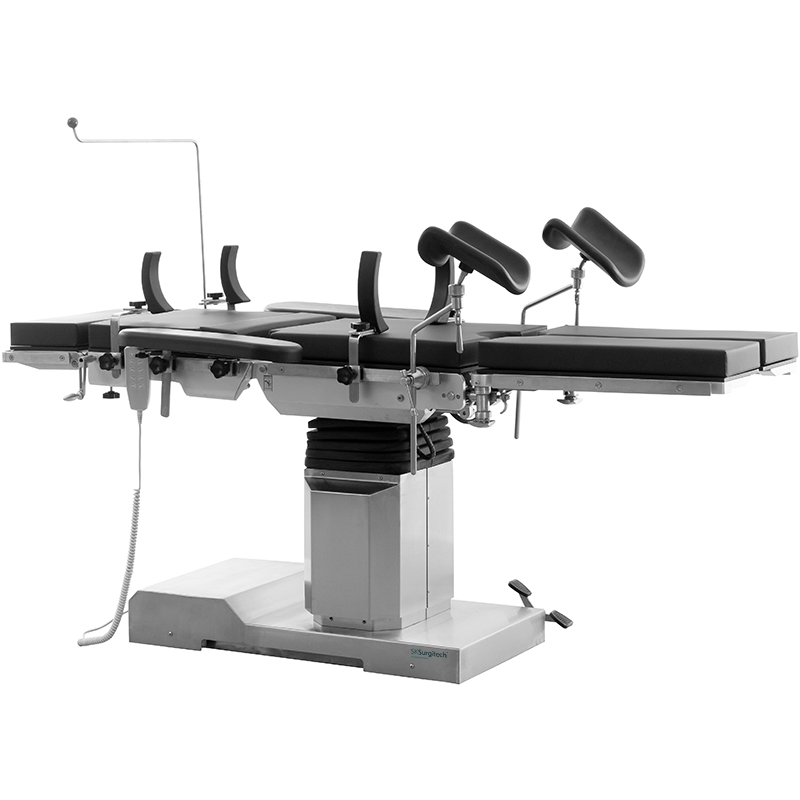

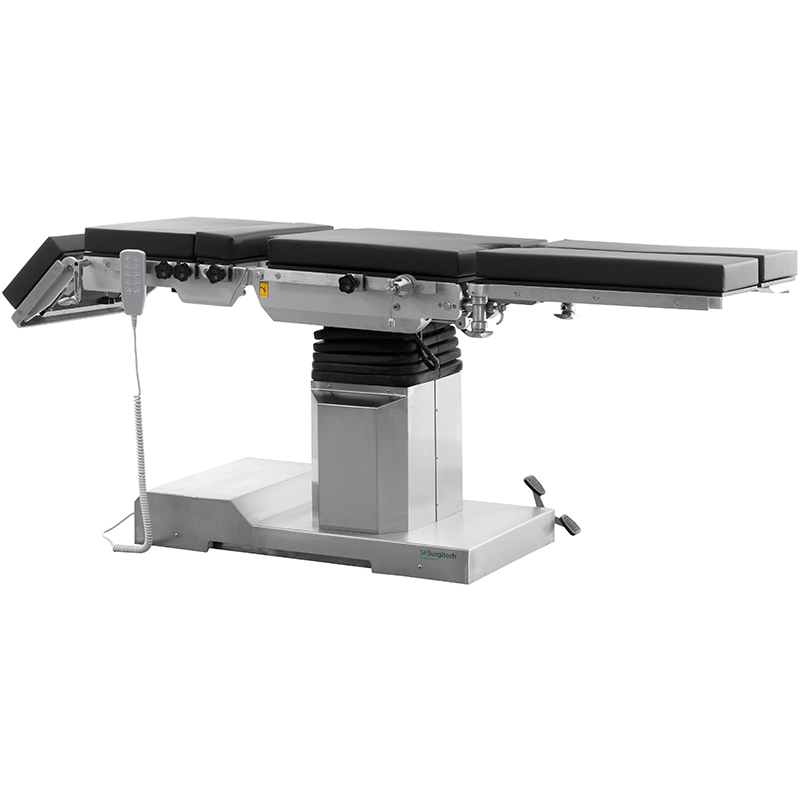

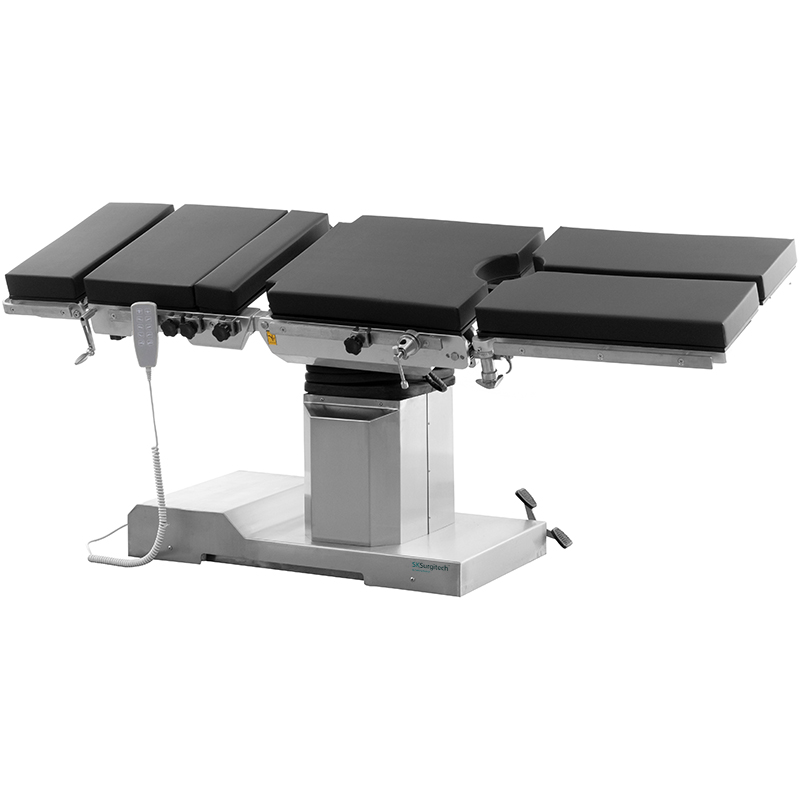

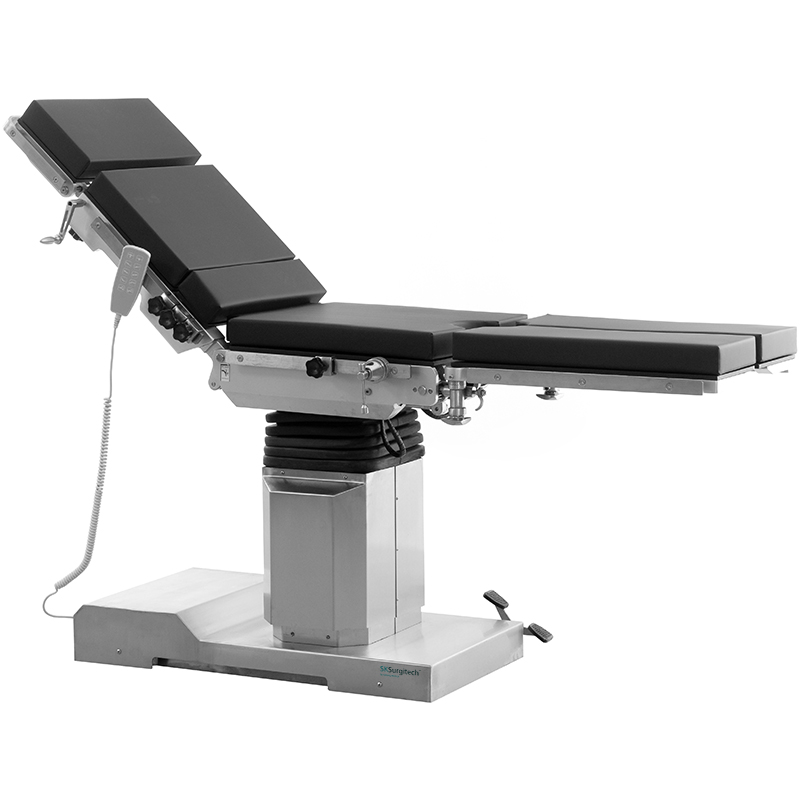

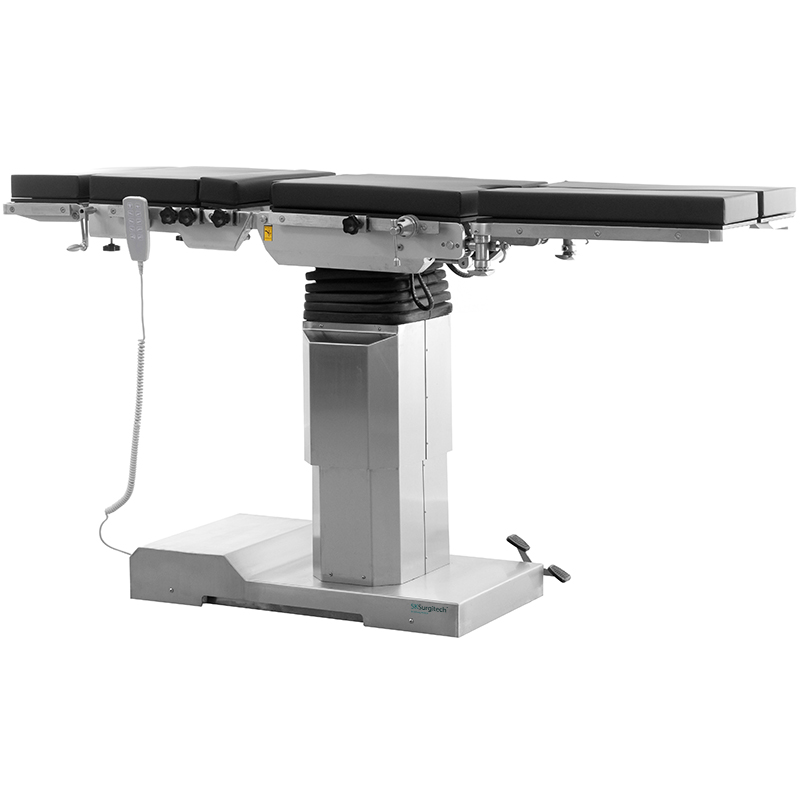

A202 Electric Operating Table
Introduction:

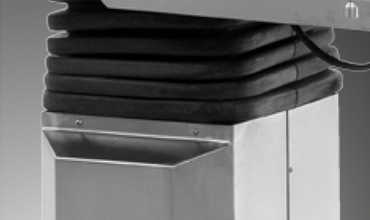

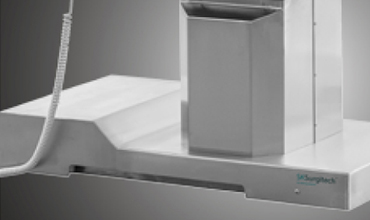

Material
The chassis cover is made of high quality Ni-Cr stainless alloy steel by seamless robot welding, corrosion resistance, disinfection resistance, rust-proof and durable.

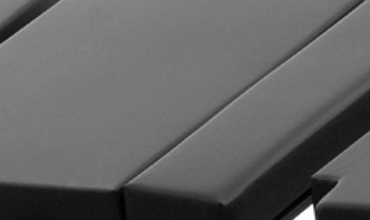

Mattress
Removable memory mattress, good rebound resilience, anti-static electricity and anti-microbial.
Control System
Electric-hydraulic control system, non-gear structure, all functions are controlled by the hand controller.

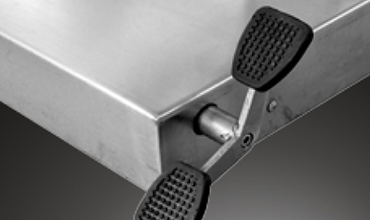

Braking system
Mechanical brake device at the side of the base, with fixed or moving function, flexible and reliable.

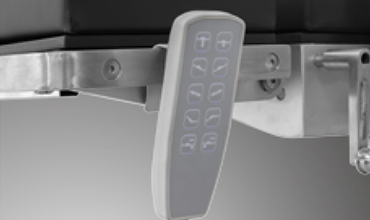

Hand controller
All functions are controlled by the hand controller.

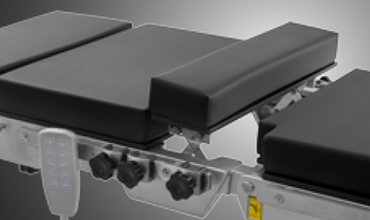

Kidney bridge
Kidney bridge is adjusted by the hand wheel at the side of head board, more convenient, with separate mattress.

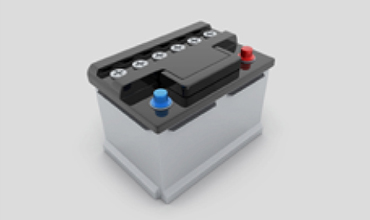

Battery could support
Battery could support about 50-80 complete operation cycles. Working time could be last for one week according to useage and help to keep the operating table running in the event of power failure.
Horizontal movement
300mm horizontal movement function, with high strength phenolic resin table top, could be used for X-ray and C-arm.

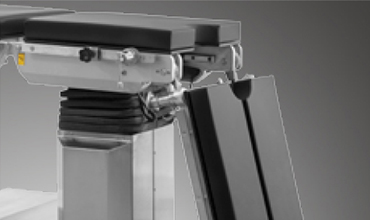

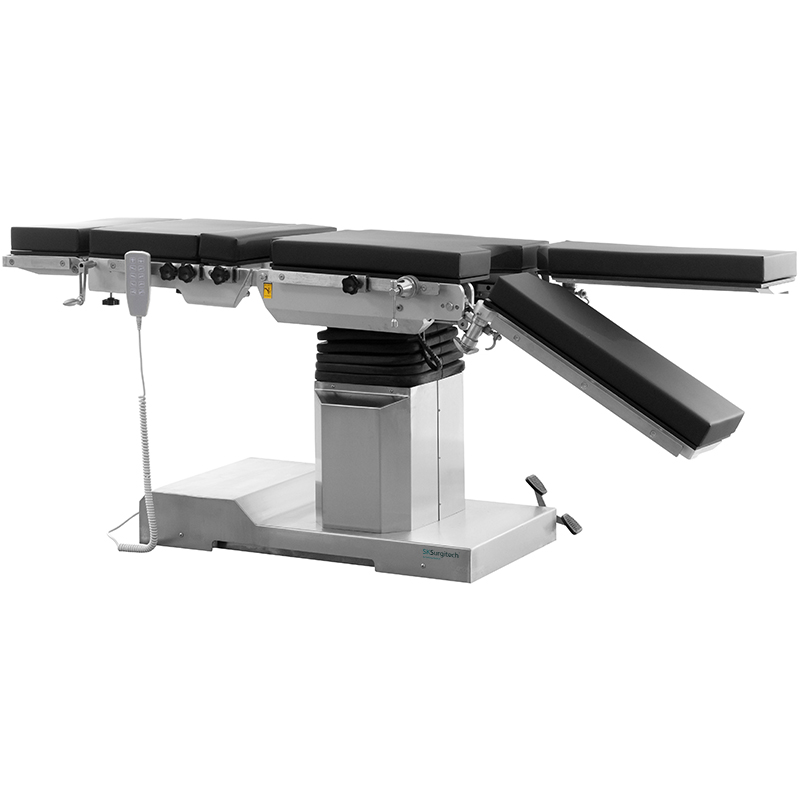

Leg plate
The up and down folding of the leg plate is manually controlled by the high strength gear, which makes the operation more effort-saving and smooth.

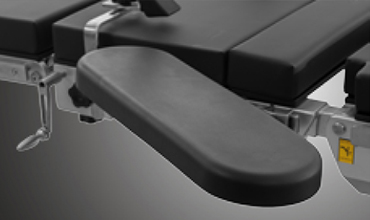

Armrest

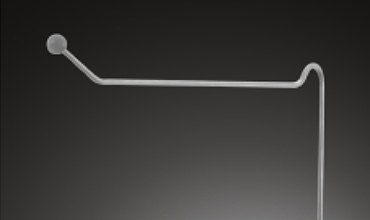

Anesthesia Frame
Leg Crutches
Shoulder Support

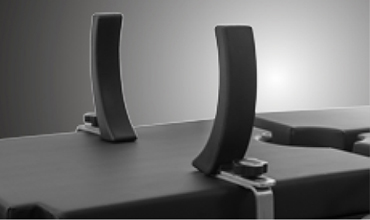

Body Supporter
Technical parameters
| External size (LxWxH) | 2000x500x(750-1050)mm |
| Reverse trendelenburg | 0-22° |

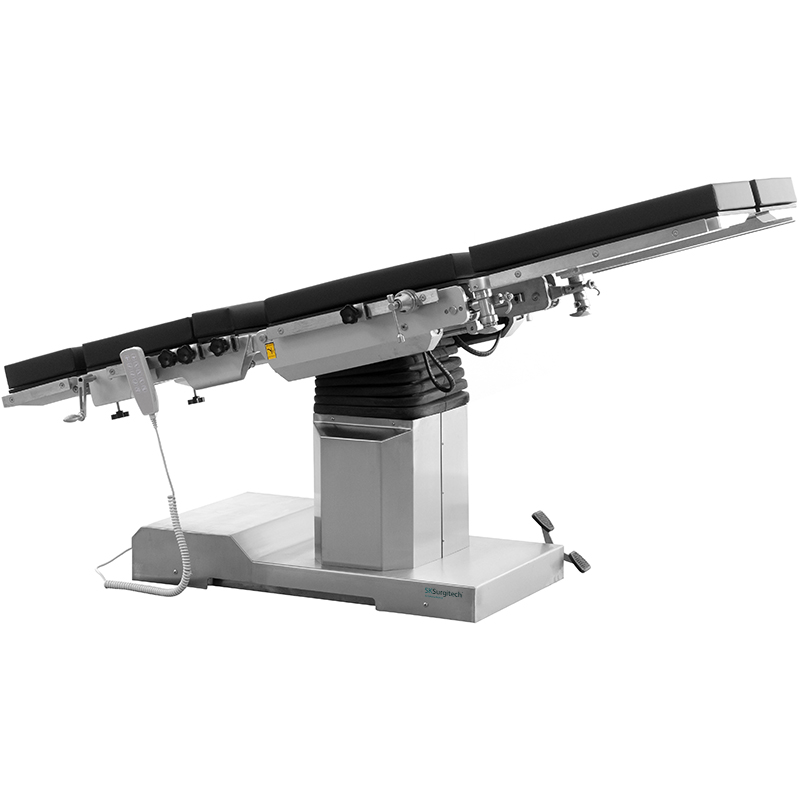

| Trendelenburg | 0-25° |
| Lateral tilt left/right | 0-20° |
| Head plate up/down | 45°/90° |
| Back plate up/down | 70°/35° |
| Leg plate down | 0-90° |
| Leg plate outwards | 0-90° |
| Kidney bridge elevation | 0-80mm |
| Horizontal sliding | 0-300mm |
| Safe working load | 360kg |
Technical configuration
| Arm support | 2 pcs |
| Leg support | 2 pcs |
| Body Suppport | 2 pcs |
| Shoulder Support | 2 pcs |
| Slider | 7 pcs |
| Tightener | 2 pcs |
| Anaesthetic Screen | 1 pc |
| Hand controller | 1 pc |
| Handwheel | 1 pc |
We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate 126 registered technological patents and fulfill more than 20 quality certifications (ISO-9001/13485/14001/18001, European CE, FDA of the USA, Russian Federal Register, ANVISA of Brazil, etc.), in addition to the 93/42/EEC and IEC60601 safety standards. In all of this our R&D department is key, in which we invest 10% of our profits annually.
WARRANTY
* We provide a standard 1 year warranty, optional to be increased. 1% free parts of the total quantity will be provided together with goods.
* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.
* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
FAQ
What quality requirements does your company meet?
* We have over 20 certifications, as ISO-9001/13485/14001/18001, European CE, North American FDA, Russian Federal Registration and Brazilian Health Regulatory Agency.
* We also meet the 93/42/EEC and IEC60601 safety standards.
* In addition to having 126 patents registered, we are constantly developing and implementing new standards for product quality and service efficiency.
What warranty do your products have?
* We provide a standard 1 year warranty, optional to be increased.
* 1% free parts of the total quantity will be provided together with goods.
* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.
* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
What is your delivery time?
* Our standard delivery time is 28 days.
What payment options do you offer?
* We are flexible in terms of payment. We can do LC, TT, DP, even credit, after auditing the customer.
Do you offer OEM service?
* Yes, we have a qualified R&D team to carry out customized projects. You just need to provide us with your own specifications.
Do you have different motor options?
* Yes, we have different brands of motors, as Linak, Timotion, Dewert or Jiechang.
Is the color on headboard/footboard and ABS side rail optional?
* Yes, we can provide the color according to customers’ requirements, based on wholesale purchases.
Can I see your products personally?
* You are welcome to our 2,000 m2 of showrooms in our factory in China (150 km from Shanghai).
* In addition, we annually attend numerous international exhibitions where we present our products, such as Arab Health (United Arab Emirates), North Africa Health (Egypt), CMEF (Shanghai), German Medica (Germany), Medic West Africa (Nigeria), Medic East Africa (Kenya), Pharmedi (Vietnam), Hospitalar (Brazil), Medical Expo (Morocco), etc.
