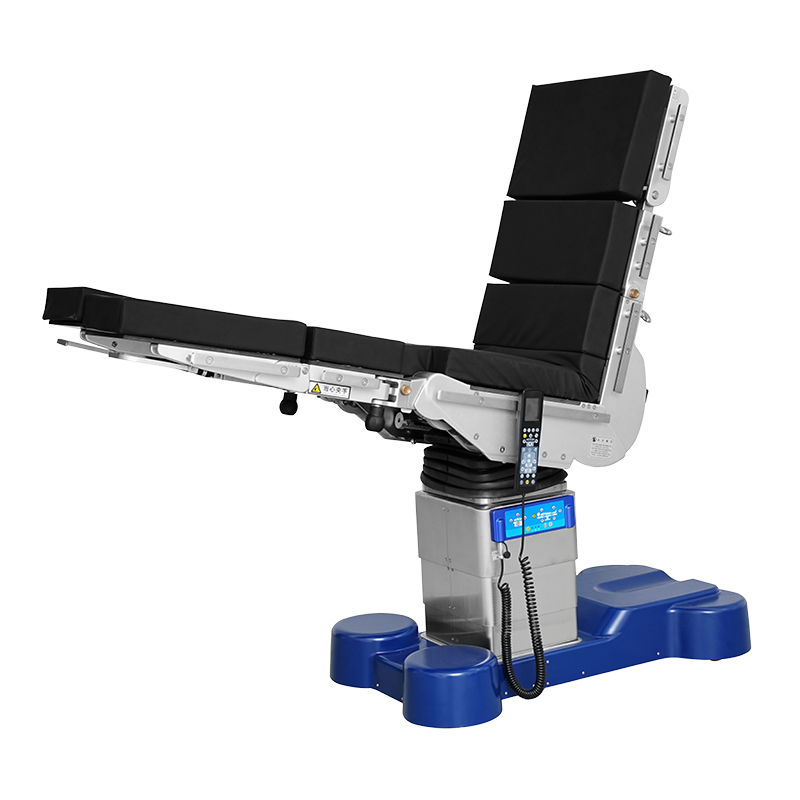

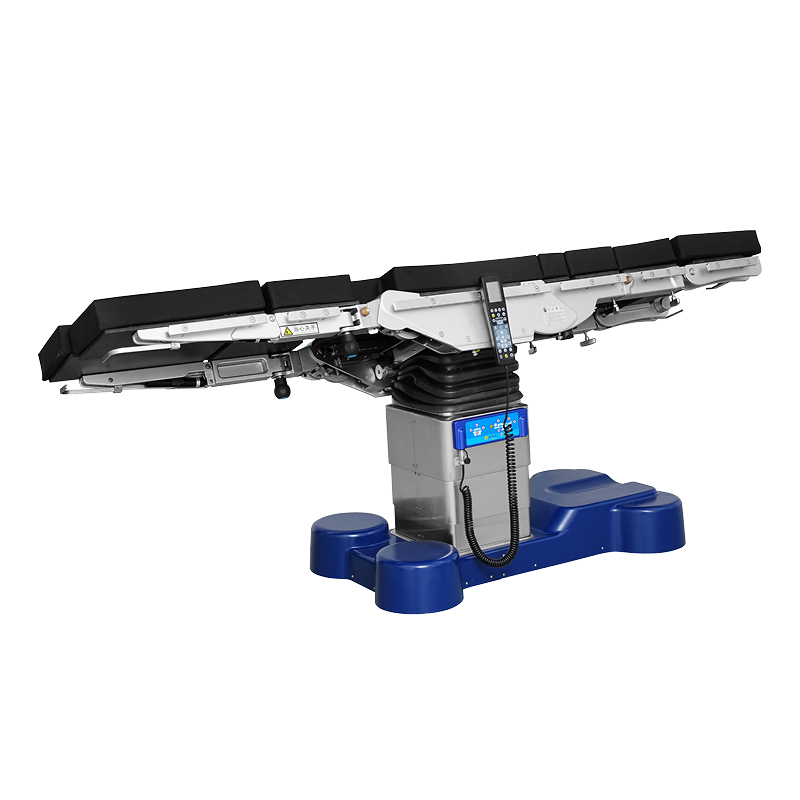

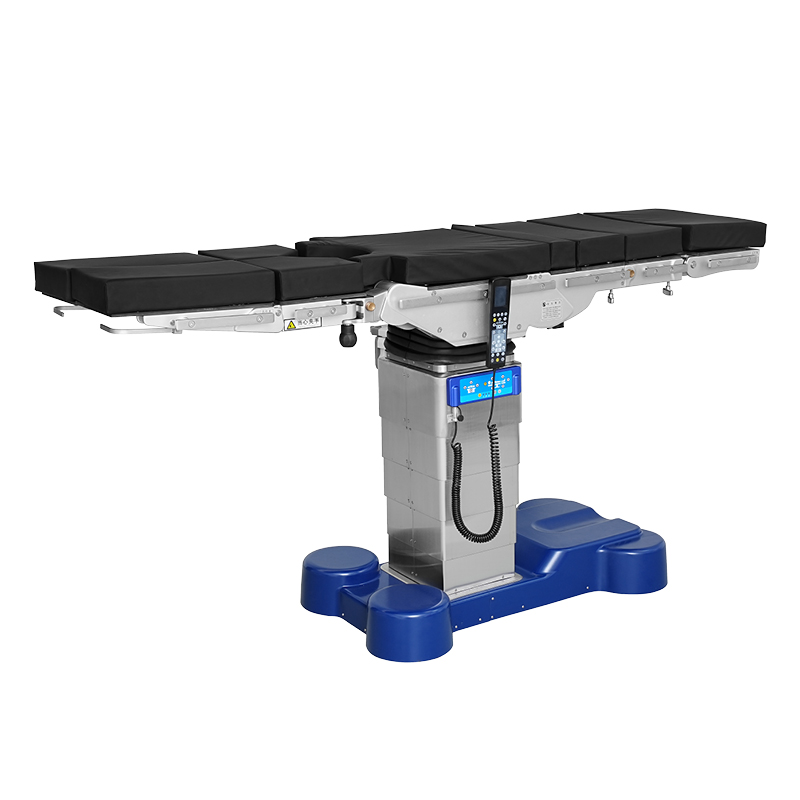

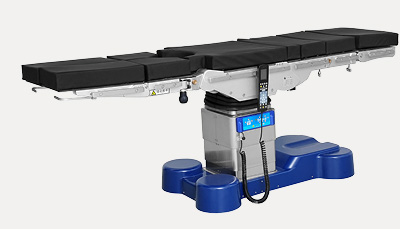

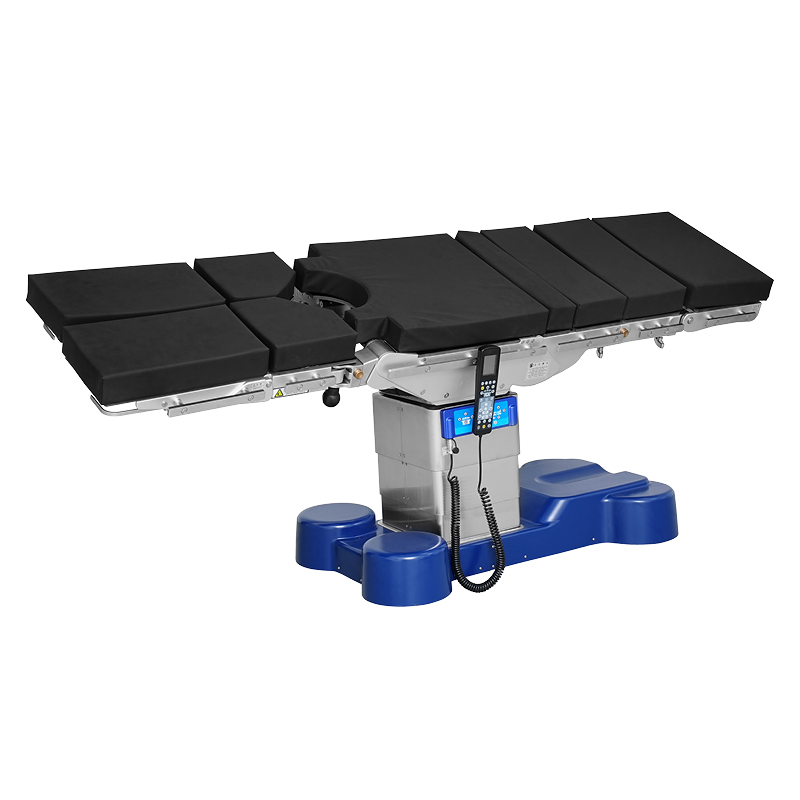

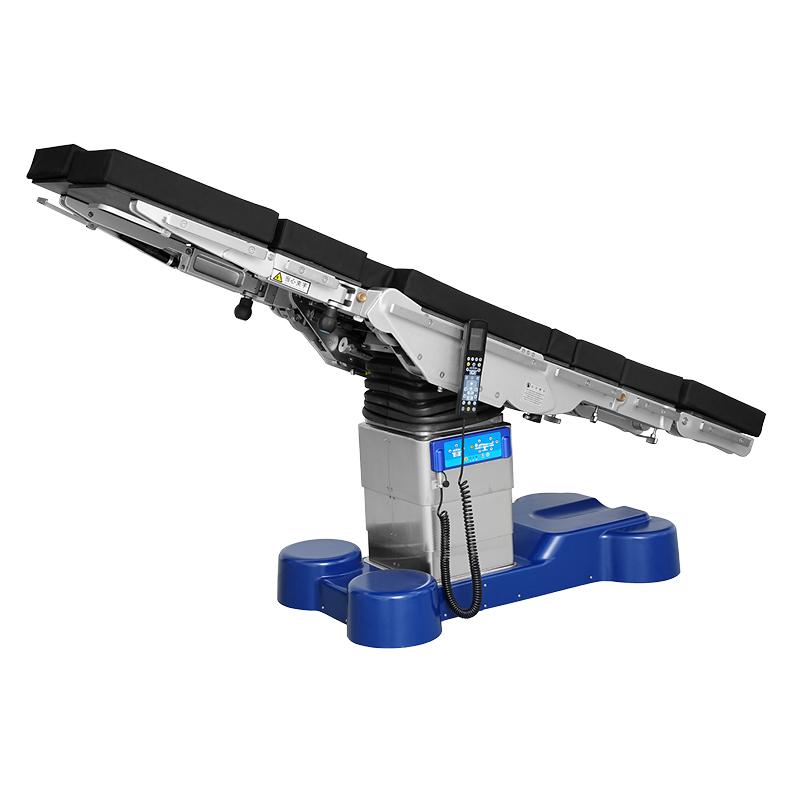

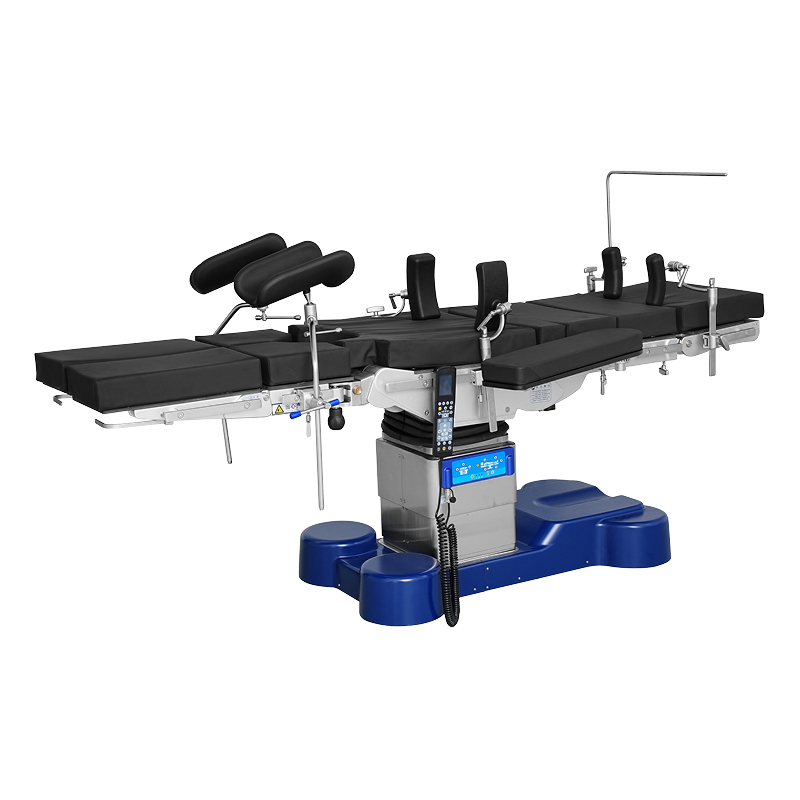

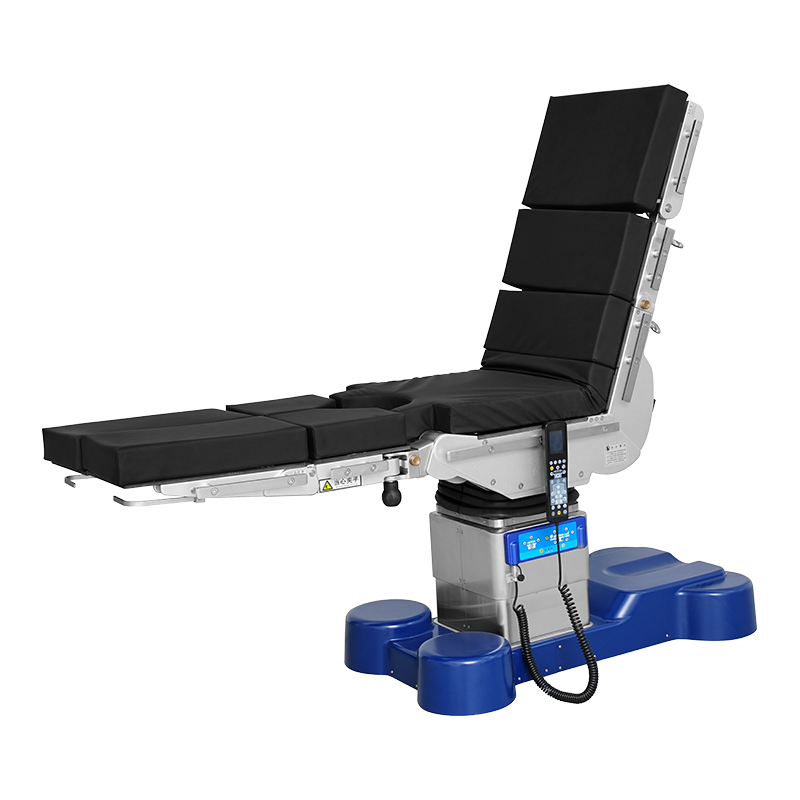

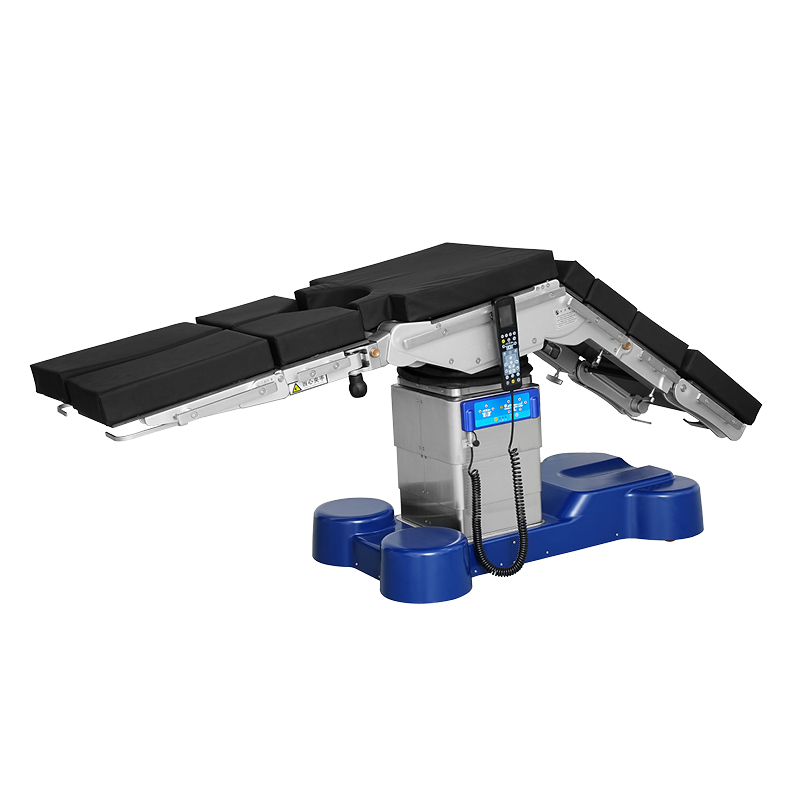

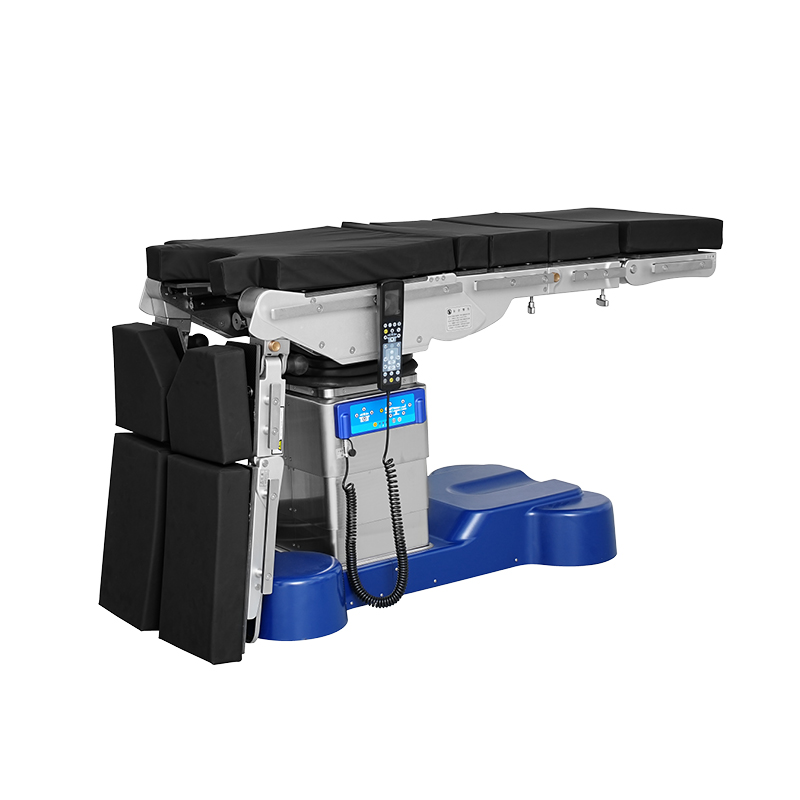

A106-5 Electric Hydraulic Operating Table
Introduction:
Material
The base column and side hoder are all made of high quality 304 stainless steel, which is anticorrosive and can be easily cleaned.
Design
Human-centric overall design, meeting both patients' demands for product functionality and comfort.
Material
The table is constructed of aluminum alloy and 304 stainless steel, ensuring aesthetics, durability, shock resistance, antibreakage, and corrosion resistance while remaining lightweight. It has a strong weight-bearing capacity of up to 360kg.
Welding｜Craftsmanship
The table surface is treated with electrostatic spraying using imported powder coating, anti-aging, rust-resistant, and environmentally friendly with antibacterial properties.
Mattress
Made with a special layered foam sponge core (polyurethane memory foam) that naturally molds to the patient's body temperature and shape, preventing pressure sores during extended surgeries. Seam sealed for excellent integrity. X-ray transparent, anti-static, leakproof, modular

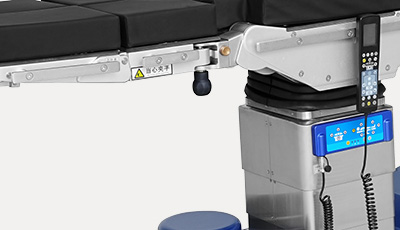

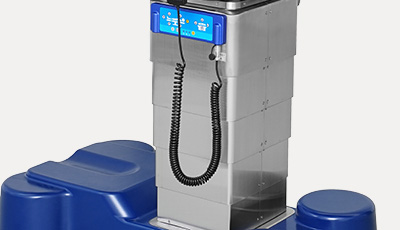

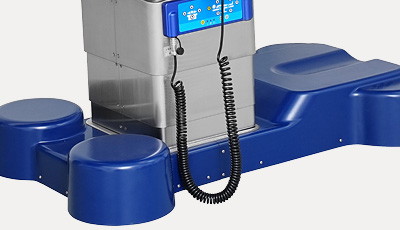

Base
The table base is vacuum molded in one piece, durable, corrosion-resistant, and easy-to-clean.
Electro-hydraulic system
Powered by microcomputer control and electric hydraulic transmission technology, it undergoes electromagnetic compatibility (EMC) testing, ensuring smooth and uniform operation.

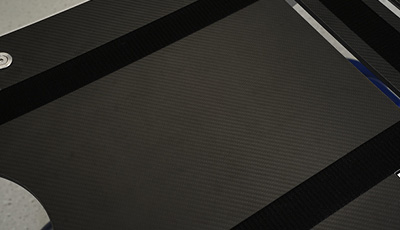

Tabletop
Equipped with a translucent X-ray projection board for orthopedic and other X-ray imaging needs.

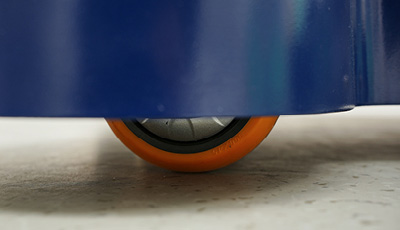

Casters
Polyurethane medical casters with a 100mm diameter for easy mobility.

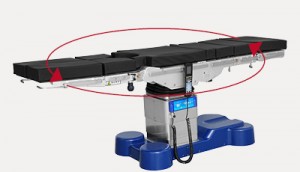

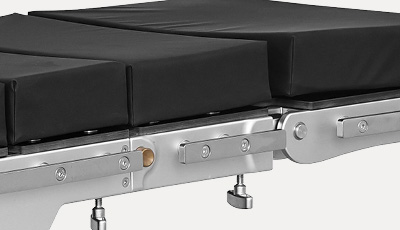

Modular tabletop and unified interfaces
Customizable configurations between the headboard, leg board, and backrest to achieve complex positions with simple steps. The system can automatically recognize the direction of the head and leg boards after swapping.

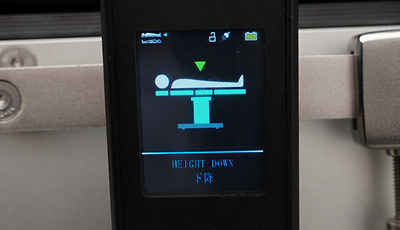

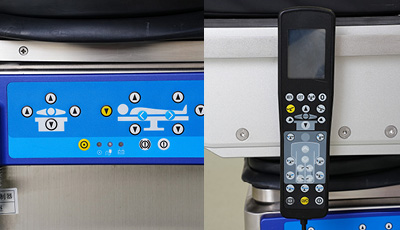

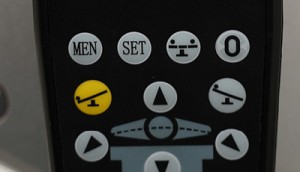

Visual hand controller
Visual hand controller with realtime feedback on action functions and battery power displayed on the LCD screen. Bilingual menu in Chinese and English for clearer operation.
Intelligent operating system
4 sets of intelligent operating systems: backup panel, wired LCD controller, optional wireless Bluetooth LCD controller (with wireless charging capability for Bluetooth controller), optional foot pedal controller, facilitating easy positioning for medical staff.
One-click reset
One-click composite positioning button for horizontal, flexed, extended, and beach chair positions. It features 12 position memory settings that can be easily customized.

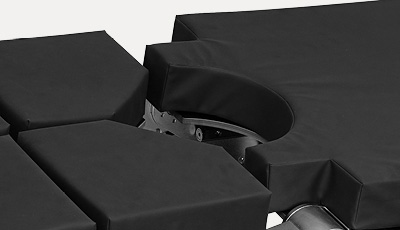

Dual-joint headboard
The dual-joint headboard design enhances the flexibility of the surgical bed and improves patient comfort during lateral positioning surgeries.

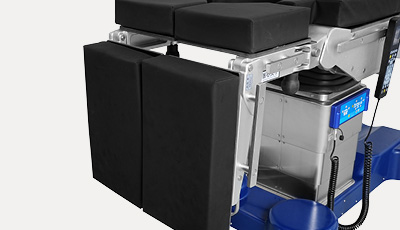

Two-section split legboard
During electric adjustments, the left and right legs can operate independently or simultaneously, offering abduction and knee flexion functions to meet various lower limb surgery requirements.

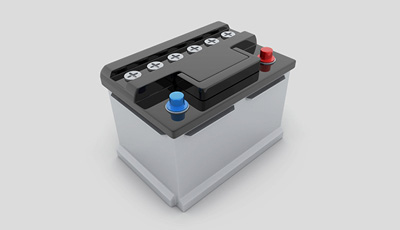

Battery
The surgical table is equipped with a battery and battery backup system to ensure uninterrupted surgery in case of AC power outage, automatically recharging when plugged in. Power requirements: 220V/50Hz.s.

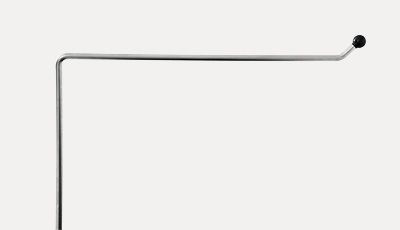

Anesthesia screen frame
Equipped with a stainless steel anesthesia screen frame for hanging anesthesia curtains, used to shield and cover the patient's head during use.

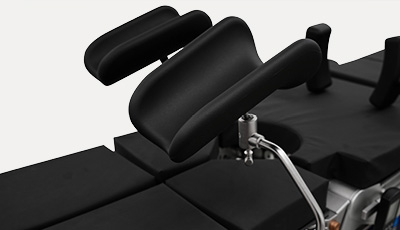

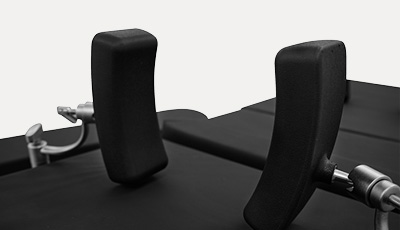

Shoulder support
Polyurethane support frame, adjustable in angle, used to stabilize the patient's body.

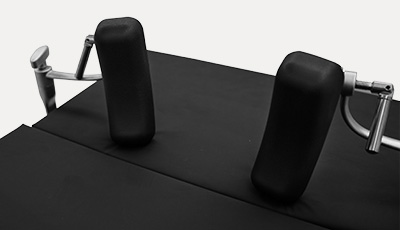

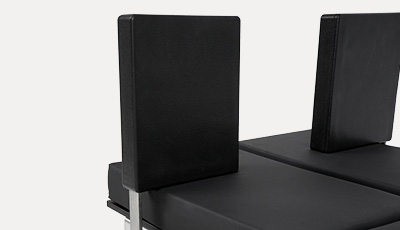

Body support
Polyurethane support frame, adjustable in angle, used to stabilize the patient's body.

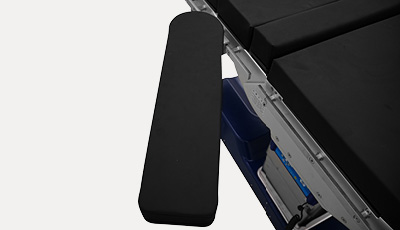

Arm rest
Polyurethane widened armrest board with attached straps, providing stable performance and versatile applications.
Leg rest
Manual multi-angle adjustment for easy use.
Technical parameters
| External size (LxWxH) | 2160x550x(600-1150)mm |

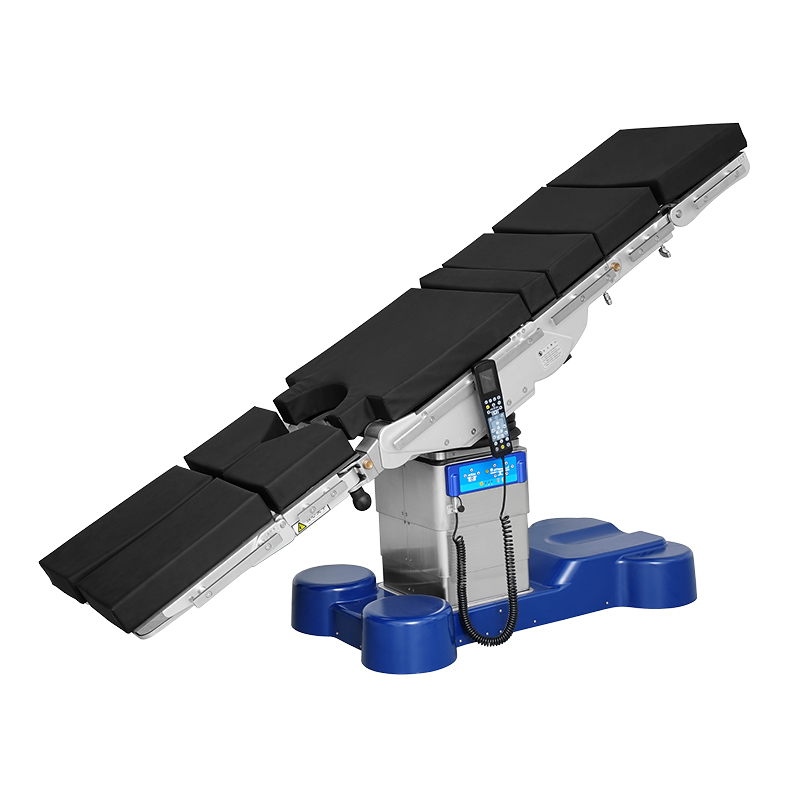

| Reverse trendelenburg | 0°-36° |
| Trendelenburg | 0°-36° |
| Lateral tilt left/right | 0°-22°/0°-22° |
| Head plate up/down | 0°-50°/0°-90° |
| Back plate up/down | 0°-75°/0°-40° |
| Leg plate up/down/outwards | 0°-70°/0°-90°/0°-90° |
| Calf board up/down | 0°-90° |
| Kidney bridge elevation | 120mm |
| Horizontal sliding | 300mm |
Technical configuration
| Mattress | 1 set |
| Hand controller | 1 pcs |
| Waist support | 2 pcs |
| Shoulder support | 2 pcs |
| Armrest | 2 pcs |
| Leg support | 2 pcs |
| Anesthesia screen | 1 pc |
| Joint adapter | 2 pcs |
| Fixator | 3 pcs |
We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate 126 registered technological patents and fulfill more than 20 quality certifications (ISO-9001/13485/14001/18001, European CE, FDA of the USA, Russian Federal Register, ANVISA of Brazil, etc.), in addition to the 93/42/EEC and IEC60601 safety standards. In all of this our R&D department is key, in which we invest 10% of our profits annually.
WARRANTY
* We provide a standard 1 year warranty, optional to be increased. 1% free parts of the total quantity will be provided together with goods.
* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.
* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
FAQ
What quality requirements does your company meet?
* We have over 20 certifications, as ISO-9001/13485/14001/18001, European CE, North American FDA, Russian Federal Registration and Brazilian Health Regulatory Agency.
* We also meet the 93/42/EEC and IEC60601 safety standards.
* In addition to having 126 patents registered, we are constantly developing and implementing new standards for product quality and service efficiency.
What warranty do your products have?
* We provide a standard 1 year warranty, optional to be increased.
* 1% free parts of the total quantity will be provided together with goods.
* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.
* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
What is your delivery time?
* Our standard delivery time is 28 days.
What payment options do you offer?
* We are flexible in terms of payment. We can do LC, TT, DP, even credit, after auditing the customer.
Do you offer OEM service?
* Yes, we have a qualified R&D team to carry out customized projects. You just need to provide us with your own specifications.
Do you have different motor options?
* Yes, we have different brands of motors, as Linak, Timotion, Dewert or Jiechang.
Is the color on headboard/footboard and ABS side rail optional?
* Yes, we can provide the color according to customers’ requirements, based on wholesale purchases.
Can I see your products personally?
* You are welcome to our 2,000 m2 of showrooms in our factory in China (150 km from Shanghai).
* In addition, we annually attend numerous international exhibitions where we present our products, such as Arab Health (United Arab Emirates), North Africa Health (Egypt), CMEF (Shanghai), German Medica (Germany), Medic West Africa (Nigeria), Medic East Africa (Kenya), Pharmedi (Vietnam), Hospitalar (Brazil), Medical Expo (Morocco), etc.
