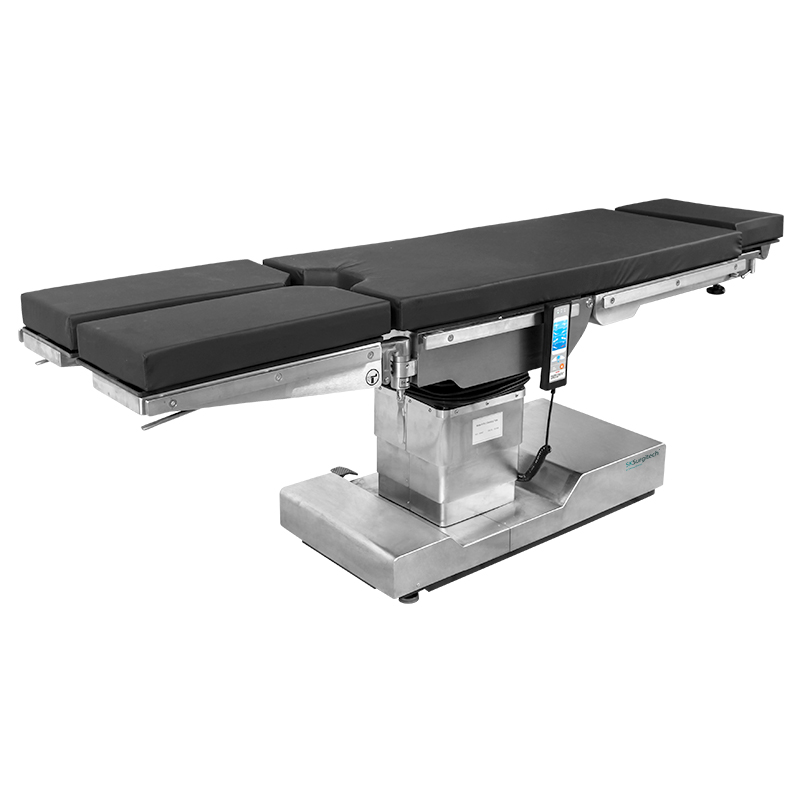

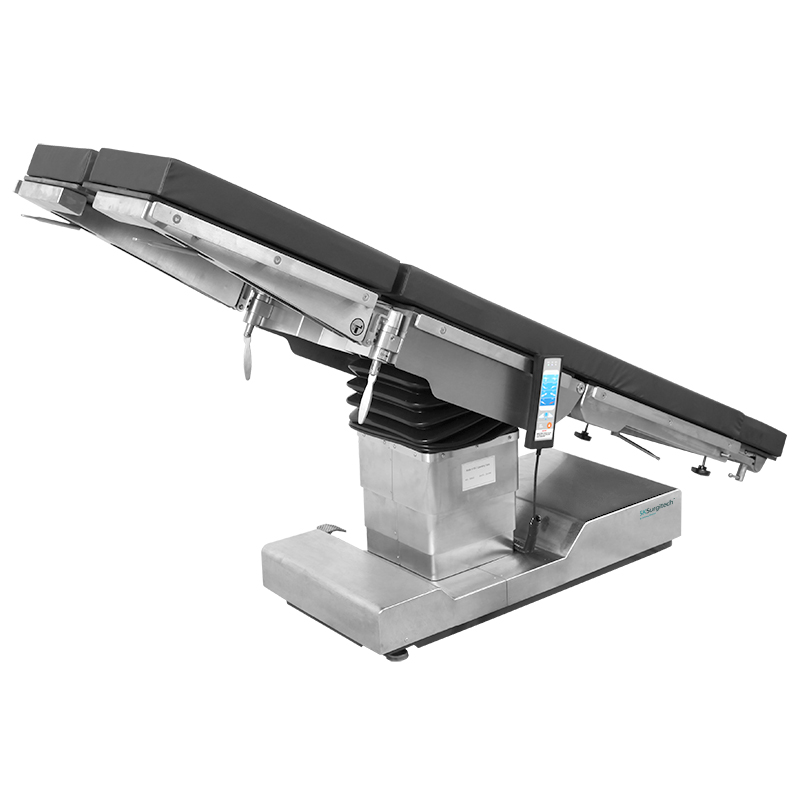

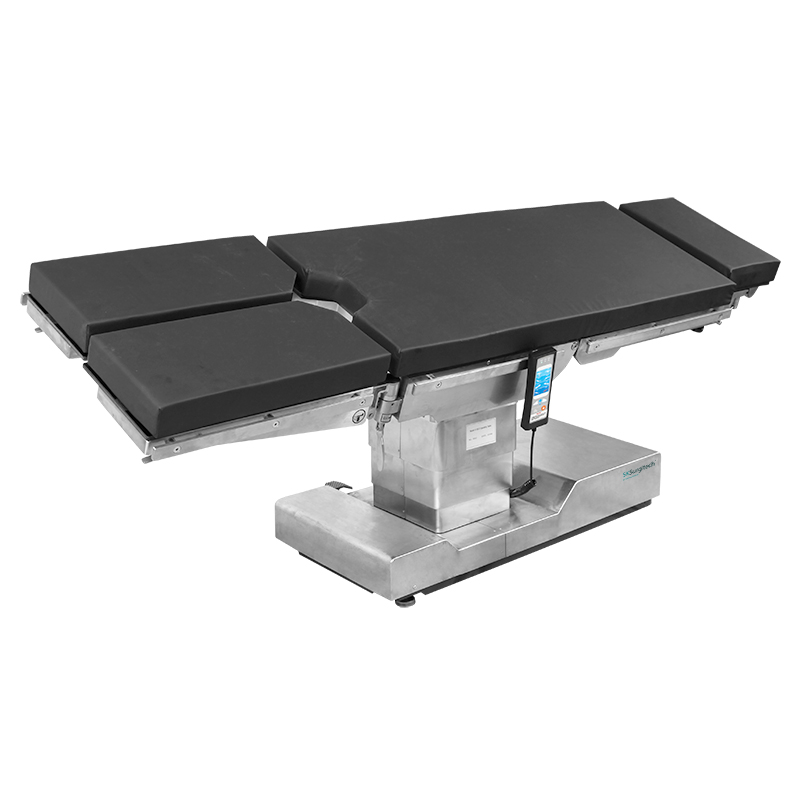

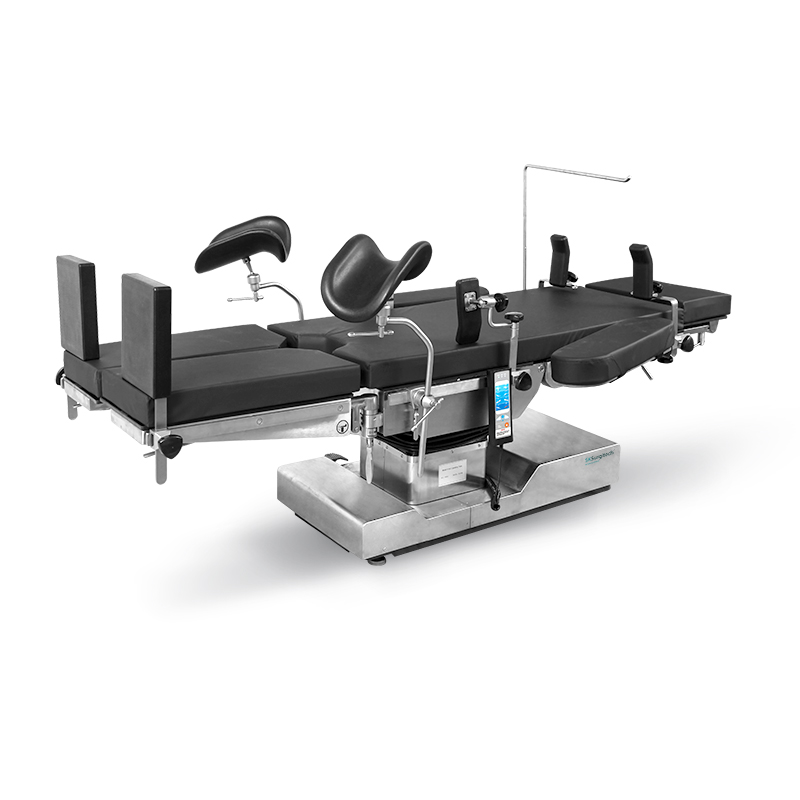

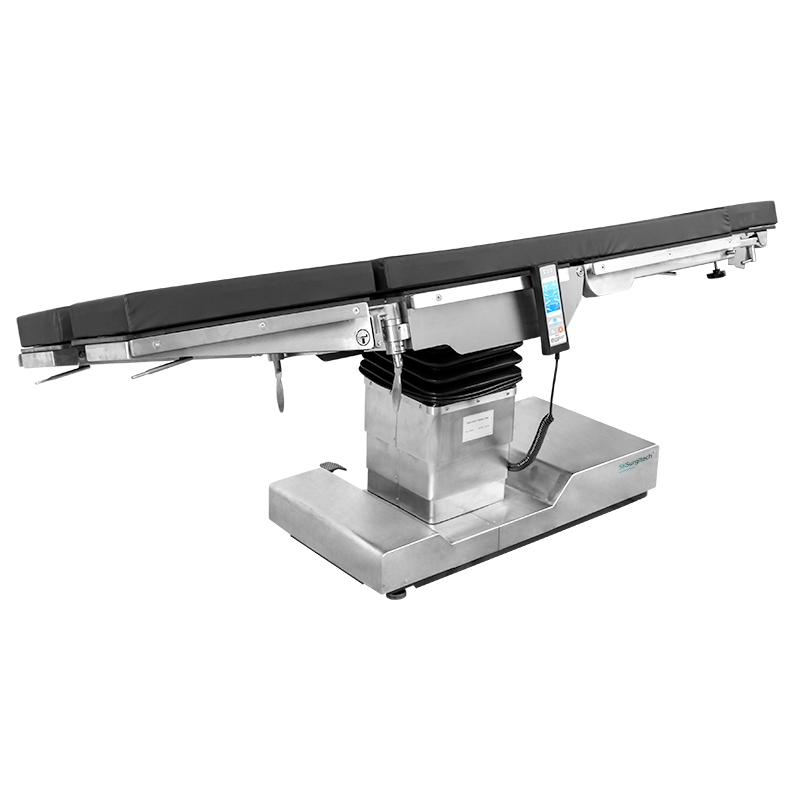

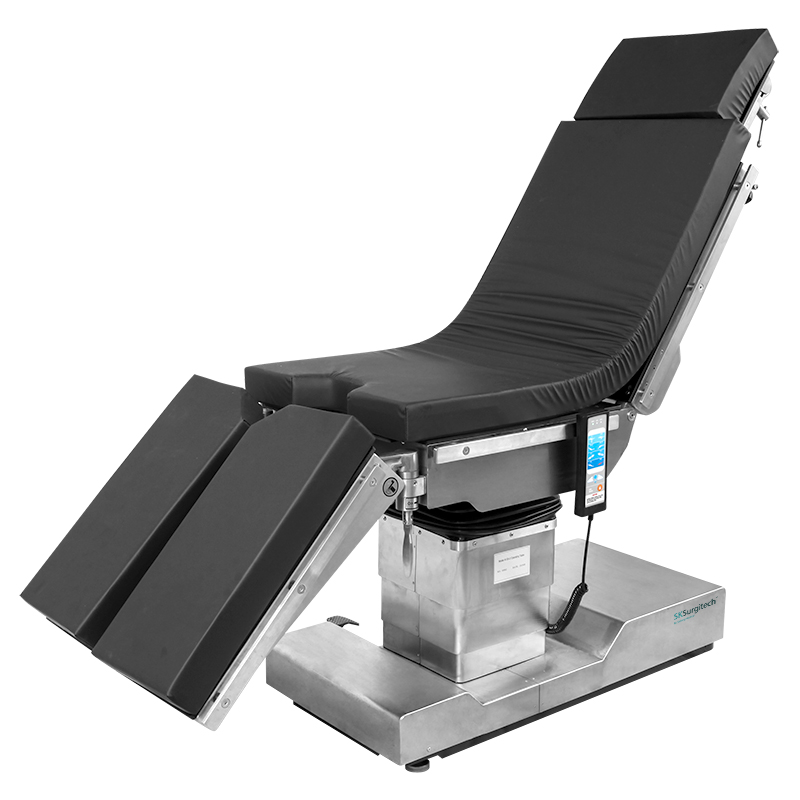

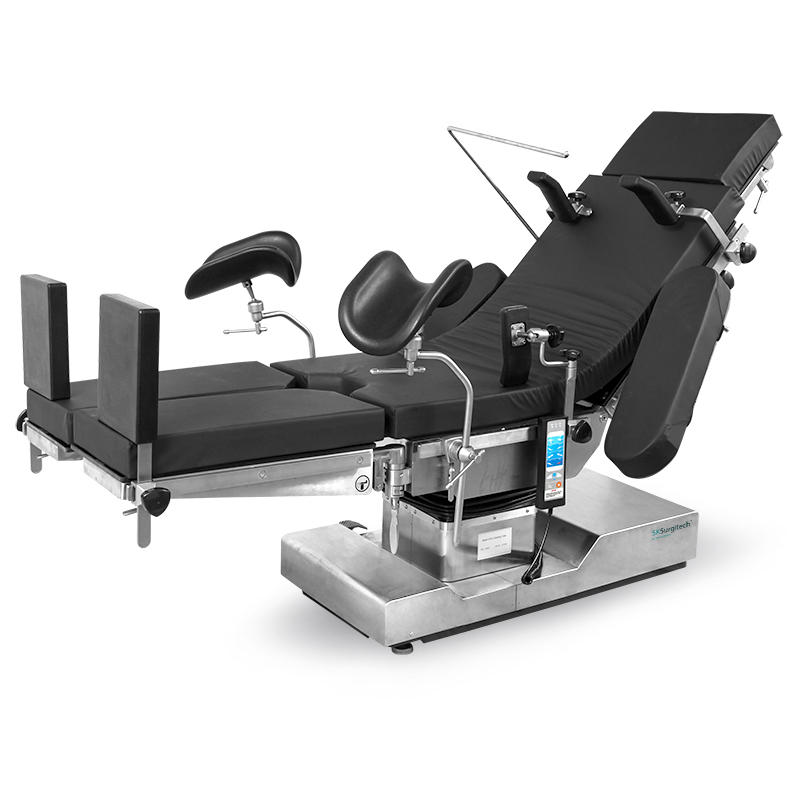

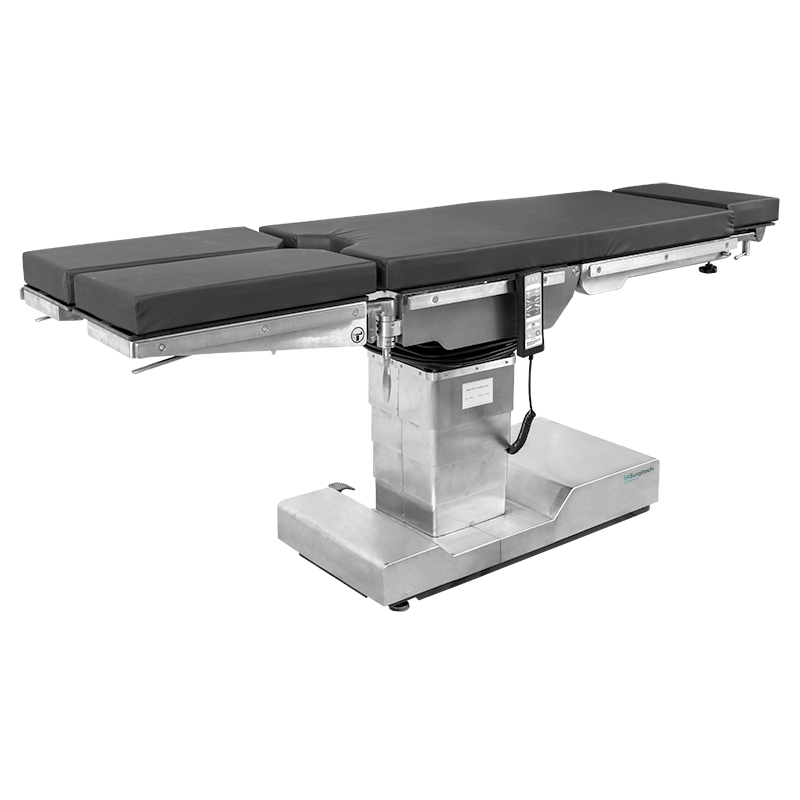

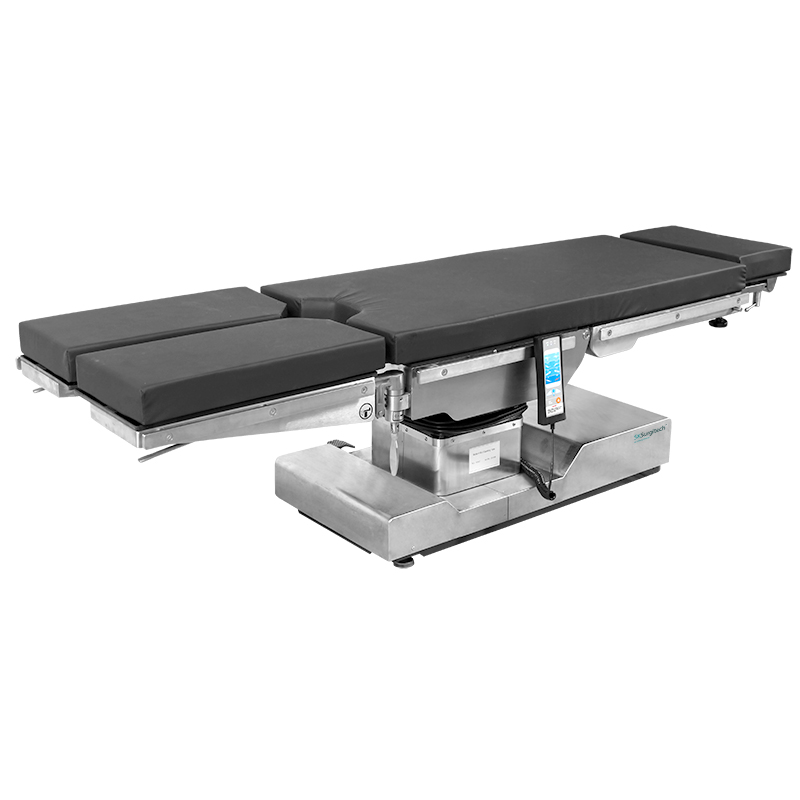

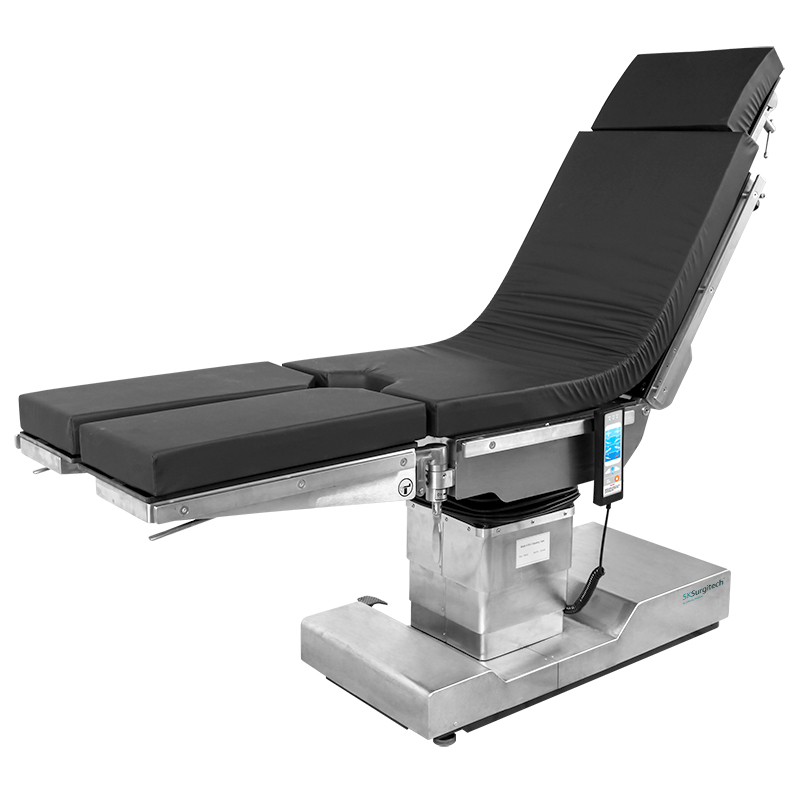

A106-2 Electric-Hydraulic Operating Table
Introduction:
Electro-hydraulic operating table is specially made to meet demand of sitting posture operations with a extra low position.It adopts full 304 stainless steel,excellent properties on anti-rust.Tabletop is X-raying available.
Material

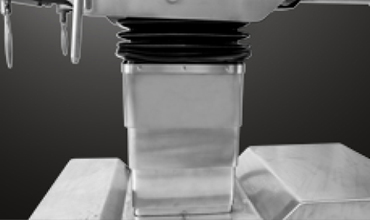

The base， column and side hoder are all made of high quality 304 stainless steel, which is anti-corrosive and can be easily cleaned.

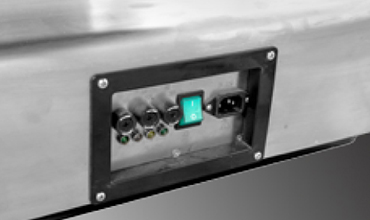

Powder supply
Internal battery maintaining power supply for 50-80 operations and with low battery warning function.

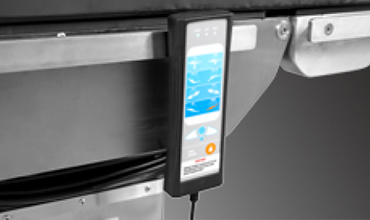

Remote Paner
All function controlled by hand controller in the column,and can be locked.
Hydraulic System
Brand hydraulic system (German Hoerbiger) make table with low noise, high safety and reliability.
Control System

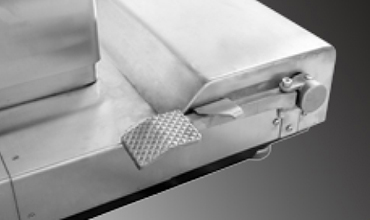

Foot treadle brake device which is easily for moving operating table.

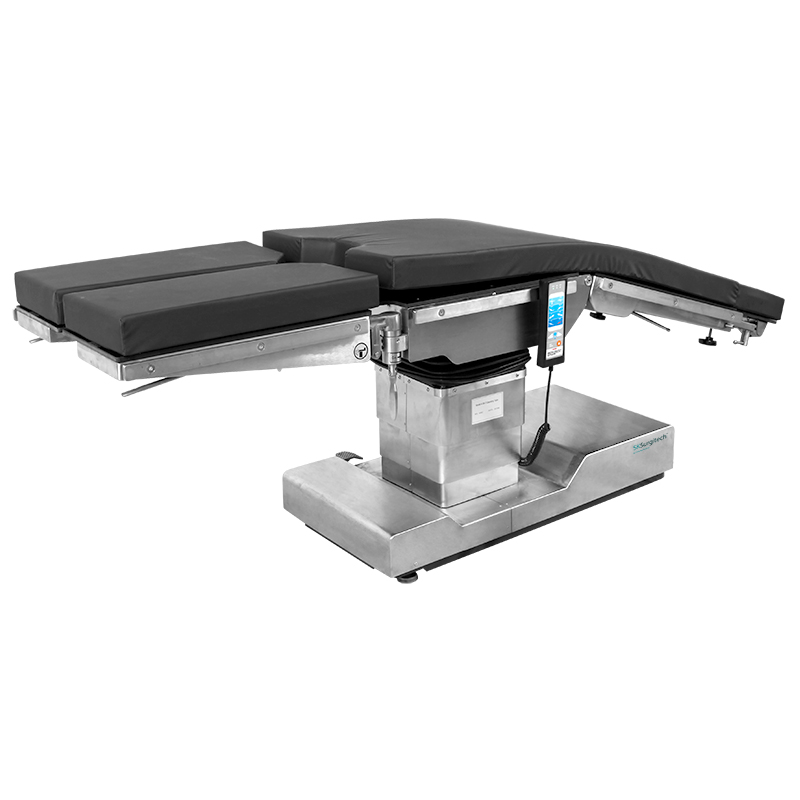

Super Low Position
Super low position（500mm）, suitable for operation on head.

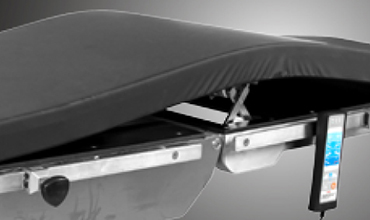

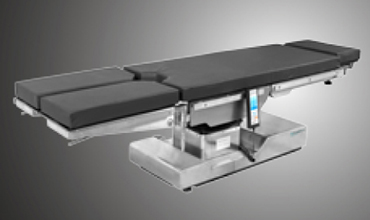

Kidney Bridge
Built-In Kidney Bridge, More Convenient And Nice Appearance.

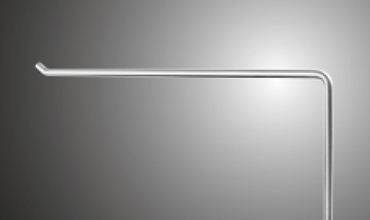

Screen

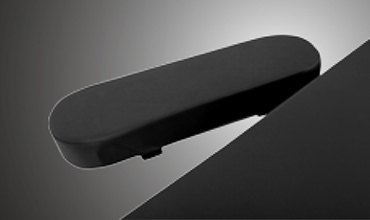

Armrest

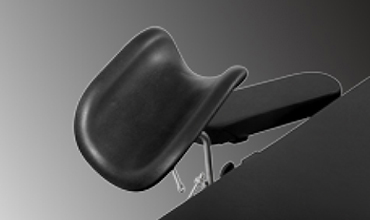

Knee Curtch

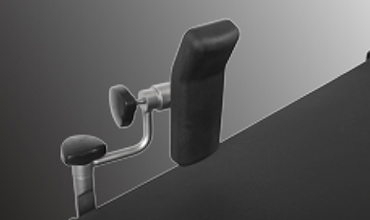

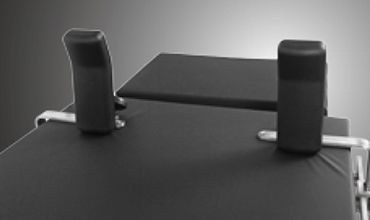

Shoulder Support
Body Support
Technical parameters
| External Length | 2080mm |
| External Width | 550mm |
| Table Height Min. | 500mm |
| Table Height Max. | 800mm |

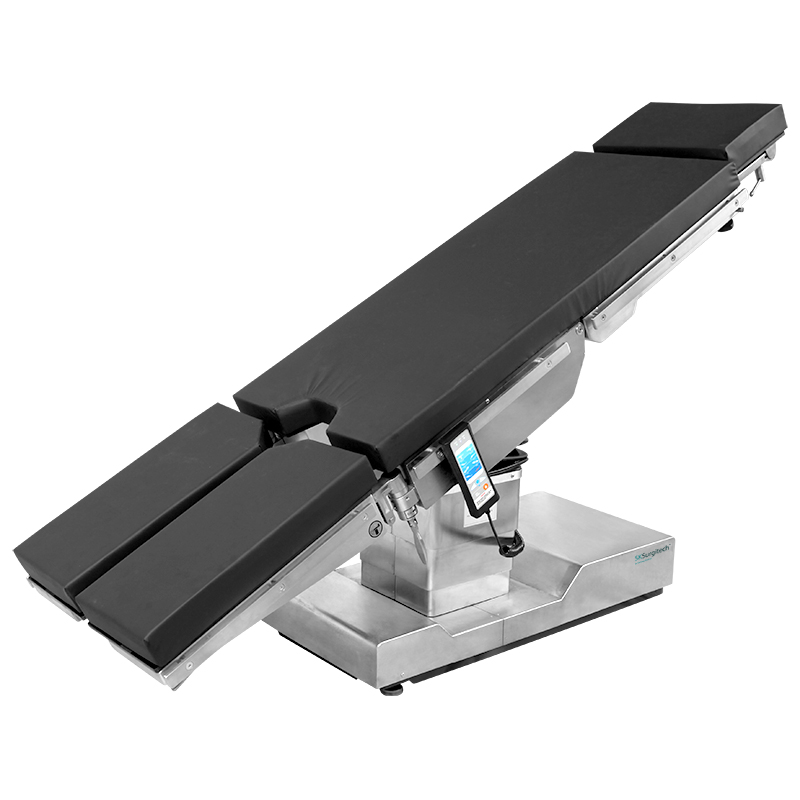

| Reverse Trendelenburg | 0°-25° |
| Trendelenburg | 0°-25° |
| Lateral Tilt Left/Right | 0°-20°/0°-20° |
| Head Plate Up/Down | 0°-45°/0°-90° |
| Back Plate Up/Down | 0°-80°/0°-20° |
| Foot Plate Up/Down | 0°-15°/0°-90° |
| Foot Plate Horizontal Positioning | 0°-90° |
| Patient Weight Capacity | 250kg |
| X-rays translucent | YES |
| C-arm compatible | NO |
Technical configuration
| Anaesthesia Screen | 1pc |
| Hand Remote | 1pc |
| Kidney Bridge Handle | 1pc |
| Arm Support | 1pc |
| Foot Support | 1pc |
| Mattress | 1set |
| Shoulder Support | 1pair |
| Long Fixing Clamp | 1pair |
| Fixing Clamp | 7pcs |
| Power Line | 1pc |
We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate 126 registered technological patents and fulfill more than 20 quality certifications (ISO-9001/13485/14001/18001, European CE, FDA of the USA, Russian Federal Register, ANVISA of Brazil, etc.), in addition to the 93/42/EEC and IEC60601 safety standards. In all of this our R&D department is key, in which we invest 10% of our profits annually.
WARRANTY
* We provide a standard 1 year warranty, optional to be increased. 1% free parts of the total quantity will be provided together with goods.
* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.
* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
FAQ
What quality requirements does your company meet?
* We have over 20 certifications, as ISO-9001/13485/14001/18001, European CE, North American FDA, Russian Federal Registration and Brazilian Health Regulatory Agency.
* We also meet the 93/42/EEC and IEC60601 safety standards.
* In addition to having 126 patents registered, we are constantly developing and implementing new standards for product quality and service efficiency.
What warranty do your products have?
* We provide a standard 1 year warranty, optional to be increased.
* 1% free parts of the total quantity will be provided together with goods.
* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.
* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
What is your delivery time?
* Our standard delivery time is 28 days.
What payment options do you offer?
* We are flexible in terms of payment. We can do LC, TT, DP, even credit, after auditing the customer.
Do you offer OEM service?
* Yes, we have a qualified R&D team to carry out customized projects. You just need to provide us with your own specifications.
Do you have different motor options?
* Yes, we have different brands of motors, as Linak, Timotion, Dewert or Jiechang.
Is the color on headboard/footboard and ABS side rail optional?
* Yes, we can provide the color according to customers’ requirements, based on wholesale purchases.
Can I see your products personally?
* You are welcome to our 2,000 m2 of showrooms in our factory in China (150 km from Shanghai).
* In addition, we annually attend numerous international exhibitions where we present our products, such as Arab Health (United Arab Emirates), North Africa Health (Egypt), CMEF (Shanghai), German Medica (Germany), Medic West Africa (Nigeria), Medic East Africa (Kenya), Pharmedi (Vietnam), Hospitalar (Brazil), Medical Expo (Morocco), etc.
