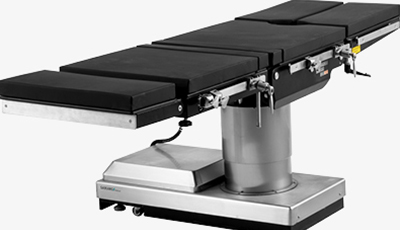

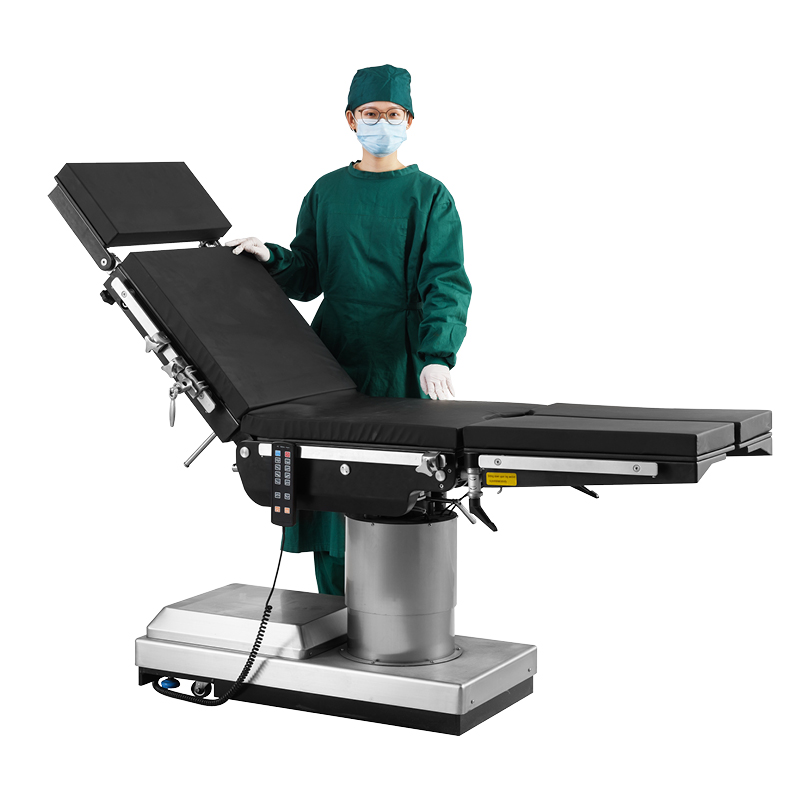

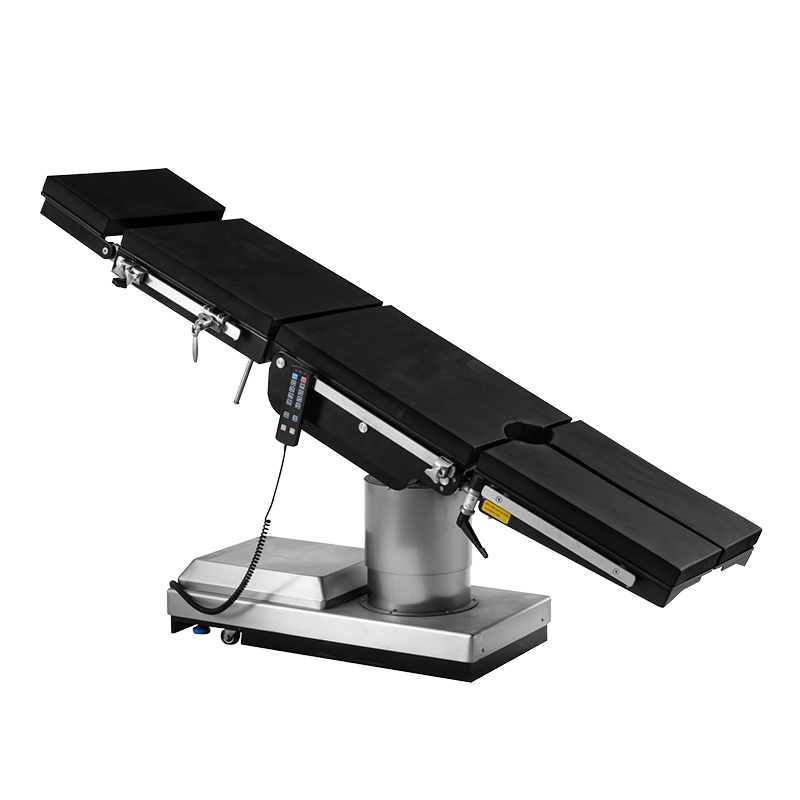

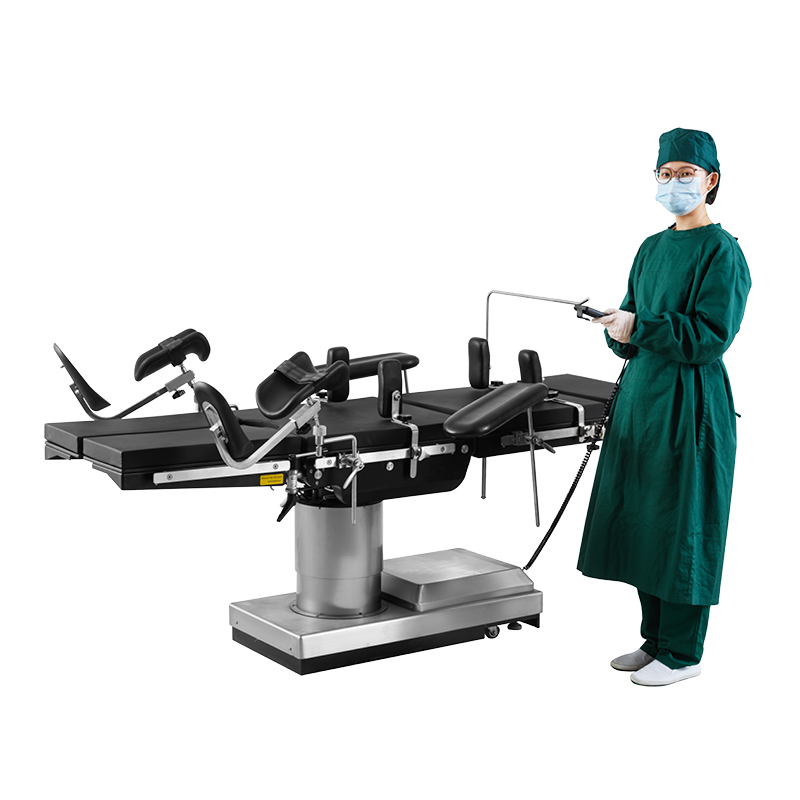

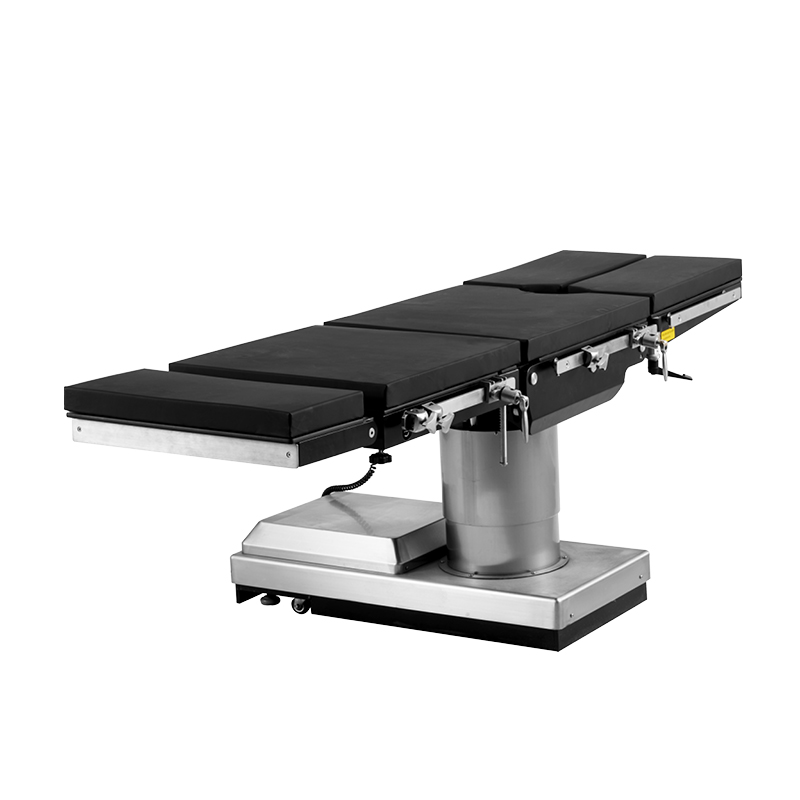

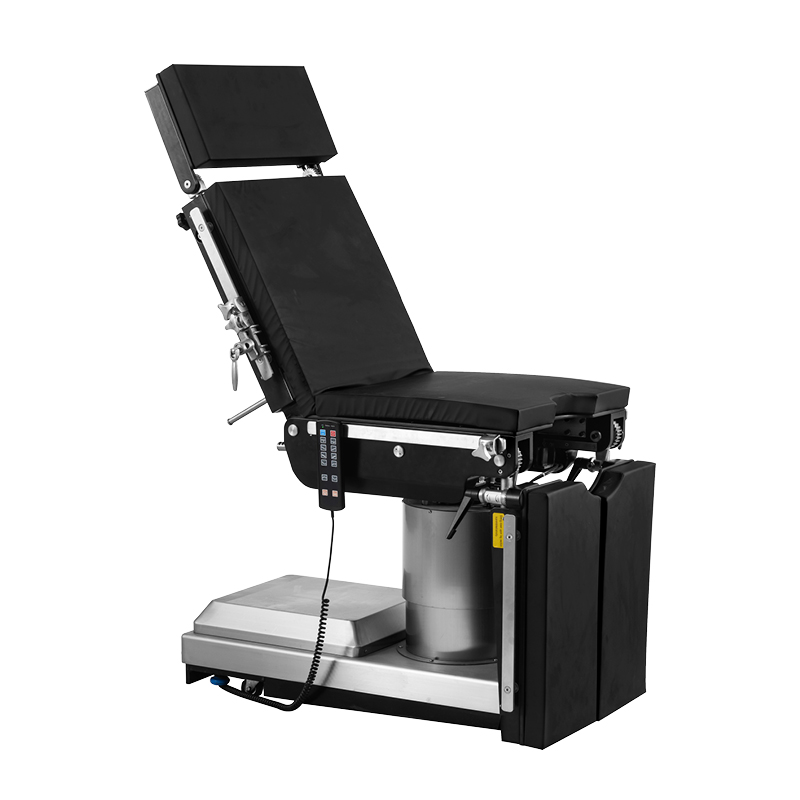

A501 Electric Hydraulic Operating Table
Introduction:
Material

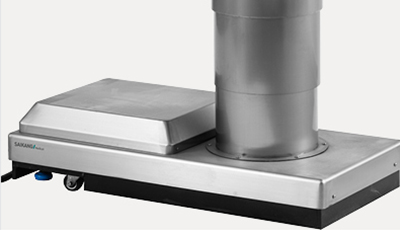

The base column and side hoder are all made of high quality 304 stainless steel, which is anticorrosive and can be easily cleaned.
Material
The base column and side hoder are all made of high quality 304 stainless steel, which is anti-corrosive and can be easily cleaned.

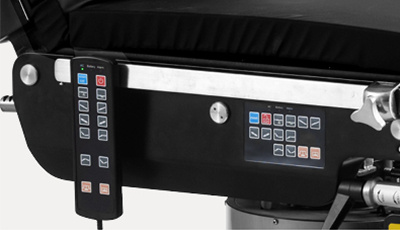

Dual control system

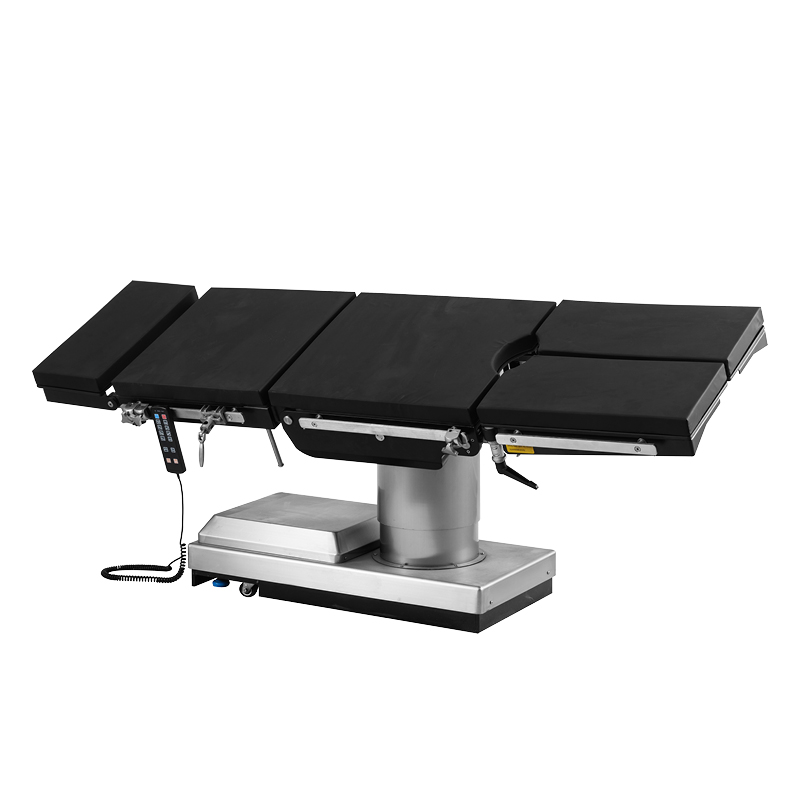

All functions controlled by both hand controller or control panel on table base column. With action LCD display on hand controller, easy to operate. With control panel on table base column, in case of emergency hand controller failure.

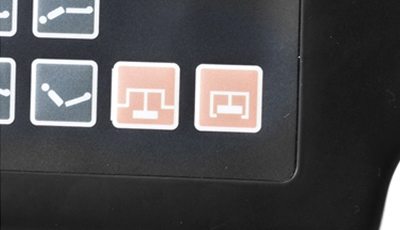

Special functions
With table top 180°rotation function.

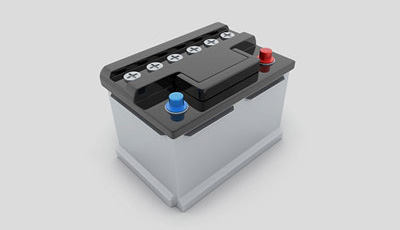

Battery back-up
Equipped with a built-in emergency power supply, the emergency power supply can be automatically charged, and the emergency power supply can automatically jump to the working state when the network power supply is cut off.
Brake
Electric Control system for the brake, it is easily for moving operating table.

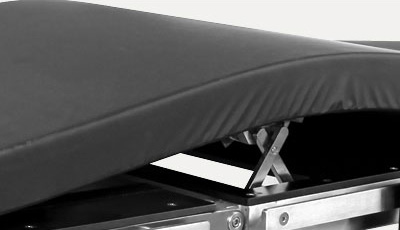

Kidney bridge
Built-In Kidney Bridge, More Convenient And Nice Appearance.

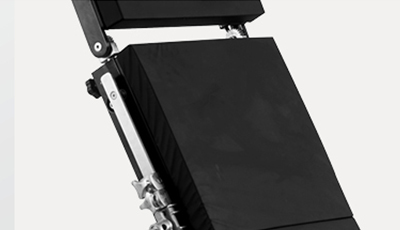

Mattress
PU cover，memory mattress, easy cleaning，thickness of mattress: 5cm.
Anesthesia screen frame

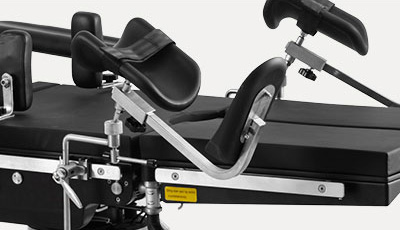

Leg support with cushion
Foot support with cushion

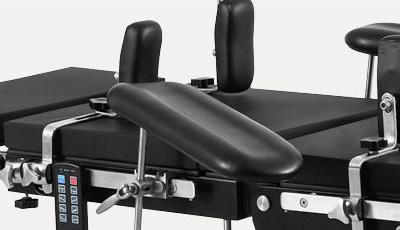

Arm holder with cushion

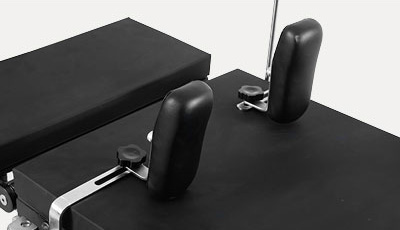

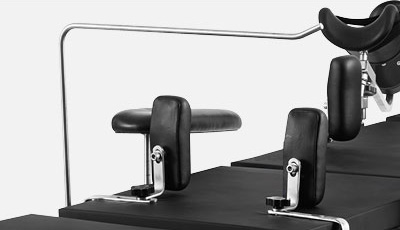

Shoulder holder with cushion

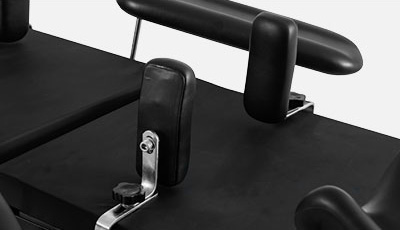

Body holder with cushion
Technical parameters
| External size (LxWxH) | 2125x550x(600-950)mm |
| Reverse trendelenburg | 0-20° |
| Trendelenburg | 0-15° |
| Lateral tilt left/right | 0-15° |
| Head plate up/down | 55°/90° |
| Back plate up/down | 89°/35° |
| Leg plate down | 15°/90° |
| Leg plate outwards | 90° |
| Kidney bridge elevation | 0-120mm |
| Horizontal sliding | 0-320mm |
| Horizontal rotation | 180° |
Technical configuration
| Bed frame | 1pc |
| Mattress | 1set |
| Anesthesia screen frame | 1pc |
| Shoulder holder with cushion | 2pcs |
| Arm holder with cushion | 2pcs |
| eg support with cushion | 2pcs |
| Foot support with cushion | 2pcs |
| Hand controller | 1pc |
| Kidney bridge handle | 1pc |
| Battery back-up | 1pc |
We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate 126 registered technological patents and fulfill more than 20 quality certifications (ISO-9001/13485/14001/18001, European CE, FDA of the USA, Russian Federal Register, ANVISA of Brazil, etc.), in addition to the 93/42/EEC and IEC60601 safety standards. In all of this our R&D department is key, in which we invest 10% of our profits annually.
WARRANTY
* We provide a standard 1 year warranty, optional to be increased. 1% free parts of the total quantity will be provided together with goods.
* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.
* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
FAQ
What quality requirements does your company meet?
* We have over 20 certifications, as ISO-9001/13485/14001/18001, European CE, North American FDA, Russian Federal Registration and Brazilian Health Regulatory Agency.
* We also meet the 93/42/EEC and IEC60601 safety standards.
* In addition to having 126 patents registered, we are constantly developing and implementing new standards for product quality and service efficiency.
What warranty do your products have?
* We provide a standard 1 year warranty, optional to be increased.
* 1% free parts of the total quantity will be provided together with goods.
* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.
* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
What is your delivery time?
* Our standard delivery time is 28 days.
What payment options do you offer?
* We are flexible in terms of payment. We can do LC, TT, DP, even credit, after auditing the customer.
Do you offer OEM service?
* Yes, we have a qualified R&D team to carry out customized projects. You just need to provide us with your own specifications.
Do you have different motor options?
* Yes, we have different brands of motors, as Linak, Timotion, Dewert or Jiechang.
Is the color on headboard/footboard and ABS side rail optional?
* Yes, we can provide the color according to customers’ requirements, based on wholesale purchases.
Can I see your products personally?
* You are welcome to our 2,000 m2 of showrooms in our factory in China (150 km from Shanghai).
* In addition, we annually attend numerous international exhibitions where we present our products, such as Arab Health (United Arab Emirates), North Africa Health (Egypt), CMEF (Shanghai), German Medica (Germany), Medic West Africa (Nigeria), Medic East Africa (Kenya), Pharmedi (Vietnam), Hospitalar (Brazil), Medical Expo (Morocco), etc.
