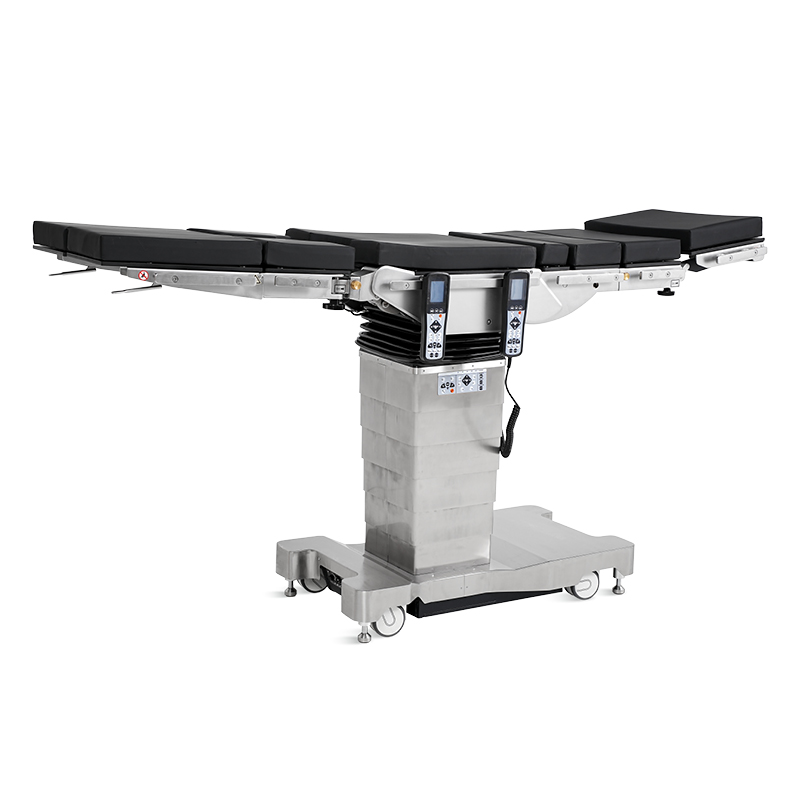

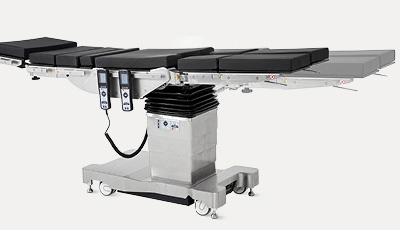

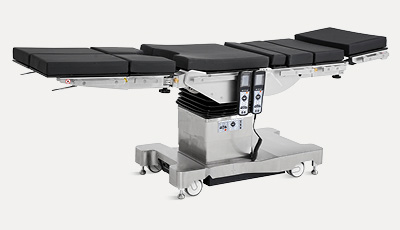

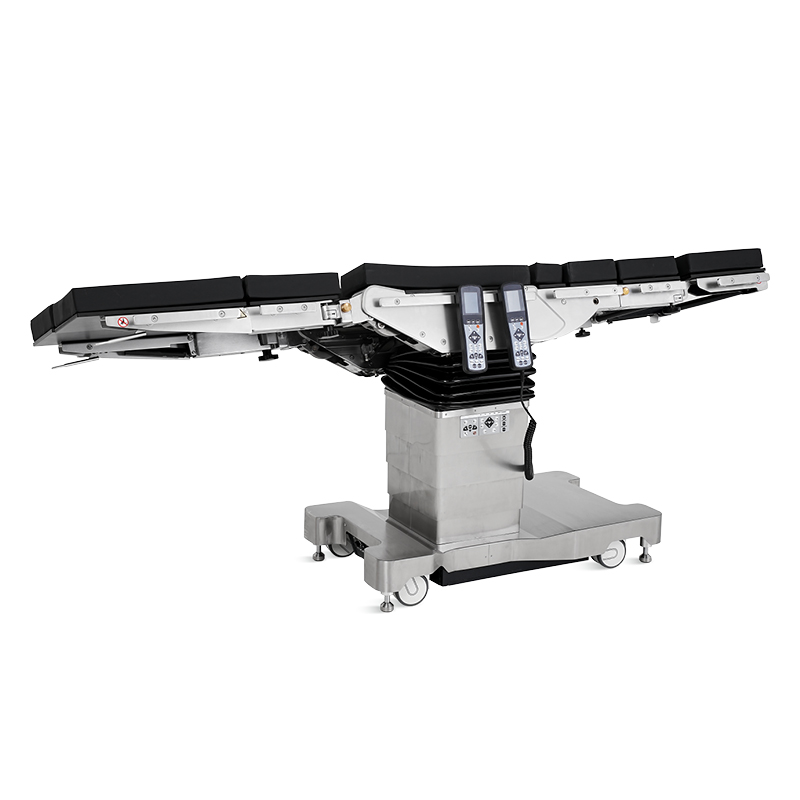

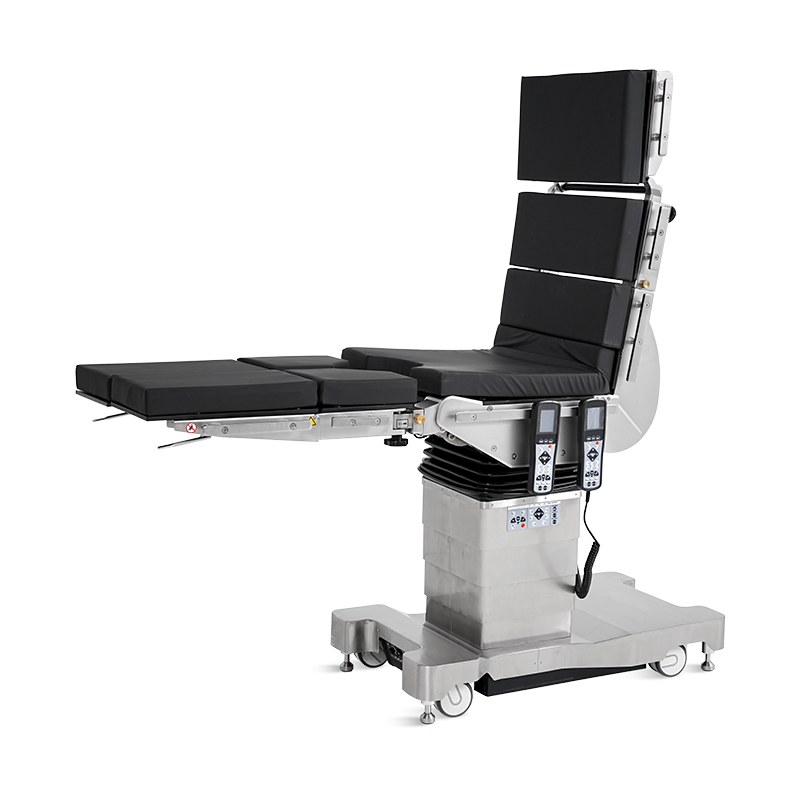

A100-4B Electric Hydraulic Operating Table
Introduction:
Material
The base column and side hoder are all made of high quality 304 stainless steel, which is anticorrosive and can be easily cleaned.
Material
The operating table surface frame, columns, and base cover are made of high-quality stainless steel, providing resistance to impact, corrosion resistance, disinfectant resistance, rust resistance, and durability. It has a strong loadbearing capacity, with a maximum load of 540kg.
Welding｜Craftsmanship
Utilizing robotic welding for overall assembly, the product features a smooth and sleek appearance, ensuring stability and reliability.

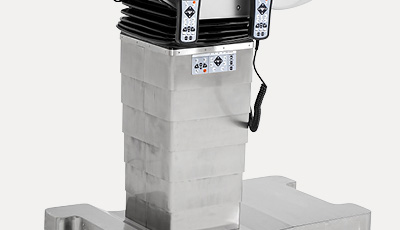

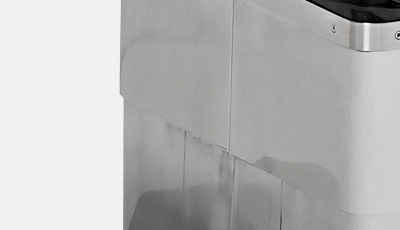

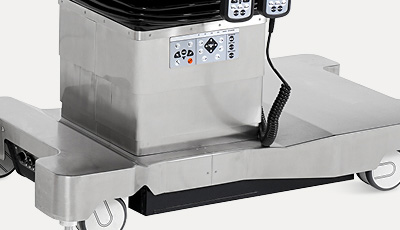

Base
Base: Q235 sheet, 304 stainless
steel outer casing. Corrosionresistant and easy to clean.

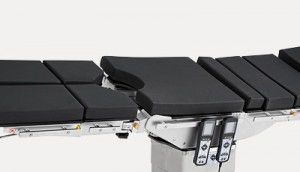

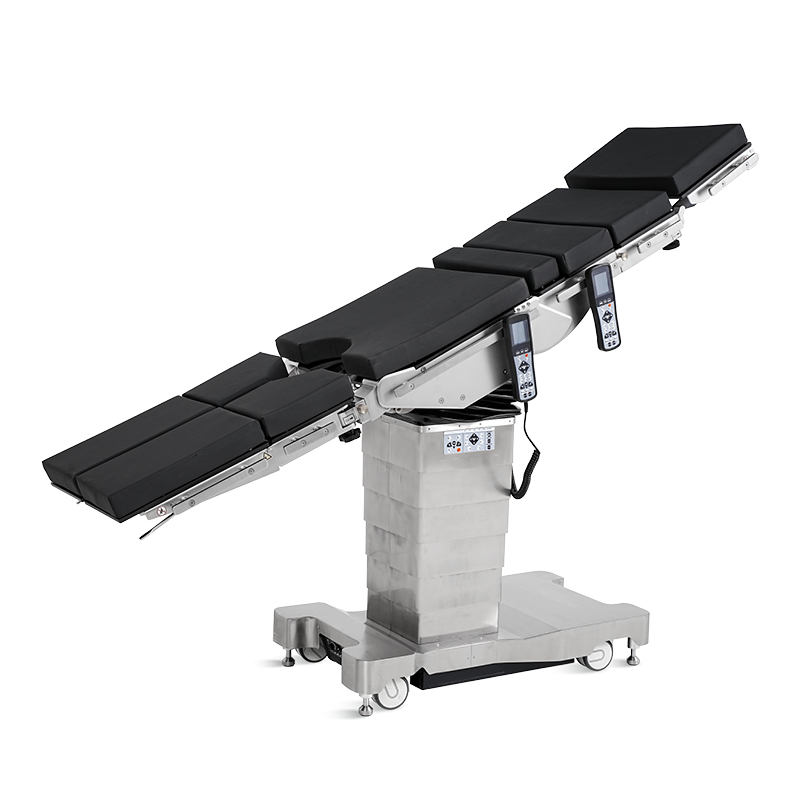

Surface

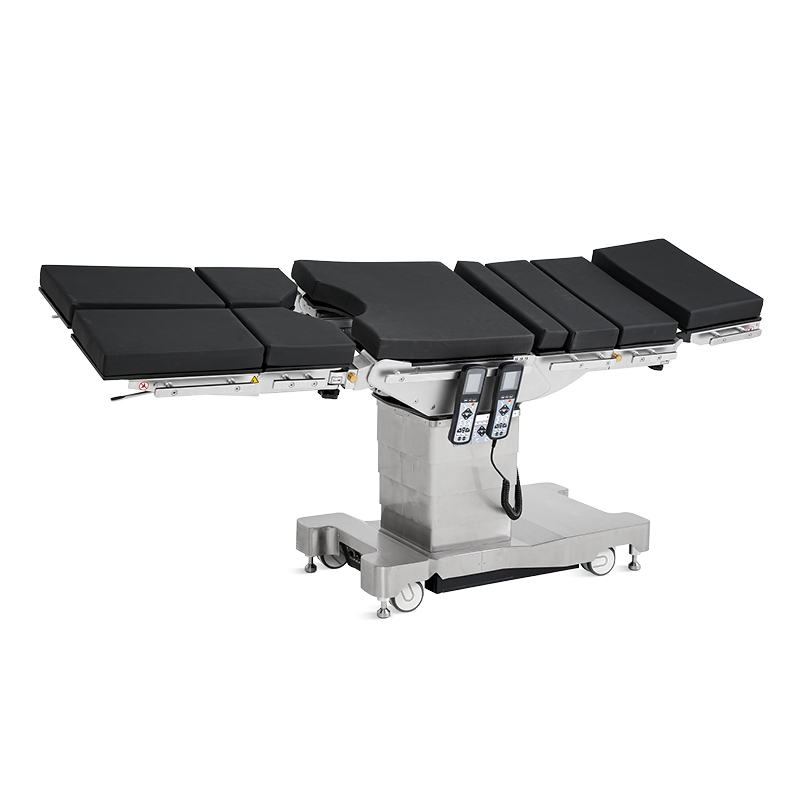

The five-stage modular tabletop design allows for manual disassembly of the headboard, upper backboard, and leg board. It provides flexibility to meet various surgical needs by adding or removing tabletop modules. Equipped with a module interface foolproof system, it prevents the risk of module misuse.
Mattress
Utilizing memory foam mattress (polyurethane memory foam) with a thickness of 75mm, the mattress has a seamless surface, is waterproof, breathable, easy to clean, anti-static, and transparent to X-rays.

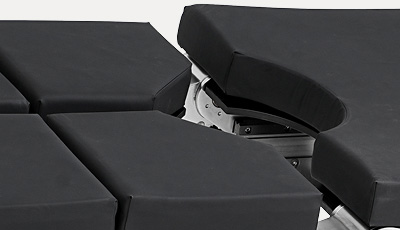

Head plate
The head plate is a double-joint headboard, providing the patient with a comfortable head position during surgery

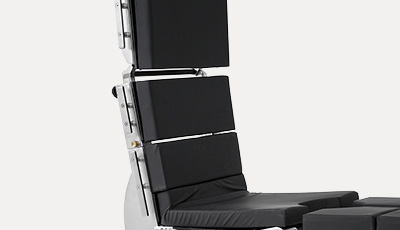

Back plate
Divided into upper back plate and lower back plate, can be disassembled manually, making it easy to install.

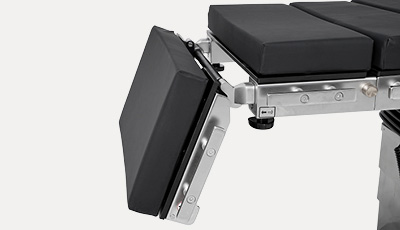

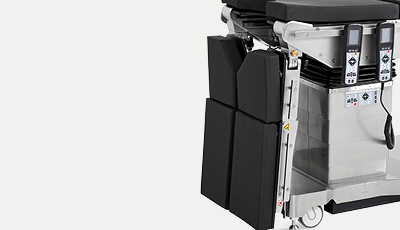

Leg plate
The leg plate is a double-joint horizontally extending leg board, providing the surgeon with better operating space.
Hydraulic control system
Utilizing the advanced hydraulic control system from Germany's Hawe, including hydraulic pump, solenoid valve, and hydraulic cylinder, the system is highly reliable, ensuring excellent stability, smooth operation without jerks, and silent performance.

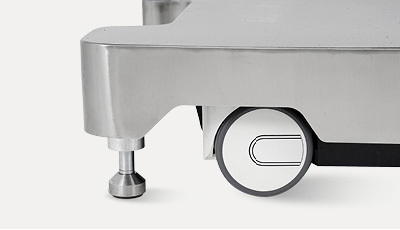

Caster
It employs heavy-duty casters imported from Germany to ensure silent, smooth, and convenient movement. Each large caster has a diameter of 100mm, and all four casters are swivel casters, providing greater mobility.
Horizontal sliding

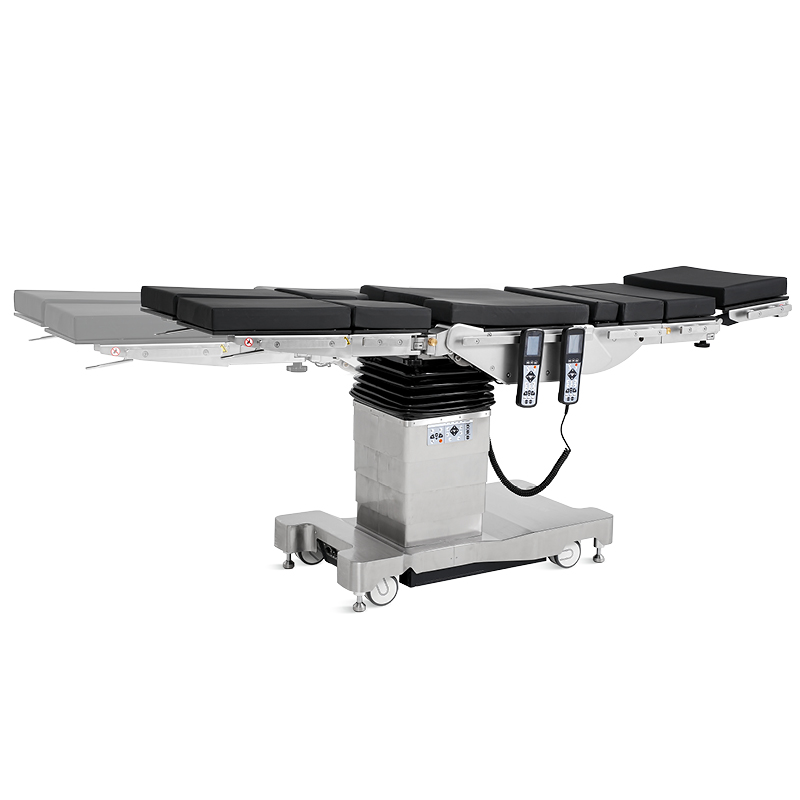

The operating table has a horizontal sliding function, which is driven by an independent motor and has a distance of ≥310mm.

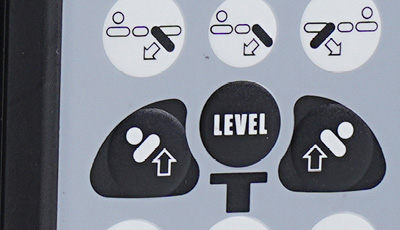

One button reset
The one-key composite position operation button can complete horizontal, flex and reflex functions with one key.

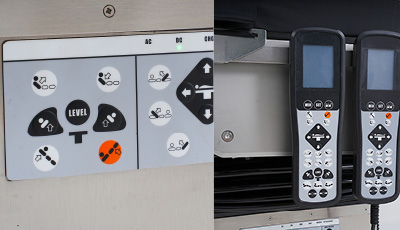

Controller
It can be operated by a pedal foot control, LCD hand controller, wireless hand controller (optional), or a column control panel. The dual-mode operation design provides double protection for surgery.

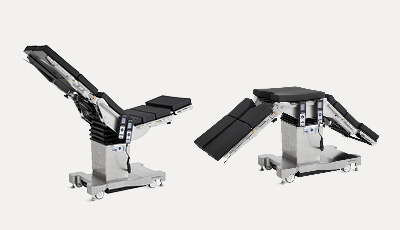

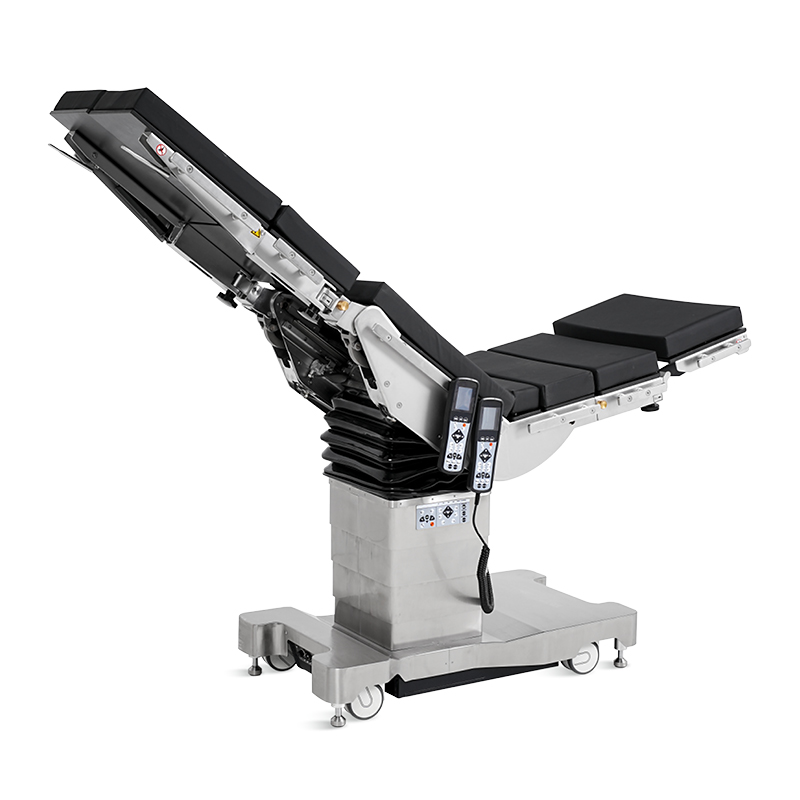

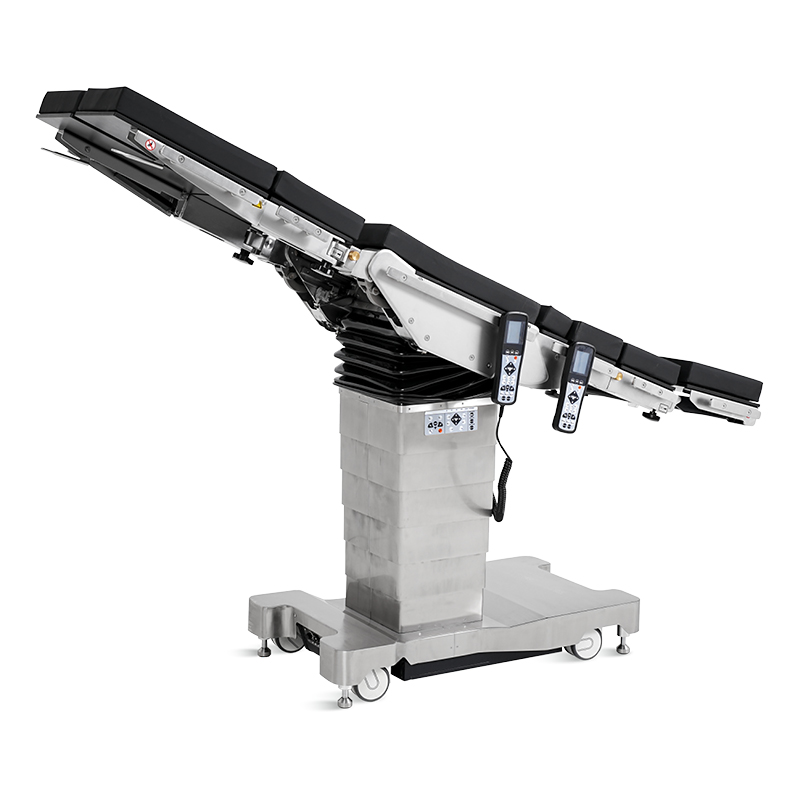

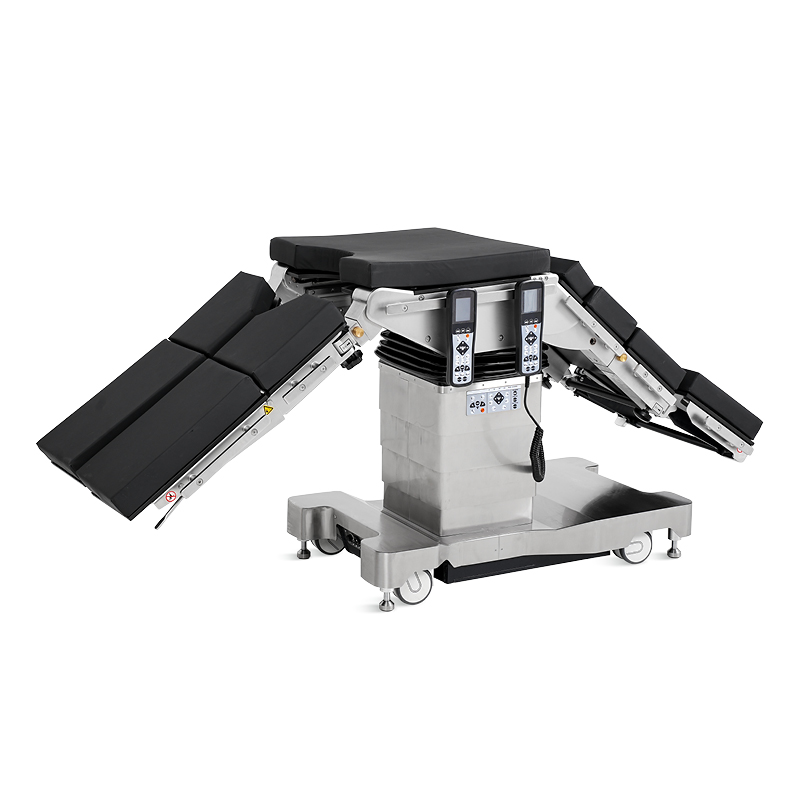

Buckling & reverse buckling
It has the function of one bond buckling ≥220° and reverse buckling ≤100°.

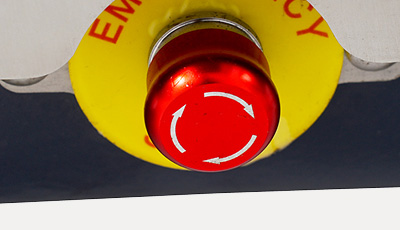

Emergency stop button
An emergency stop button is added to further improve the safety of the surgical bed.

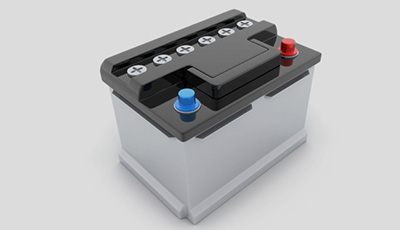

Battery
Equipped with high-performance rechargeable batteries from internationally renowned brands, which can meet the needs of ≥50 surgeries, ensuring that the surgical bed can work without AC power supply and ensuring maximum safety and reliability.

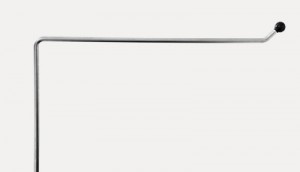

Anesthesia screen frame
Equipped with a stainless steel anesthesia screen frame for hanging anesthesia curtains, used to shield and cover the patient's head during use.

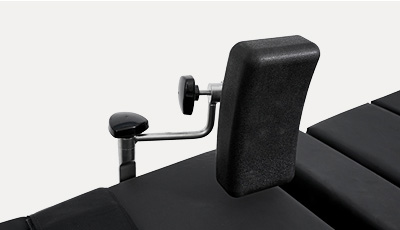

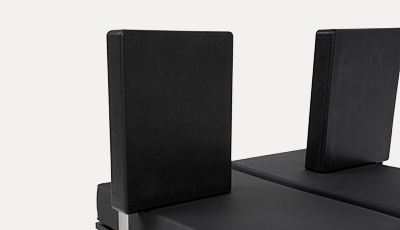

Body support
Polyurethane support frame, adjustable in angle, used to stabilize the patient's body.

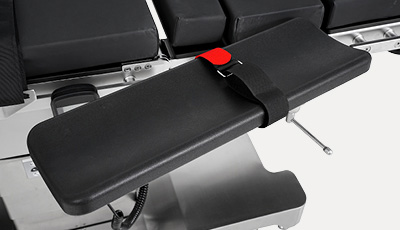

Arm rest
Polyurethane widened armrest board with attached straps, providing stable performance and versatile applications.

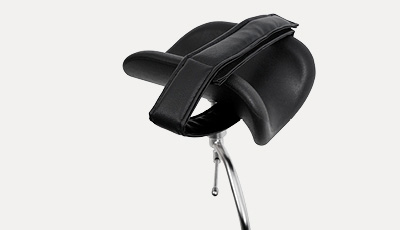

Leg rest
Manual multi-angle adjustment for easy use.
Technical parameters
| External size (LxWxH) | 2125x550x(600-950)mm |
| Reverse trendelenburg | 0°-35° |
| Trendelenburg | 0-35° |
| Lateral tilt left/right | 0°-25°/0°-25° |
| Head plate up/down/folding | 0°-50°/0°-60°/0°-50° |
| Back plate up/down | 0°-80°/0°-40° |
| Leg plate up/down/outwards | 0°-80°/0°-90°/0°-90° |
| Kidney bridge elevation | 120mm |
| Horizontal sliding | 310mm |

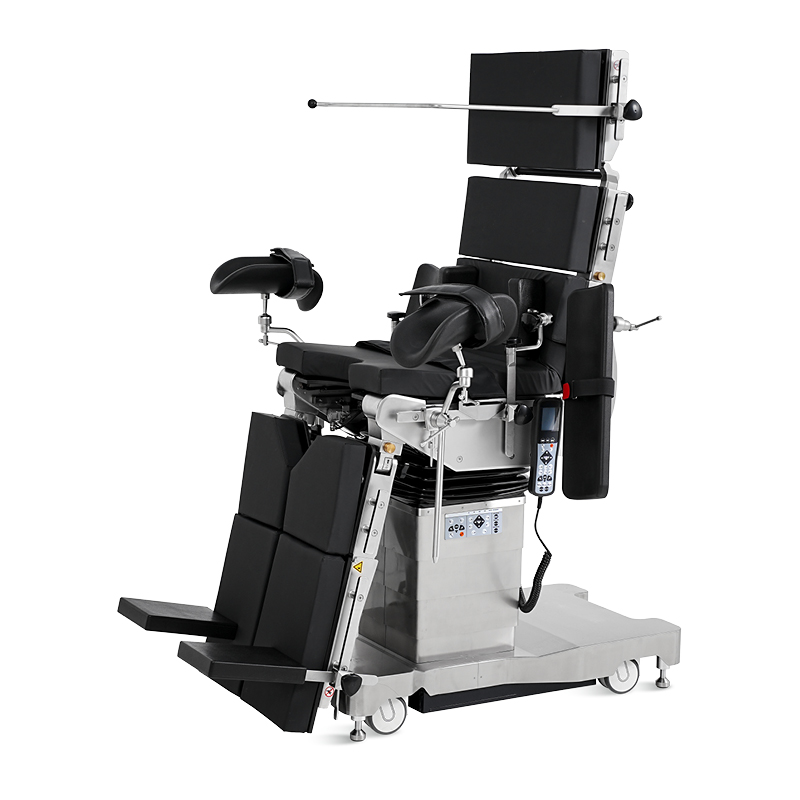

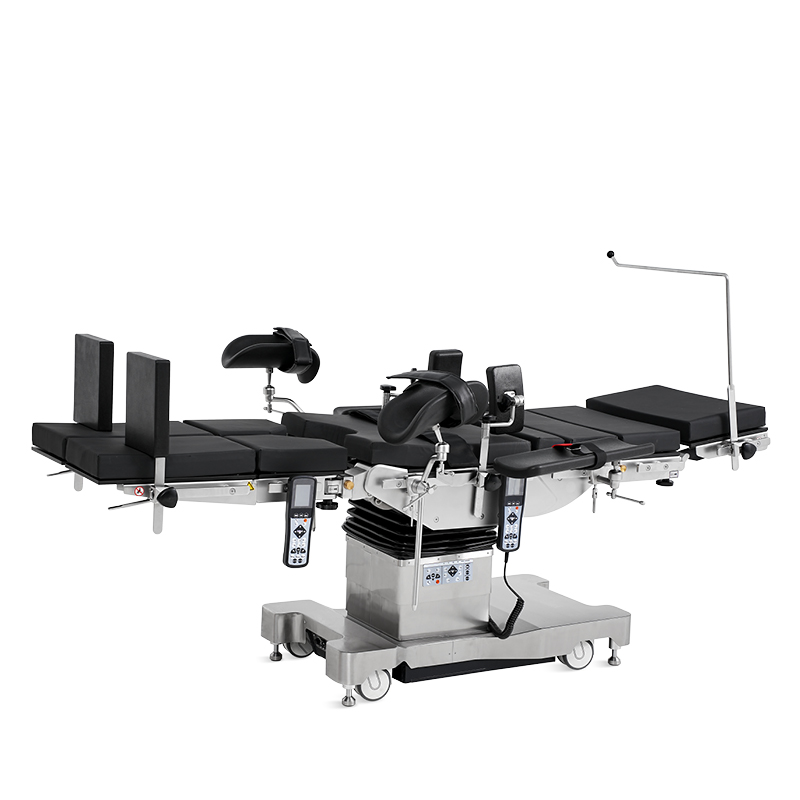

Technical configuration
| Anesthesia screen frame | 1pc |
| Shoulder support | 2pcs |
| Arm rests | 2pcs |
| Body support | 2pcs |
| Leg rests | 2pcs |
| Foot plates | 2pcs |
| Long sliders | 2pcs |
| Slide blocks | 6pcs |
| Screen frame slides | 2pcs |
