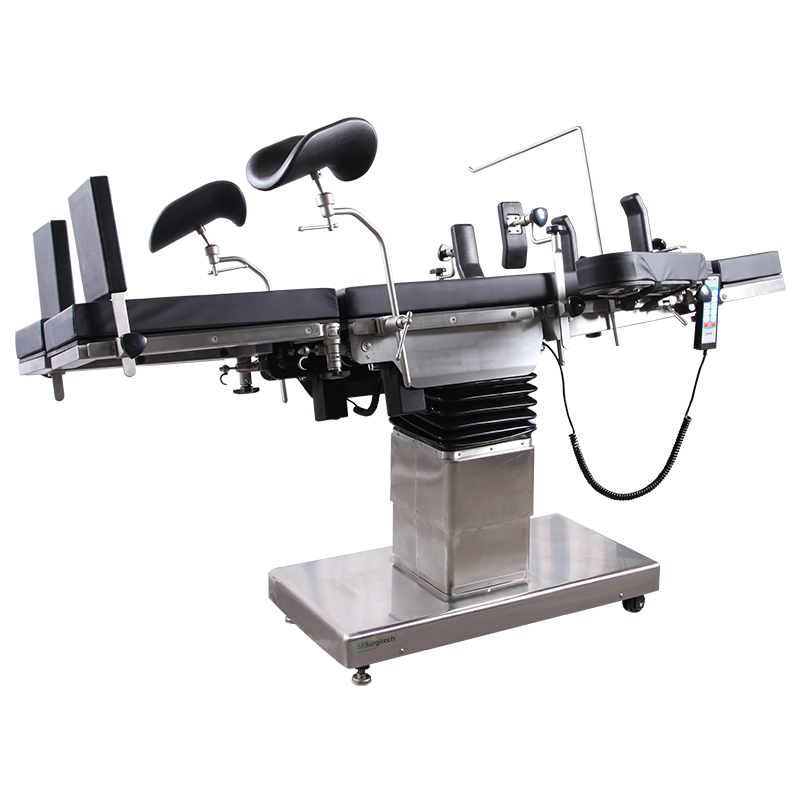

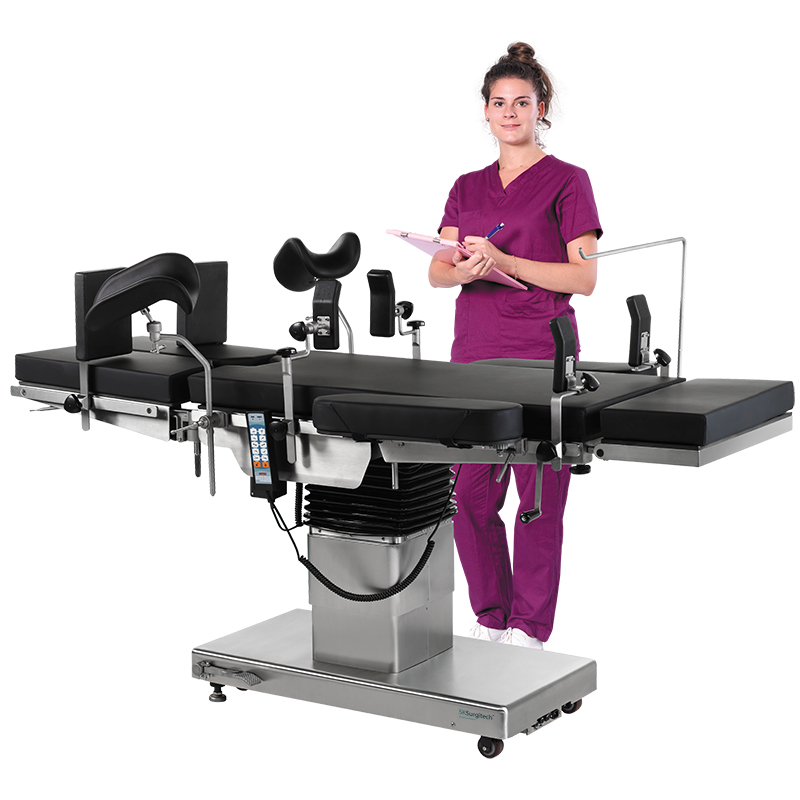

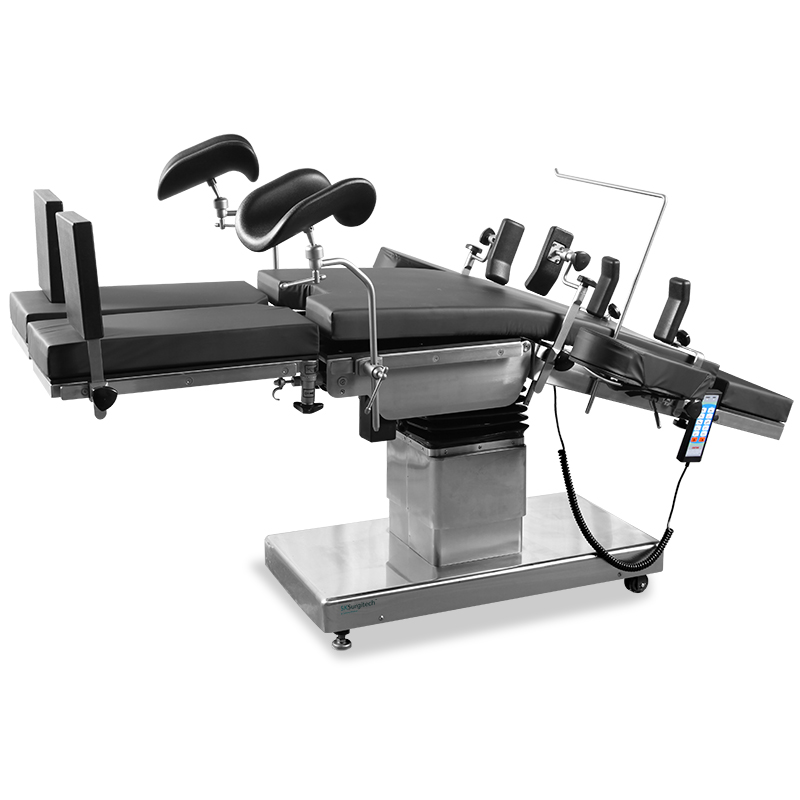

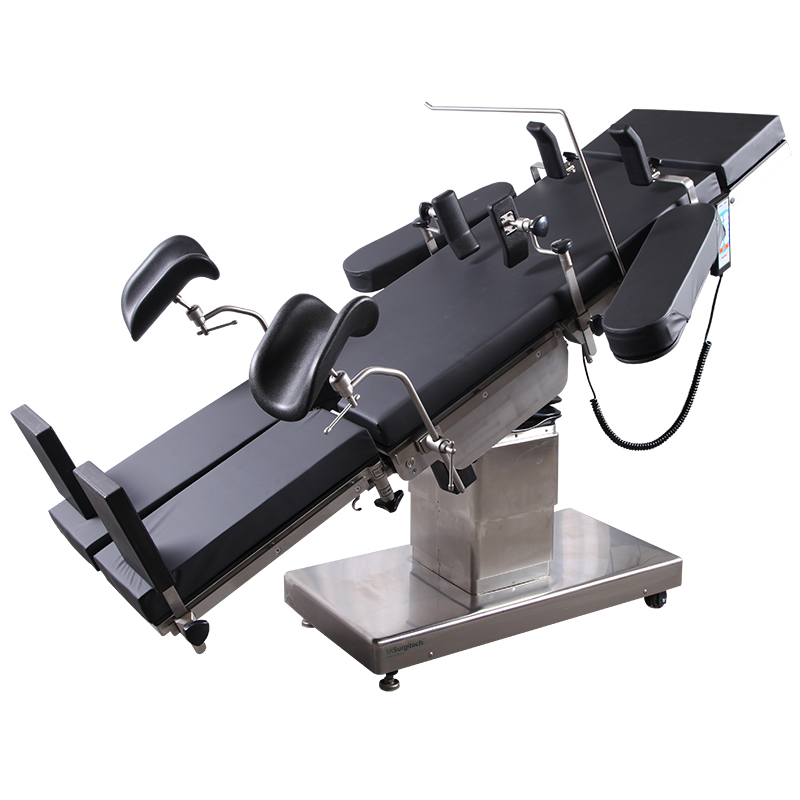

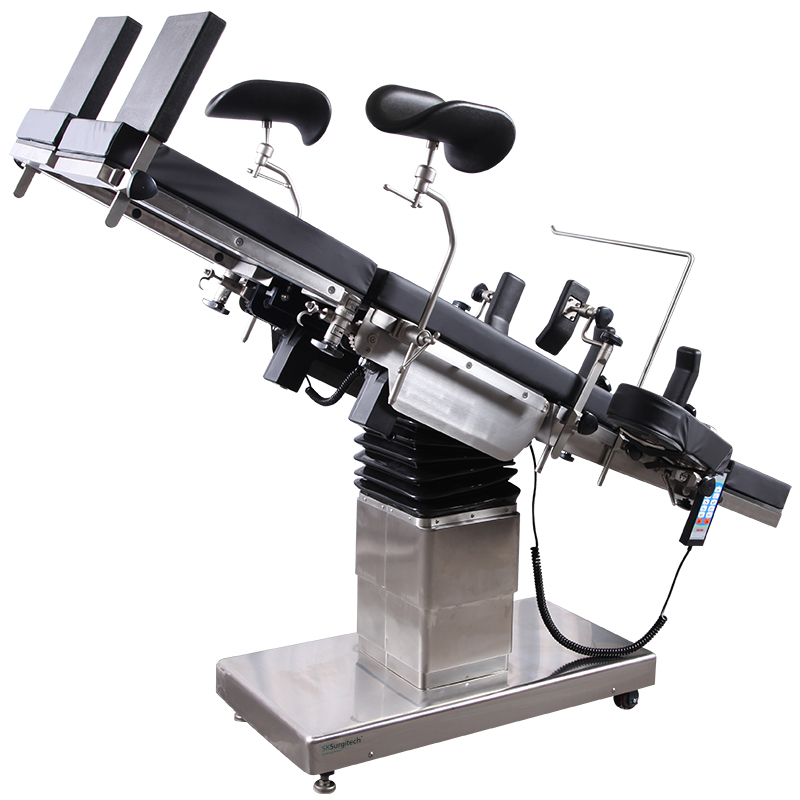

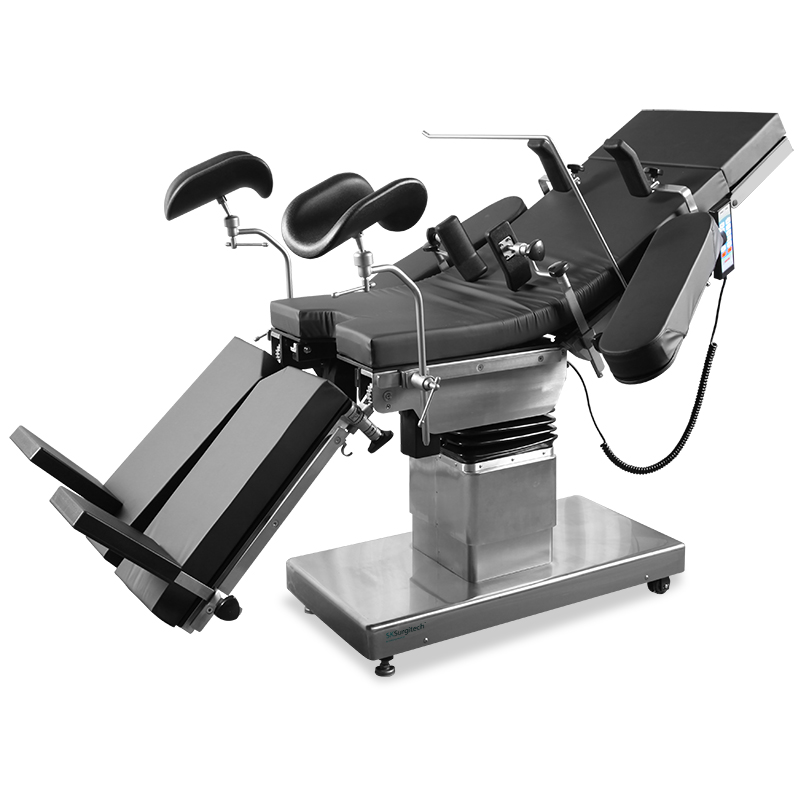

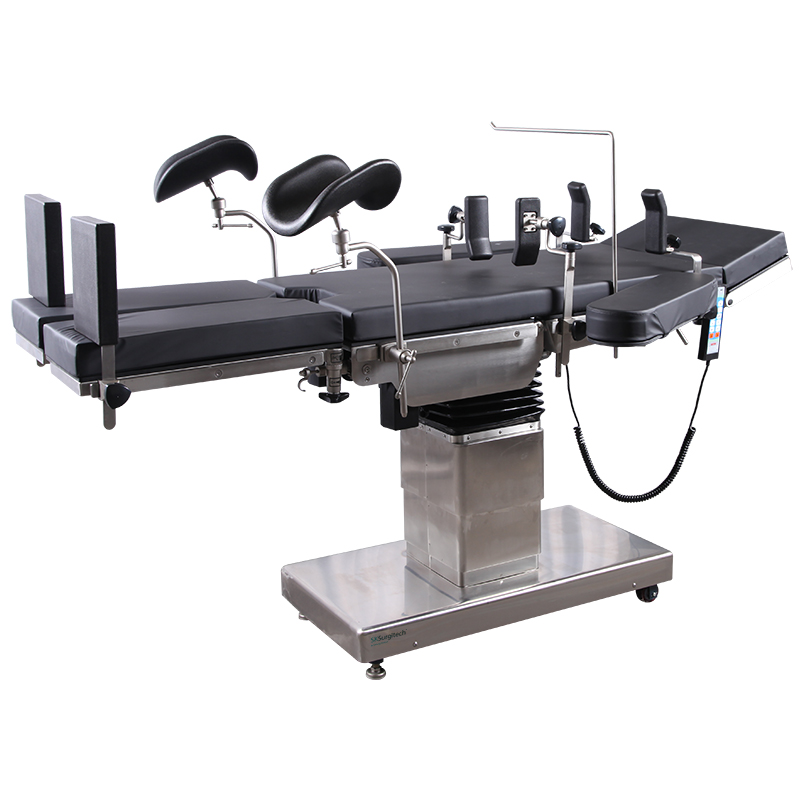

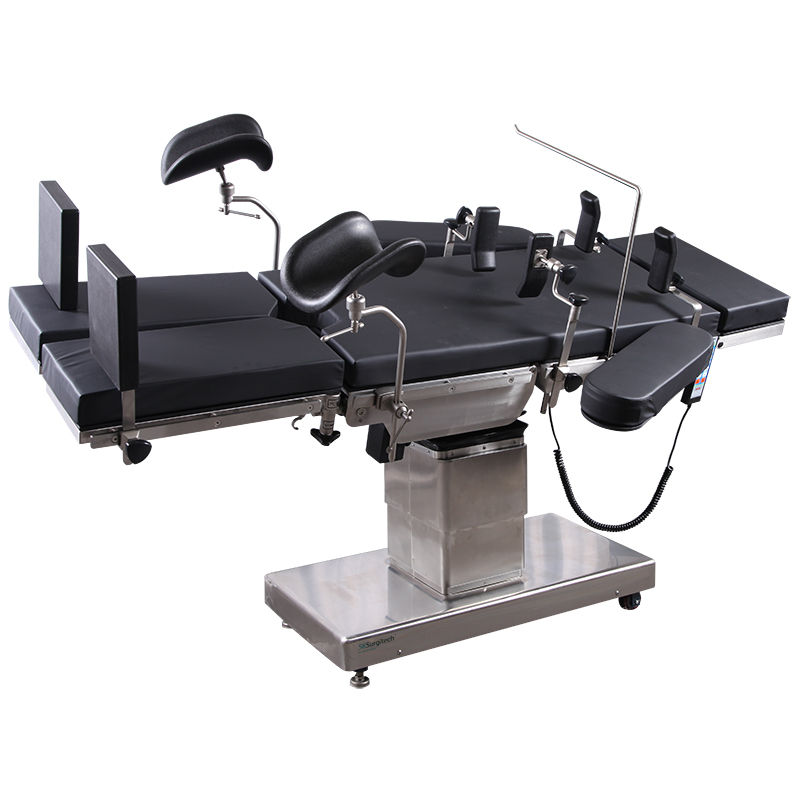

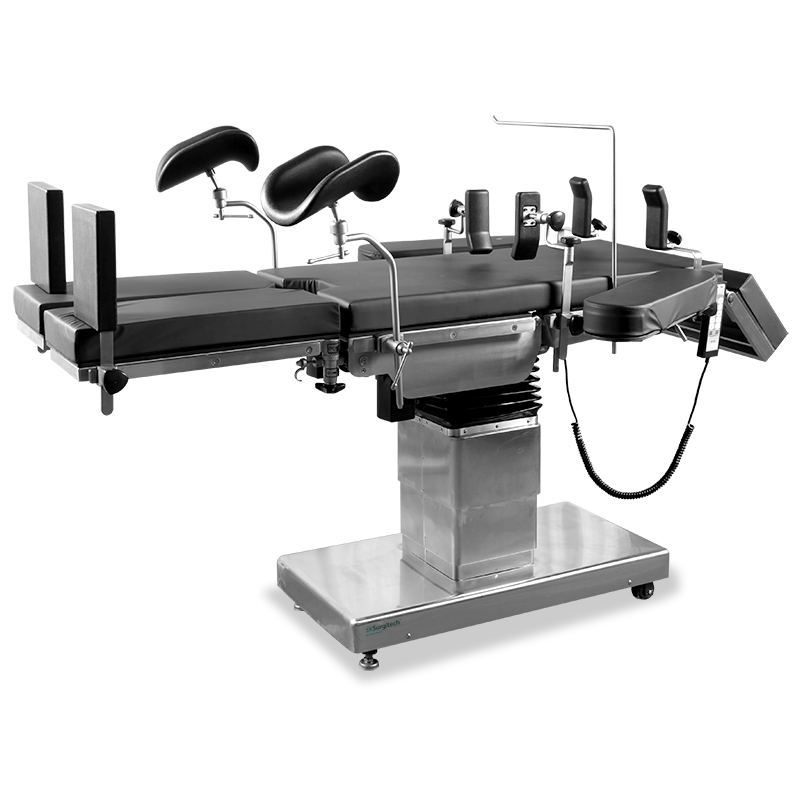

A100-4 Electric Operating Table
Introduction:

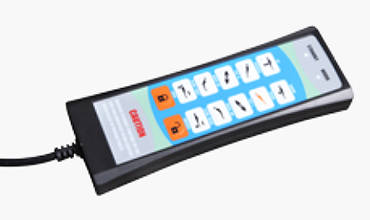

Remote Paner
All function controlled by hand controller in the column,and can be locked.

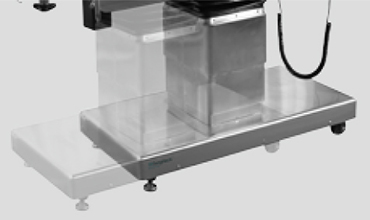

C-arm

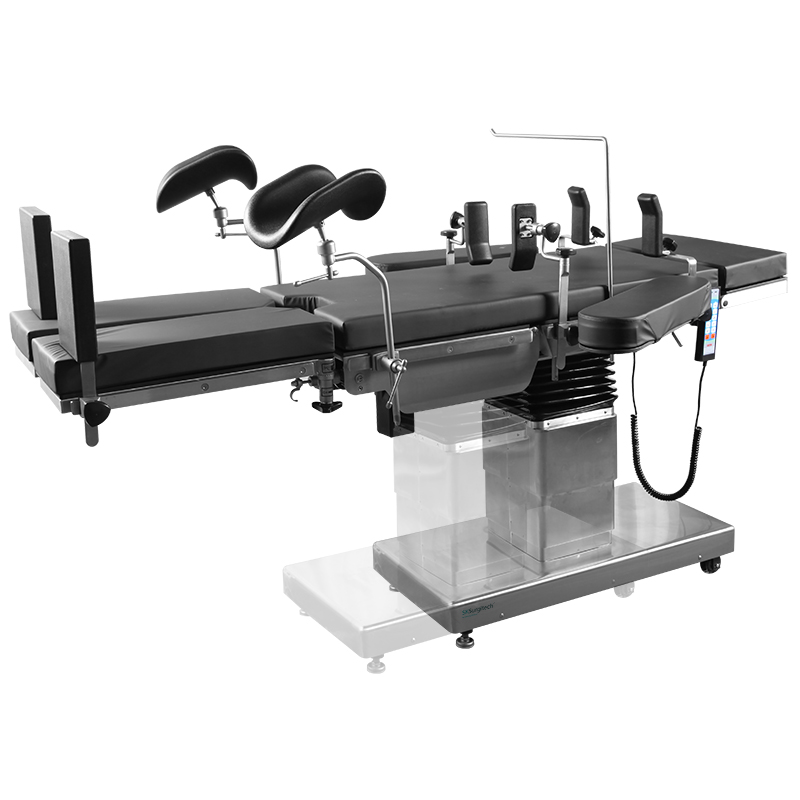

Extra-Long Horizontal Sliding, Available For C-Arm Operation.

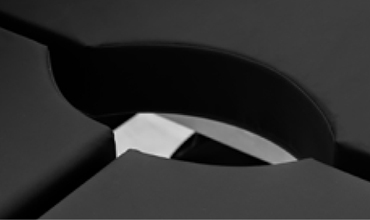

Kidney Bridge
Built-In Kidney Bridge, More Convenient And Nice Appearance.
Wash Basin Hole
Five section table top including Head, Back, Shoulder, Hip and Leg, all section applicable for X ray use and under each section with X ray cassette layer.

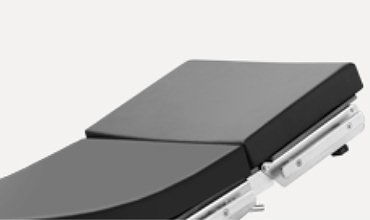

Head Plate
Detachable double head plate and leg plate meet operation position needs and use Germany cylinder assist system.

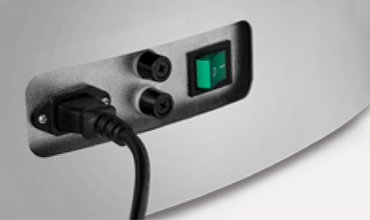

Powder Supply
Internal battery maintaining power supply for 50-80 operations and with low battery warning function.

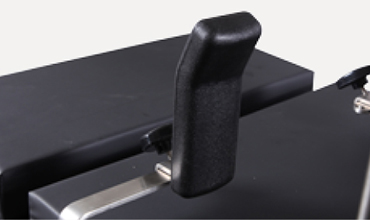

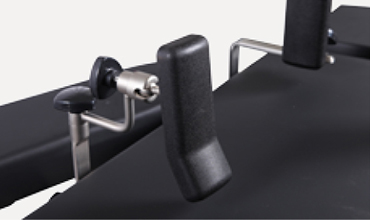

Shoulder Support with Cushion

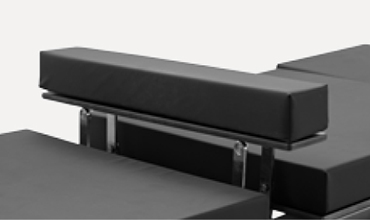

Body Support with Cushion

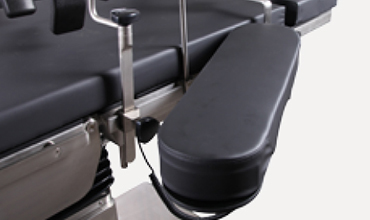

Arm Support with Cushion

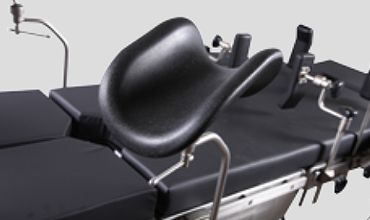

Leg Support with Cushion
Technical parameters
▪ X-rays translucent: YES
▪ C-arm compatible: YES
▪ Multi-functional orthopedic frame: YES
| External Size (LxWxH) | 2070x550x700-1000 mm |
| Built-in Kidney Bridge | 0-120 mm |
| Back Plate Up/Down | 75°/20° |
| Head Plate Up/Down | 45°/90° |
| Leg Plate Up/Down | 15°/90° |
| Trendelenburg/Reverse Trendelenburg | 25°/25° |
| Lateral Tilt Left/Right | 15°/15° |
| Horizontal Sliding | 300 mm |
Technical configuration
| Bed Frame | 1pc |
| Anesthesia Screen Frame | 1pc |
| Mattress | 1set |
| Kidney Bridge Handle | 1pc |
| Arm Support with Cushion | 2pcs |
| Leg Support with Cushion | 2pcs |
| Shoulder Support with Cushion | 2pcs |
| Body Support with Cushion | 2pcs |
| Foot Support with Cushion | 2pcs |
We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate 126 registered technological patents and fulfill more than 20 quality certifications (ISO-9001/13485/14001/18001, European CE, FDA of the USA, Russian Federal Register, ANVISA of Brazil, etc.), in addition to the 93/42/EEC and IEC60601 safety standards. In all of this our R&D department is key, in which we invest 10% of our profits annually.
WARRANTY
* We provide a standard 1 year warranty, optional to be increased. 1% free parts of the total quantity will be provided together with goods.
* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.
* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
FAQ
What quality requirements does your company meet?
* We have over 20 certifications, as ISO-9001/13485/14001/18001, European CE, North American FDA, Russian Federal Registration and Brazilian Health Regulatory Agency.
* We also meet the 93/42/EEC and IEC60601 safety standards.
* In addition to having 126 patents registered, we are constantly developing and implementing new standards for product quality and service efficiency.
What warranty do your products have?
* We provide a standard 1 year warranty, optional to be increased.
* 1% free parts of the total quantity will be provided together with goods.
* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.
* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
What is your delivery time?
* Our standard delivery time is 28 days.
What payment options do you offer?
* We are flexible in terms of payment. We can do LC, TT, DP, even credit, after auditing the customer.
Do you offer OEM service?
* Yes, we have a qualified R&D team to carry out customized projects. You just need to provide us with your own specifications.
Do you have different motor options?
* Yes, we have different brands of motors, as Linak, Timotion, Dewert or Jiechang.
Is the color on headboard/footboard and ABS side rail optional?
* Yes, we can provide the color according to customers’ requirements, based on wholesale purchases.
Can I see your products personally?
* You are welcome to our 2,000 m2 of showrooms in our factory in China (150 km from Shanghai).
* In addition, we annually attend numerous international exhibitions where we present our products, such as Arab Health (United Arab Emirates), North Africa Health (Egypt), CMEF (Shanghai), German Medica (Germany), Medic West Africa (Nigeria), Medic East Africa (Kenya), Pharmedi (Vietnam), Hospitalar (Brazil), Medical Expo (Morocco), etc.
