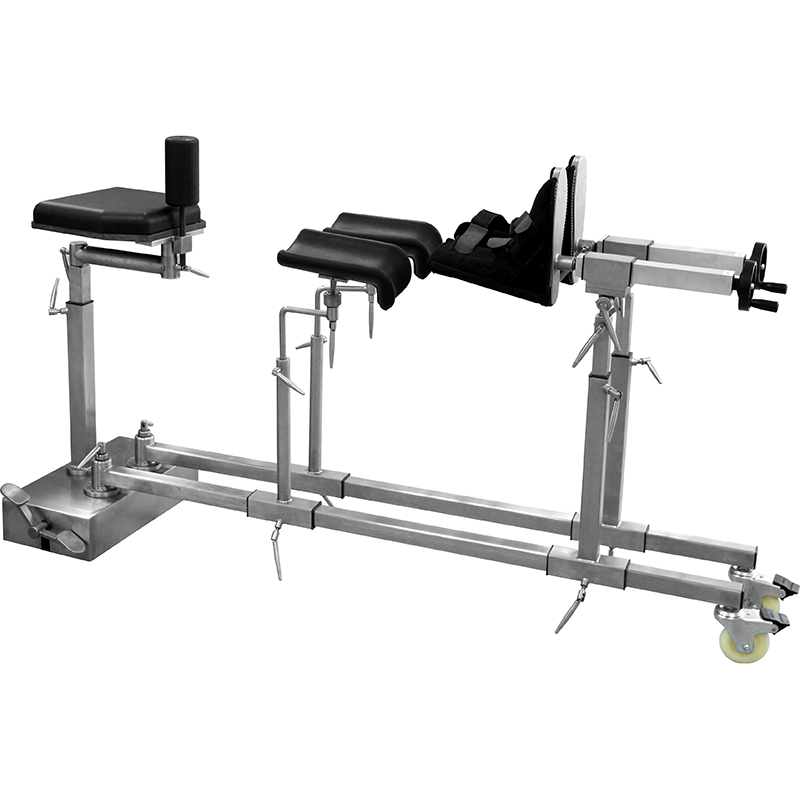

A03 Multi-Functional Orthopedic Frame

Introduction:

Send email to us Download as PDF

Highlights

Features

Quality Control

Warranty

Download

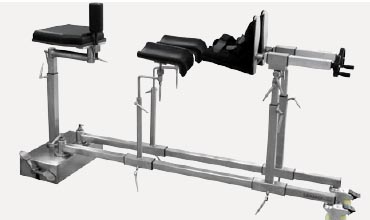

Structural design

The main structure is made of high quality stainless steel, which is durable.

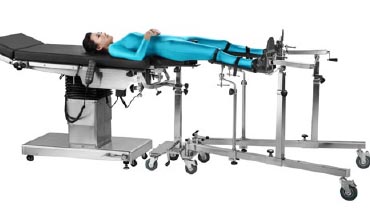

Application

During the operation, using the traction frame can make the patient easily achieve a good reduction effect, which obviously helps the operation progress of the operation.

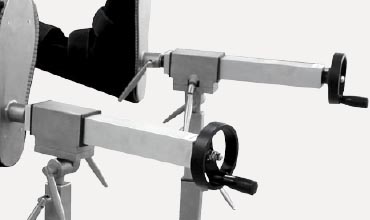

Tow bar

The tow bar can change the angle greatly. It has a telescopic design. In addition to the 360 ° rotation of the fixed ankle, it can also be removed and replaced with other accessories.

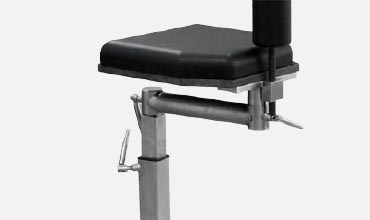

Lifting column

The pelvic frame on the lifting column can also be connected to the side lying or articulated frame, which can adapt to people of different body types.

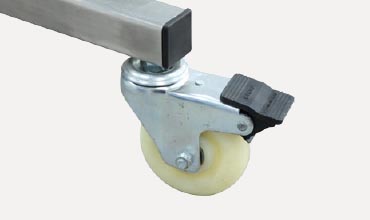

Castor

Industrial casters, foot pedal brakes, easy to move, simple to operate, reliable performance.

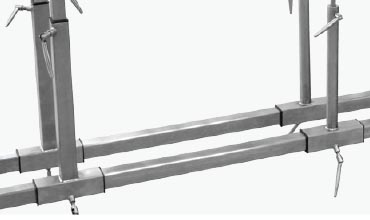

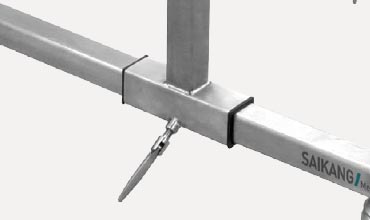

Sleeve tube

Long sleeve tube with adhesive strips inside, more stability.

Foot support

With scales on the foot support, makes the adjustment more intuitive.

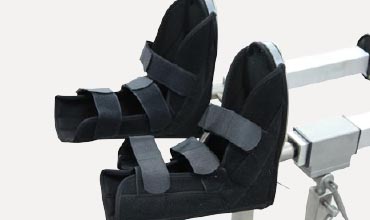

Shoe cover

The shoe cover is easy to bind and can adapt to different sizes of feet.

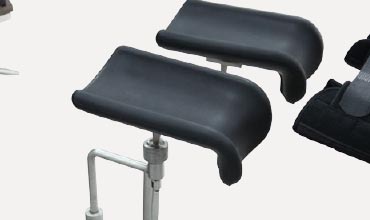

Leg support

Polyurethane integrated leg support, easy to sterilize and durable.

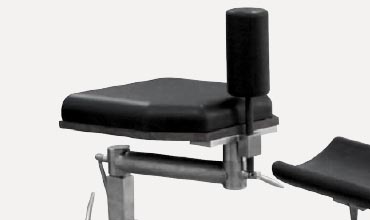

Cushion

The cushion is wide and comfortable with large adjustment range, carbon fiber gear lever with good X-ray transparency.

Previous: p-12 oxygen inhaler (all metal)

Next: A04 Multi-Functional Orthopedic Frame

Technical parameters

External Length	1700-1900 mm
External Width	480 mm
Table Height Min.	770 mm
Table Height Max.	1020 mm
Traction stroke	≥200 mm
External Length	1700-1900 mm

We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate 126 registered technological patents and fulfill more than 20 quality certifications (ISO-9001/13485/14001/18001, European CE, FDA of the USA, Russian Federal Register, ANVISA of Brazil, etc.), in addition to the 93/42/EEC and IEC60601 safety standards. In all of this our R&D department is key, in which we invest 10% of our profits annually.

WARRANTY

* We provide a standard 1 year warranty, optional to be increased. 1% free parts of the total quantity will be provided together with goods.

* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.

* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.

FAQ

What quality requirements does your company meet?

* We have over 20 certifications, as ISO-9001/13485/14001/18001, European CE, North American FDA, Russian Federal Registration and Brazilian Health Regulatory Agency.

* We also meet the 93/42/EEC and IEC60601 safety standards.

* In addition to having 126 patents registered, we are constantly developing and implementing new standards for product quality and service efficiency.

What warranty do your products have?

* We provide a standard 1 year warranty, optional to be increased.

* 1% free parts of the total quantity will be provided together with goods.

* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.

* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.

What is your delivery time?

* Our standard delivery time is 28 days.

What payment options do you offer?

* We are flexible in terms of payment. We can do LC, TT, DP, even credit, after auditing the customer.

Do you offer OEM service?

* Yes, we have a qualified R&D team to carry out customized projects. You just need to provide us with your own specifications.

Do you have different motor options?

* Yes, we have different brands of motors, as Linak, Timotion, Dewert or Jiechang.

Is the color on headboard/footboard and ABS side rail optional?

* Yes, we can provide the color according to customers’ requirements, based on wholesale purchases.

Can I see your products personally?

* You are welcome to our 2,000 m2 of showrooms in our factory in China (150 km from Shanghai).

* In addition, we annually attend numerous international exhibitions where we present our products, such as Arab Health (United Arab Emirates), North Africa Health (Egypt), CMEF (Shanghai), German Medica (Germany), Medic West Africa (Nigeria), Medic East Africa (Kenya), Pharmedi (Vietnam), Hospitalar (Brazil), Medical Expo (Morocco), etc.
